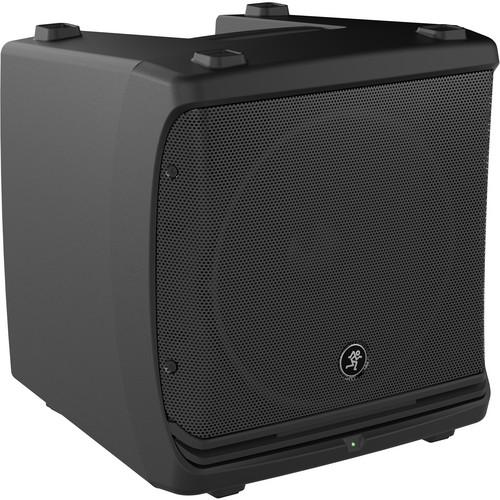

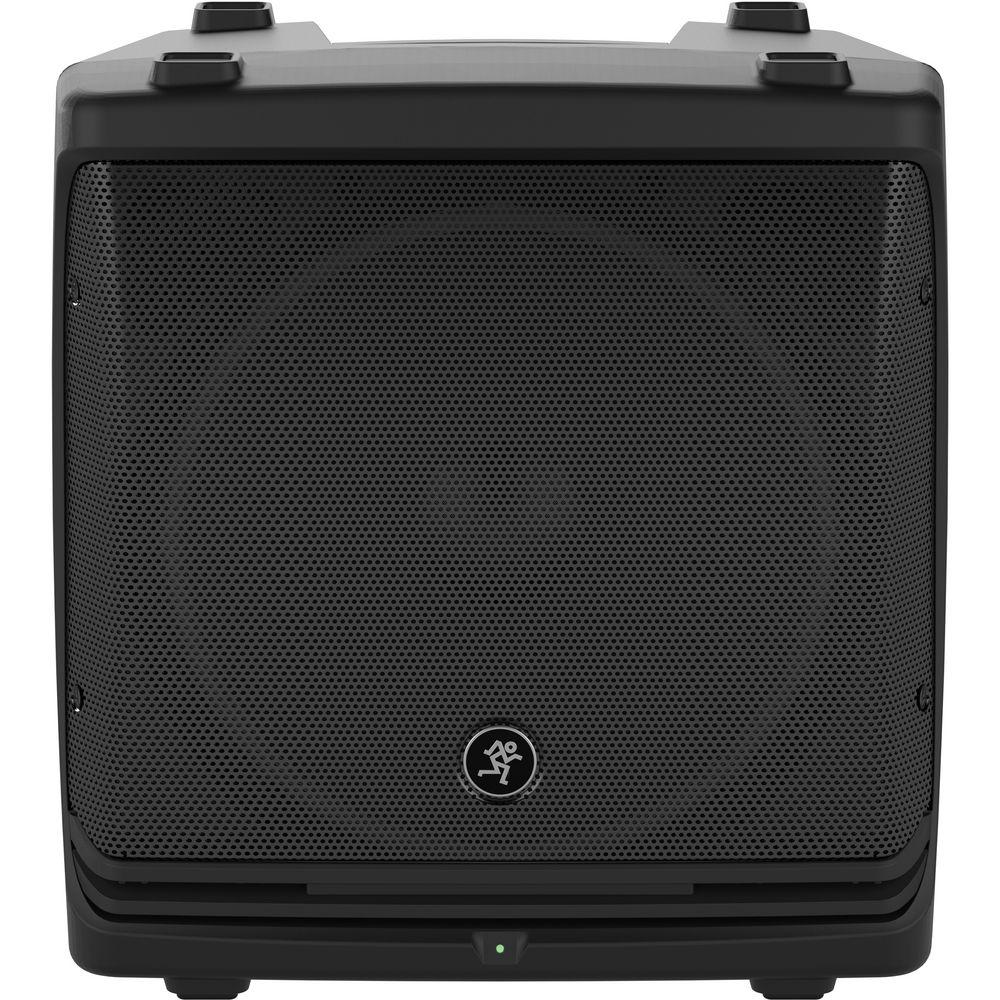

Product description The Mackie DLM12 Full-Range 12" Powered Loudspeaker delivers 1,000 watts of program power and 2,000 watts of peak power in a compact, portable design. It features TruSource driver technology, incorporating a 12" low-frequency driver and a 1.75" compression driver into a common-magnet design. The TruSource DSP delivers clarity, consistent dispersion and high fidelity sound.
The DLM12 features an integrated DL2 digital mixer, a 2-channel mixer with a versatile connection options. It also includes 3-band EQ, 16 effects presets, feedback destroyer, 6 speaker modes, and Smart Protect technology.

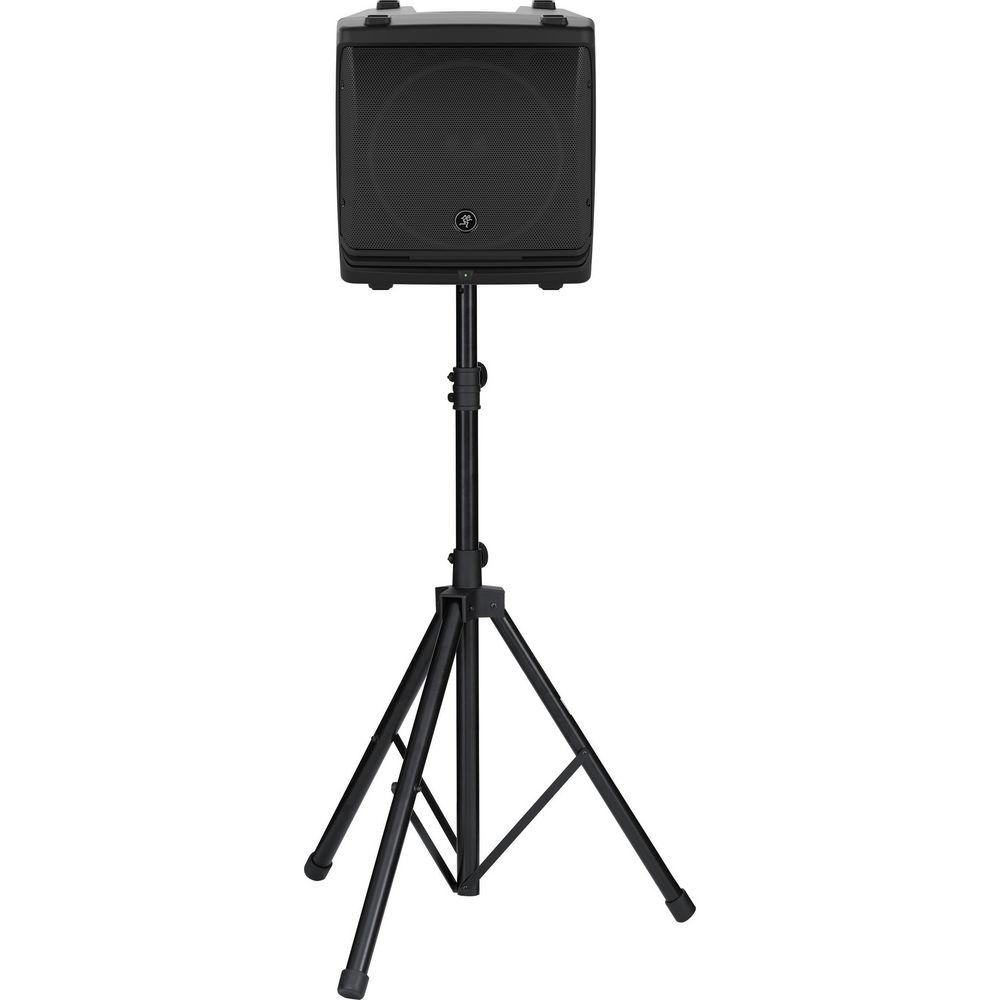

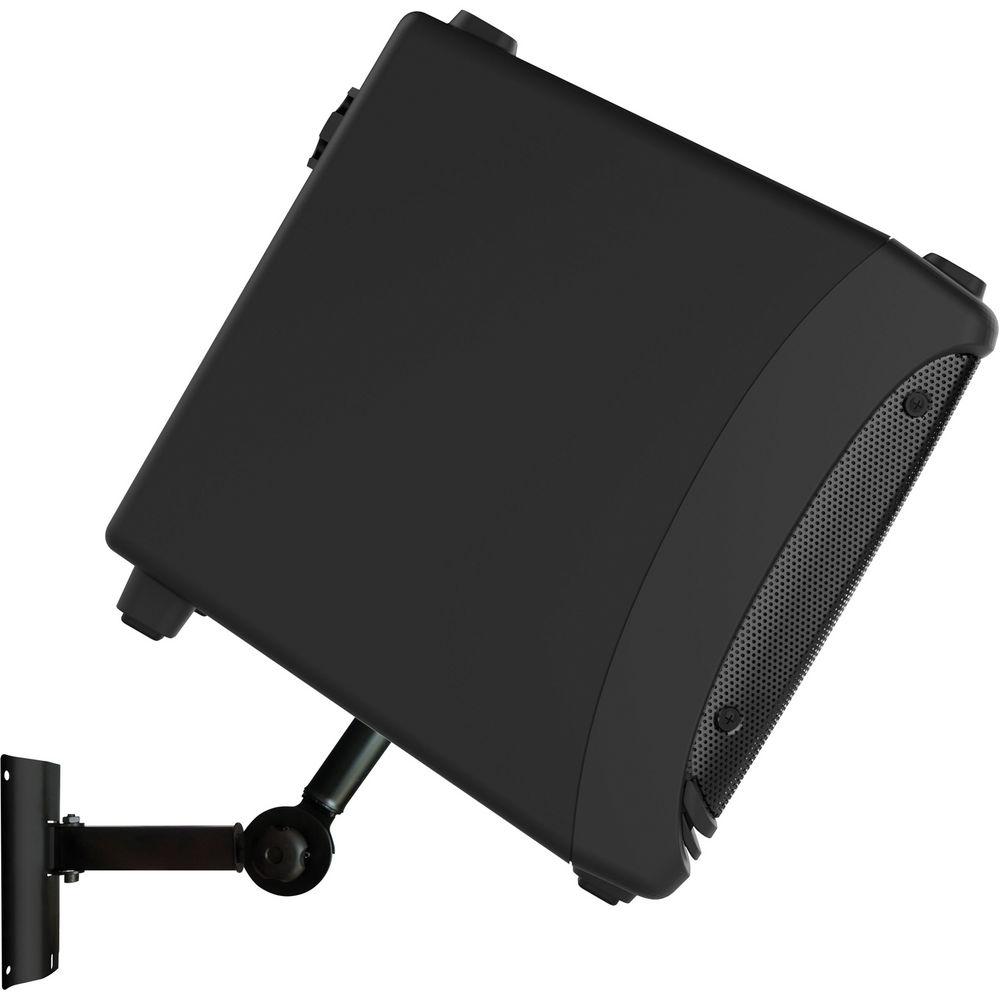

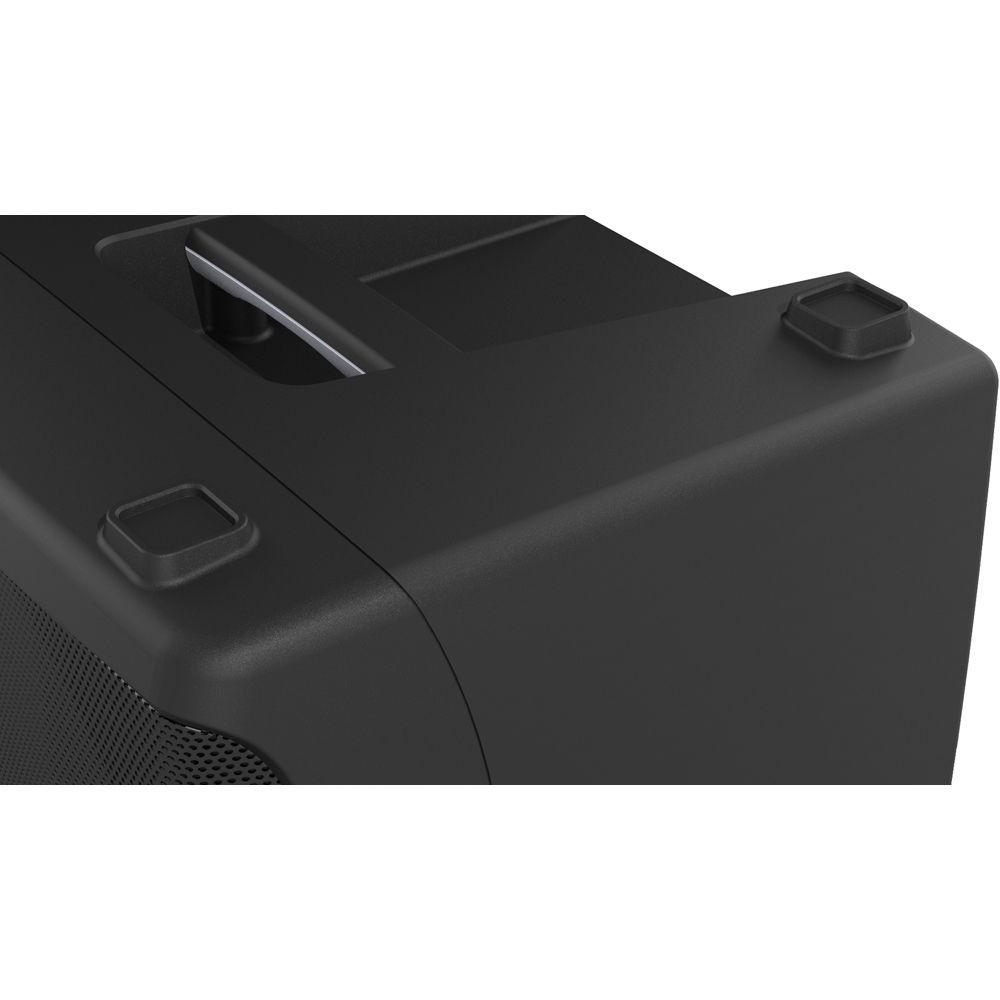

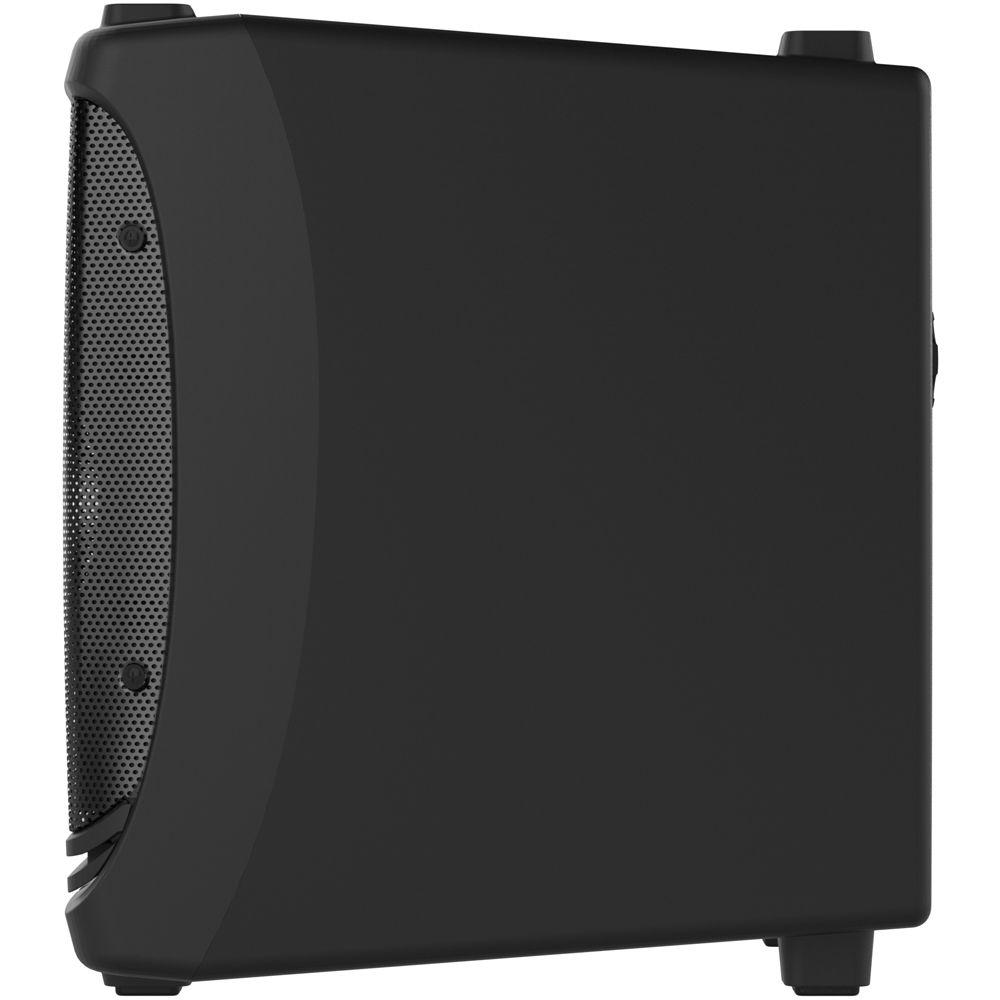

The DLM12 can be pole or wall mounted. An integrated kickstand allows use as a wedge-style monitor. M10 mounting points allow it to be used in fly installs as well. - DL2 Integrated Digital Mixer

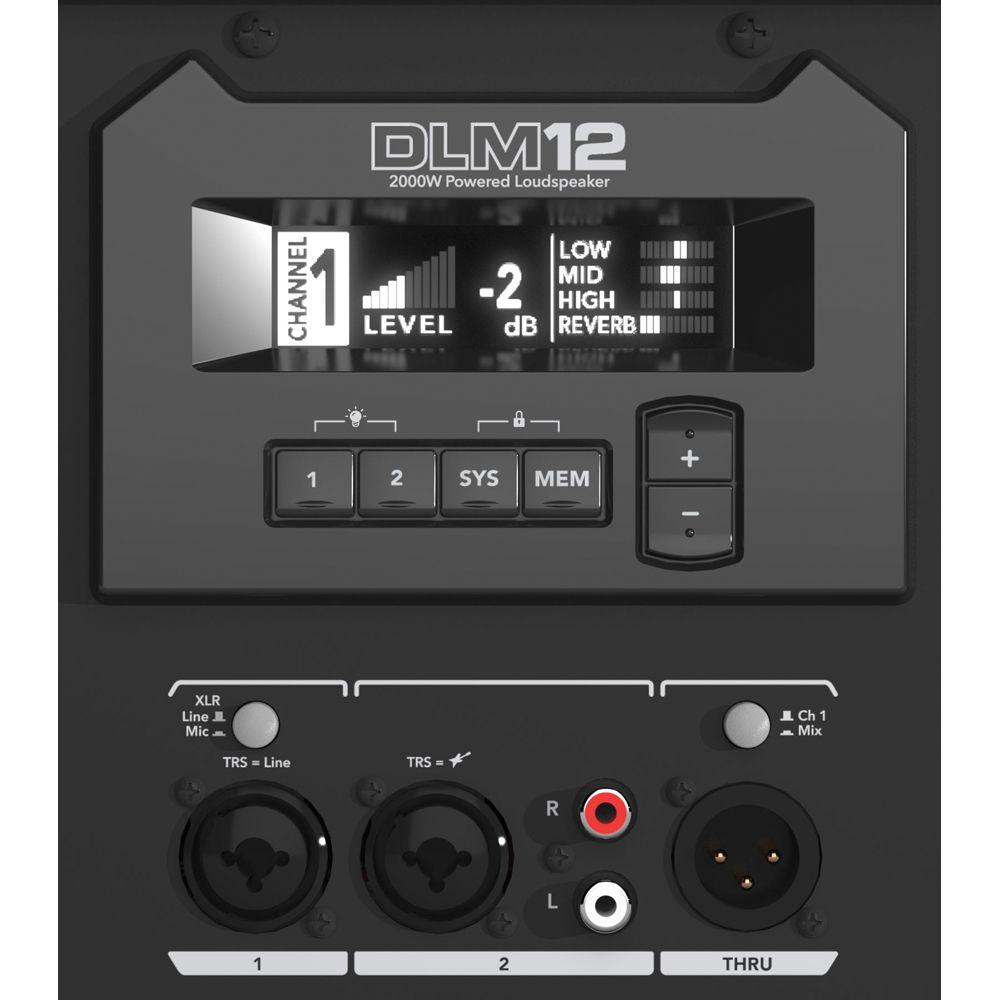

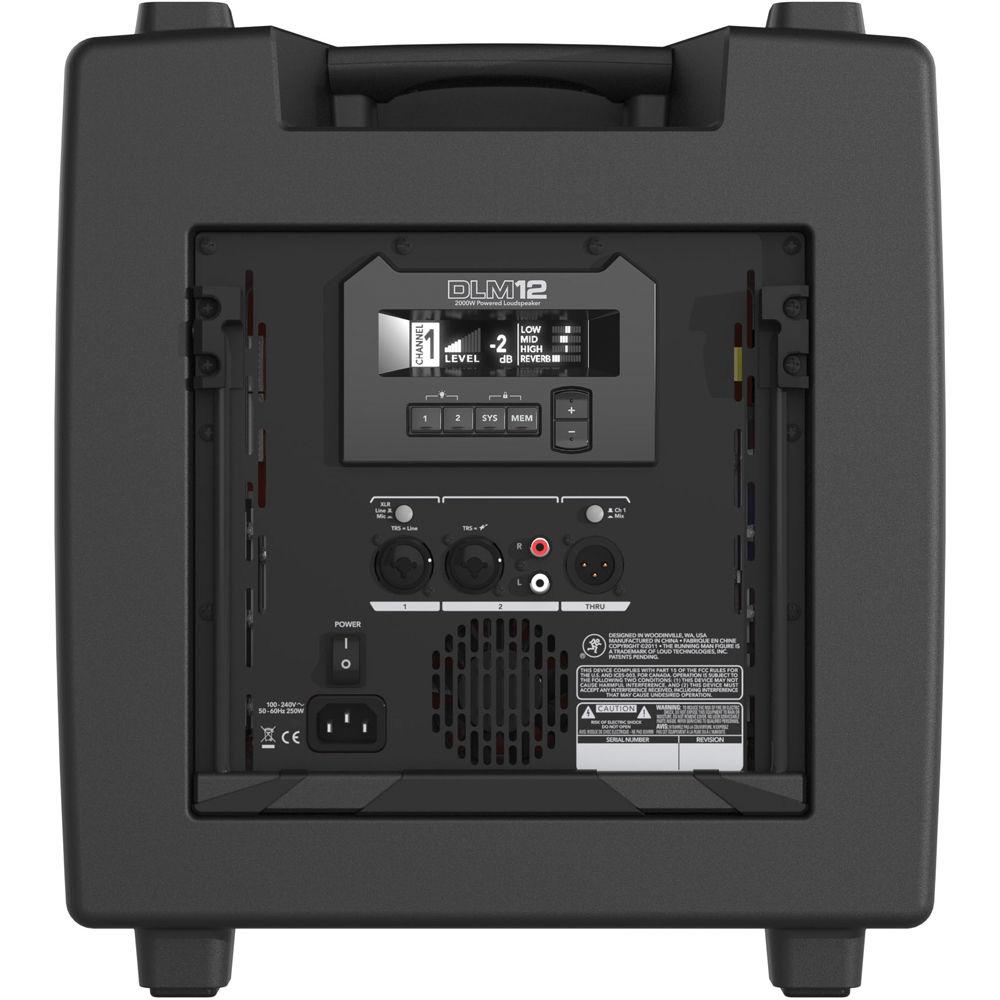

- The DLM12 features the powerful, one-touch DL2 digital mixer. It has a bright OLED screen and two versatile input channels with effects. It handles mic, line and Hi-Z instrument signals on XLR, 1/4" TRS and RCA connectors. Each channel has independent controls for level, 3-band EQ and effects. Sixteen channel effect presets are available, including reverb, chorus and delay.
- System Control Audio Tools
-
- Multi-band feedback destroyer
- Six speaker modes let you select the right voicing for your application
- Alignment delay up to 300mS for delay stack, balcony, etc
- Three memory locations for instant venue setting recall
- Smart Protect DSP dynamically protects the amplifiers and drivers
UPC: 663961036282 In the Box Mackie DLM12 Full-Range 12" Powered Loudspeaker Limited 3-Year Warranty for Electronics Limited 2-Year for Drivers User Manual PDF 5.2mbszftwuzdxucf Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie DLM12 Full-Range 12" Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie DLM12 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1000 W RMS
2000 W Peak | | Amplifier Power Rating | LF:
500 W RMS
1000 W Peak
HF:
500 W RMS
1000 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.75" / 44 mm Polyimide Compression Driver with 1" / 25 mm Throat | | LF Driver | 1 x 12" / 305 mm Woofer | | LF Voice Coil | 2.5" / 64 mm | | Magnet | HF:
Ferrite
LF:
Ferrite | | | | Frequency Response | 38 Hz to 20 kHz -10 dB | | Maximum SPL | 128 dB | | Coverage Angle | 90° H x 90° V | | I/O Impedance | Mic Input:
3.3 kOhms (Balanced)
Line Input:
20 kOhms (Balanced)
10 kOhms (Unbalanced)
1/4"Input:
16 kOhms (Balanced)
8 kOhms (Unbalanced)
XLR Line Input:
20 kOhms (Balanced)
10 kOhms (Unbalanced)
Hi-Z Input:
1 MOhms (Unbalanced)
RCAInput:
25 kOhms (Unbalanced) | | THD | <1% | | | | Audio I/O | 1 x Combo XLR / 1/4" TRS Line/Mic Input
1 x Combo XLR / 1/4" TRS Mic Input
1 x Stereo RCA Input
1 x XLR Thru/Output | | | | Crossover | 1.6 kHz | | EQ | LF Shelf:
±15 dB at 80 Hz
MF Notch/Peak:
±15 dB at 2.5 kHz
HF Shelf:
±15 dB at 12 kHz | | Alignment Delay | 0 to 300 ms | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC | | Power Consumption | 250 W | | | | Mounting | 1 x Pole Socket
3 x M10 | | Handles | 1 x Top | | Cooling | Fan (Variable Speed) | | Construction Material | ABS, Metal Grille | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 15.9 x 15.3 x 14.3" / 403.0 x 389.0 x 363.0 mm | | Weight | 31 lb / 14.1 kg | | | | Package Weight | 37.0 lb | | Box Dimensions (LxWxH) | 20.0 x 20.0 x 19.5" |
