User Manual for Mackie DLM12S Powered 12" Subwoofer Click to enlarge the picture
Contents of the user manual for the Mackie DLM12S Powered 12" Subwoofer
- Product category: PA Speakers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie PA Speakers
 |
User manual for the Mackie DLM12S Powered 12" Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|

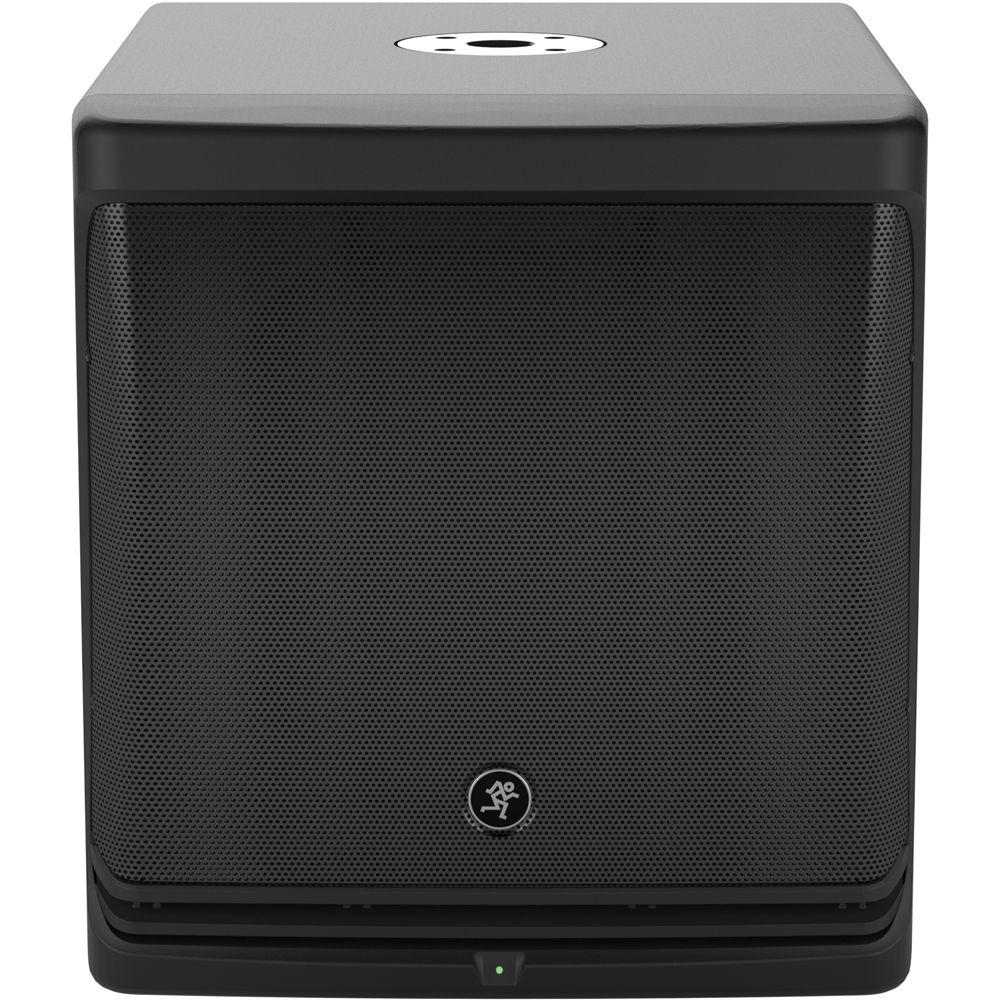

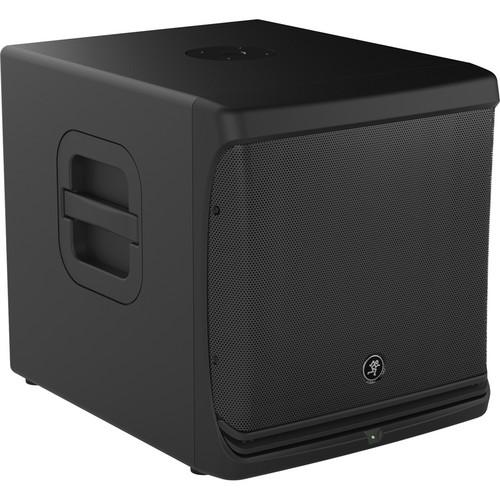

Product description The Mackie DLM12S Powered 12" Subwoofer packs a great deal of power for a compact subwoofer. It delivers up to 1,000W program and 2,000W peak power into a heat-treated 12" woofer with a 3" voice coil. Its frequency response extends down to 35Hz, with a variable low-pass crossover from 90 to 135Hz.

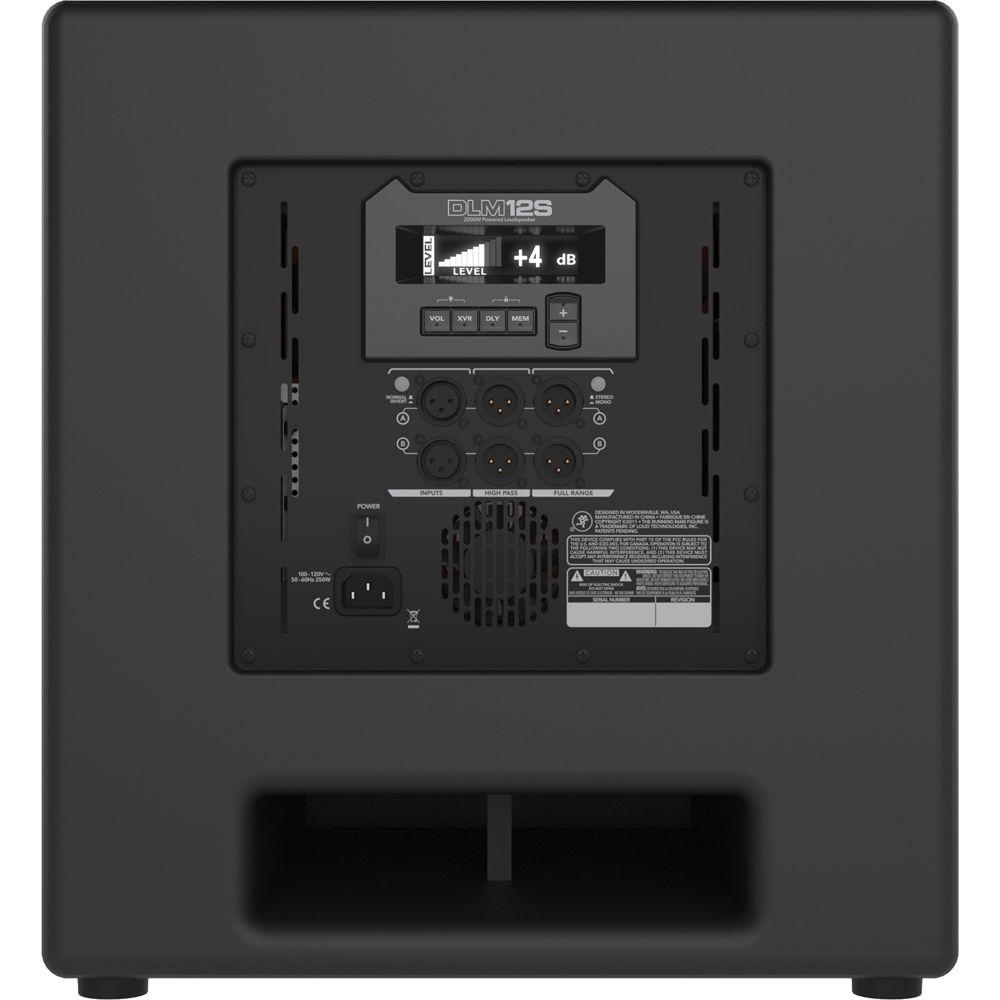

The connection panel of the DLM12S features left and right XLR balanced inputs as well as a set of full-range outputs and a set of high-pass outputs. The construction of the DLM12S includes a pole-mount cup for a Mackie DLM8 or DLM12 full-range speaker. - DLP Digital Processor

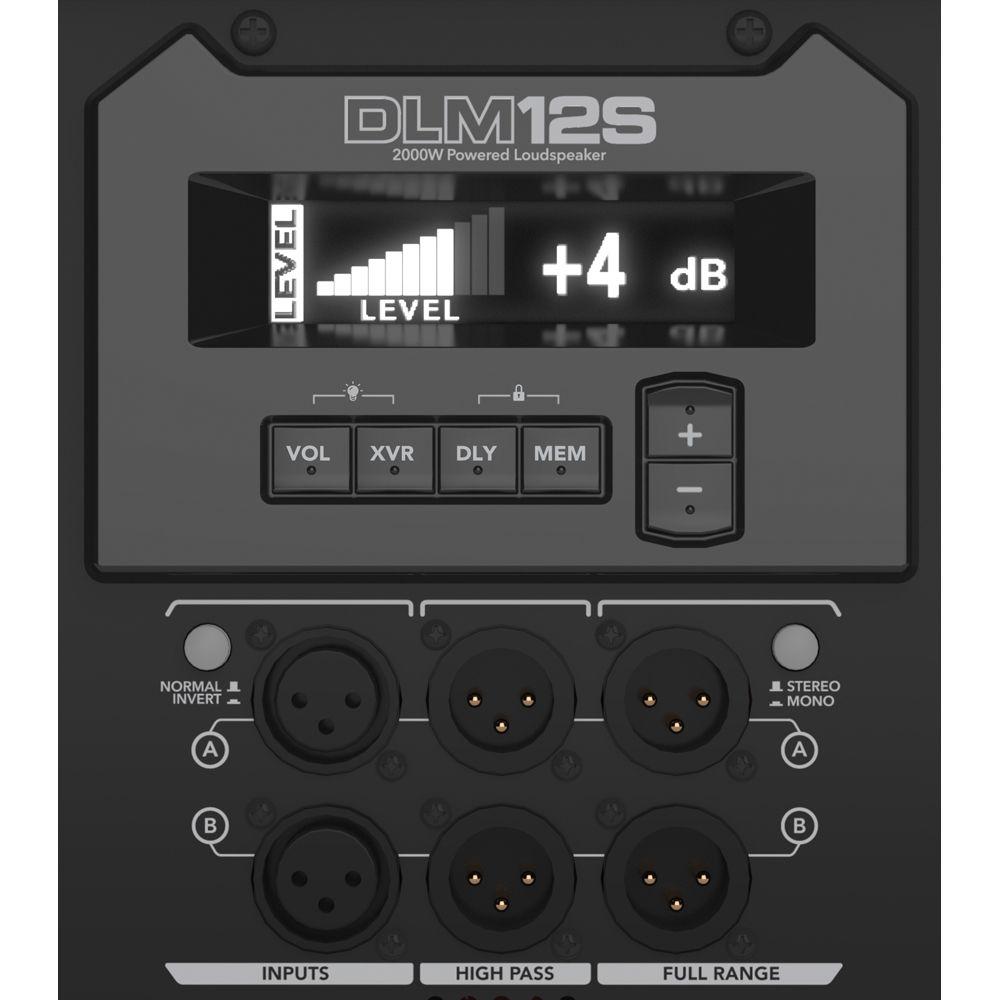

- Powerful, one-touch digital processor with bright OLED screen
- System Control Audio Tools
-
- Alignment delay up to 300mS for delay stack, balcony, etc
- Three memory locations for instant venue setting recall
- Smart Protect DSP protects the amplifier and driver
UPC: 663961036305 In the Box Mackie DLM12S Powered 12" Subwoofer Limited 3-Year Warranty for Electronics Limited 2-Year for Drivers User Manual PDF 3.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie DLM12S Powered 12" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie DLM12S Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 1000 W RMS
2000 W Peak | | Amplifier Class | Class-D | | | | LF Driver | 1 x 12" / 305 mm Woofer | | LF Voice Coil | 3" / 76 mm | | Magnet | Ferrite | | | | Frequency Response | 35 Hz to 135 Hz -10 dB | | Maximum SPL | 128 dB | | I/O Impedance | Input:
20 kOhms (Balanced)
10 kOhms (Unbalanced) | | THD | <1% | | | | Audio I/O | 2 x XLR Balanced Input
2 x XLR Balanced Output
2 x XLR Balanced High-Pass Output | | | | Crossover | 60 to 120 Hz | | Alignment Delay | 0 to 300 ms | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz

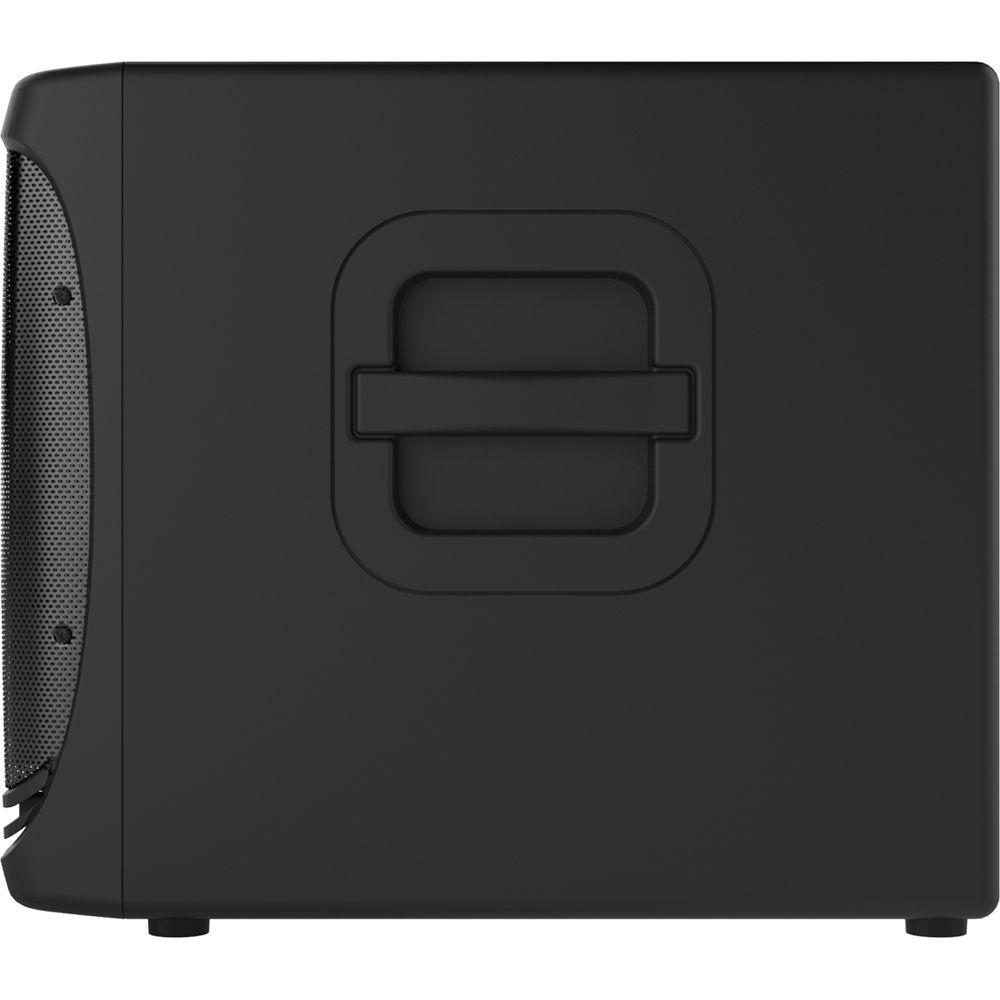

220 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC | | Power Consumption | 250 W | | | | Handles | 2 x Side | | Cooling | Fan (Variable Speed) | | Construction Material | Metal Grille, Wood | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 17.9 x 16.4 x 20.8" / 455.0 x 417.0 x 529.0 mm | | Weight | 48 lb / 21.7 kg | | | | Package Weight | 62.5 lb | | Box Dimensions (LxWxH) | 27.5 x 23.5 x 23.0" |
