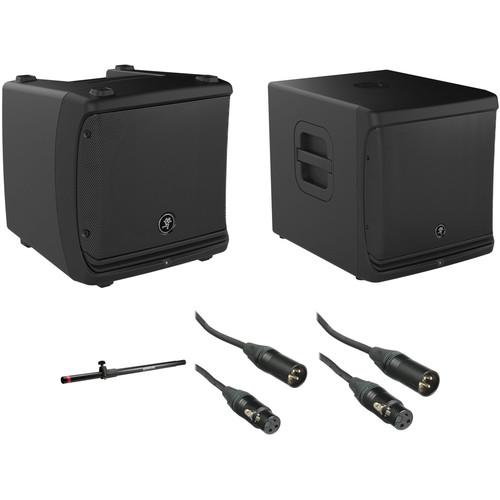

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Mackie DLM8 Complete Speaker Kit from B&H includes a full range 8" powered loudspeaker, a 12" powered subwoofer, speaker mounting pole and 2 cables. Each speaker is rated at 2000W peak power each. This kit also features a SPM200 speaker pole mounting solution. The pole allows you to mount the DLM8 satellite speaker on top of the subwoofer. The kit also includes two XLR male to female microphone cables to connect the speakers. - Mackie DLM8 Full-Range 8" Powered Loudspeaker The Mackie DLM8 Full-Range 8" Powered Loudspeaker delivers 1,000 watts of program power and 2,000 watts of peak power in a compact, portable design. It features TruSource driver technology, incorporating an 8" low-frequency driver and a 1.75" compression driver into a common-magnet design. The TruSource DSP delivers clarity, consistent dispersion and high fidelity sound.
The DLM8 features an integrated DL2 digital mixer, a 2-channel mixer with a versatile connection options. It also includes 3-band EQ, 16 effects presets, feedback destroyer, 6 speaker modes, and Smart Protect technology.
The DLM8 can be pole or wall mounted. An integrated kickstand allows use as a wedge-style monitor. M10 mounting points allow it to be used in fly installs as well. - DL2 Integrated Digital Mixer
- The DLM8 features the powerful, one-touch DL2 digital mixer. It has a bright OLED screen and two versatile input channels with effects. It handles mic, line and Hi-Z instrument signals on XLR, 1/4" TRS and RCA connectors. Each channel has independent controls for level, 3-band EQ and effects. Sixteen channel effect presets are available, including reverb, chorus and delay.
- System Control Audio Tools
-
- Multi-band feedback destroyer
- Six speaker modes let you select the right voicing for your application
- Alignment delay up to 300ms for delay stack, balcony, etc
- Three memory locations for instant venue setting recall
- Smart Protect DSP dynamically protects the amplifiers and drivers
UPC: 663961036251 - Mackie DLM12S Powered 12" Subwoofer The Mackie DLM12S Powered 12" Subwoofer packs a great deal of power for a compact subwoofer. It delivers up to 1,000W program and 2,000W peak power into a heat-treated 12" woofer with a 3" voice coil. Its frequency response extends down to 35Hz, with a variable low-pass crossover from 90 to 135Hz.
The connection panel of the DLM12S features left and right XLR balanced inputs as well as a set of full-range outputs and a set of high-pass outputs. The construction of the DLM12S includes a pole-mount cup for a Mackie DLM8 or DLM12 full-range speaker. - DLP Digital Processor
- Powerful, one-touch digital processor with bright OLED screen
- System Control Audio Tools
-
- Alignment delay up to 300mS for delay stack, balcony, etc
- Three memory locations for instant venue setting recall
- Smart Protect DSP protects the amplifier and driver
UPC: 663961036305 - Mackie SPM200 Speaker Mounting Pole The Mackie SPM200 Speaker Mounting Pole is an ideal satellite speaker mounting solution for third-party and Mackie SRM450 and SWA 1501 loud speakers. The pole features variable height adjustment between 33 and 53", and a maximum load capacity of 110 lb (50 kg). UPC: 663961030778
- Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (15') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558281 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 In the Box - DLM8 Full-Range 8" Powered Loudspeaker rzuzewustrzqwqxtysccxcre
- Limited 3-Year Warranty for Electronics
- Limited 2-Year for Drivers
- DLM12S Powered 12" Subwoofer
- SPM200 Speaker Mounting Pole
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie DLM8 Complete Speaker Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mackie DLM8 Full-Range 8" Powered Loudspeaker
| | | Configuration | Active Full-Range | | Total Power Capacity | 1000 W RMS
2000 W Peak | | Amplifier Power Rating | LF:
500 W RMS
1000 W Peak
HF:
500 W RMS
1000 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.75" / 44 mm Polyimide Compression Driver with 1" / 25 mm Throat | | LF Driver | 1 x 8" / 203 mm Woofer | | LF Voice Coil | 2" / 51 mm | | Magnet | HF:
Ferrite
LF:
Ferrite | | | | Frequency Response | 65 Hz to 20 kHz -10 dB | | Maximum SPL | 125 dB | | Coverage Angle | 90° H x 90° V | | I/O Impedance | Mic Input:
3.3 kOhms (Balanced)
Line Input:
20 kOhms (Balanced)
10 kOhms (Unbalanced)
1/4"Input:
16 kOhms (Balanced)
8 kOhms (Unbalanced)
XLR Line Input:
20 kOhms (Balanced)
10 kOhms (Unbalanced)
Hi-Z Input:
1 MOhms (Unbalanced)
RCAInput:
25 kOhms (Unbalanced) | | THD | <1% | | | | Audio I/O | 1 x Combo XLR / 1/4" TRS Line/Mic Input
1 x Combo XLR / 1/4" TRS Mic Input
1 x Stereo RCA Input
1 x XLR Thru/Output | | | | Crossover | 1.6 kHz | | EQ | LF Shelf:
±15 dB at 80 Hz
MF Notch/Peak:
±15 dB at 2.5 kHz
HF Shelf:
±15 dB at 12 kHz | | Alignment Delay | 0 to 300 ms | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC | | Power Consumption | 250 W | | | | Mounting | 1 x Pole Socket
3 x M10 | | Handles | 1 x Top | | Cooling | Fan (Variable Speed) | | Construction Material | ABS, Metal Grille | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 12.3 x 12.1 x 11.9" / 313.0 x 307.0 x 302.0 mm | | Weight | 22 lb / 10 kg | | | | Box Dimensions (LxWxH) | 16.5 x 16.0 x 16.0" | - Mackie DLM12S Powered 12" Subwoofer
| | | Configuration | Active Subwoofer | | Total Power Capacity | 1000 W RMS
2000 W Peak | | Amplifier Class | Class-D | | | | LF Driver | 1 x 12" / 305 mm Woofer | | LF Voice Coil | 3" / 76 mm | | Magnet | Ferrite | | | | Frequency Response | 35 Hz to 135 Hz -10 dB | | Maximum SPL | 128 dB | | I/O Impedance | Input:
20 kOhms (Balanced)
10 kOhms (Unbalanced) | | THD | <1% | | | | Audio I/O | 2 x XLR Balanced Input
2 x XLR Balanced Output
2 x XLR Balanced High-Pass Output | | | | Crossover | 60 to 120 Hz | | Alignment Delay | 0 to 300 ms | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC | | Power Consumption | 250 W | | | | Handles | 2 x Side | | Cooling | Fan (Variable Speed) | | Construction Material | Metal Grille, Wood | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 17.9 x 16.4 x 20.8" / 455.0 x 417.0 x 529.0 mm | | Weight | 48 lb / 21.7 kg | | | | Box Dimensions (LxWxH) | 27.5 x 23.5 x 23.0" | - Mackie SPM200 Speaker Mounting Pole
| Type | Subwoofer Pole | | Load Capacity | 110 lb / 50 kg | | Mount Size | 1-3/8" | | Weight | 3.2 lb / 1.2 kg | | | | Box Dimensions (LxWxH) | 32.5 x 4.2 x 2.5" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 15' / 4.6 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 5.8 x 2.9 x 1.3" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" |
