User Manual for Mackie DLM8 Full-Range 8" Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Mackie DLM8 Full-Range 8" Powered Loudspeaker
- Product category: PA Speakers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie PA Speakers
 |
User manual for the Mackie DLM8 Full-Range 8" Powered Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|

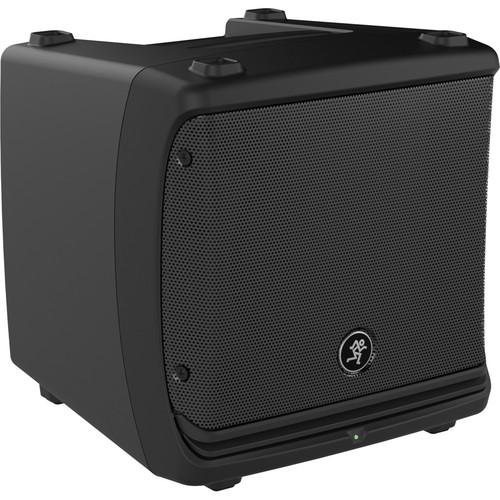

Product description The Mackie DLM8 Full-Range 8" Powered Loudspeaker delivers 1,000 watts of program power and 2,000 watts of peak power in a compact, portable design. It features TruSource driver technology, incorporating an 8" low-frequency driver and a 1.75" compression driver into a common-magnet design. The TruSource DSP delivers clarity, consistent dispersion and high fidelity sound.
The DLM8 features an integrated DL2 digital mixer, a 2-channel mixer with a versatile connection options. It also includes 3-band EQ, 16 effects presets, feedback destroyer, 6 speaker modes, and Smart Protect technology.

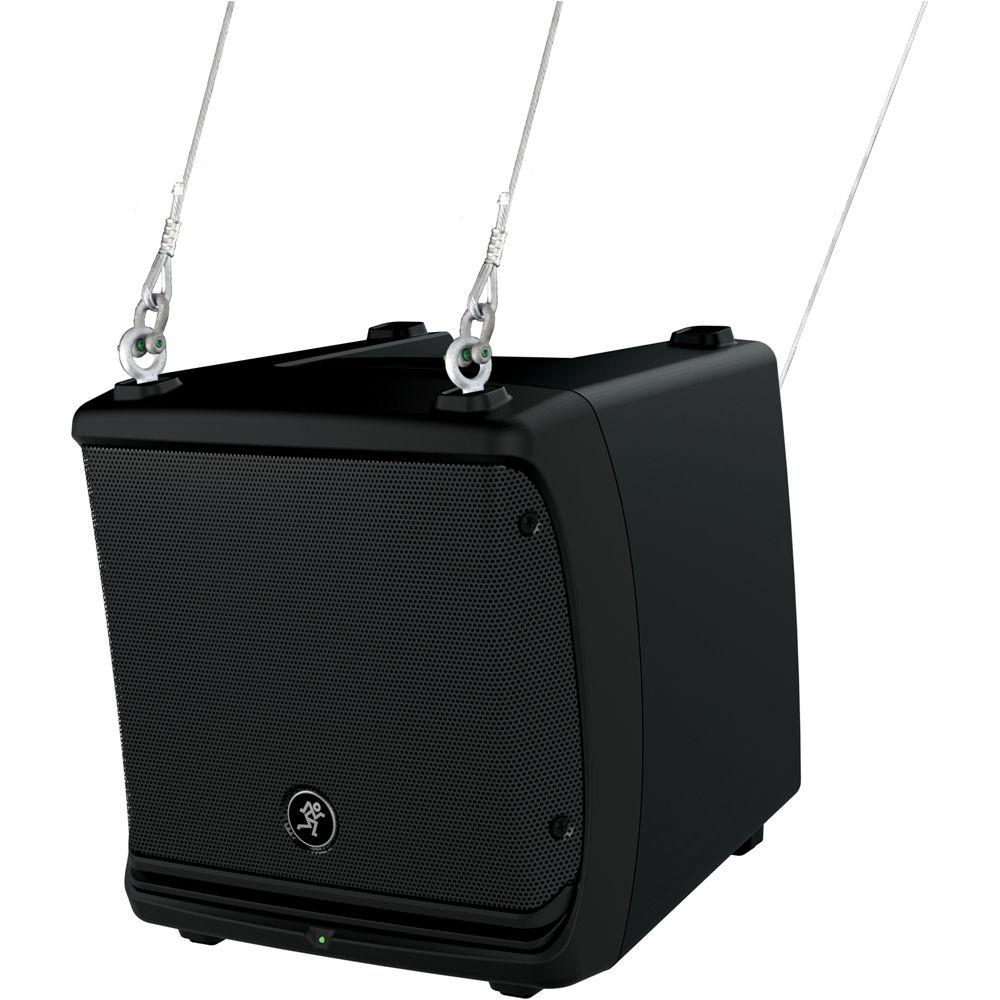

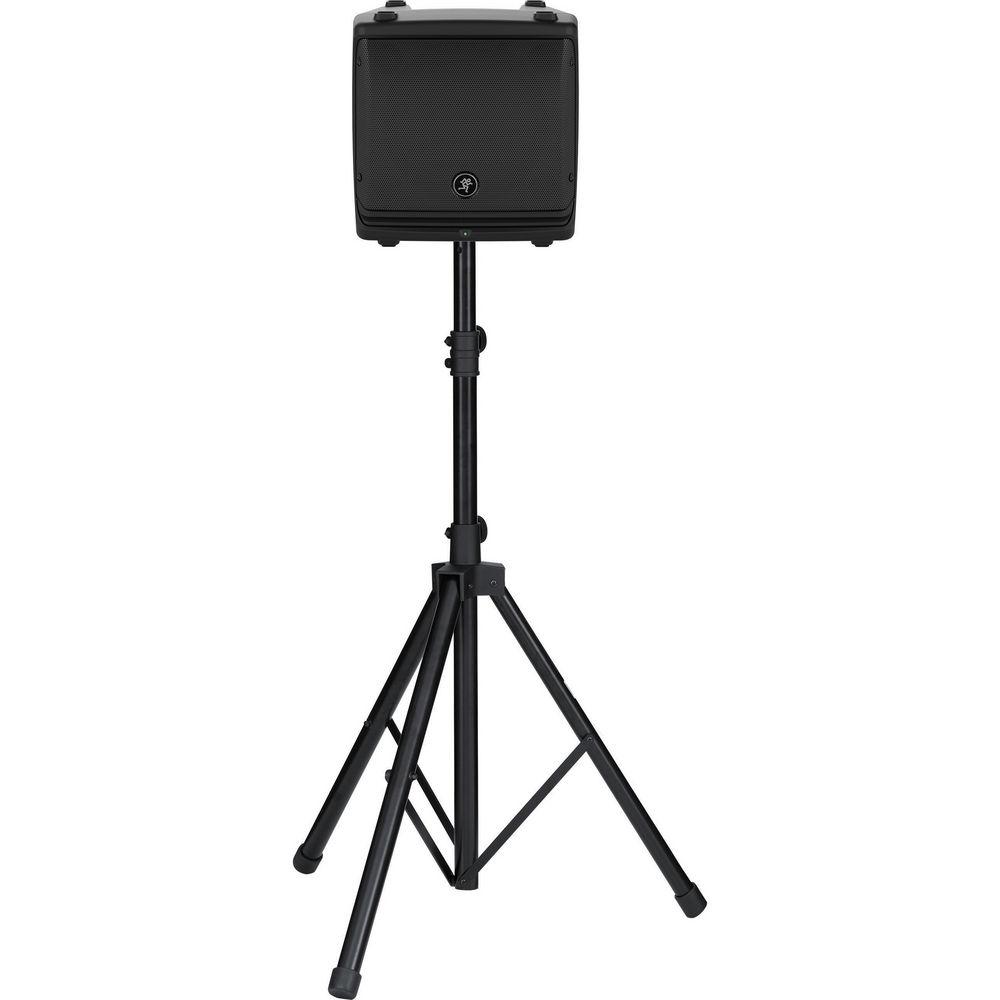

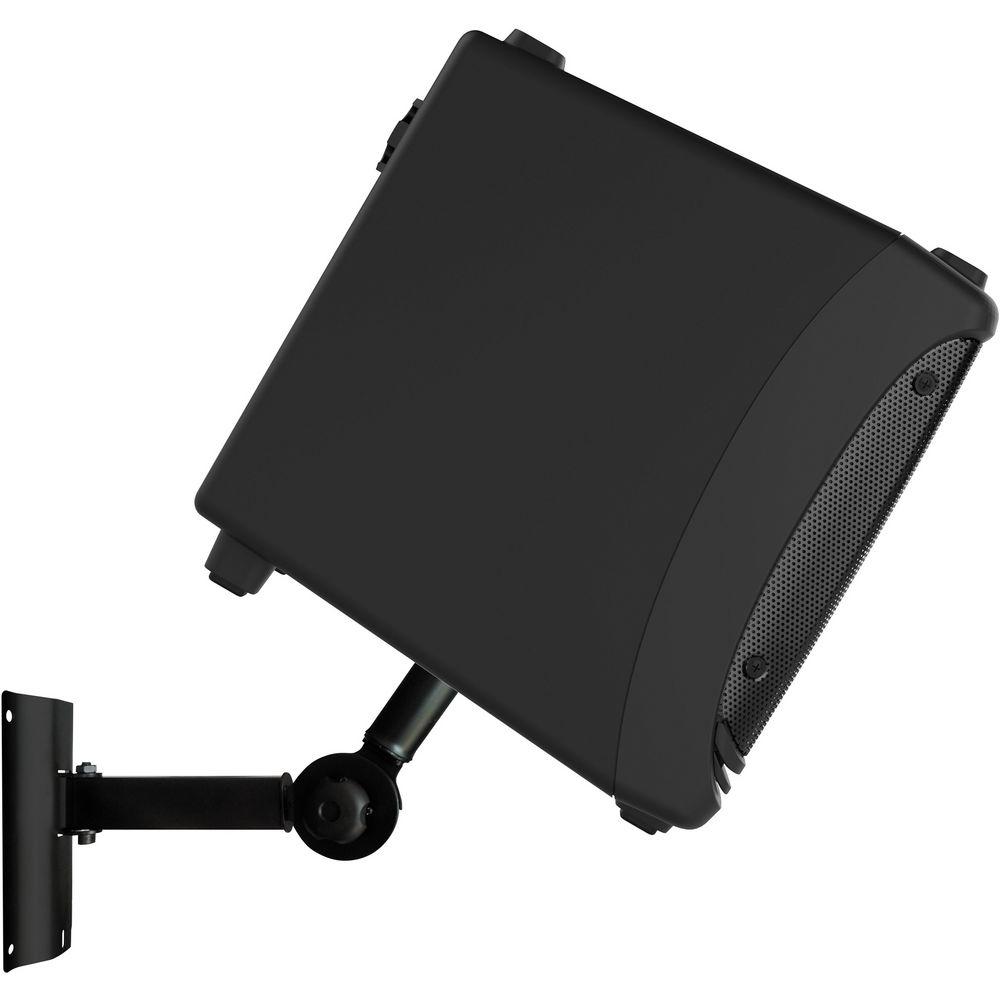

The DLM8 can be pole or wall mounted. An integrated kickstand allows use as a wedge-style monitor. M10 mounting points allow it to be used in fly installs as well. - DL2 Integrated Digital Mixer

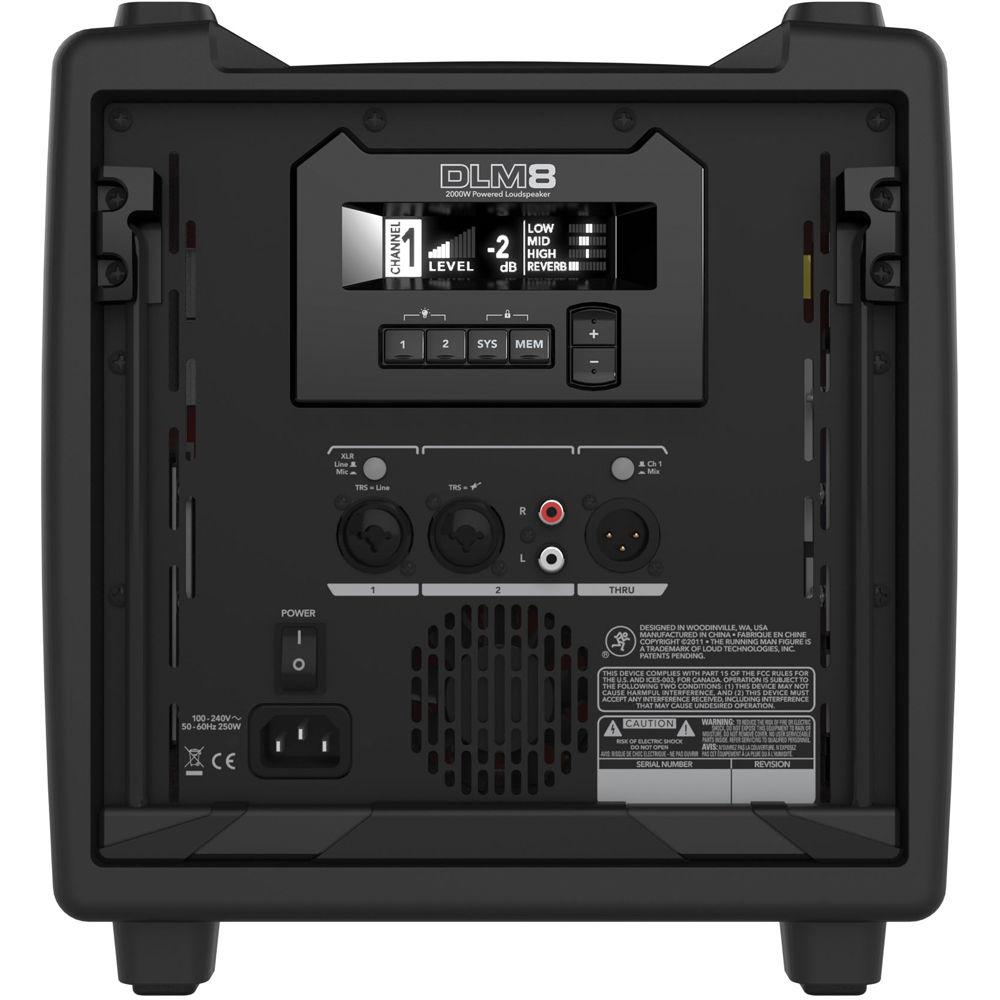

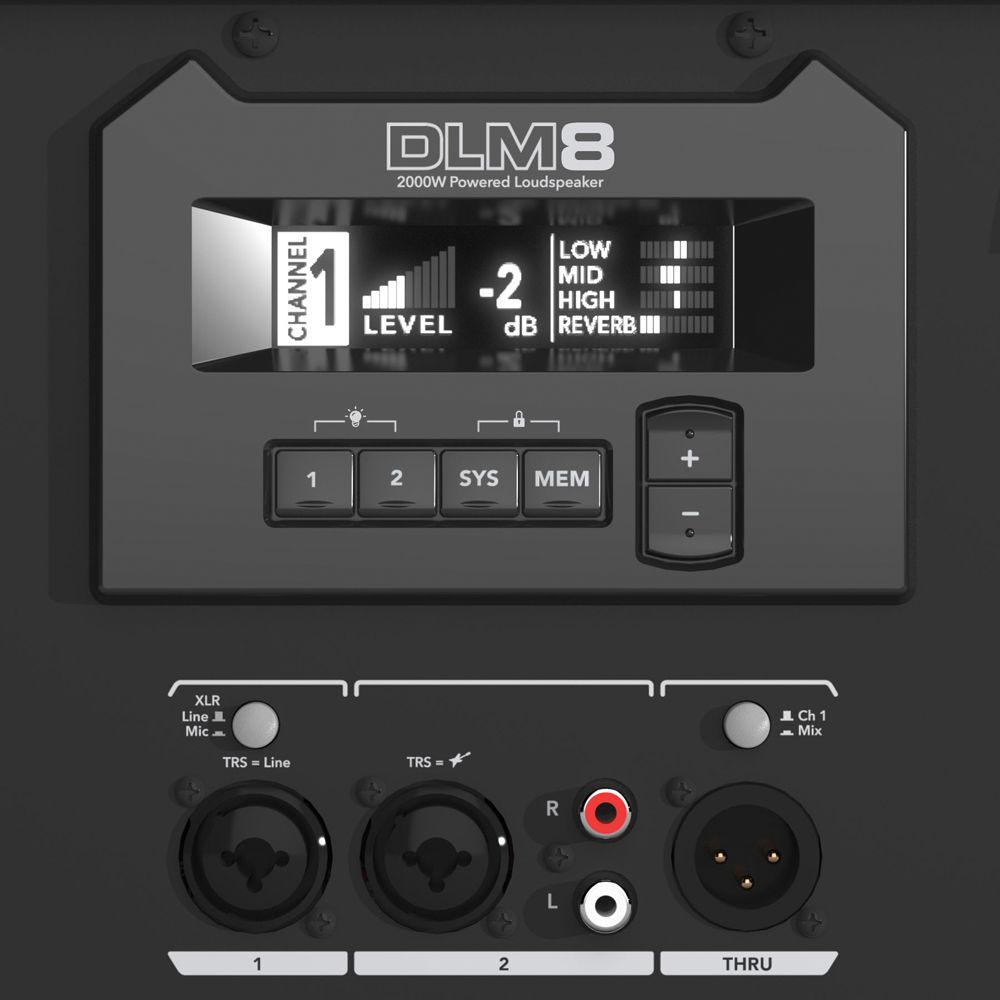

- The DLM8 features the powerful, one-touch DL2 digital mixer. It has a bright OLED screen and two versatile input channels with effects. It handles mic, line and Hi-Z instrument signals on XLR, 1/4" TRS and RCA connectors. Each channel has independent controls for level, 3-band EQ and effects. Sixteen channel effect presets are available, including reverb, chorus and delay.
- System Control Audio Tools
-
- Multi-band feedback destroyer
- Six speaker modes let you select the right voicing for your application
- Alignment delay up to 300ms for delay stack, balcony, etc
- Three memory locations for instant venue setting recall
- Smart Protect DSP dynamically protects the amplifiers and drivers
UPC: 663961036251 In the Box Mackie DLM8 Full-Range 8" Powered Loudspeaker Limited 3-Year Warranty for Electronics Limited 2-Year for Drivers User Manual PDF 5.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie DLM8 Full-Range 8" Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie DLM8 Specs | | | Configuration | Active Full-Range | | Total Power Capacity | 1000 W RMS
2000 W Peak | | Amplifier Power Rating | LF:
500 W RMS
1000 W Peak
HF:
500 W RMS
1000 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.75" / 44 mm Polyimide Compression Driver with 1" / 25 mm Throat | | LF Driver | 1 x 8" / 203 mm Woofer | | LF Voice Coil | 2" / 51 mm | | Magnet | HF:
Ferrite
LF:
Ferrite | | | | Frequency Response | 65 Hz to 20 kHz -10 dB | | Maximum SPL | 125 dB | | Coverage Angle | 90° H x 90° V | | I/O Impedance | Mic Input:
3.3 kOhms (Balanced)
Line Input:
20 kOhms (Balanced)
10 kOhms (Unbalanced)
1/4"Input:
16 kOhms (Balanced)
8 kOhms (Unbalanced)
XLR Line Input:
20 kOhms (Balanced)
10 kOhms (Unbalanced)
Hi-Z Input:
1 MOhms (Unbalanced)
RCAInput:
25 kOhms (Unbalanced) | | THD | <1% | | | | Audio I/O | 1 x Combo XLR / 1/4" TRS Line/Mic Input
1 x Combo XLR / 1/4" TRS Mic Input
1 x Stereo RCA Input
1 x XLR Thru/Output | | | | Crossover | 1.6 kHz | | EQ | LF Shelf:
±15 dB at 80 Hz
MF Notch/Peak:
±15 dB at 2.5 kHz
HF Shelf:
±15 dB at 12 kHz | | Alignment Delay | 0 to 300 ms | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC | | Power Consumption | 250 W | | | | Mounting | 1 x Pole Socket
3 x M10 | | Handles | 1 x Top | | Cooling | Fan (Variable Speed) | | Construction Material | ABS, Metal Grille | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 12.3 x 12.1 x 11.9" / 313.0 x 307.0 x 302.0 mm | | Weight | 22 lb / 10 kg | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 16.5 x 16.0 x 16.0" |
