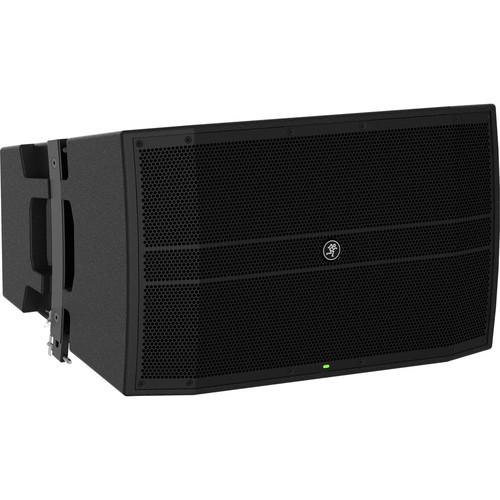

User Manual for Mackie DRM12A 2000W 12" Arrayable Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Mackie DRM12A 2000W 12" Arrayable Powered
- Product category: PA Speakers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie PA Speakers
 |
User manual for the Mackie DRM12A 2000W 12" Arrayable Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description NAMM 2019: New Mackie DRM Loudspeakers Now Available at B&H Read More - DRM Series Overview Video for use in US CAN China

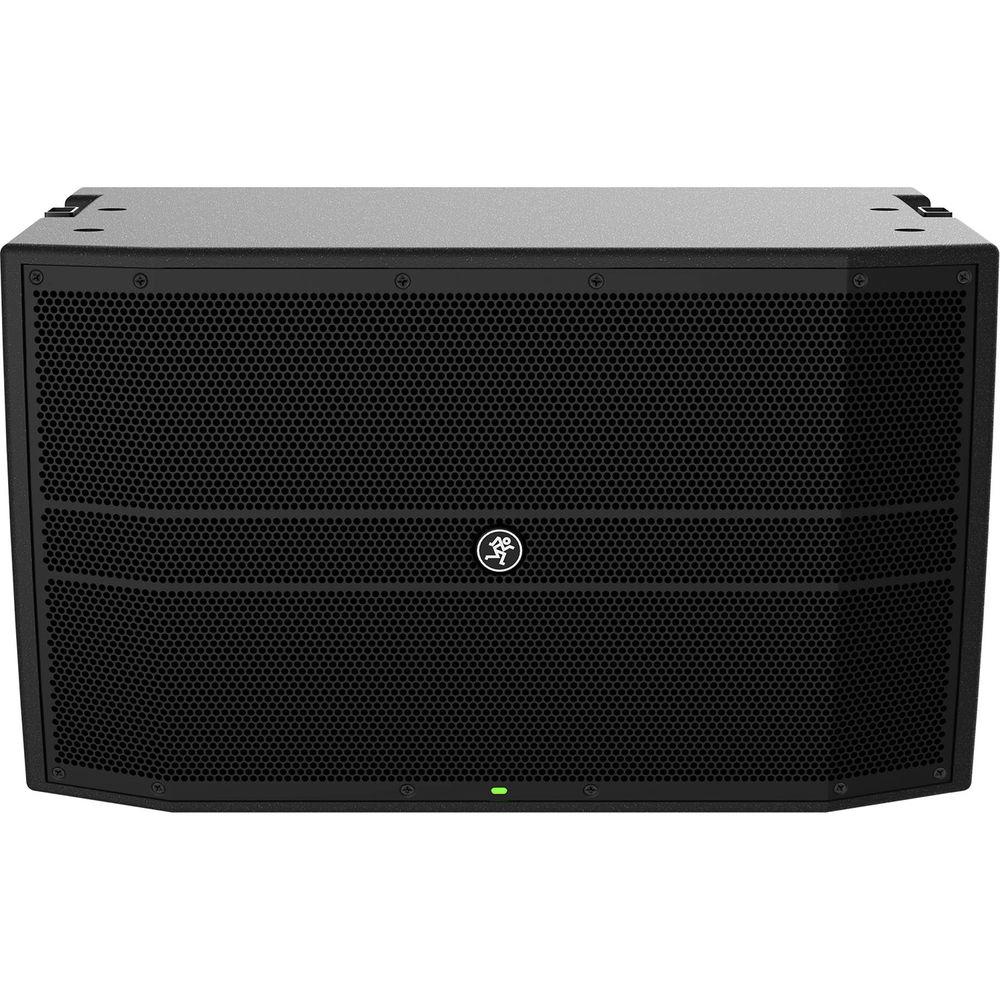

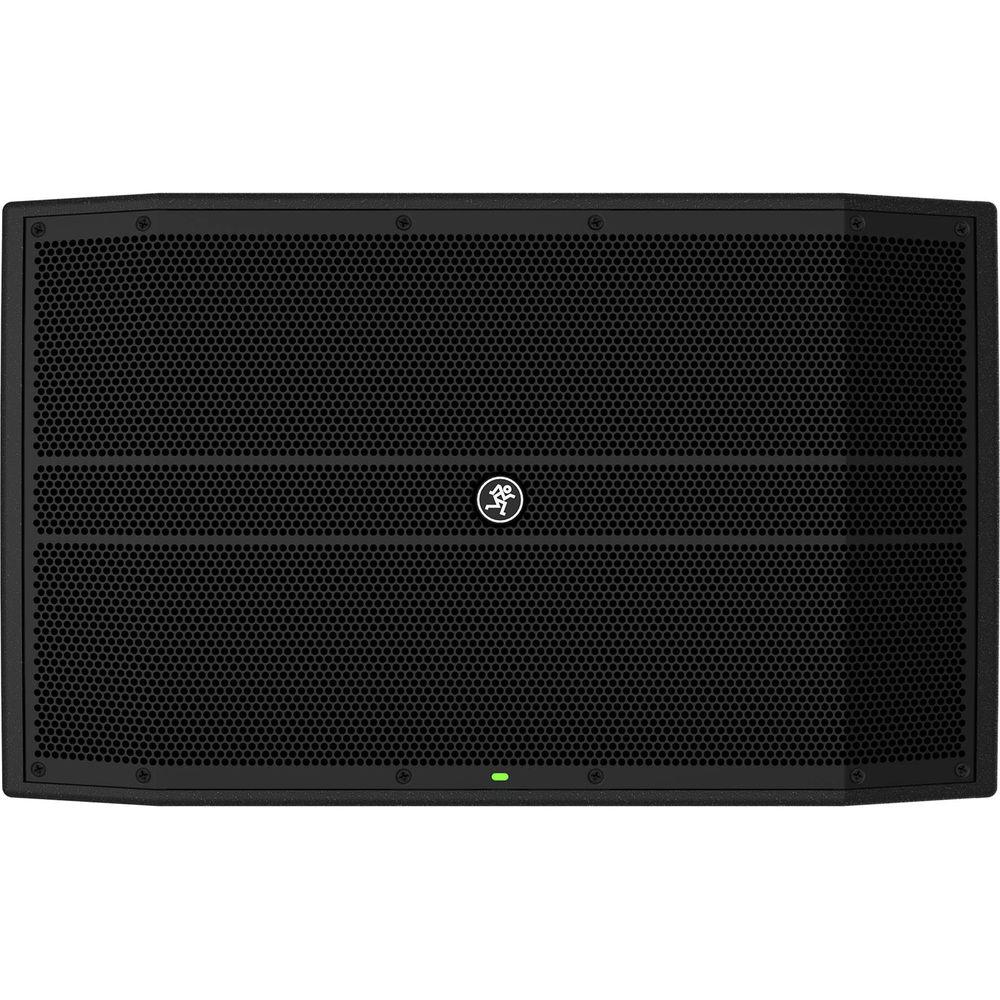

The Mackie DRM12A is a 2000W 12" arrayable powered loudspeaker designed for scalable sound reinforcement in large theaters, music venues, and outdoor festivals as well as clubs, houses of worship, and rental systems. The integrated Class-D amplifier utilizes professional-quality protection and Power Factor Correction (PFC) technology to ensure peak performance, while the Advanced Impulse DSP provides acoustic correction and time-alignment via precision tuned FIR filters for a clear, punchy sound. The DRM Control Dashboard features a high-contrast, full-color display for quick access to EQ, voicing modes and more.

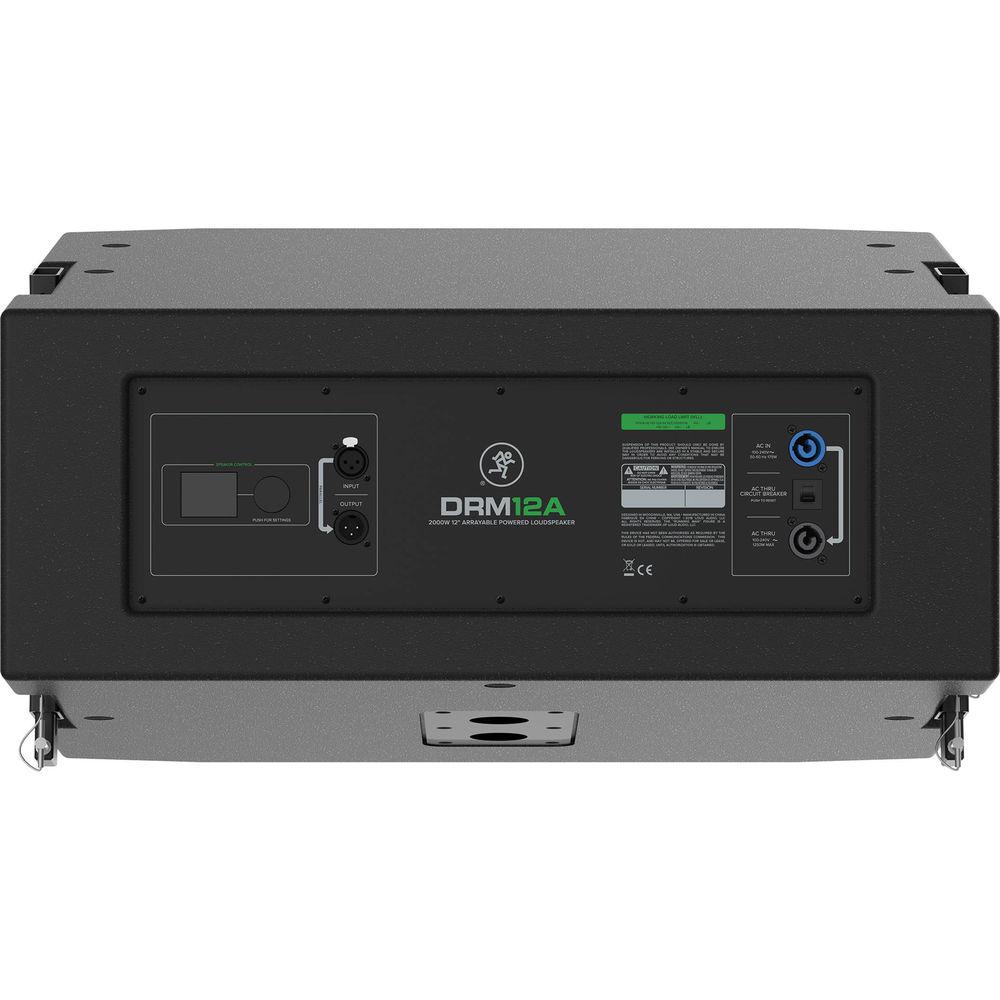

A professional-grade 12” woofer and three 1” compression drivers are housed in the texture-coated 15mm plywood cabinet and when combined, offer a frequency range of 50 Hz to 20 kHz (-10 dB) with a peak SPL of 135 dB. The rear panel features a parallel XLR input and output for connection of up to four DRM12A loudspeakers and two DRM18S subwoofers, which all can be flown via the optional FB100 fly bar. -
- High-efficiency 2000W Class-D amplifier offers ample headroom for professional applications
- Universal power supply (100-240 VAC) with Power Factor Correction technology ensures consistent performance even with unstable AC power
- Next-gen protection circuitry keeps transducers safe and ensures peak performance in all applications
- Advanced Impulse DSP module
- Precision crossovers and transducer time alignment deliver reference-quality sound that is consistent throughout the frequency range
- Linear-Phase FIR Filtering drastically reduces inherent anomalies, phase issues, and muddy midrange resulting in crystal-clear sound
- DRM Control Dashboard features a high-contrast, full-color display for easy single-knob access to configuration, processing, and more
- View current EQ and voicing mode, high-resolution metering, and more from a single overview window
- Preset array configuration settings make setup easy with modes for 1 cabinet, 2 cabinets, 3-4 cabinets with long-throw option, and independent Sub option
- Adjustable 3-band parametric EQ allows for additional customization and tuning for your application and venue
- Alignment Delay control for delay stacks
- Save and recall up to 6 user presets for various applications and venues
- Screensaver plus dimmer and contrast control
- System lock with 4-digit passcode
- Parallel XLR Input and Output
- Premium components and cabinet design
- Road-worthy 15mm plywood construction and internal bracing offer optimal acoustic performance with a touring-grade textured coating and powder-coated, heavy-gauge steel grille
- Unique ported design provides exceptionally smooth yet punchy low-frequency response while providing forced-air cooling directly to the internal amplifier
- Triple 1” Titanium diaphragm compression driver array is perfectly matched to the amplifier for maximum transparency and clarity
- 12” high-excursion woofer offers increased sensitivity, bass response, and reliability to withstand the most demanding live applications
- Versatile configuration options

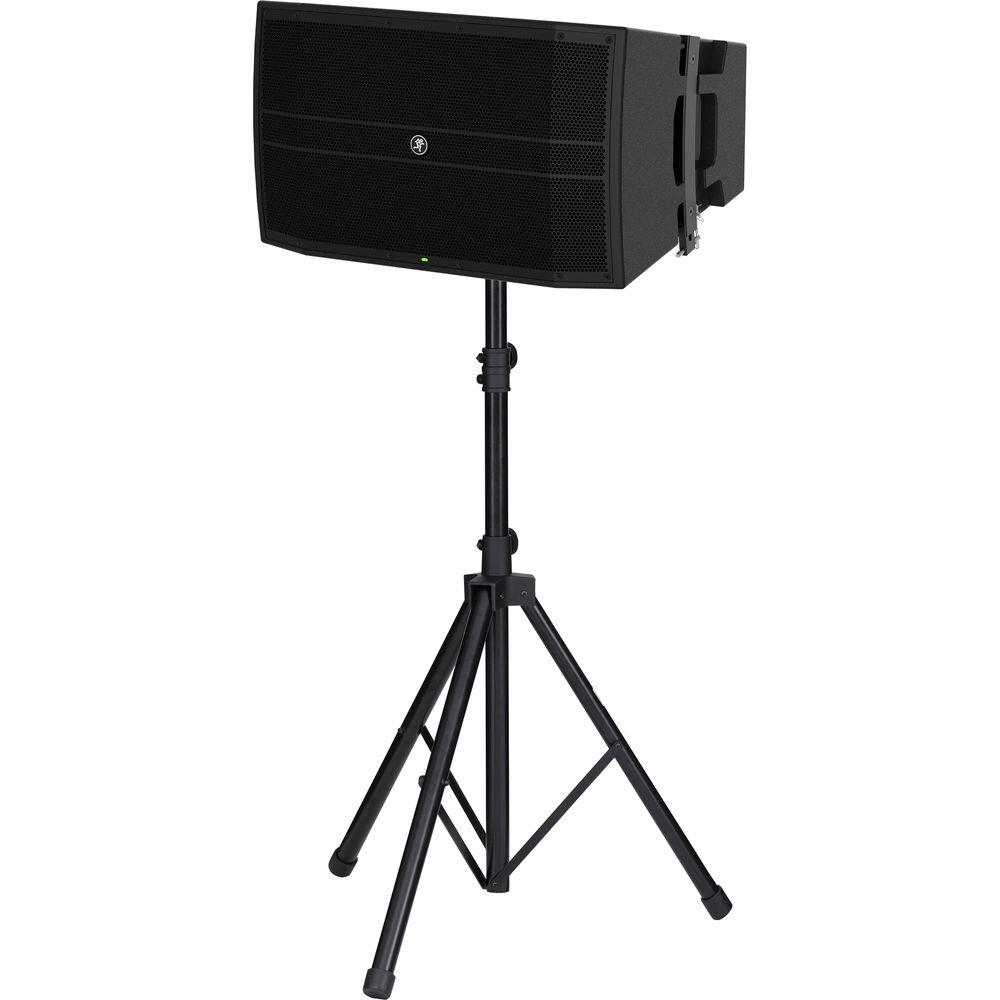

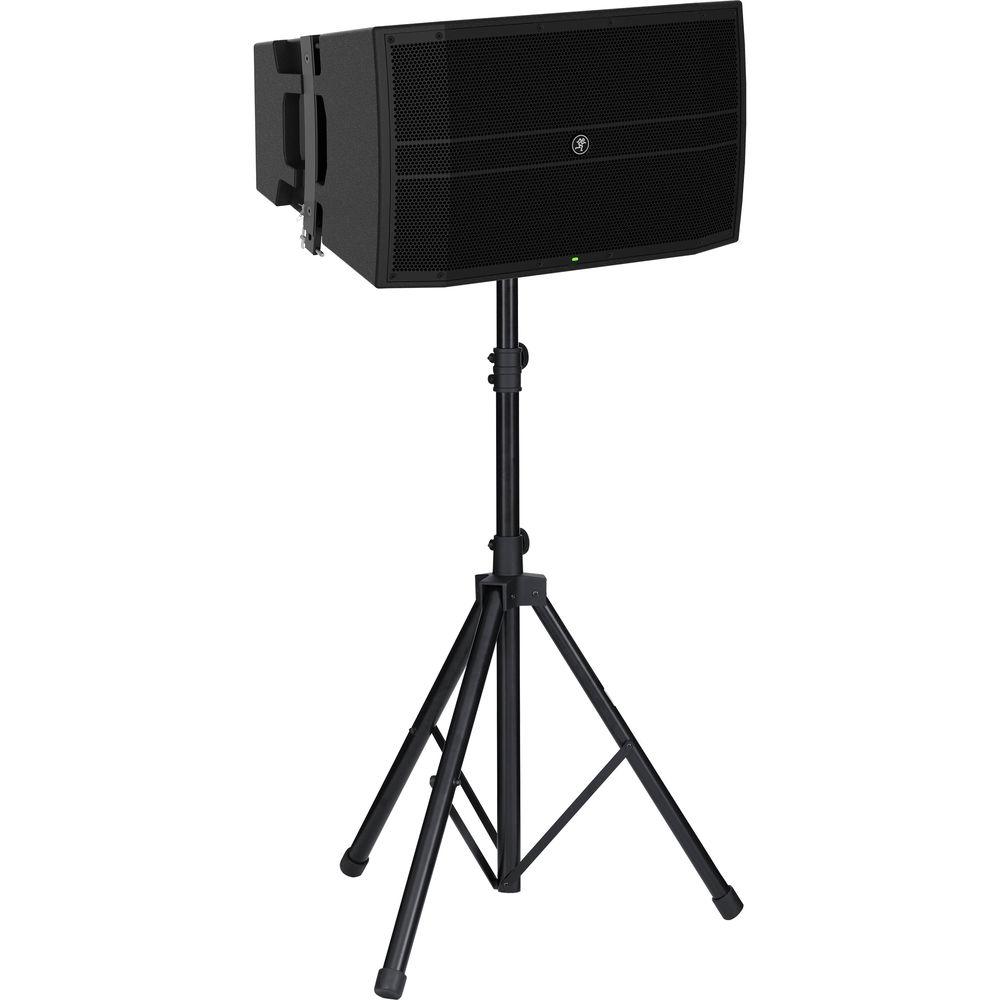

- Dual-angle pole mount

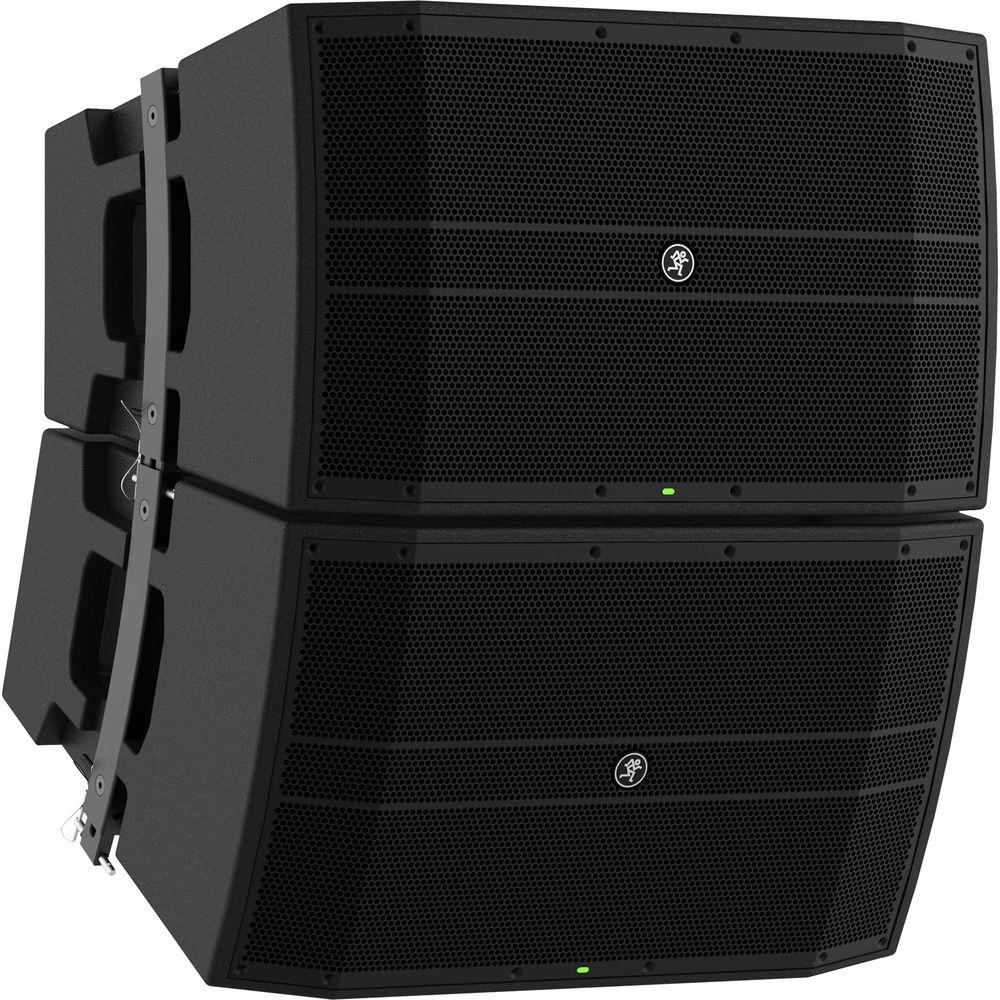

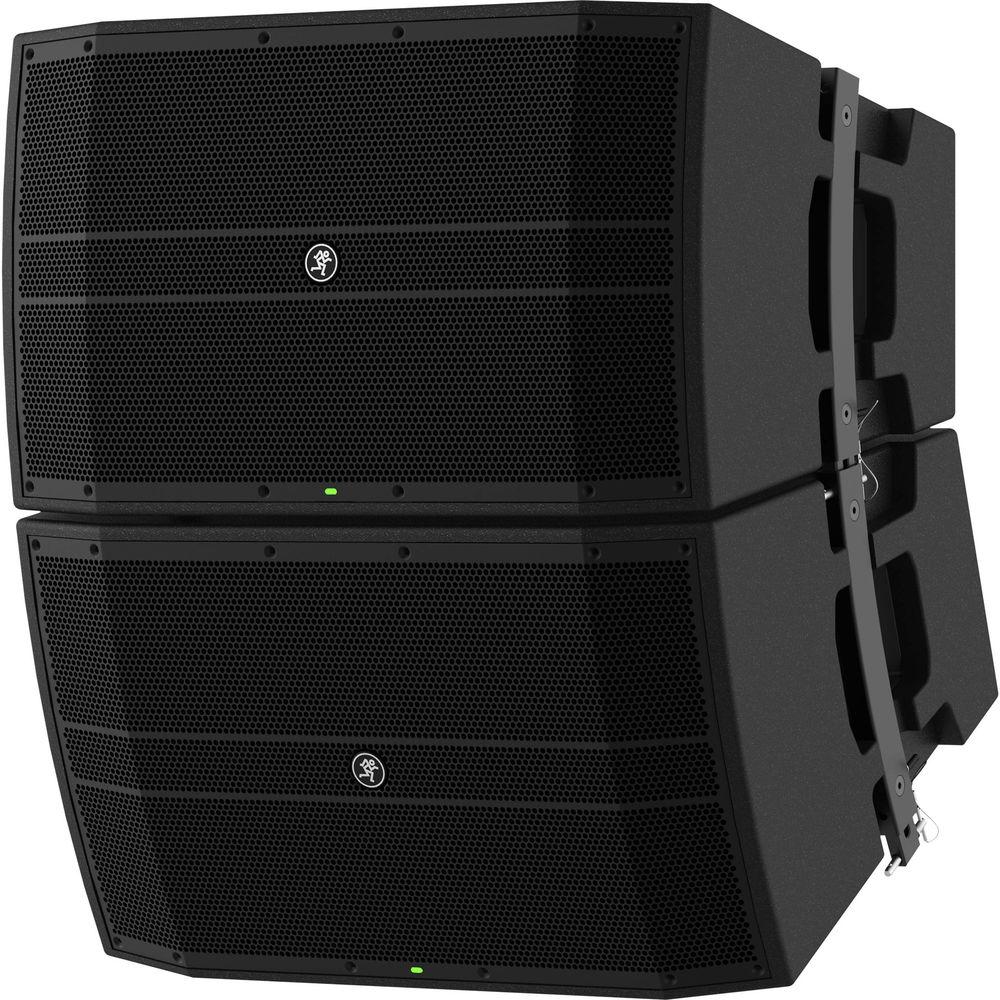

- Flyable with up to 4 DRM12A cabinets and 2 DRM18S subwoofers using the FB100 Fly Bar
- 7 x M10 fly points

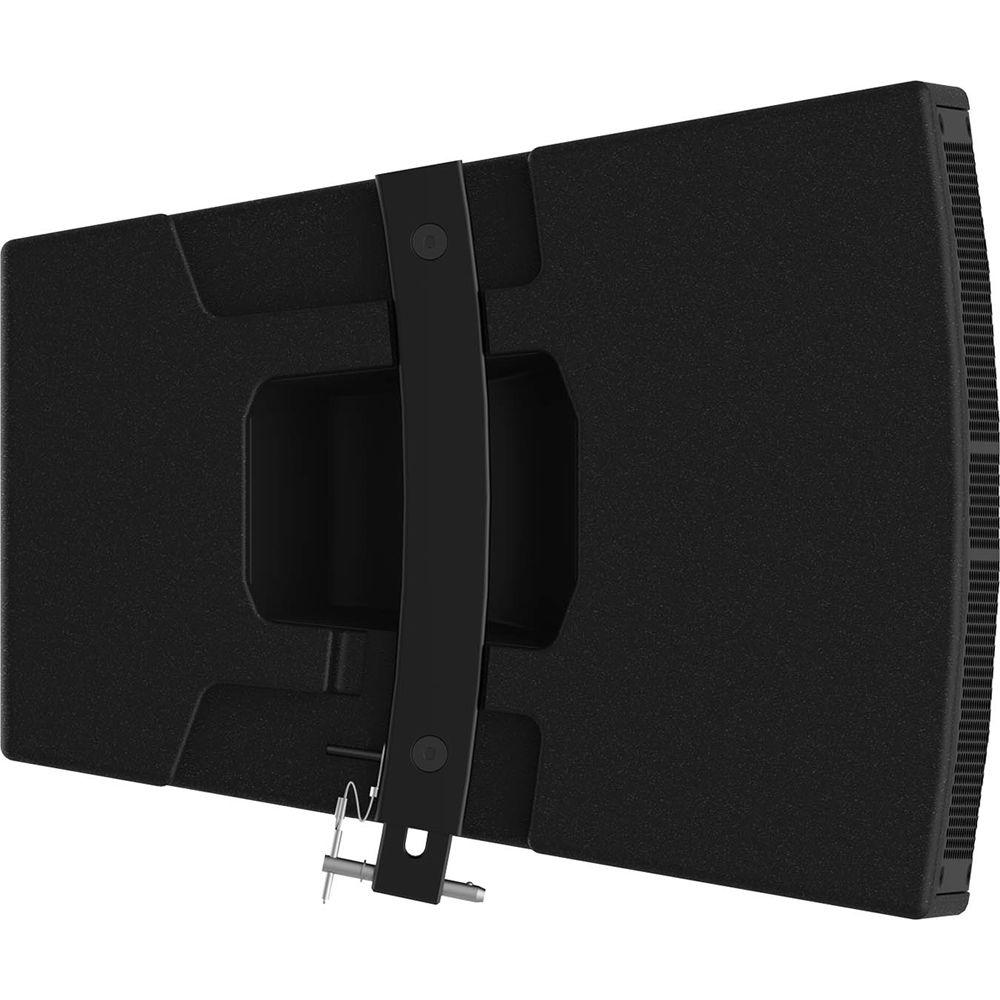

- Integrated flying hardware
- Optional FB100 Fly Bar
UPC: 663961056341 In the Box Mackie DRM12A 2000W 12" Arrayable Powered Loudspeaker Limited 3-Year Warranty Inclusive of Electronics Limited 2-Year Warranty of Drivers Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie DRM12A 2000W 12" Arrayable Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie DRM12A Specs | | | Configuration | Active | | Total Power Capacity | 2000 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 3 x 1" / 25.4 mm | | LF Driver | 1 x 12" / 30.5 cm Woofer | | | | Frequency Response | 50 Hz to 20 kHz -10 dB | | Maximum SPL | 135 dB | | Coverage Angle | 110° H x 20° V | | | | Audio I/O | 1 x XLR Input
1 x XLR Output Parallel Input and Output | | | | EQ | Yes | | Alignment Delay | Yes | | | | AC Input Power | Universal:
100 to 240 VAC, 50 / 60 Hz | | | | Mounting | 7 x M10 | | Construction Material | Metal Grille, Plywood | | Dimensions | 15.2 x 24.7 x 18.0" / 386.1 x 627.4 x 457.2 mm | | Weight | 55 lb / 24.9 kg | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 28.5 x 21.2 x 18.5" |
