Product description NAMM 2019: New Mackie DRM Loudspeakers Now Available at B&H Read More - DRM Series Overview Video for use in US CAN China

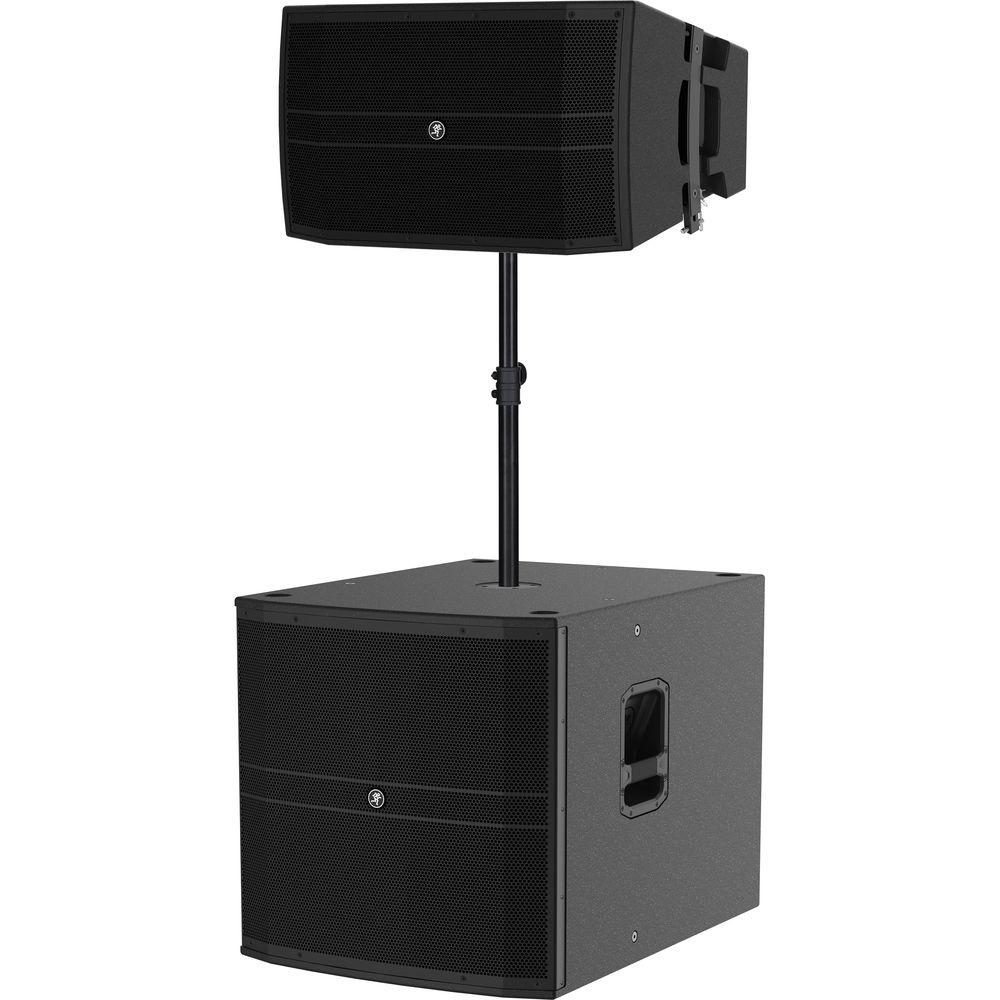

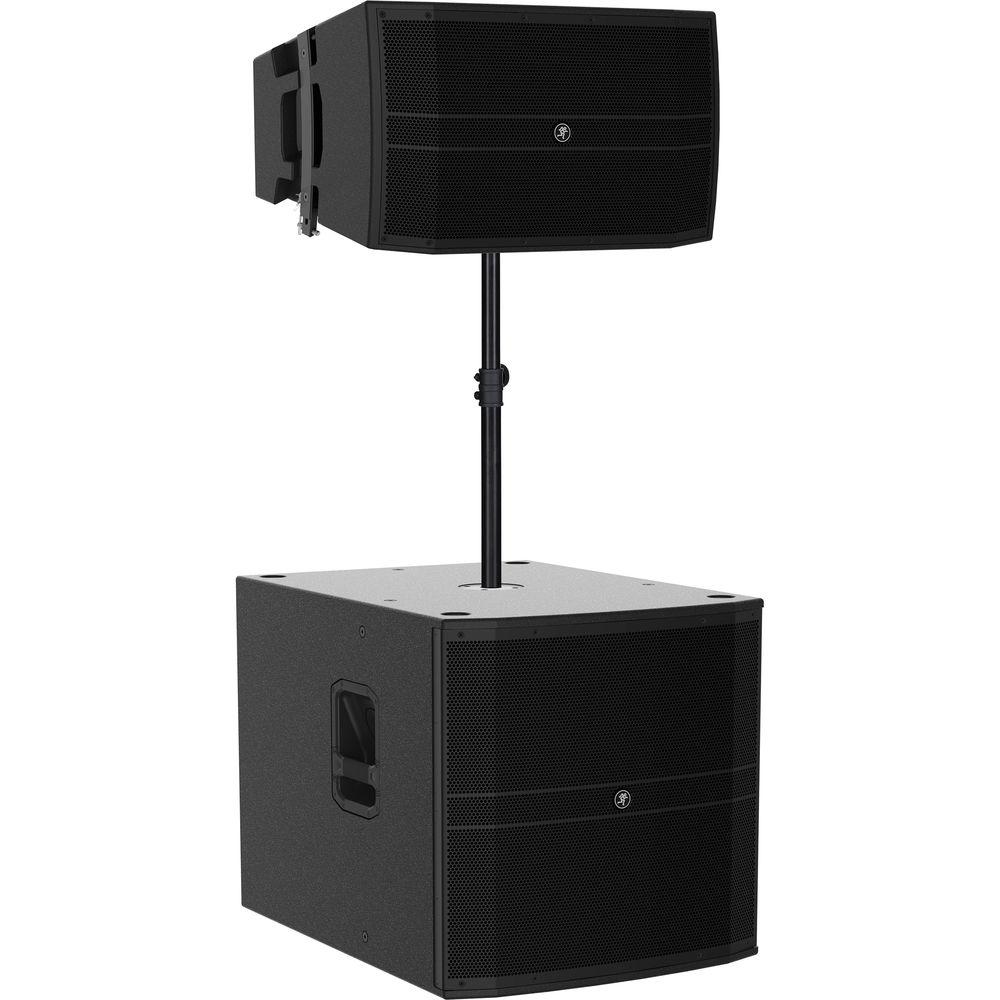

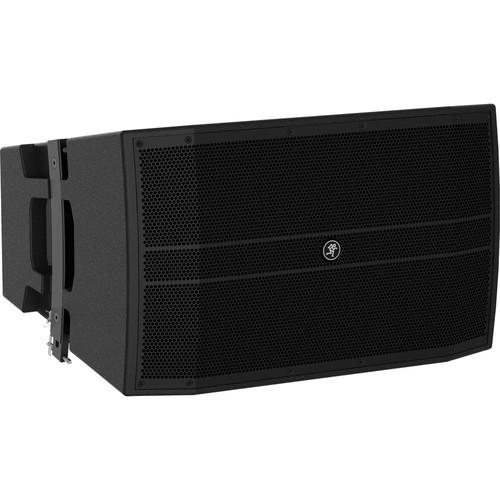

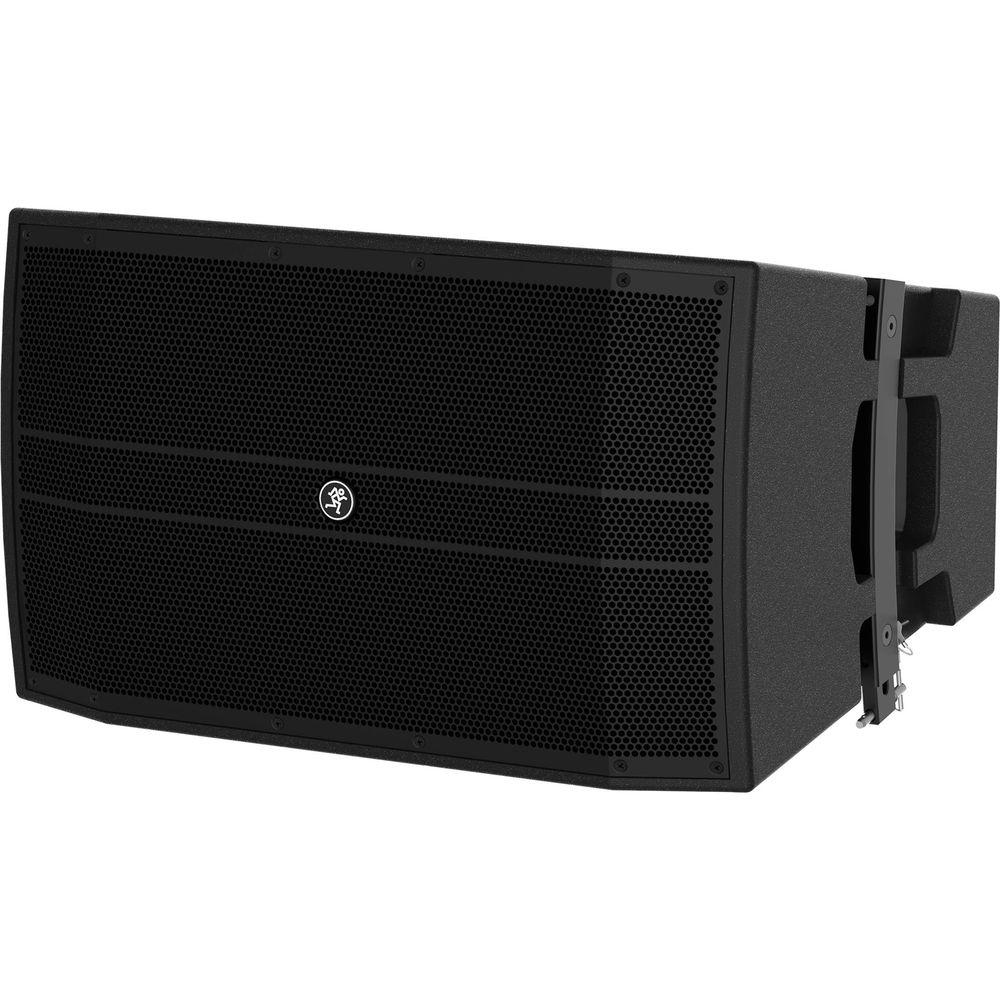

The Mackie DRM12A-P is a 2000W 12" arrayable passive loudspeaker designed for scalable sound reinforcement in large theaters, music venues, and outdoor festivals as well as clubs, houses of worship, and rental systems. A professional-grade 12” woofer and three 1” compression drivers are housed in the texture coated 15mm plywood cabinet and when combined, offer a frequency range of 47 Hz to 20 kHz (-10 dB) with a speak SPL of 132 dB. The rear panel features parallel speakON inputs for connection up to four DRM12A-P loudspeakers and two DRM18S-P subwoofers, which all can be flown via the optional FB100 fly bar. -
- High-performance professional arrayable loudspeaker designed for high-demand applications
- Custom-designed transducers
- Triple 1” Titanium diaphragm compression driver array offers incredibly clarity and efficiency
- 12” high-excursion woofer offers increased sensitivity, bass response, and reliability to withstand the most demanding live performances and music

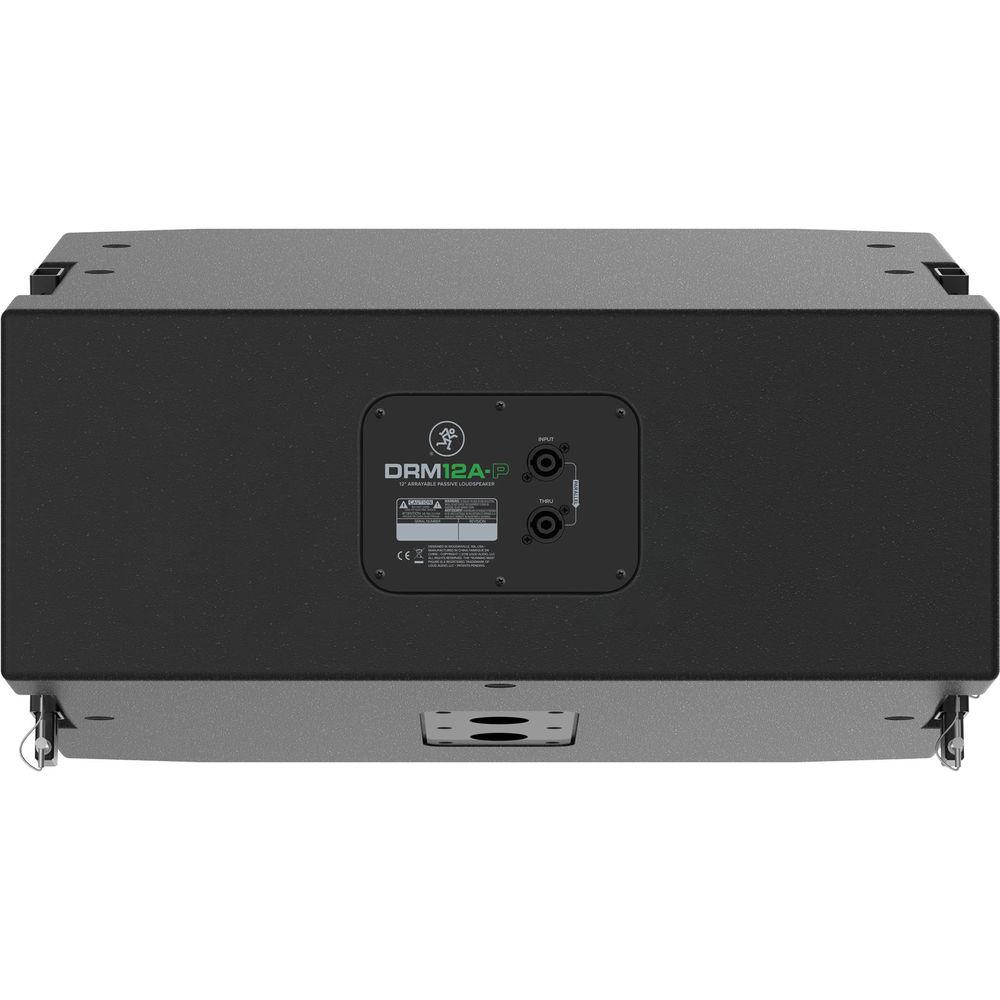

- Parallel SpeakON inputs
- Road-worthy 15mm plywood construction and internal bracing offers optimal acoustic performance

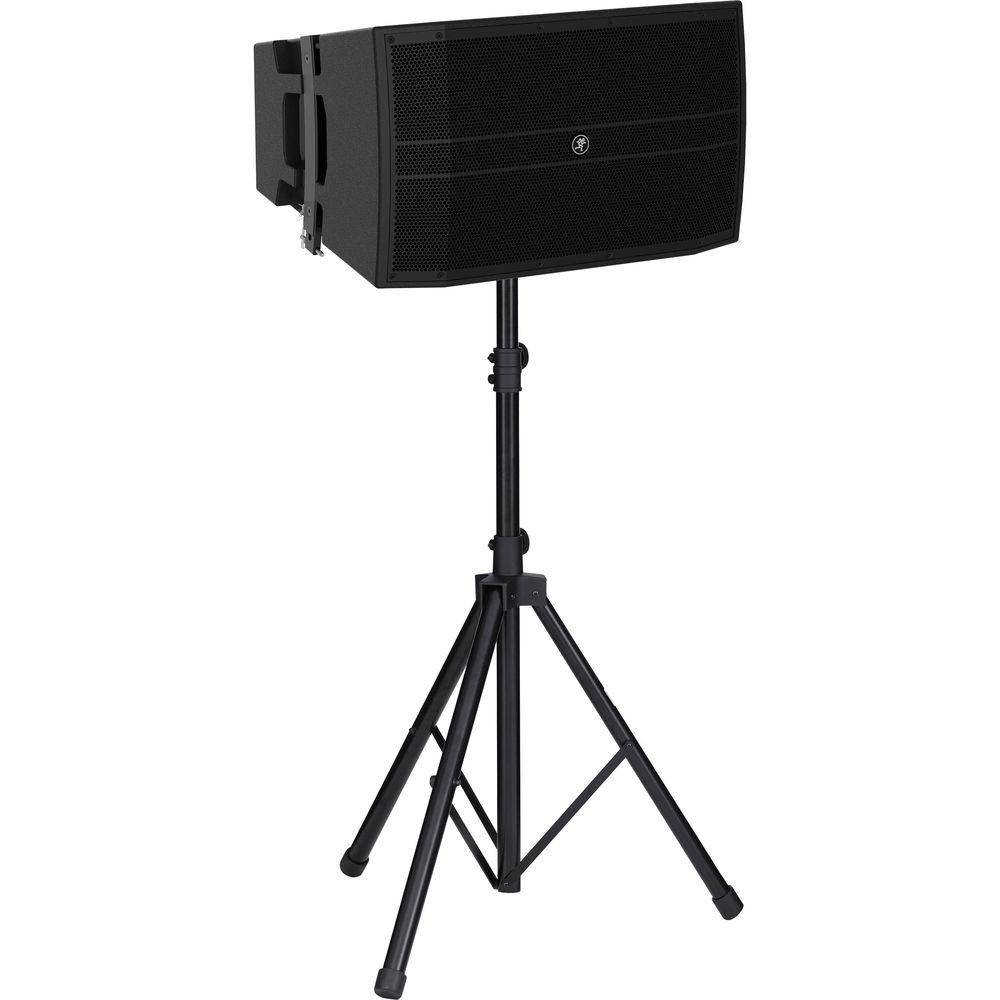

- Dual-angle pole-mount
- Optional SP260 Loudspeaker Processor provides custom EQ curves and crossovers for your DRM Passive System
- Versatile rigging options
- 7 x M10 flypoints

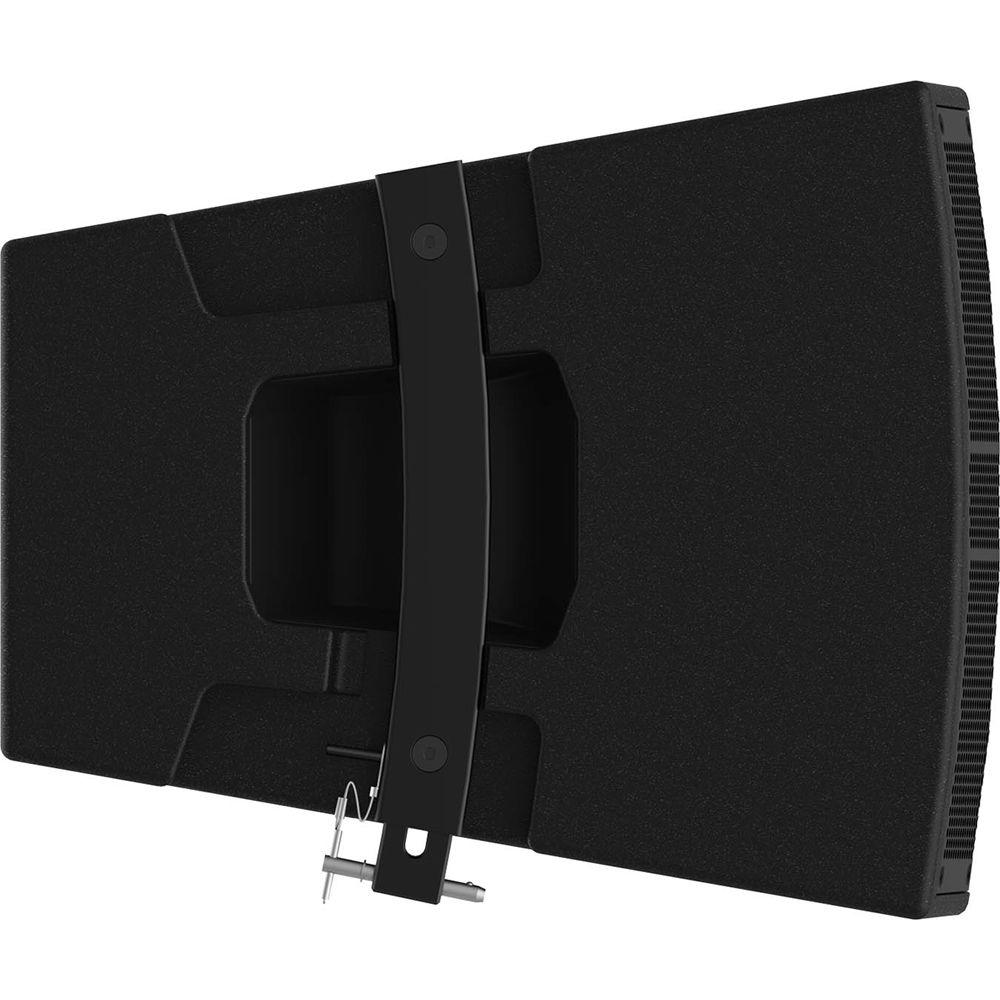

- Integrated flying hardware
- Optional FB100 Fly Bar
- Touring-grade textured cabinet coating

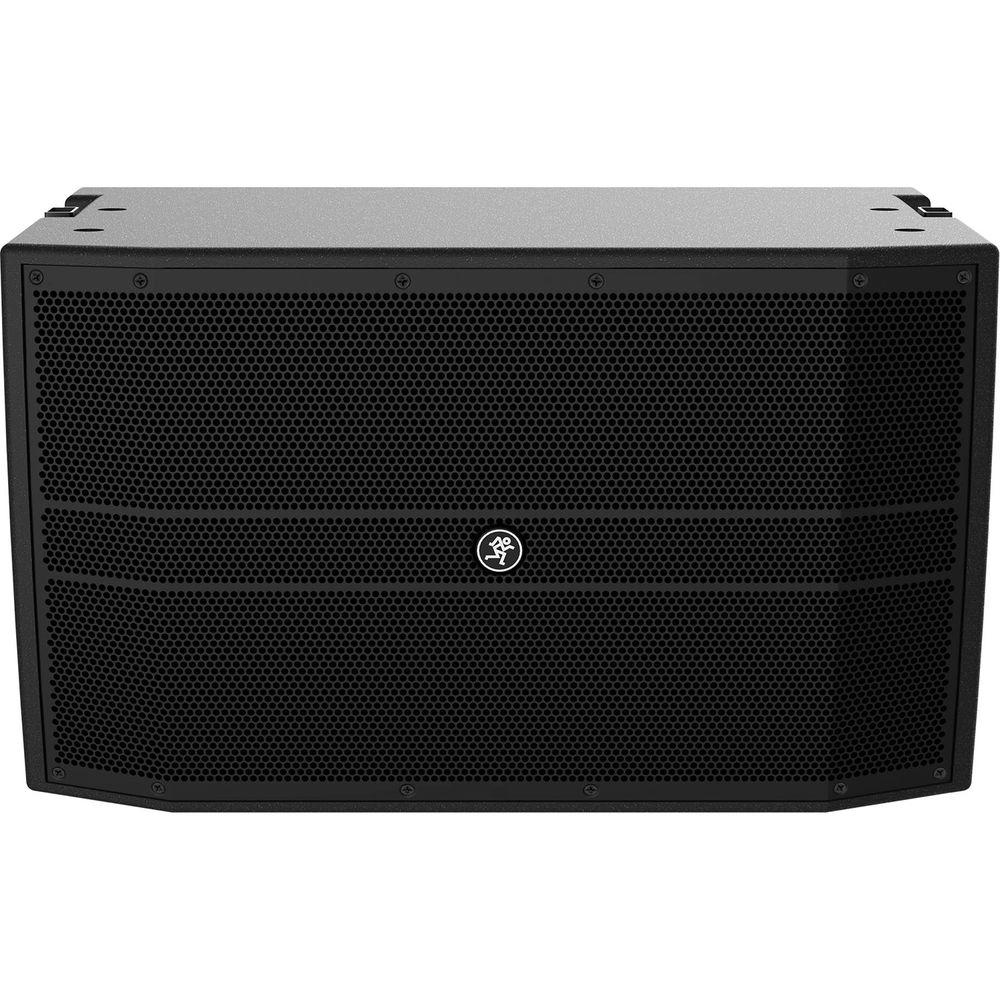

- Powder-coated heavy-gauge steel grille
- Power Handling (Continuous / Program / Peak): 500W / 1000W / 2000W
- Coverage: 20°V x 110°H
UPC: 663961057027 In the Box Mackie DRM12A-P 12" Arrayable Passive Loudspeaker Limited 3-Year Warranty Limited 2-Year Warranty of Drivers Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie DRM12A-P 12" Arrayable Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie DRM12A-P Specs | | | Configuration | Passive | | Total Power Capacity | 500 W RMS
1000 W Program
2000 W Peak | | | | HF Driver | 3 x 1" / 25.4 mm | | LF Driver | 1 x 12" / 30.5 cm Woofer | | | | Frequency Response | 47 Hz to 20 kHz -10 dB | | Maximum SPL | 132 dB | | Coverage Angle | 110° H x 20° V | | | | Mounting | 7 x M10 | | Construction Material | Metal Grille, Plywood | | Dimensions | 15.2 x 24.7 x 18.0" / 386.1 x 627.4 x 457.2 mm | | Weight | 55 lb / 24.9 kg |
