User Manual for Mackie DRM212-P 1600W 12" Professional Passive Loudspeaker Click to enlarge the picture
Contents of the user manual for the Mackie DRM212-P 1600W 12" Professional Passive
- Product category: PA Speakers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie PA Speakers
 |
User manual for the Mackie DRM212-P 1600W 12" Professional Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description - DRM Series Overview Video for use in US CAN China

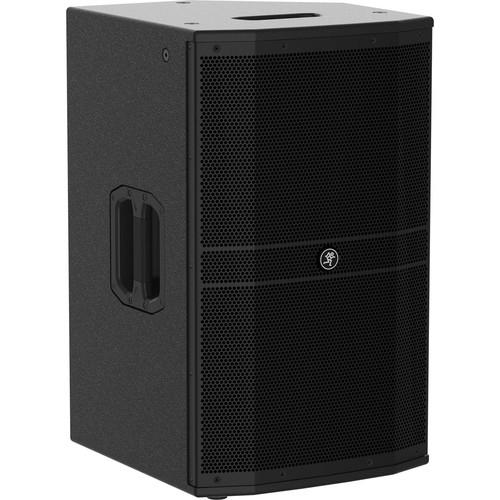

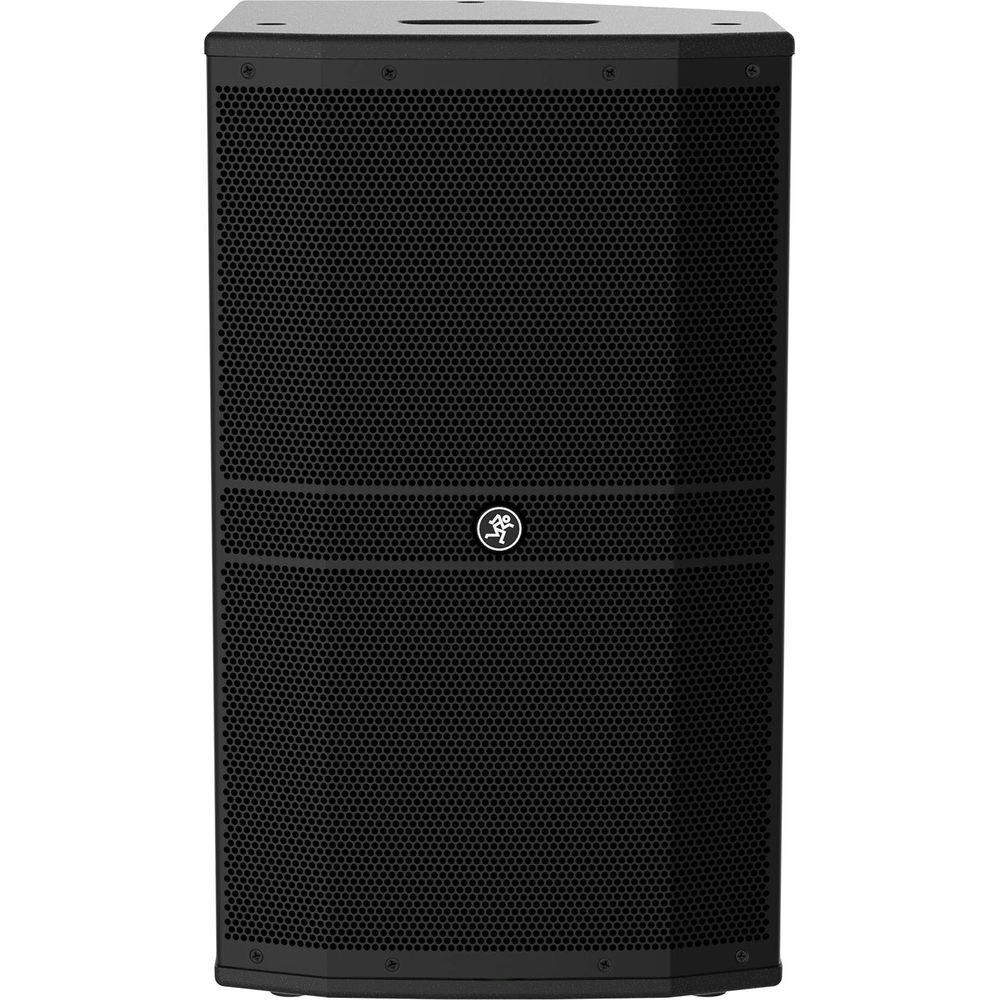

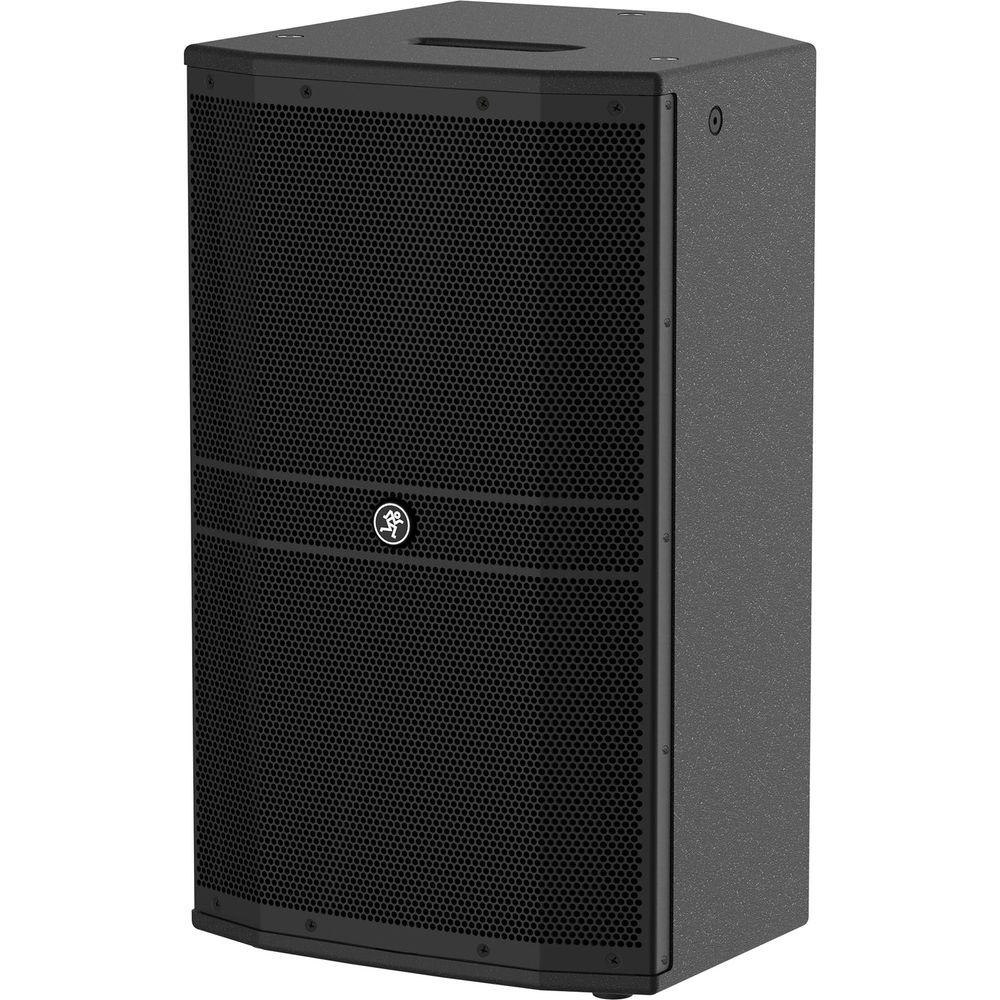

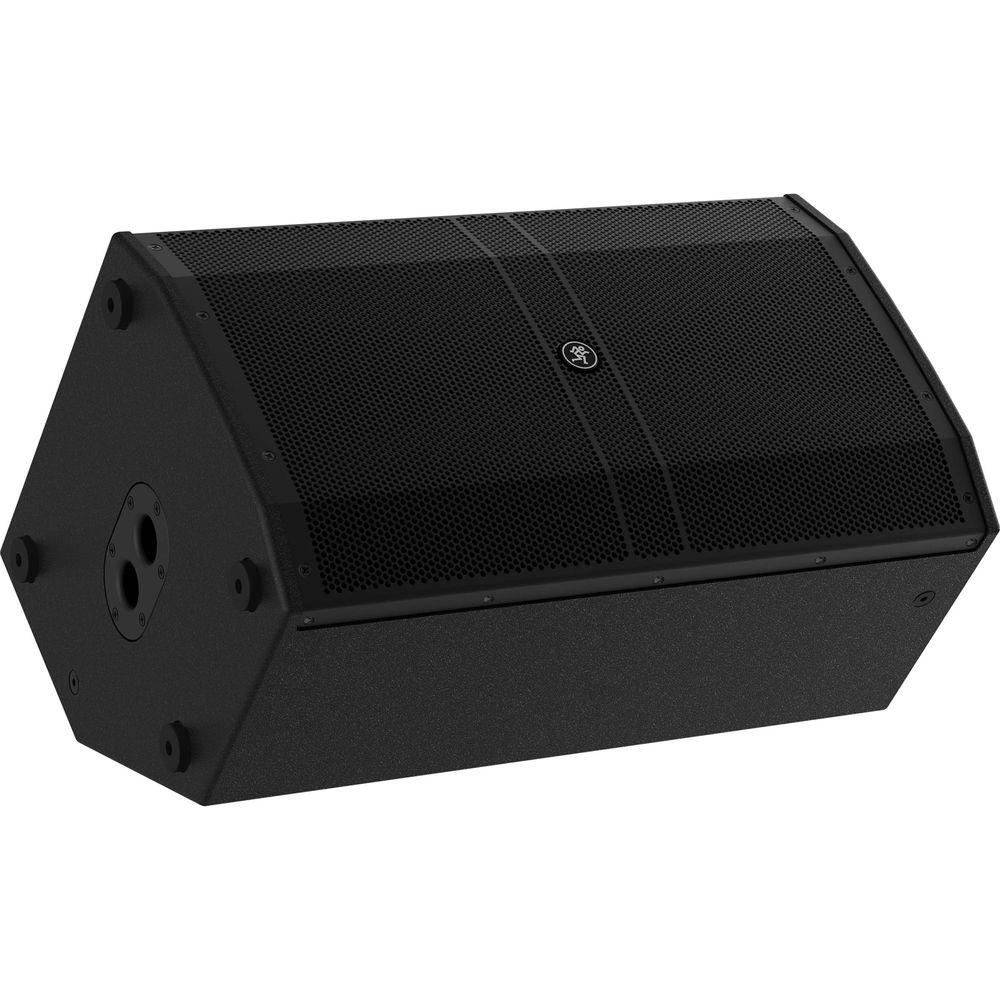

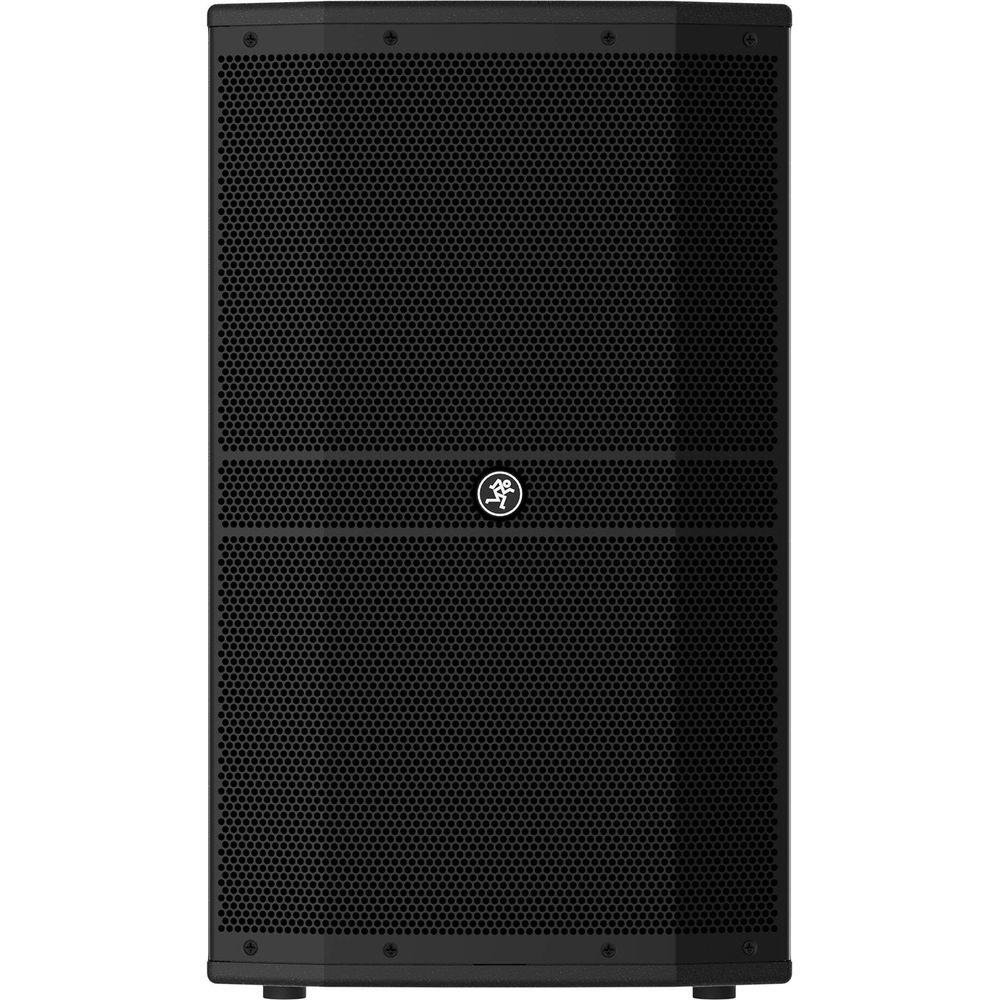

The Mackie DRM212-P is a 1600W 12" powered loudspeaker designed for medium-sized theaters to large music venues as well as DJs, clubs, houses of worship, and rental systems. A professional-grade 12” woofer and 1.4" compression driver are housed in the texture-coated 15mm plywood cabinet and when combined, offer a frequency range of 50 Hz to 20 kHz (-10 dB) with a peak SPL of 128 dB. The rear panel includes parallel SpeakON inputs. The versatile enclosure is angled for use as a high-performance floor monitor, while the dual-angled pole-mount provides optimal coverage and minimal reflections in most venues. The Mackie DRM212-P is flyable via the eight integrated M10 fly points. -
- High-performance professional loudspeaker designed for high-demand applications
- Custom-designed transducers
- 1.4” Titanium diaphragm compression driver offers maximum transparency and clarity
- 12” high-excursion woofer offers increased sensitivity, bass response, and reliability to withstand the most demanding live performances and music
- Precision internal crossover
- Premium grade components and precise tuning provide maximum clarity and performance

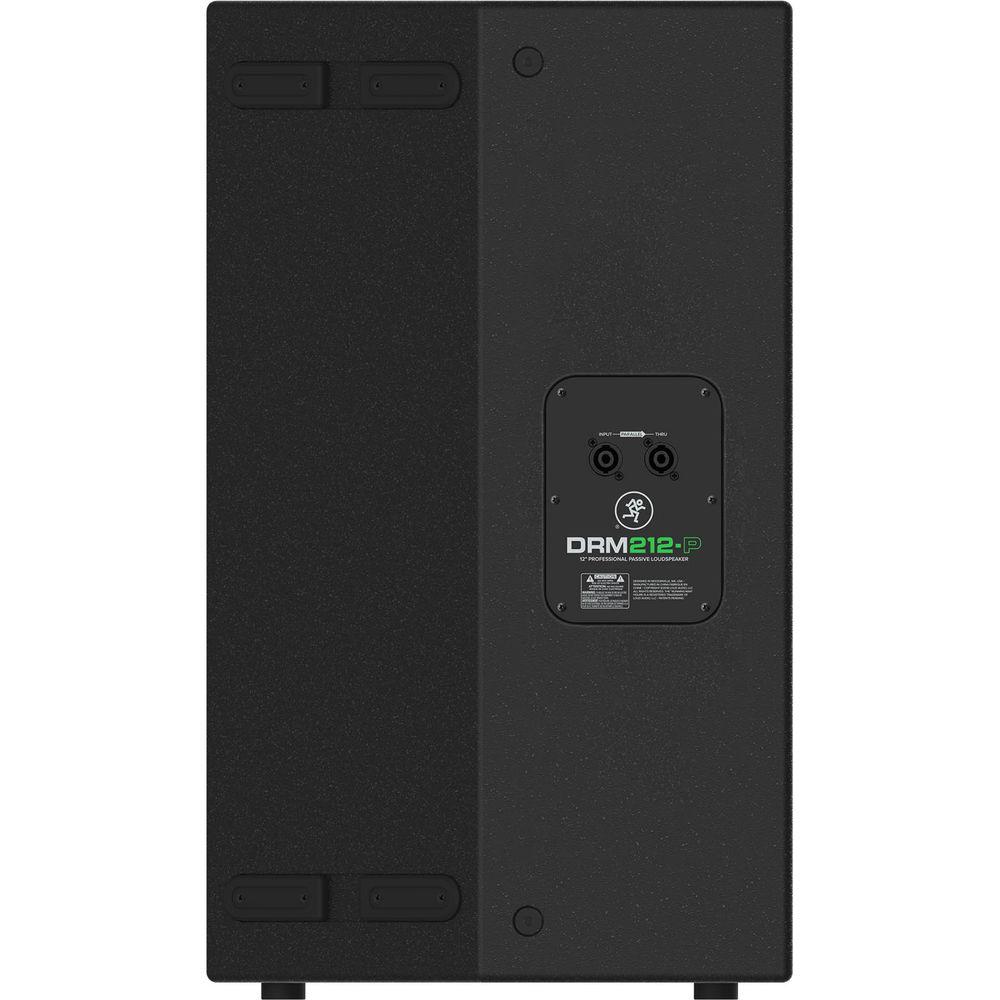

- Parallel SpeakON inputs

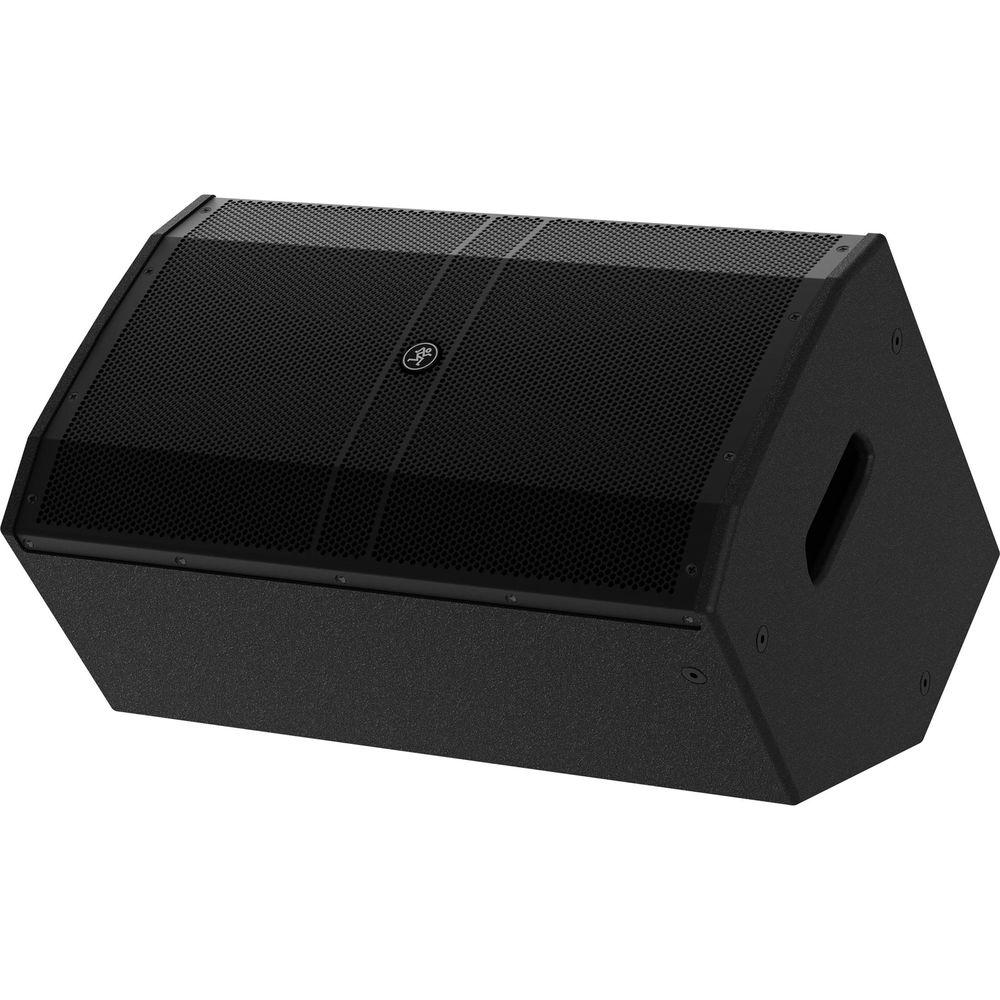

- Angled cabinet design allows for use as a high-performance floor monitor
- Road-worthy 15mm plywood construction and internal bracing offer optimal acoustic performance

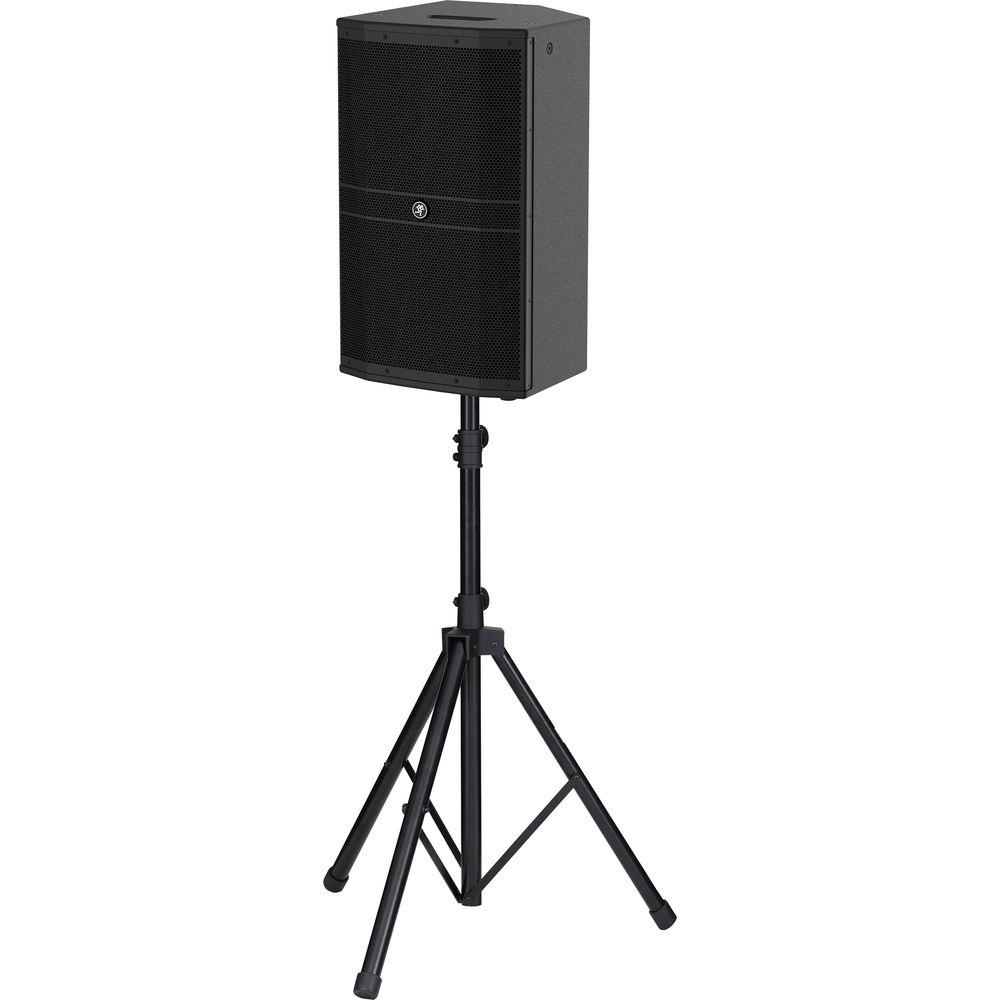

- Dual-angle pole-mount provides optimal coverage and minimal reflections in most venues
- Flyable – 8 x M10 flypoints for vertical orientation
- Touring-grade textured cabinet coating
- Powder-coated heavy-gauge steel grille
- Power Handling (Continuous / Program / Peak): 400W / 800W / 1600W
- Optional SP260 Loudspeaker Processor provides custom EQ curves and crossovers for your DRM Passive System
UPC: 663961056983 In the Box Mackie DRM212-P 1600W 12" Professional Passive Loudspeaker Limited 3-Year Warranty Limited 2-Year Warranty for Drivers Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie DRM212-P 1600W 12" Professional Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie DRM212-P Specs | | | Configuration | Passive | | Total Power Capacity | 400 W RMS
800 W Program
1600 W Peak | | | | HF Driver | 1 x 1.4" / 35.6 mm | | LF Driver | 1 x 12" / 30.5 cm Woofer | | | | Frequency Response | 50 Hz to 20 kHz -10 dB | | Maximum SPL | 128 dB | | Coverage Angle | 90° H x 60° V | | | | Audio I/O | 2 x speakON Input Parallel | | | | Mounting | 8 x M10 | | Construction Material | Metal Grille, Plywood | | Dimensions | 25.0 x 14.7 x 16.2" / 635.0 x 373.4 x 411.5 mm | | Weight | 44.2 lb / 20 kg |
