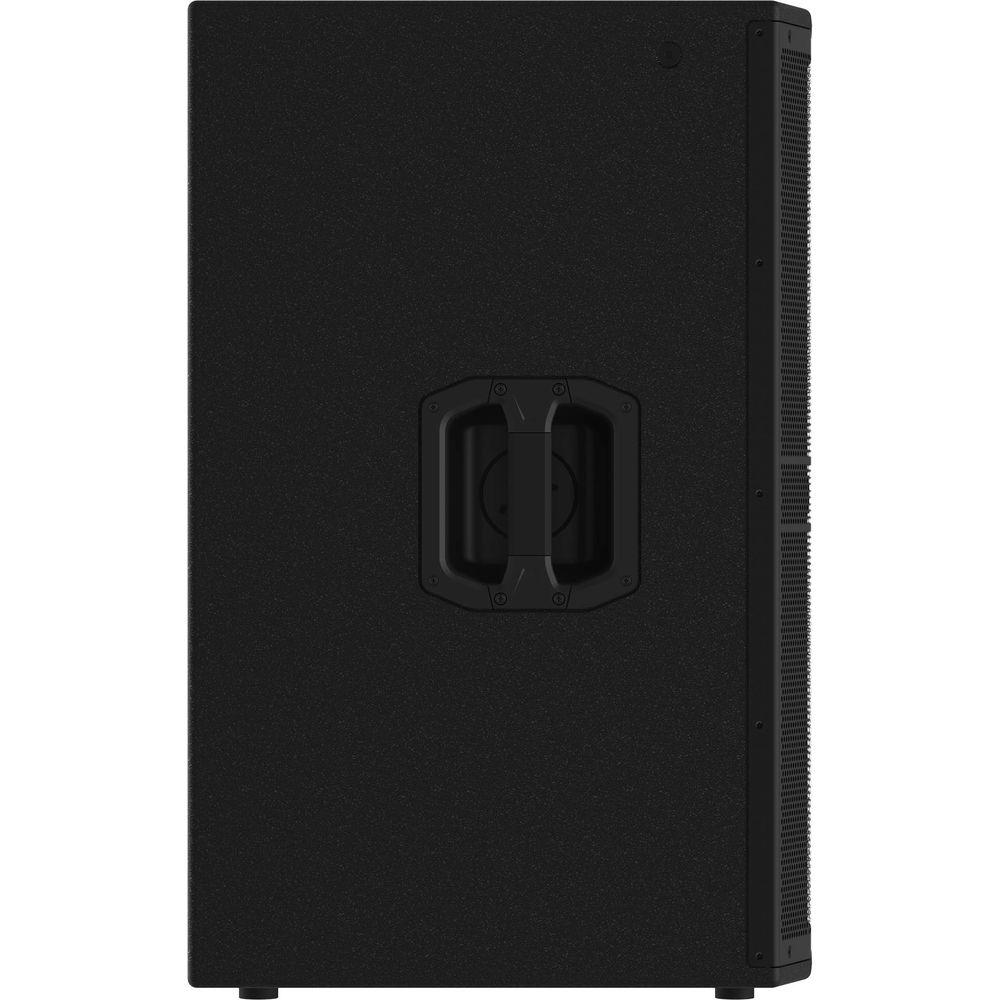

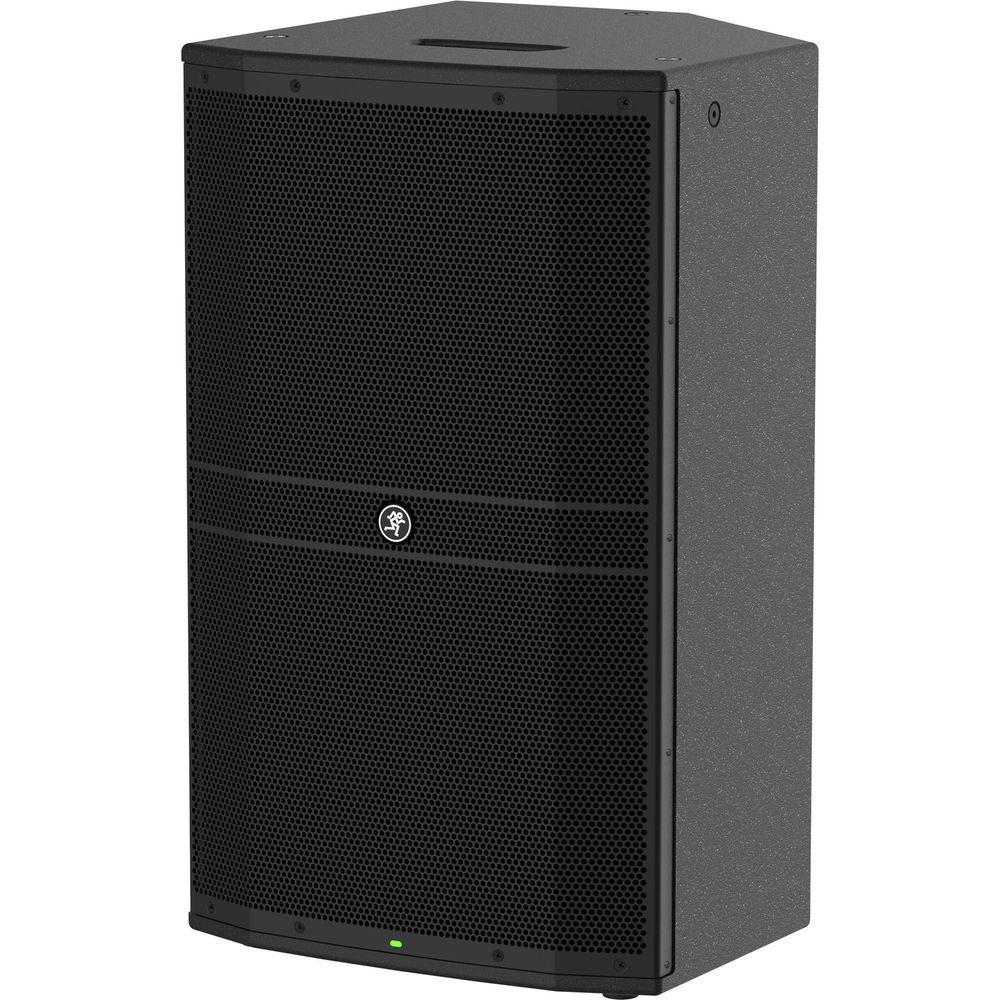

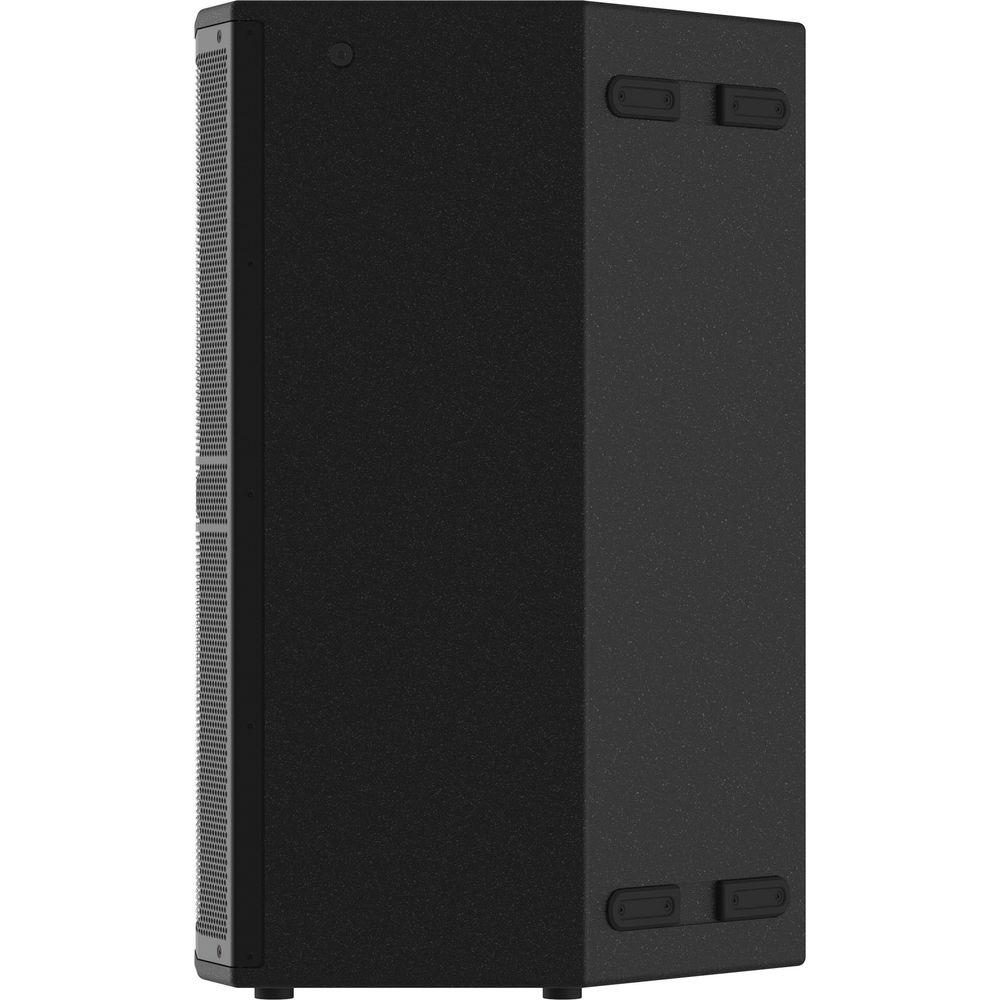

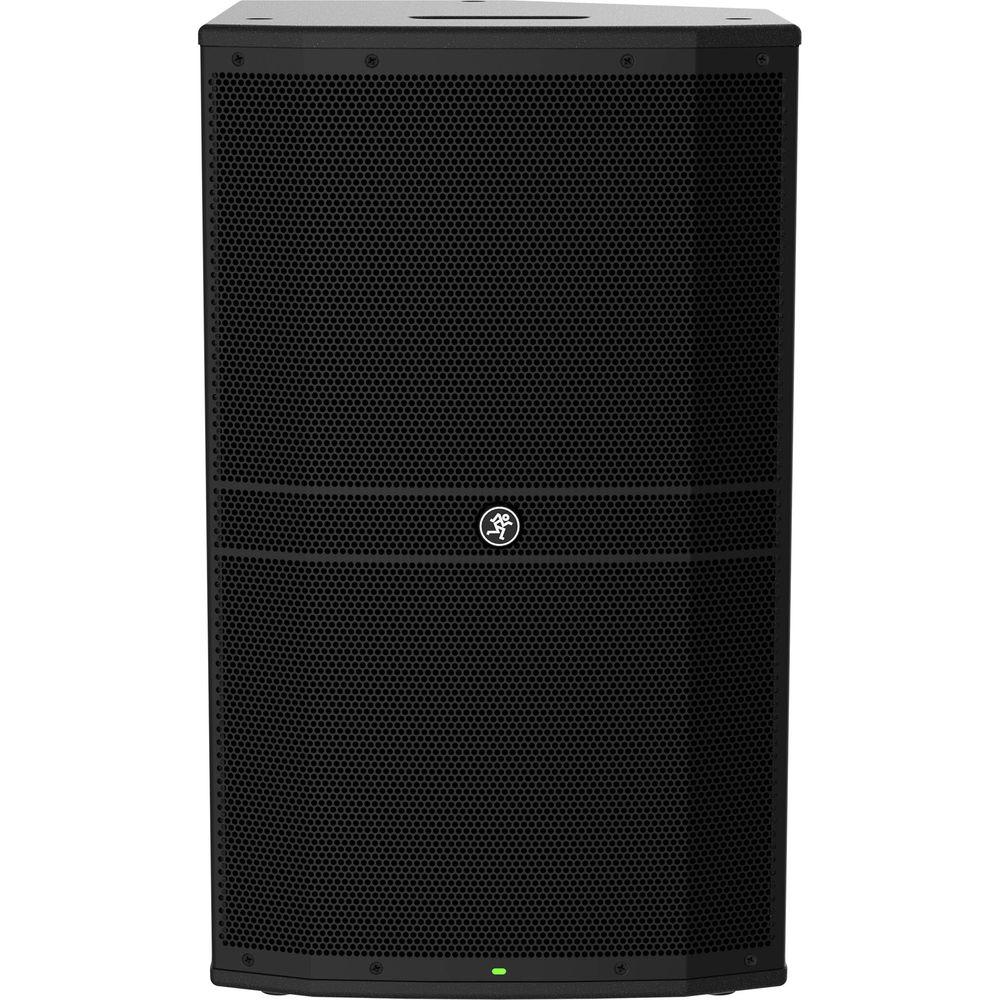

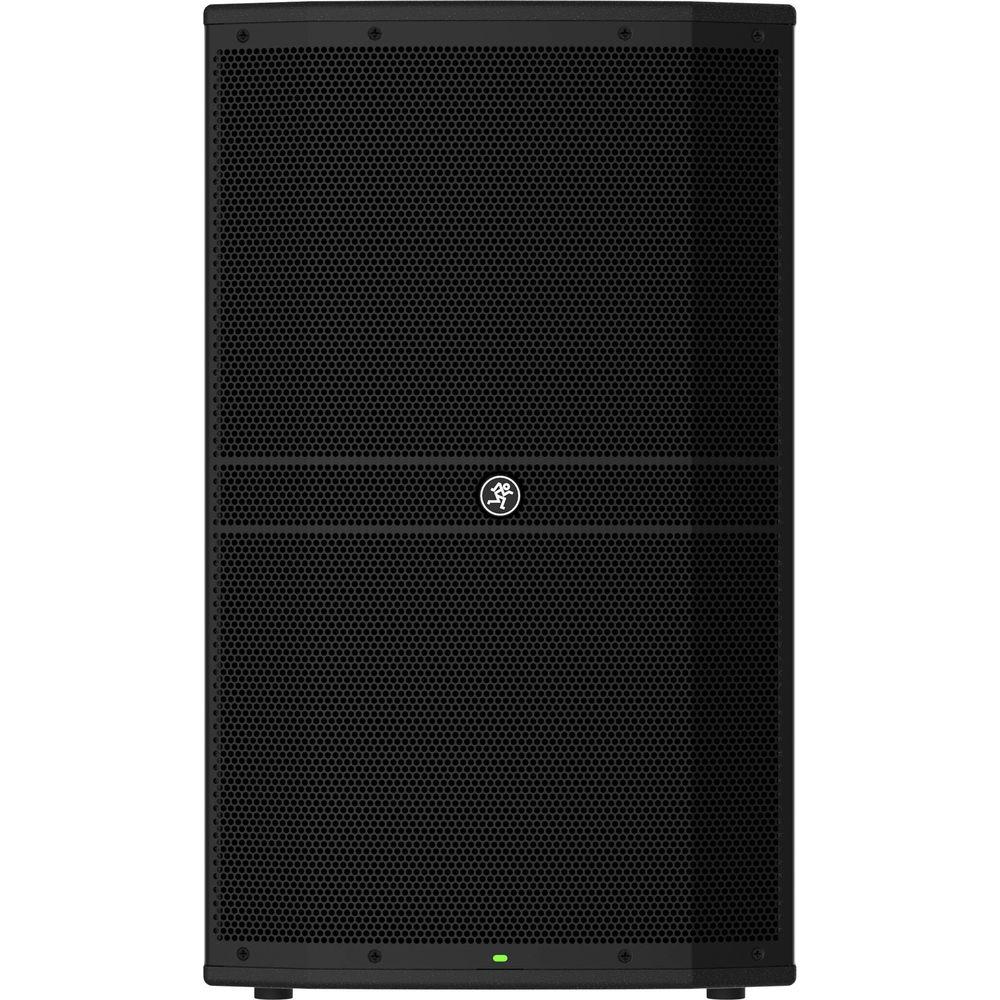

User Manual for Mackie DRM215 1600W 15" Professional Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Mackie DRM215 1600W 15" Professional Powered
- Product category: PA Speakers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie PA Speakers
 |
User manual for the Mackie DRM215 1600W 15" Professional Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description - DRM Series Overview Video for use in US CAN China

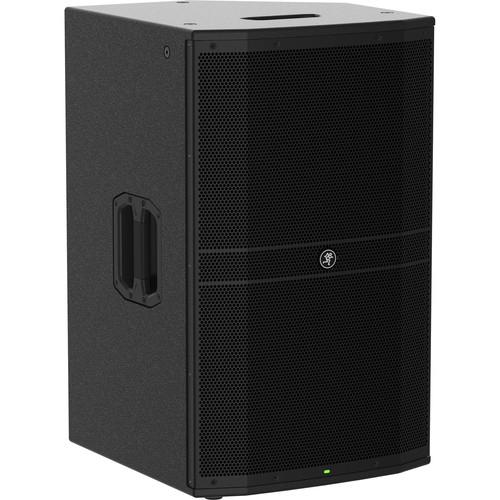

The Mackie DRM215 is a 1600W 15" powered loudspeaker designed for medium-sized theaters to large music venues as well as DJs, clubs, houses of worship, and rental systems. The integrated Class-D amplifier utilizes professional-quality protection and Power Factor Correction (PFC) technology to ensure peak performance, while the Advanced Impulse DSP provides acoustic correction and time alignment via precision tuned FIR filters for a clear, punchy sound. The DRM Control Dashboard features a high-contrast, full-color display for quick access to EQ, voicing modes and more.

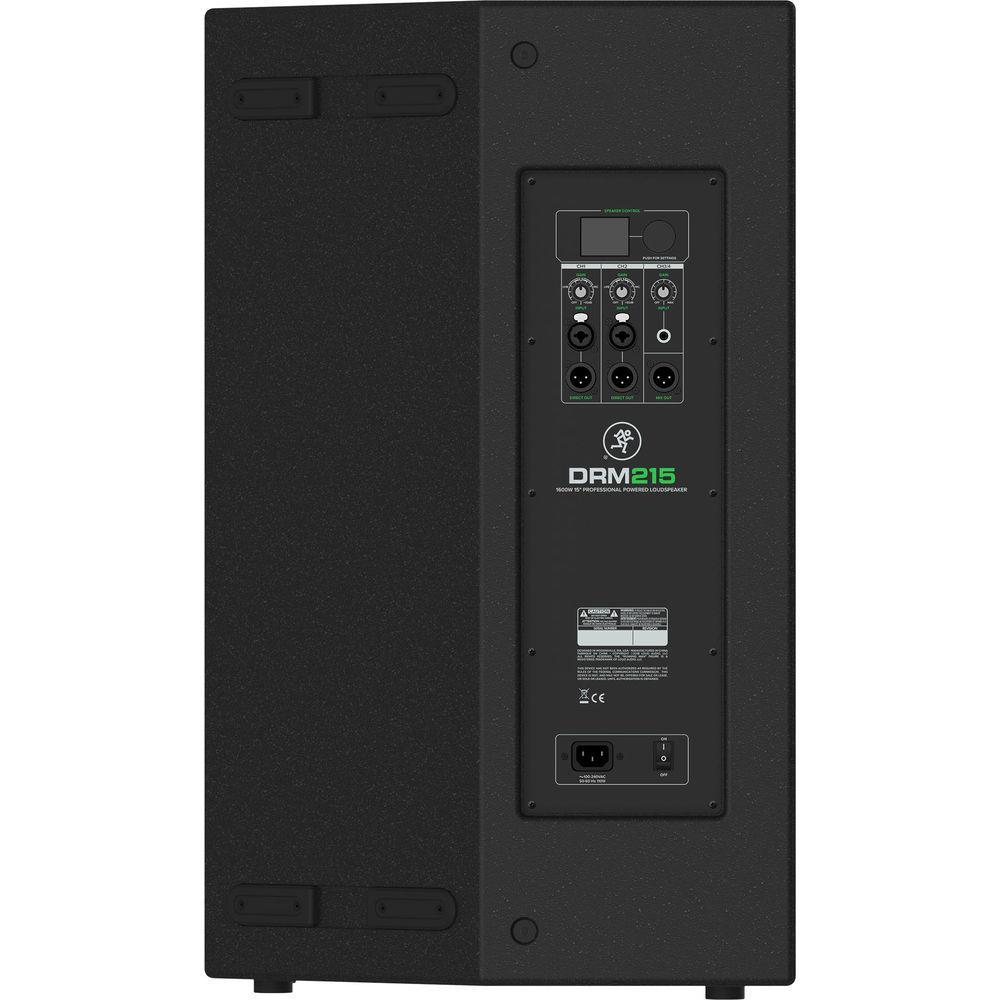

A professional-grade 15” woofer and 1.4" compression driver are housed in the texture-coated 15mm plywood cabinet and when combined, offer a frequency range of 43 Hz to 20 kHz (-10 dB) with a peak SPL of 135 dB. The rear panel includes dual combo XLR-1/4" inputs and will accept mic, line, and instrument signals. What's more, a dedicated 3.5mm stereo aux input is available for connecting portable music devices. The versatile enclosure is angled for use as a high-performance floor monitor, while the dual-angled pole-mount provides optimal coverage and minimal reflections in most venues. The Mackie DRM215 is flyable via the eight integrated M10 fly points. -
- High-efficiency 1600W Class-D amplifier offers ample headroom for professional applications
- Universal power supply (100-240 VAC) with Power Factor Correction technology ensures consistent performance even with unstable AC power
- Next-gen protection circuitry keeps transducers safe and ensures peak performance in all applications
- Advanced Impulse DSP module
- Precision crossovers and transducer time alignment deliver reference-quality sound that is consistent throughout the frequency range
- Linear-Phase FIR Filtering drastically reduces inherent anomalies, phase issues, and muddy midrange resulting in crystal-clear sound
- DRM Control Dashboard features a high-contrast, full-color display for easy single-knob access to configuration, processing, and more
- View current EQ and voicing mode, high-resolution metering, and more from a single overview window
- Application and venue-specific modes provide easy-to-use voicing with minimal setup time. Available modes: Live, Monitor, Club, and Speech plus independent Sub option
- Adjustable 3-band parametric EQ allows for additional customization and tuning for your application and venue
- Alignment Delay control for delay stacks
- Save and recall up to 6 user presets for various applications and venues
- Screensaver plus dimmer and contrast control
- System lock with 4-digit passcode
- Dual independent inputs that support mic, line, and instrument signals plus a dedicated 3.5mm stereo aux input
- Premium components and cabinet design
- Road-worthy 15mm plywood construction and internal bracing offer optimal acoustic performance with a touring-grade textured coating and powder-coated heavy-gauge steel grille
- Unique ported design provides exceptionally smooth yet punchy low-frequency response while providing forced-air cooling directly to the internal amplifier
- 1.4” Titanium diaphragm compression driver is perfectly matched to the amplifier for maximum transparency and clarity
- 15” high-excursion woofer offers increased sensitivity, bass response, and reliability to withstand the most demanding applications
- Versatile configuration options

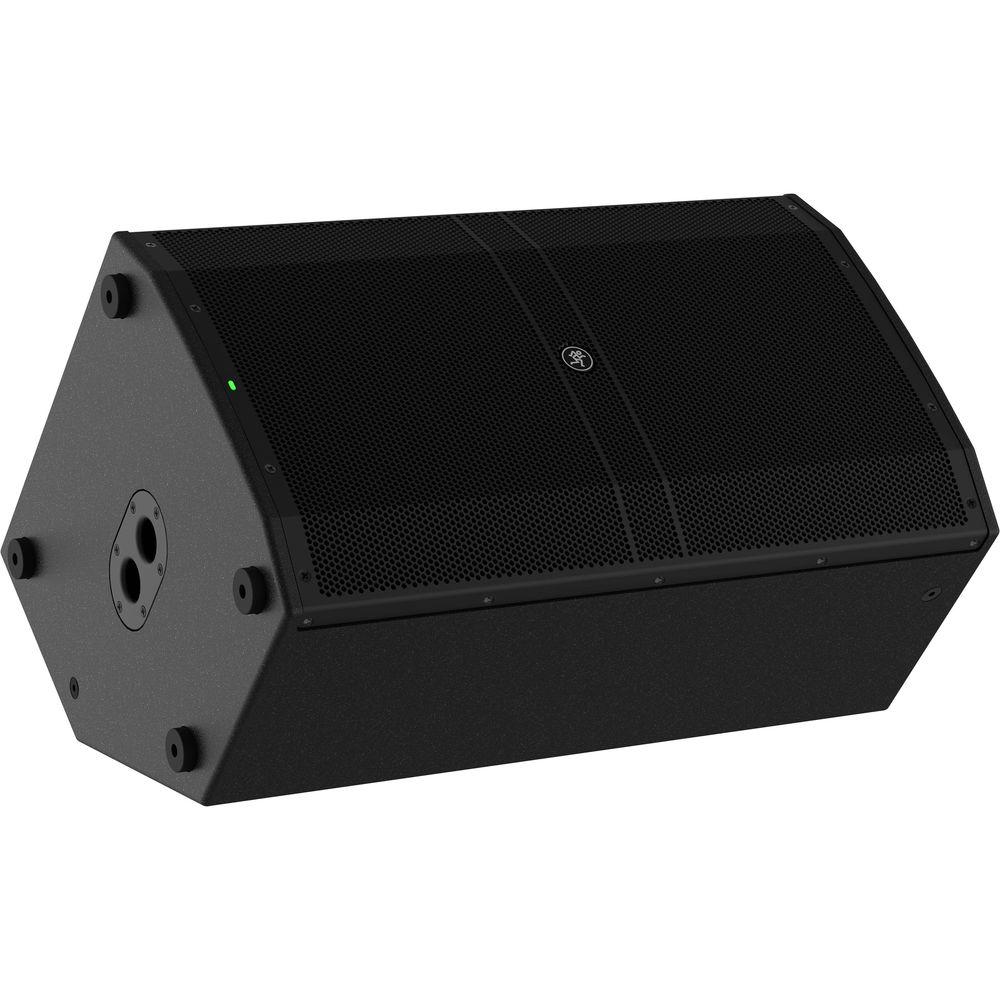

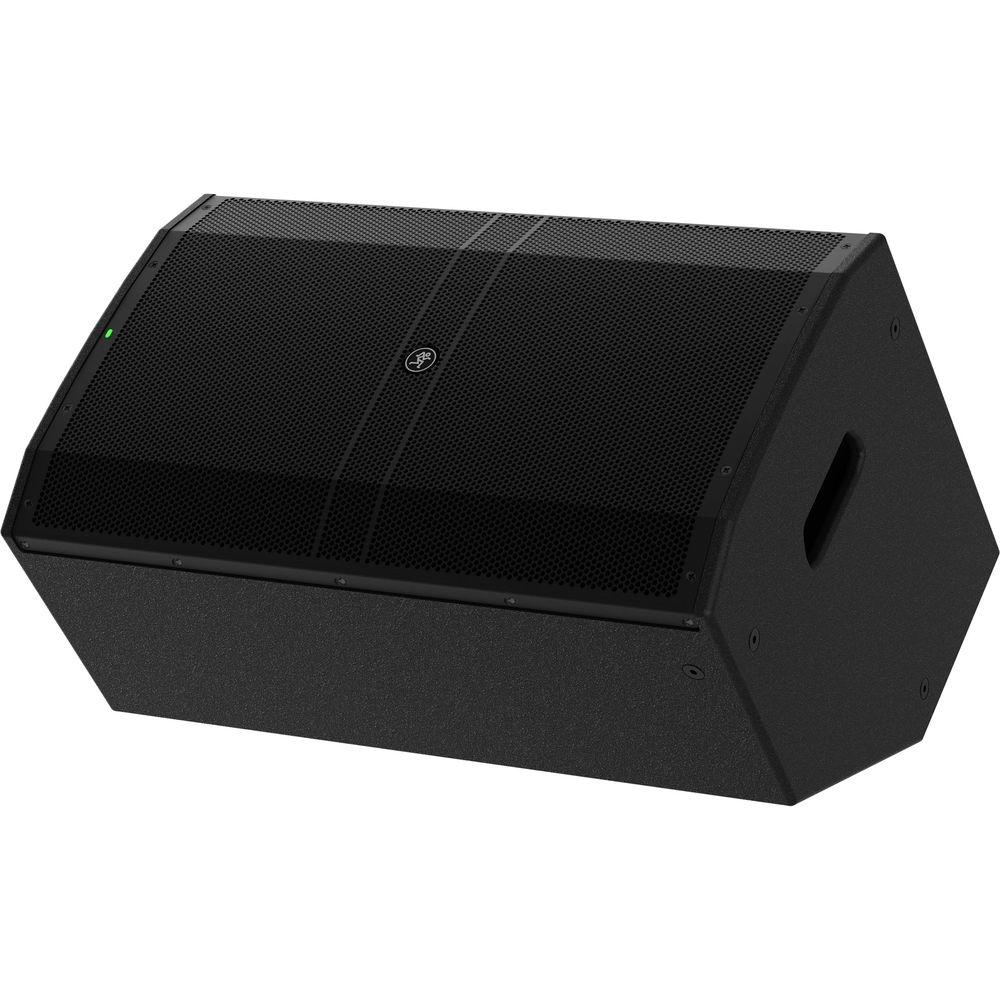

- Angled cabinet design allows for use as a high-performance floor monitor

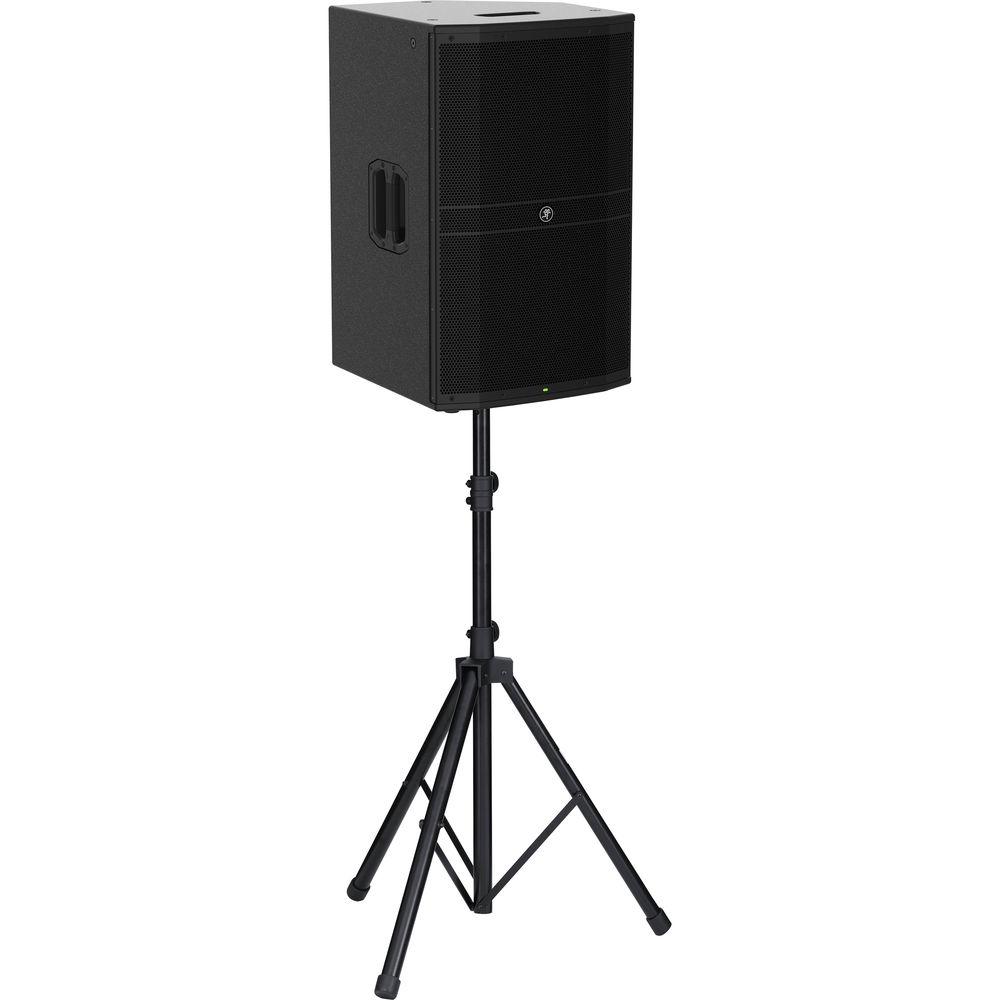

- Dual-angle pole-mount provides optimal coverage and minimal reflections in most venues
- Flyable – 8 x M10 fly points for vertical orientation
UPC: 663961055917 In the Box Mackie DRM215 1600W 15" Professional Powered Loudspeaker Limited 3-Year Warranty Inclusive of Electronics Limited 2-Year Warranty of Drivers Guides & Manuals fedvsdrtrvtvyzazst Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie DRM215 1600W 15" Professional Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Mackie DRM215 1600W 15" Professional Powered Loudspeaker can be downloaded in PDF format at the link stated below.
Technical parametersMackie DRM215 Specs | | | Configuration | Active | | Total Power Capacity | 1600 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.4" / 35.6 mm | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Response | 43 Hz to 20 kHz -10 dB | | Maximum SPL | 135 dB | | Coverage Angle | 90° H x 60° V | | | | Audio I/O | 2 x Combo XLR / 1/4" Line/Mic Input
1 x 1/8" / 3.5 mm TRS Aux Input | | | | EQ | Yes | | Alignment Delay | Yes | | | | AC Input Power | Universal:
100 to 240 VAC, 50 / 60 Hz | | | | Mounting | 8 x M10 | | Construction Material | Metal Grille, Plywood | | Dimensions | 28.3 x 18.1 x 17.0" / 718.8 x 459.7 x 431.8 mm | | Weight | 57.3 lb / 26 kg | | | | Package Weight | 57.2 lb | | Box Dimensions (LxWxH) | 32.5 x 22.0 x 20.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
