Product description NAMM 2019: New Mackie DRM Loudspeakers Now Available at B&H Read More - DRM Series Overview Video for use in US CAN China

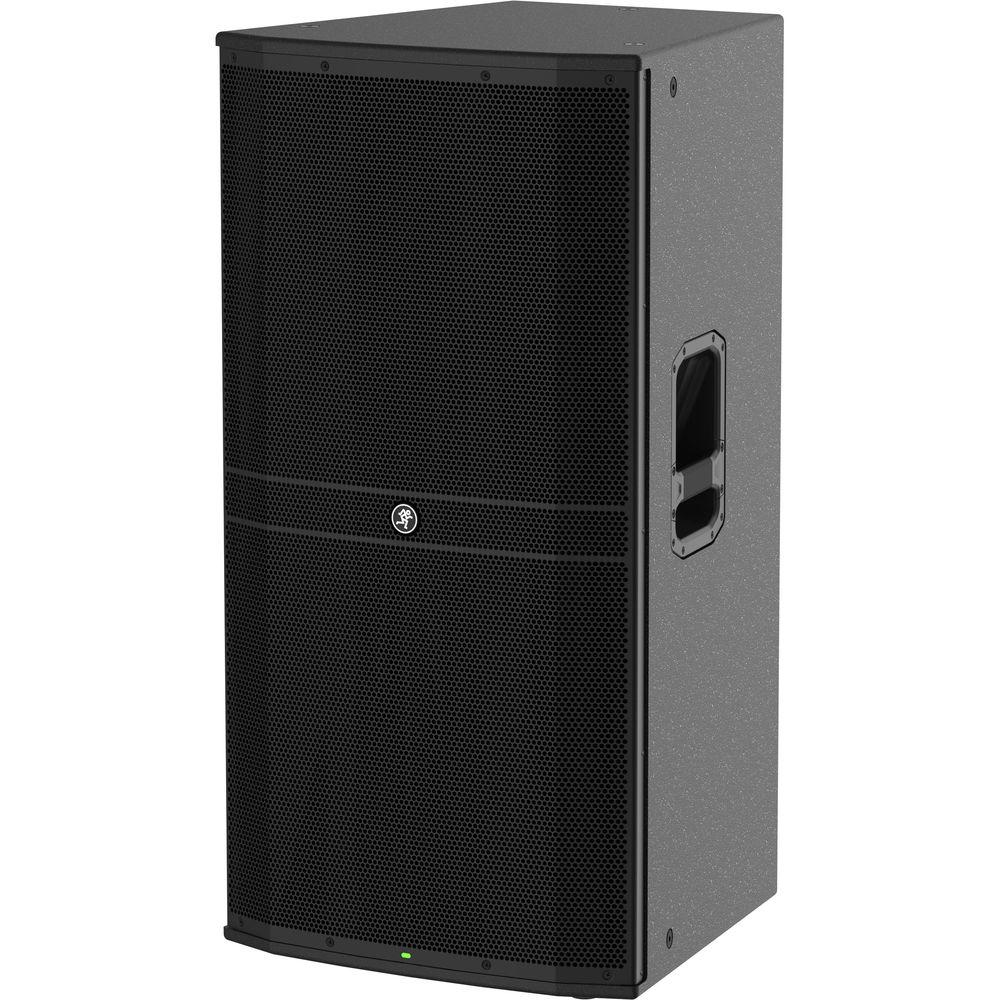

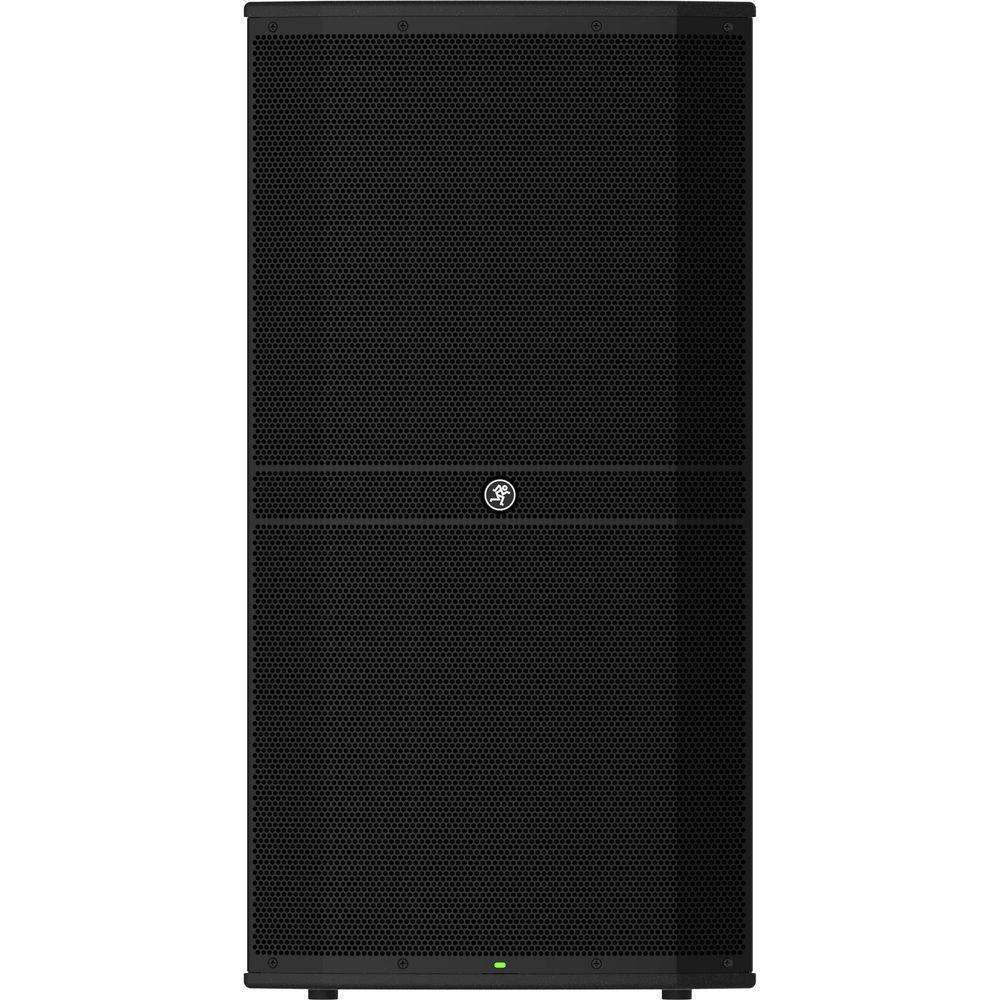

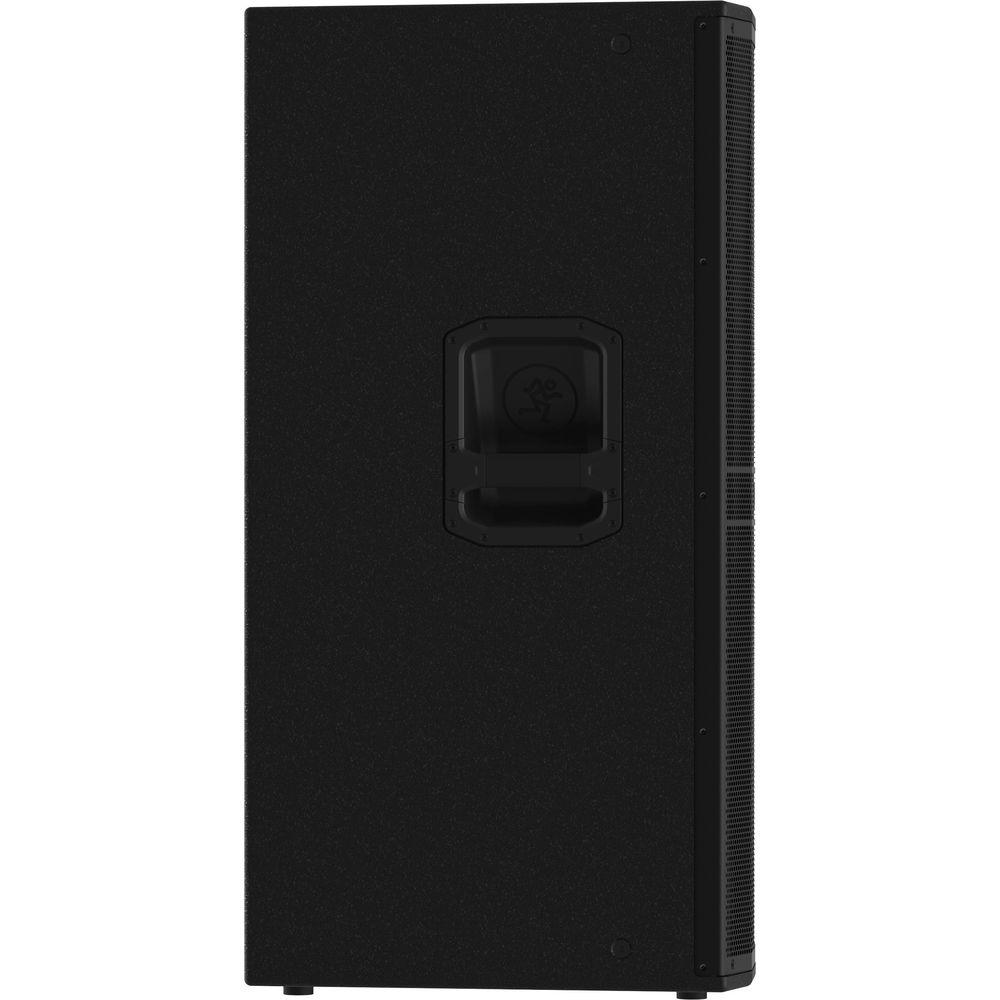

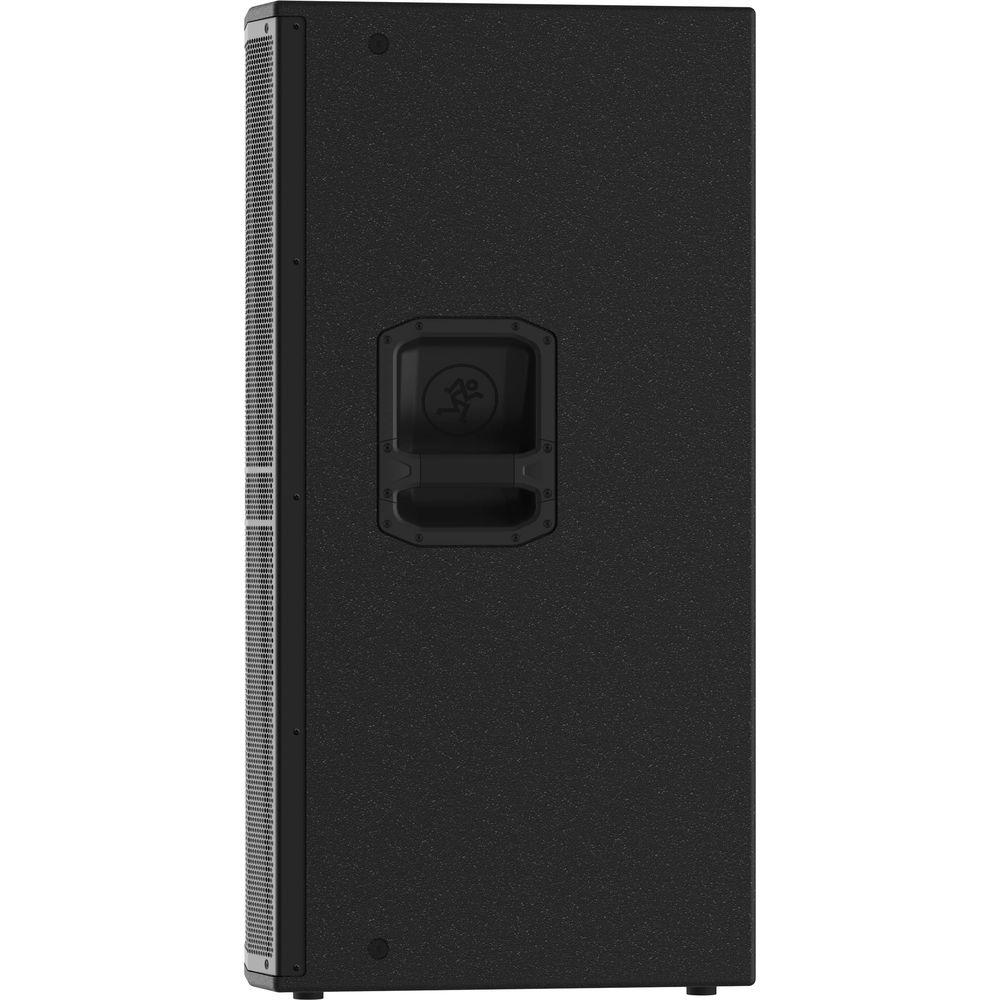

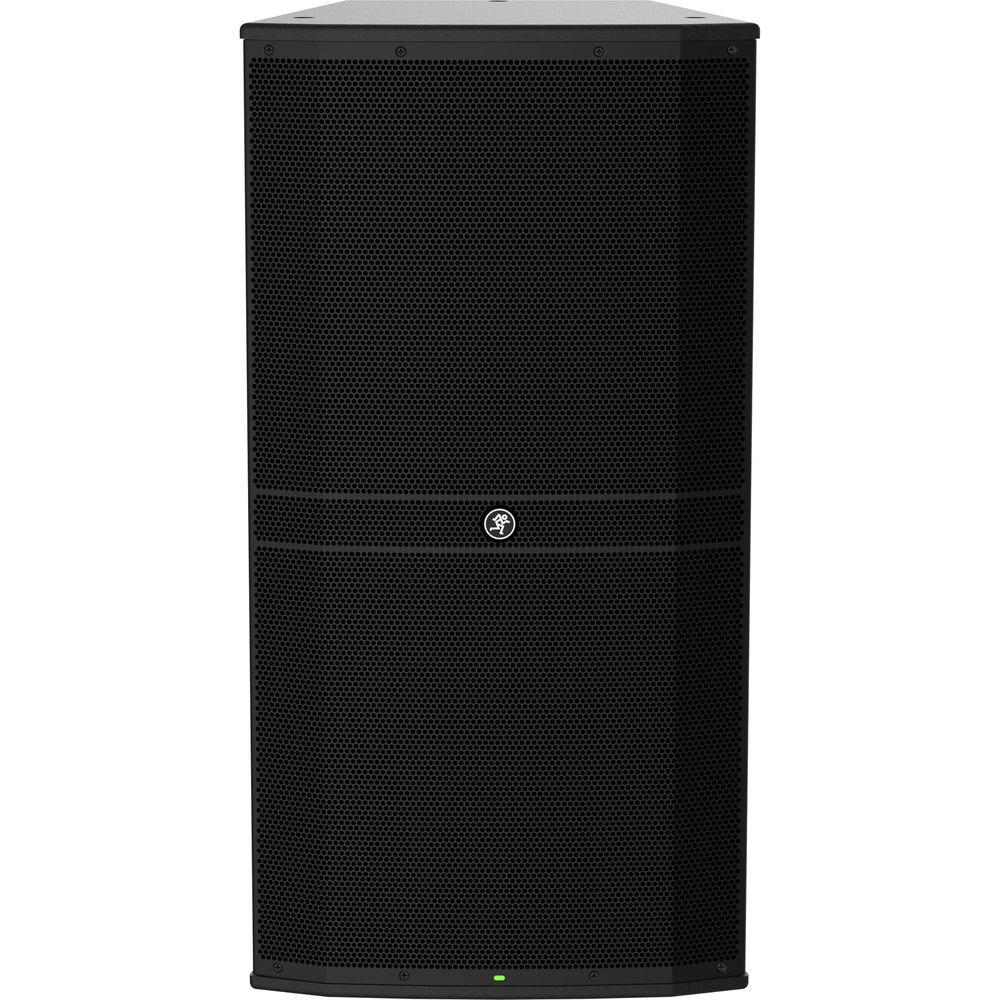

The Mackie DRM315 is a 2300W 15" powered loudspeaker designed for medium-sized theaters, large music venues, and outdoor sporting events as well as DJs, large clubs, houses of worship, rental systems, and more. The integrated Class-D amplifier utilizes professional-quality protection and Power Factor Correction (PFC) technology to ensure peak performance, while the Advanced Impulse DSP provides acoustic correction and time-alignment via precision tuned FIR filters for a clear, punchy sound. The DRM Control Dashboard features a high-contrast, full-color display for quick access to EQ, voicing modes and more.

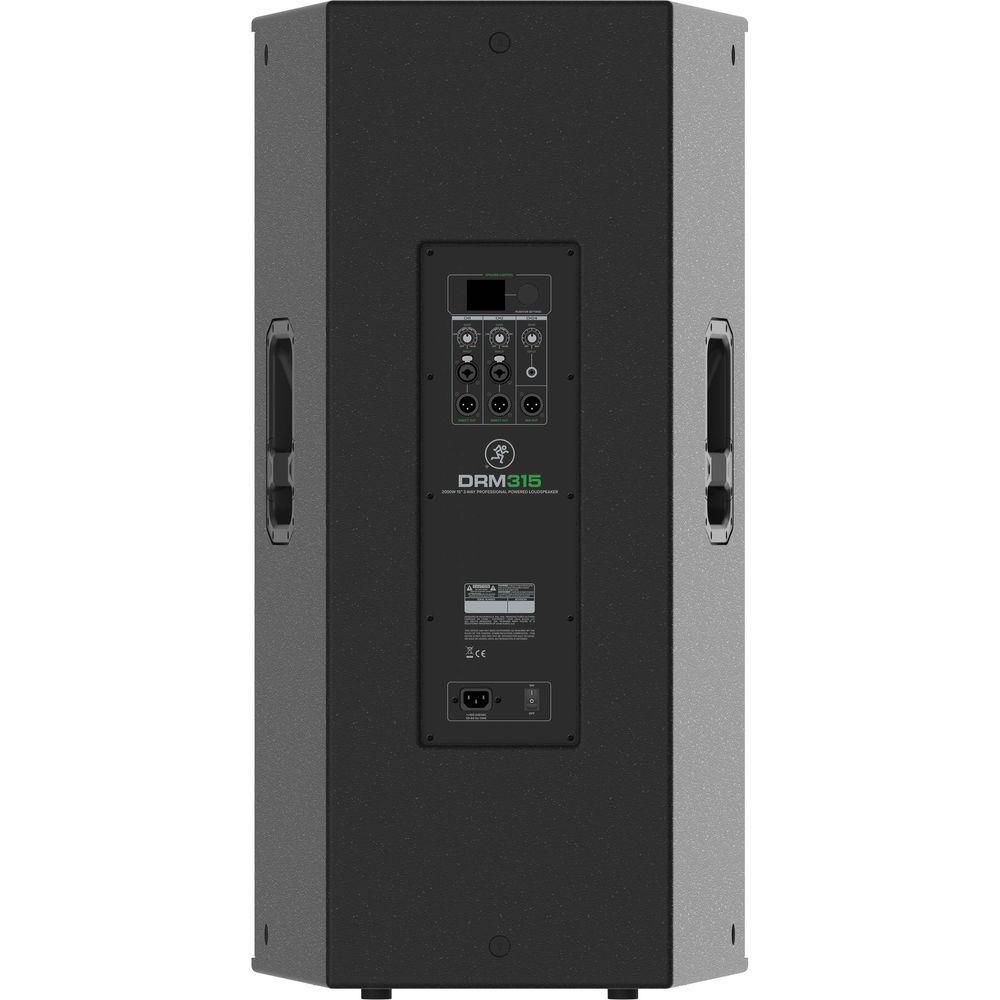

A professional-grade 15” woofer, 6.5" midrange transducer, and 1.4" compression driver are housed in the texture-coated 15mm plywood cabinet and when combined offer a frequency range of 35 Hz to 20 kHz (-10 dB) with a peak SPL of 137 dB. The rear panel includes dual combo XLR-1/4" inputs and will accept mic, line, and instrument signals. What's more, a dedicated 3.5mm stereo aux input is available for connecting portable music devices. The versatile enclosure features dual-angled pole-mount provides optimal coverage and minimal reflections in most venues. The Mackie DRM315 provides a rotatable horn allowing the loudspeaker to be flown both horizontally and vertically via twelve integrated M10 fly points. -
- High-efficiency 2300W Class-D amplifier offers ample headroom for professional applications
- Universal power supply (100-240 VAC) with Power Factor Correction technology ensures consistent performance even with unstable AC power
- Next-gen protection circuitry keeps transducers safe and ensures peak performance in all applications
- Advanced Impulse DSP module
- Precision crossovers and transducer time alignment deliver reference-quality sound that is consistent throughout the frequency range
- Linear-Phase FIR Filtering drastically reduces inherent anomalies, phase issues, and muddy midrange resulting in crystal-clear sound
- DRM Control Dashboard features a high-contrast, full-color display for easy single-knob access to configuration, processing, and more
- View current EQ and voicing mode, high-resolution metering, and more from a single overview window
- Application and venue-specific modes provide easy-to-use voicing with minimal setup time. Available modes: Live, Club, and Speech plus independent Sub option
- Adjustable 3-band parametric EQ allows for additional customization and tuning for your application and venue
- Alignment Delay control for delay stacks
- Save and recall up to 6 user presets for various applications and venues
- Screensaver plus dimmer and contrast control
- System lock with 4-digit passcode
- Dual independent inputs that support mic, line, and instrument signals plus a dedicated 3.5mm stereo aux input
- Premium components and cabinet design
- Road-worthy 15mm plywood construction and internal bracing offer optimal acoustic performance with a touring-grade textured coating and powder-coated heavy-gauge steel grille
- Unique ported design provides exceptionally smooth yet punchy low-frequency response while providing forced-air cooling directly to the internal amplifier
- Rotatable waveguide assembly allows for flown horizontal orientation while maintaining maximum coverage
- 1.4” Titanium diaphragm compression driver is perfectly matched to the amplifier for maximum transparency and clarity
- 6.5” midrange transducer provides incredible midrange clarity for punchy vocal and instrument reproduction
- 15” high-excursion woofer offers increased sensitivity, bass response, and reliability to withstand the most demanding applications
- Versatile configuration options

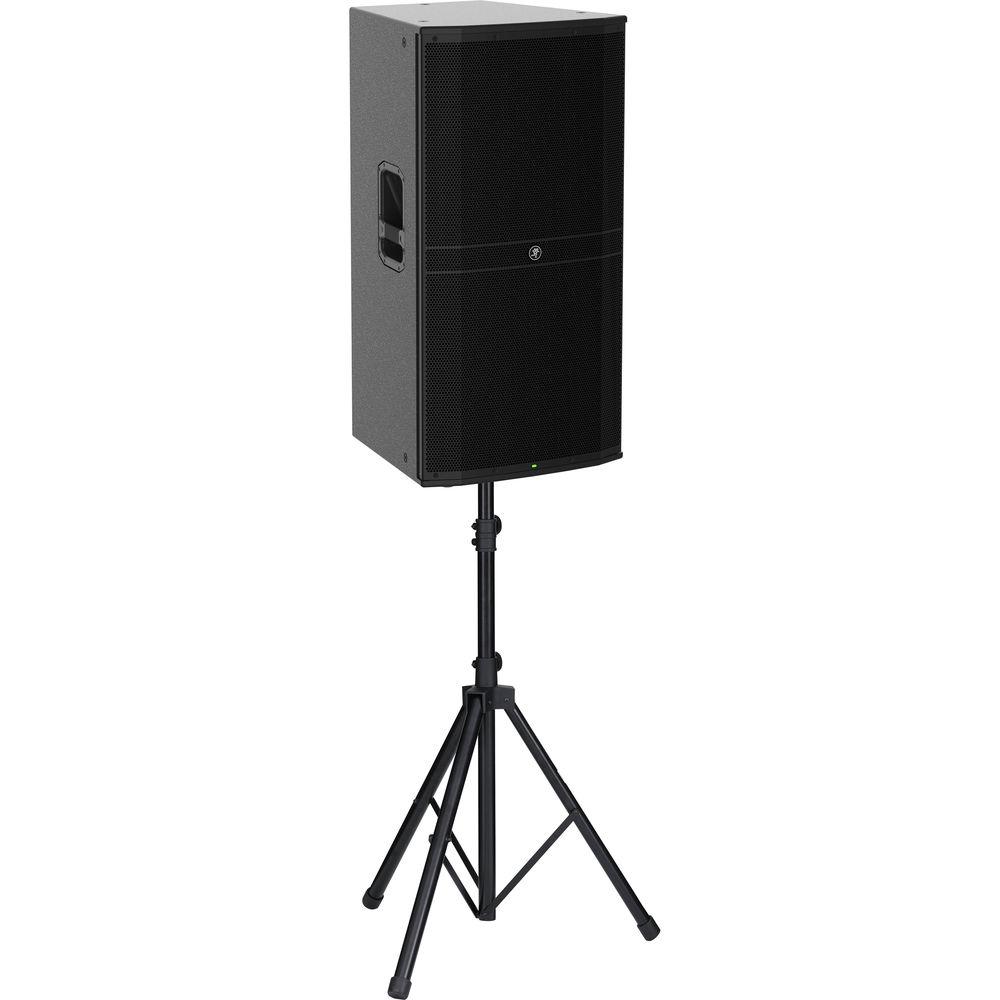

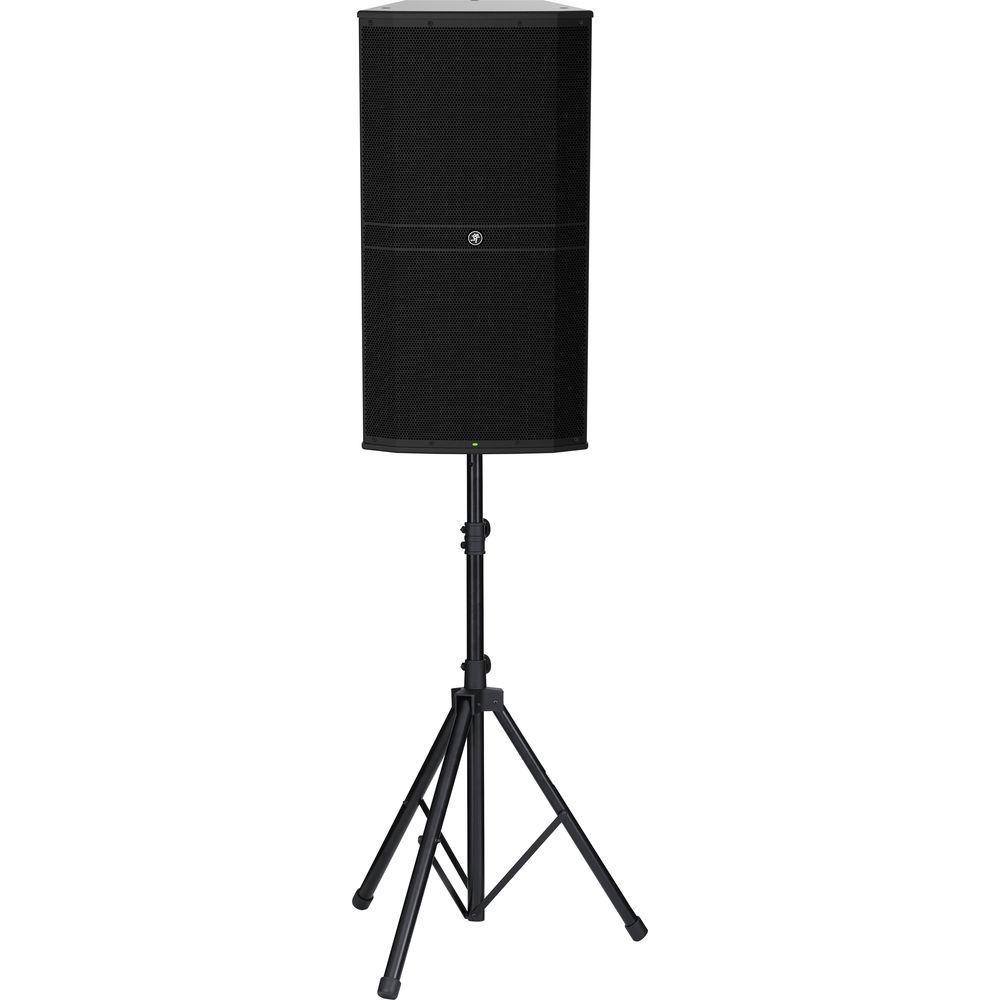

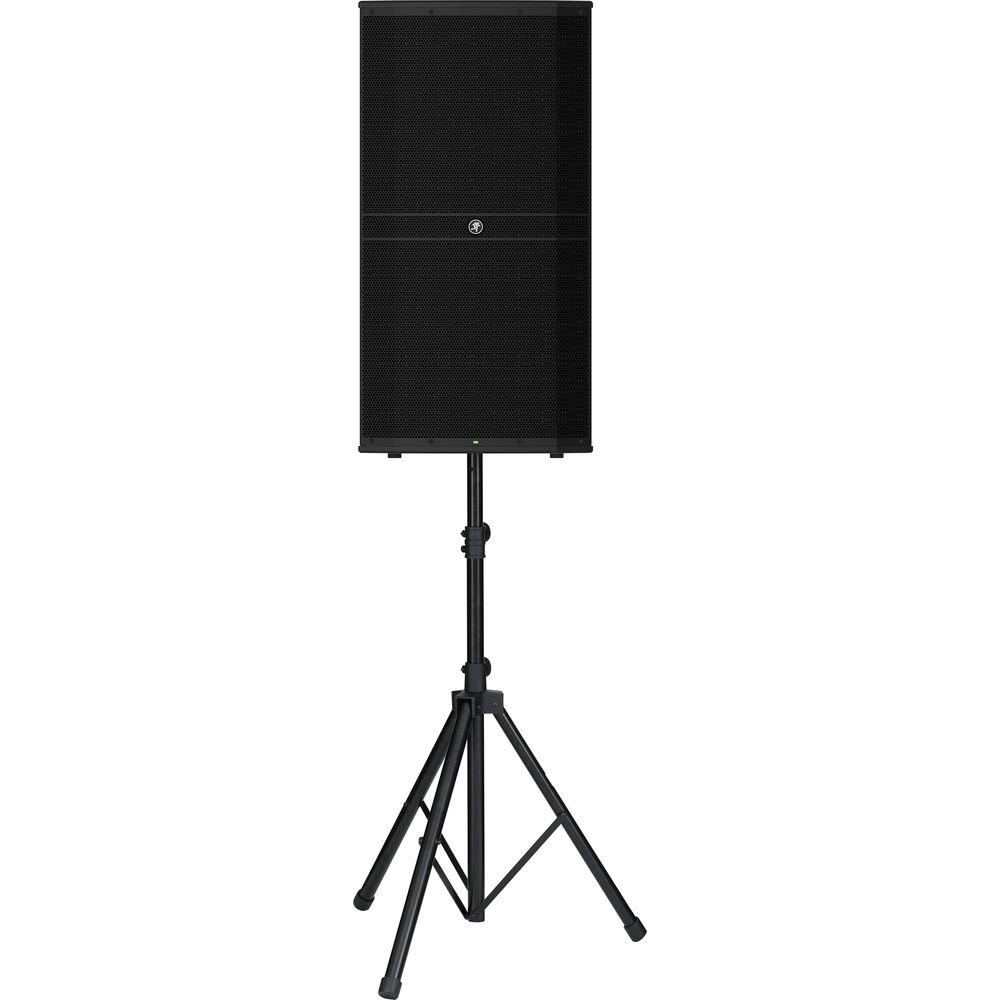

- Pole-mount allows for easy mounting on top of a DRM18S subwoofer
- Flyable – 12 x M10 fly points for horizontal or vertical orientation
UPC: 663961056204 In the Box Mackie DRM315 2300W 15" 3-Way Professional Powered Loudspeaker Limited 3-Year Warranty Inclusive of Electronics Limited 2-Year Warranty of Drivers Guides & Manuals bfyvrrdqvdcwtszazyzwyxdcfxsqdwaut Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie DRM315 2300W 15" 3-Way Professional Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Mackie DRM315 2300W 15" 3-Way Professional Powered Loudspeaker can be downloaded in PDF format at the link stated below.
Technical parametersMackie DRM315 Specs | | | Configuration | Active 3-Way | | Total Power Capacity | 2300 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.4" / 35.6 mm | | MF Driver | 1 x 6.5" / 165.1 mm | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Response | 35 Hz to 20 kHz -10 dB | | Maximum SPL | 137 dB | | Coverage Angle | 90° H x 50° V (Rotatable Horn) | | | | Audio I/O | 2 x Combo XLR / 1/4" Line/Mic Input
1 x 1/8" / 3.5 mm TRS Aux Input | | | | EQ | Yes | | Alignment Delay | Yes | | | | AC Input Power | Universal:
100 to 240 VAC, 50 / 60 Hz | | | | Mounting | 12 x M10 | | Construction Material | Metal Grille, Plywood | | Dimensions | 36.5 x 19.0 x 18.0" / 927.1 x 482.6 x 457.2 mm | | Weight | 68.3 lb / 31 kg | | | | Package Weight | 79.35 lb | | Box Dimensions (LxWxH) | 39.0 x 22.5 x 22.0" |
