User Manual for Mackie DRM315-P 2000W 15" 3-Way Professional Passive Loudspeaker Click to enlarge the picture
Contents of the user manual for the Mackie DRM315-P 2000W 15" 3-Way Professional
- Product category: PA Speakers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie PA Speakers
 |
User manual for the Mackie DRM315-P 2000W 15" 3-Way Professional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description NAMM 2019: New Mackie DRM Loudspeakers Now Available at B&H Read More - DRM Series Overview Video for use in US CAN China

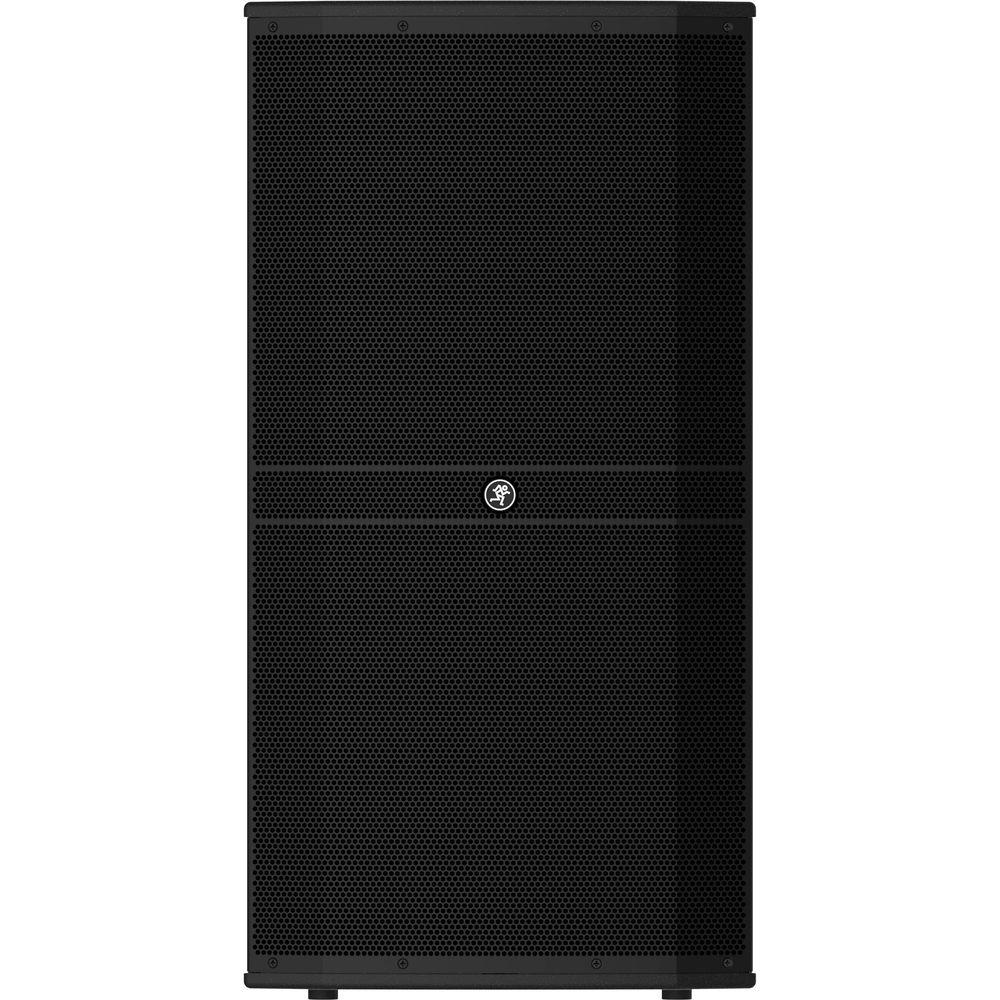

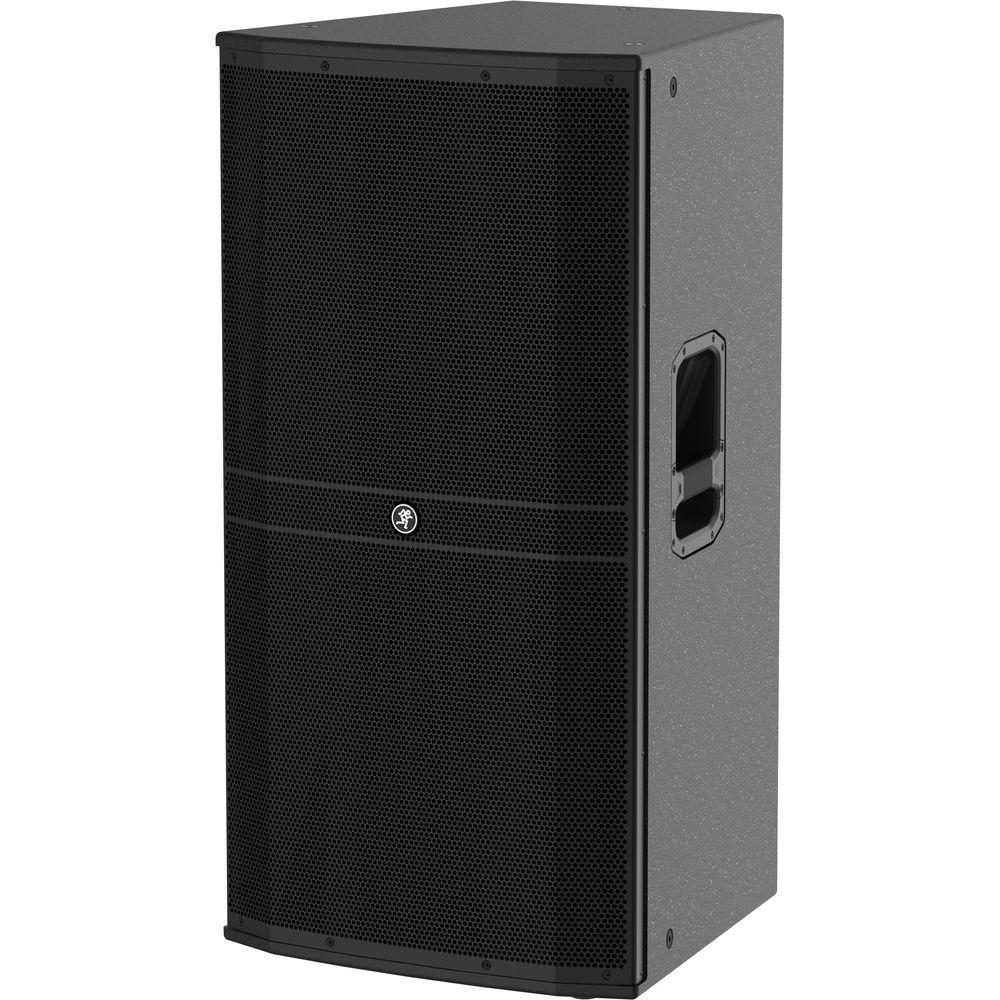

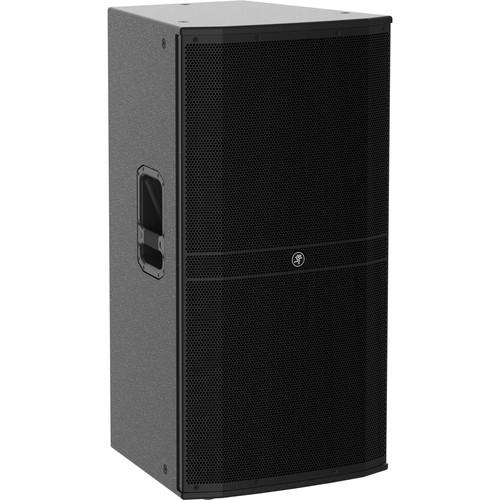

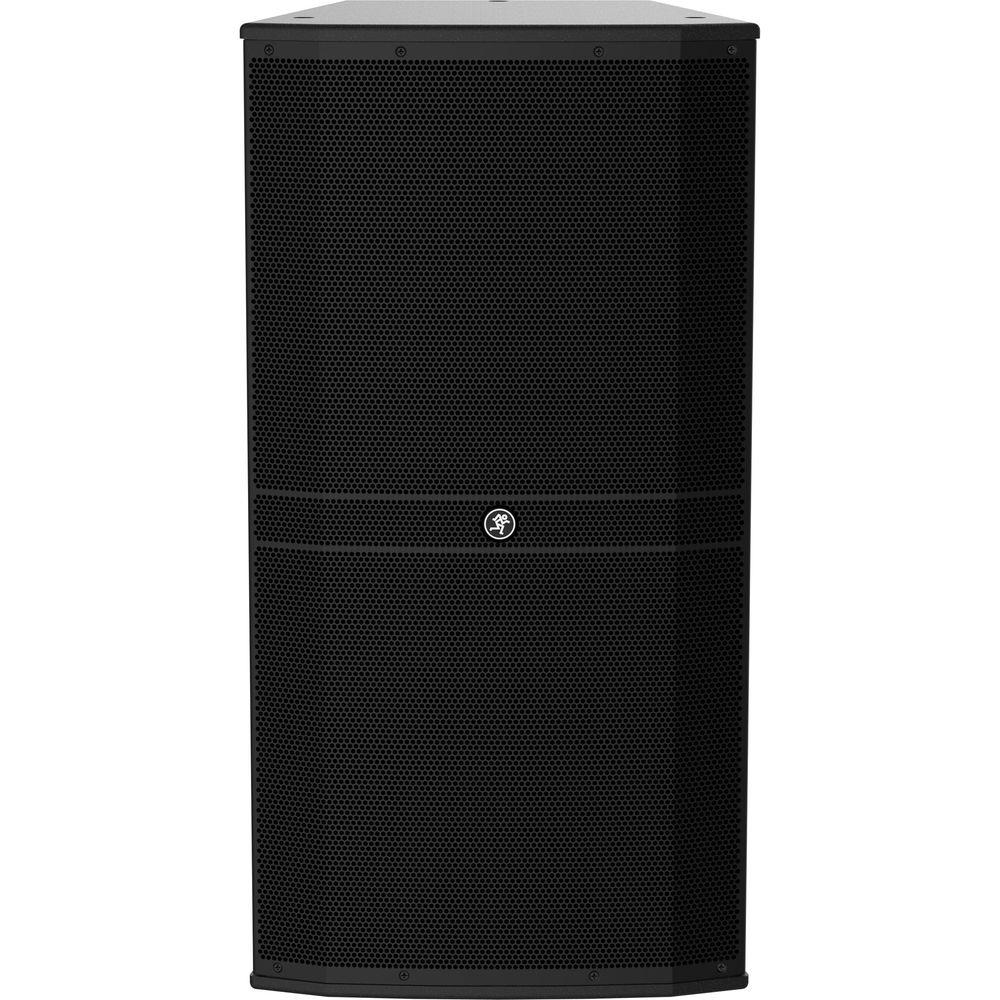

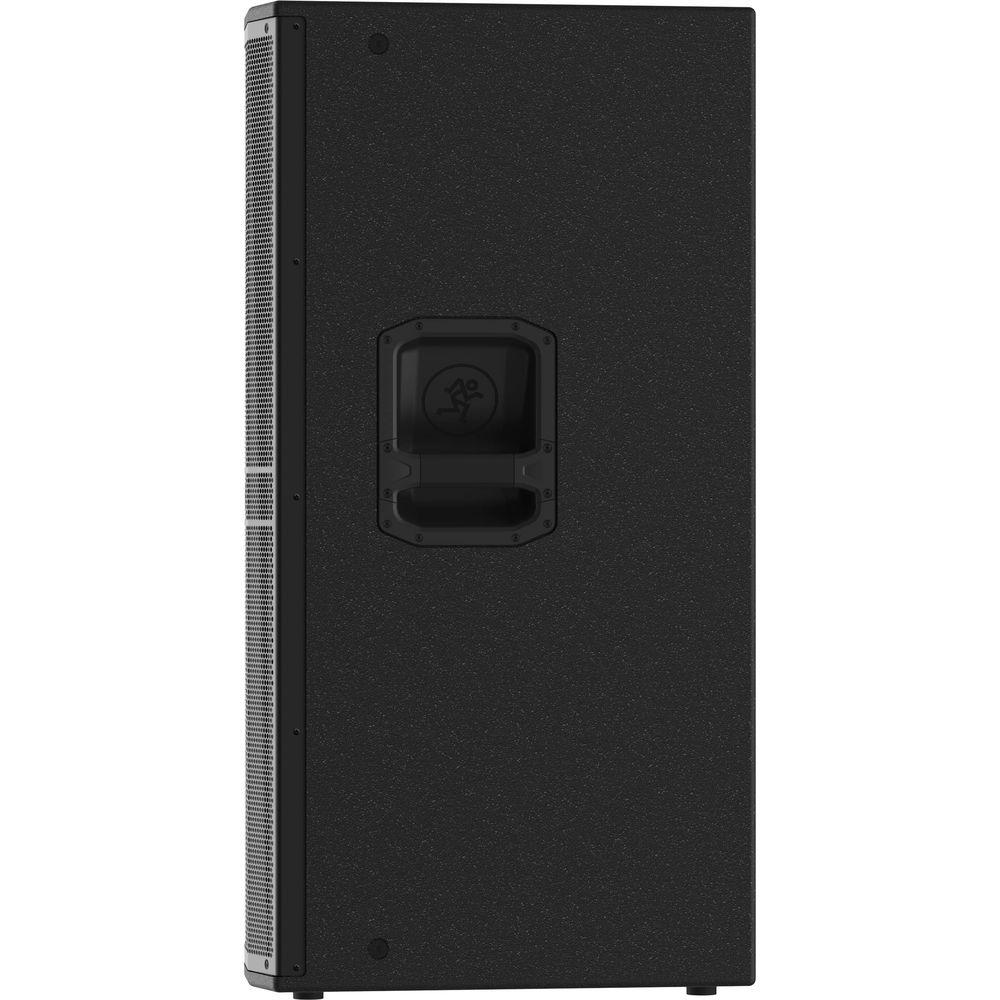

The Mackie DRM315-P is a 2000W 15" powered loudspeaker designed for medium-sized theaters, large music venues, and outdoor sporting events as well as DJs, large clubs, houses of worship, rental systems, and more. A professional-grade 15” woofer, 6.5" midrange transducer, and 1.4" compression driver are housed in the texture-coated 15mm plywood cabinet and when combined offer a frequency range of 65 Hz to 18 kHz (-10 dB). The rear panel includes parallel SpeakON inputs. The versatile enclosure features dual-angled pole-mount that provides optimal coverage and minimal reflections in most venues. The Mackie DRM315-P provides a rotatable horn allowing the loudspeaker to be flown both horizontally and vertically via twelve integrated M10 fly points. -
- High-performance professional loudspeaker designed for high-demand applications
- Custom-designed transducers
- 1.4” Titanium diaphragm compression driver offer maximum transparency and clarity
- 6.5” midrange transducer provides incredible midrange clarity for punchy vocal and instrument reproduction
- 15” high-excursion woofer offers increased sensitivity, bass response, and reliability to withstand the most demanding live performances and music
- Rotatable waveguide assembly allows for horizontal orientation while maintaining horizontal coverage
- Precision internal crossover
- Premium-grade components and precise tuning provide maximum clarity and performance

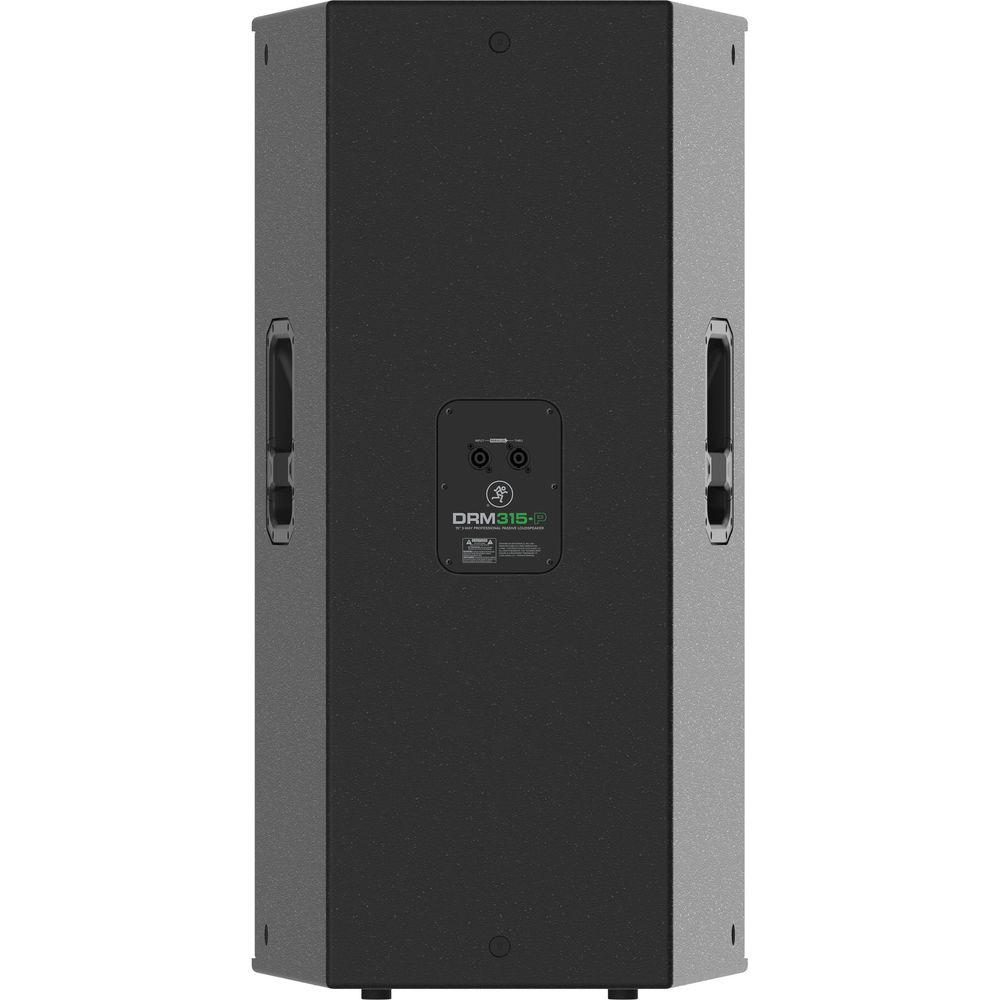

- Parallel SpeakON inputs
- Road-worthy 15mm plywood construction and internal bracing offer optimal acoustic performance

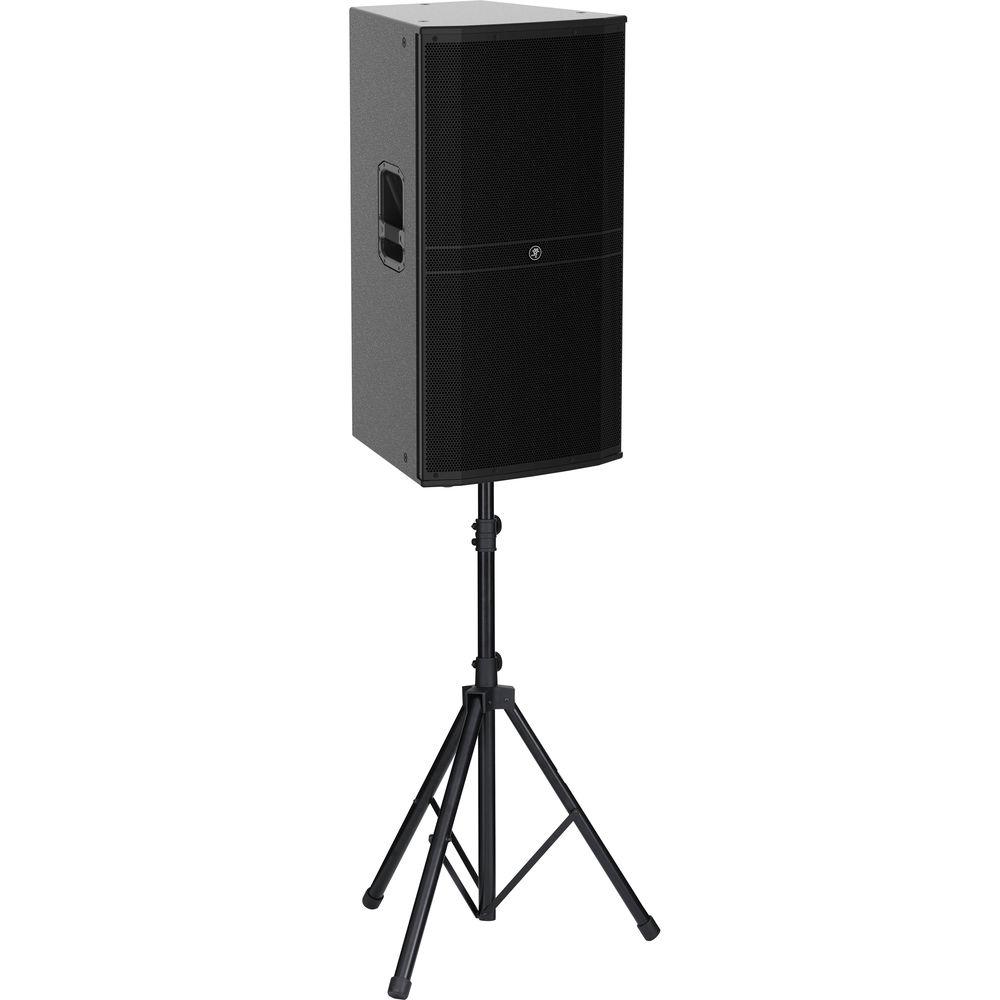

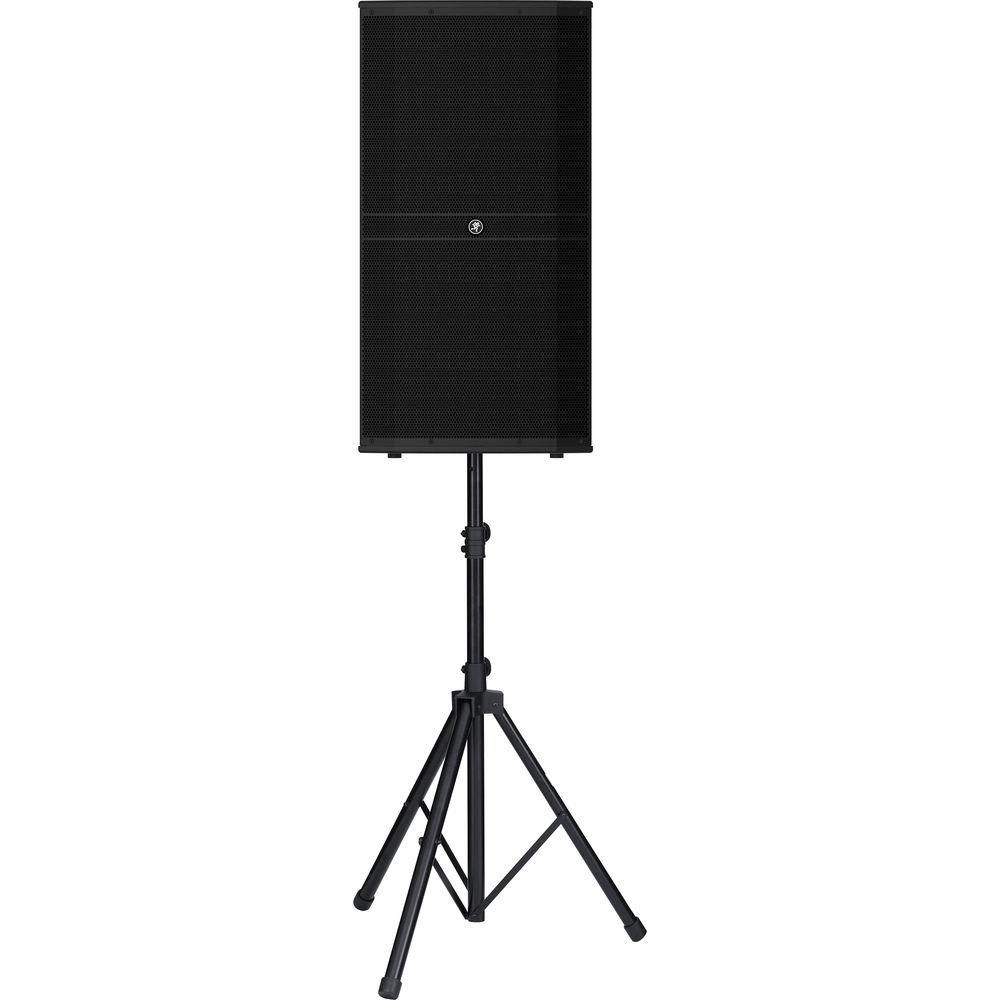

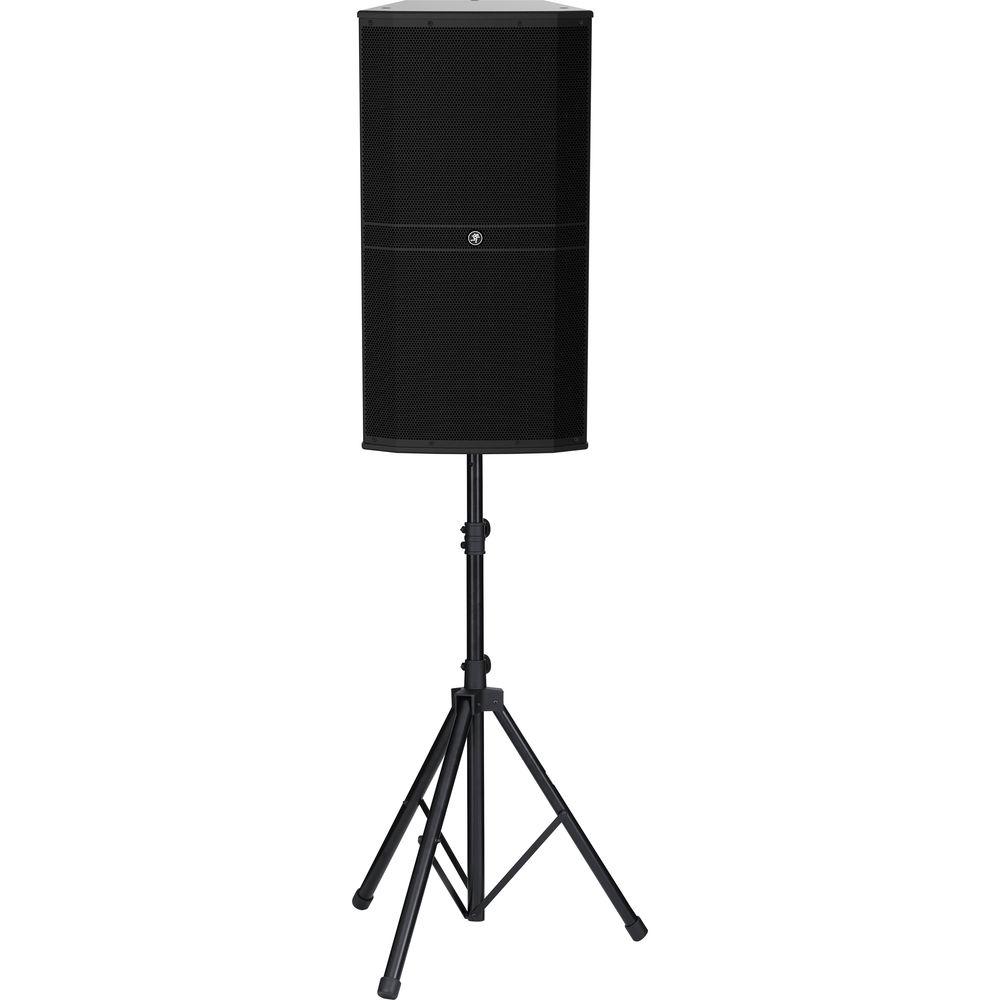

- Pole-mountable
- Flyable – 12 x M10 fly points for vertical and horizontal orientation
- Touring-grade textured cabinet coating
- Powder-coated heavy-gauge steel grille
- Power Handling (Continuous / Program / Peak): 500W / 1000W / 2000W
- Optional SP260 Loudspeaker Processor provides custom EQ curves and crossovers for your DRM Passive System
UPC: 663961057003 In the Box Mackie DRM315-P 2000W 15" 3-Way Professional Passive Loudspeaker Limited 3-Year Warranty Inclusive of Electronics Limited 2-Year Warranty of Drivers Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie DRM315-P 2000W 15" 3-Way Professional Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie DRM315-P Specs | | | Configuration | Passive 3-Way | | Total Power Capacity | 500 W RMS
1000 W Program
2000 W Peak | | System Impedance | 4 Ohms | | | | HF Driver | 1 x 1.4" / 35.6 mm | | MF Driver | 1 x 6.5" / 165.1 mm | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Response | 65 Hz to 18 kHz -10 dB | | Coverage Angle | 90° H x 50° V (Rotatable Horn) | | | | Audio I/O | 2 x speakON Input Parallel | | | | Mounting | 12 x M10 | | Construction Material | Metal Grille, Plywood | | Dimensions | 36.5 x 19.0 x 18.8" / 927.1 x 482.6 x 477.5 mm | | Weight | 67.5 lb / 30.6 kg |
