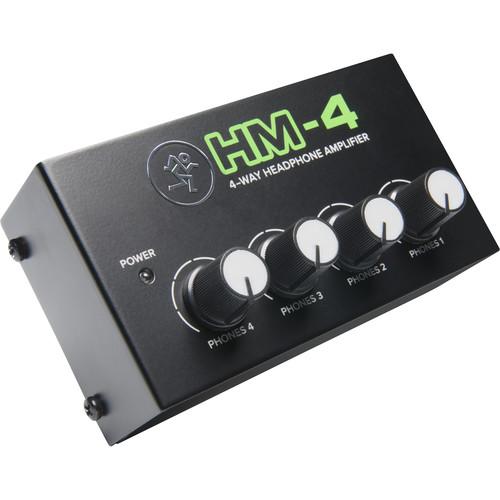

User Manual for Mackie HM-4 4-Way Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the Mackie HM-4 4-Way Headphone Amplifier
- Product category: Headphone Amplifiers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Headphone Amplifiers
 |
User manual for the Mackie HM-4 4-Way Headphone Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|

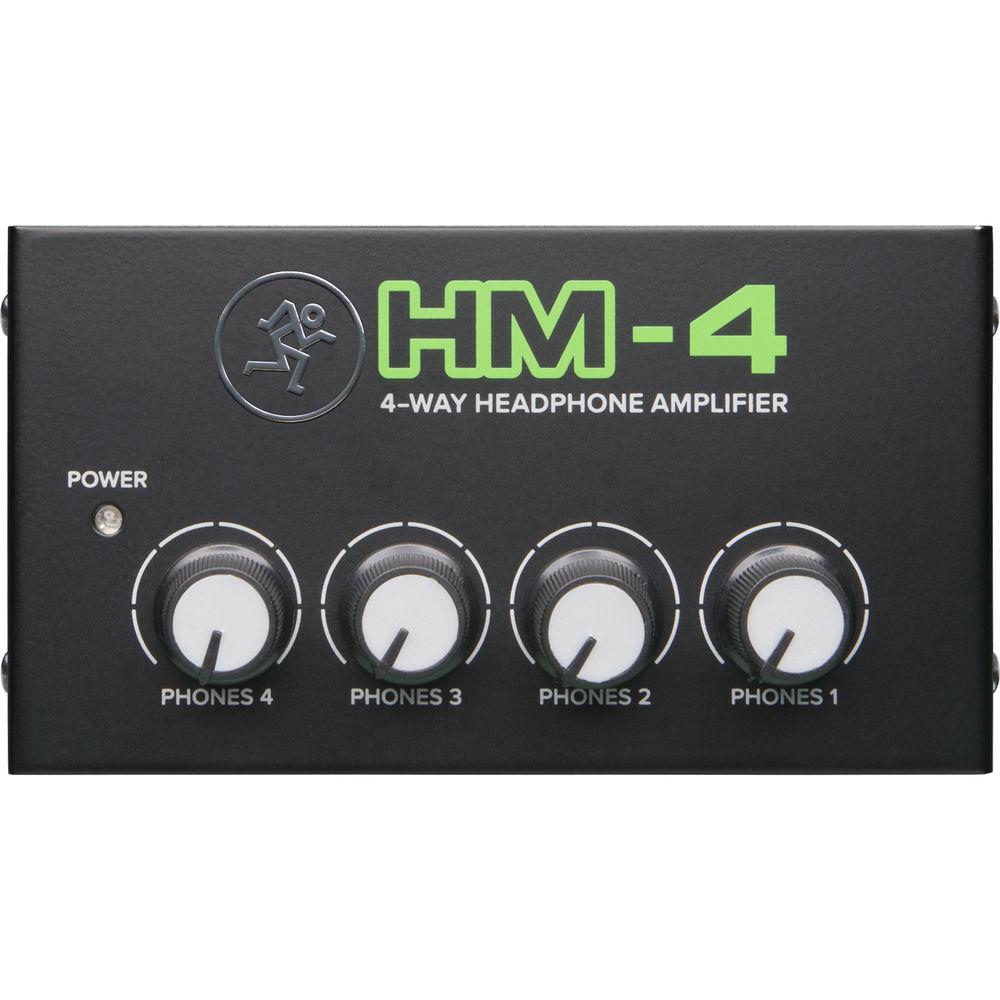

Product description The Mackie HM-4 is a 4-way headphone amplifier designed to provide simple and effective headphone amplification for artists, musicians, and engineers monitoring through headphones in home, project, commercial, and mobile-recording studios. Its single 1/4" TRS stereo input and four 1/4" TRS stereo outputs allow you to distribute a stereo source to up to four pairs of headphones. Each output is controlled via a dedicated level knob, allowing varied listening volumes for each person. The compact heavy-gauge steel chassis offers rugged durability and a convenient power status indicator on its front panel. Use the included 12 VDC power supply to power the HM-4. - Distribute a stereo input signal to up to four pairs of headphones
- Ideal for musicians in home and studio recording sessions

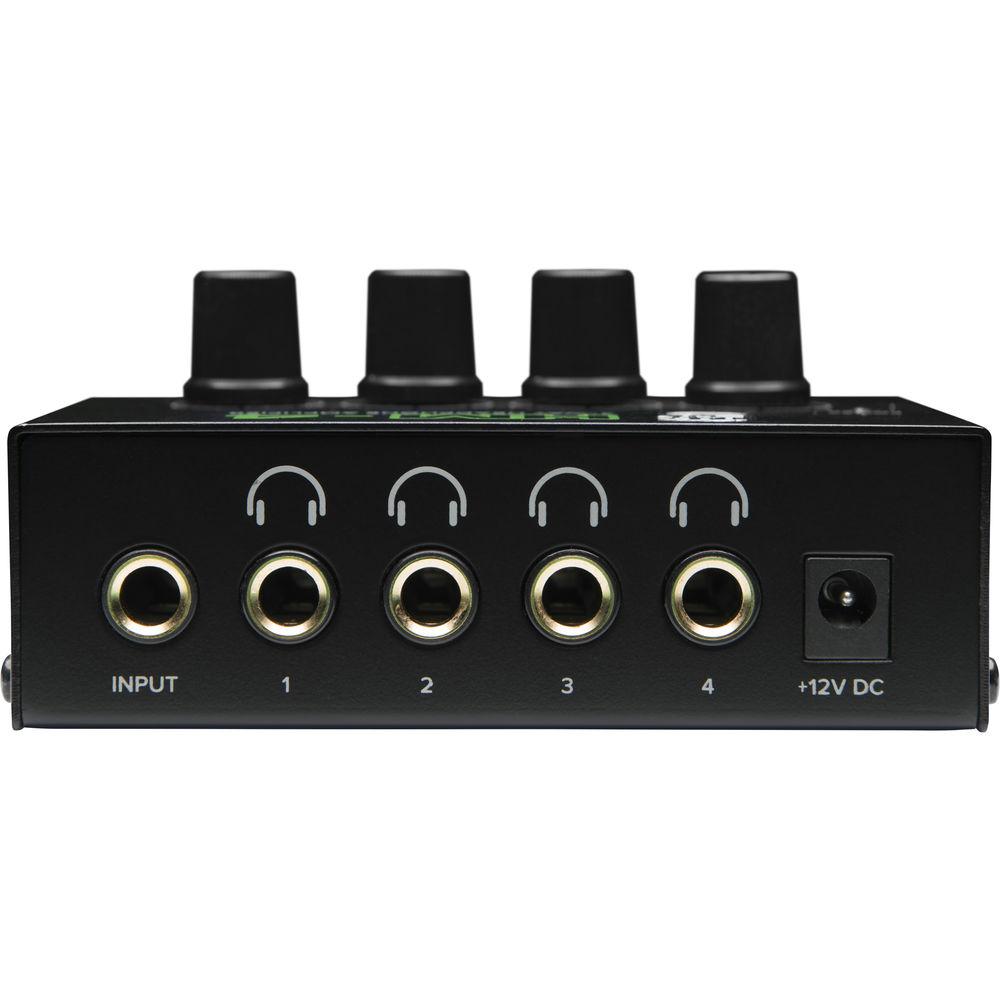

- One unbalanced 1/4" TRS stereo input
- Four unbalanced 1/4" TRS stereo headphone outputs
- Dedicated per-output level control allows each person to set a different listening volume
- Front-panel power status indicator
- Heavy-gauge steel chassis for long-lasting durability in the studio or on the road
- Includes 12 VDC power supply
UPC: 663961054057 In the Box Mackie HM-4 4-Way Headphone Amplifier 12 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie HM-4 4-Way Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie HM-4 Specs | Number of Channels | 4 | | Input Connections | 1 x 1/4" TRS stereo (unbalanced) | | Output Connectors | 4 x 1/4" TRS stereo (unbalanced) | | Input Impedance | 10 kOhms | | Output Impedance | 47 Ohms | | Maximum Output Level | +22 dB | | Function Controls | 4 x volume controls | | Frequency Response | Not specified by manufacturer | | Power Requirement | 12 VDC power supply | | Current Draw | <220 mA maximum | | Construction Material | Heavy-gauge steel chassis | | Dimensions (H x W x D) | 2.0 x 4.3 x 2.3" / 51 x 109 x 58 mm | | Weight | 0.5 lb / 0.2 kg | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.9 x 5.8 x 2.9" |
