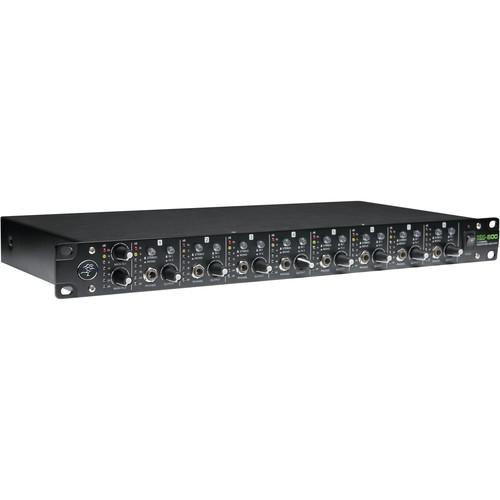

Product description The Mackie HM-800 is a rack-mountable, 8-channel headphone amplifier designed to provide versatile headphone amplification for artists, musicians, and engineers monitoring through headphones in live stage applications and home, project, commercial, and mobile-recording studios. It features two stereo main outputs via four 1/4" jacks and sixteen 1/4" TRS stereo headphone outputs—two per channel—fed by a customizable blend of inputs. Two stereo main inputs via four 1/4" jacks can be combined with a per-channel 1/4" stereo aux input. Each channel offers stereo/mono mode switching, input selection, and output level adjustments. 7-segment LED meters display main input and per-channel output levels. The HM-800 ships with an IEC power cable and occupies 1 RU in a standard 19" rack. - Distribute signal to up to sixteen pairs of headphones
- Two stereo main inputs via four 1/4" jacks
- One 1/4" stereo aux input per channel
- Two stereo main outputs via four 1/4" jacks

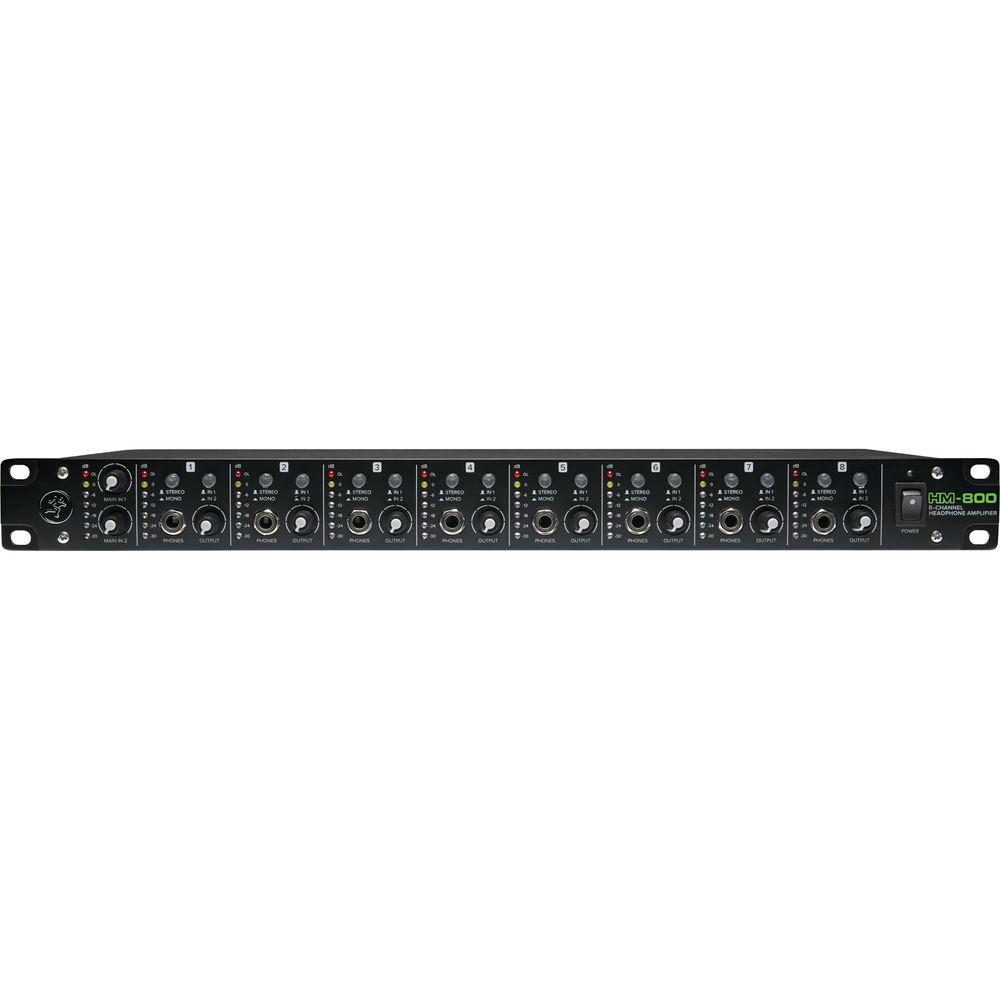

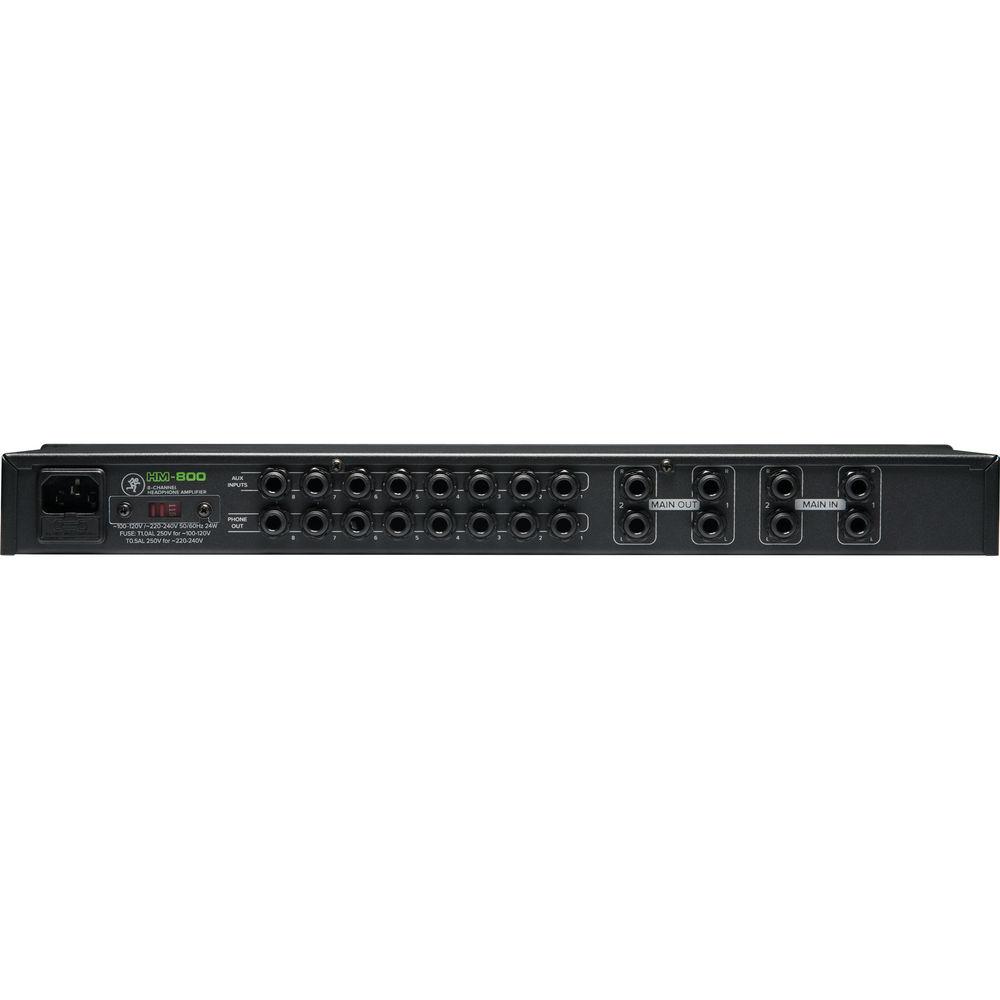

- Two 1/4" stereo headphone outputs—one on the front panel and one on the rear—per channel fed by an output level control
- Switches on each channel for stereo/mono operation input selection
- 7-segment LED metering for main input and each output channel
- Heavy-gauge steel chassis for rugged durability
UPC: 663961054095 In the Box Mackie HM-800 Rack-Mountable, 8-Channel Headphone Amplifier Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie HM-800 Rack-Mountable, 8-Channel Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie HM-800 Specs | Number of Channels | 8 | | Input Connections | 4 x 1/4" TRS balanced (two stereo pairs, also accepts 1/4" TS unbalanced)
8 x 1/4" TRS stereo unbalanced for aux inputs | | Output Connectors | 4 x 1/4" TRS balanced (two stereo pairs, also accepts 1/4" TS unbalanced)
16 x 1/4" TRS stereo unbalanced headphone outputs | | Maximum Input Level | Main Input: +19 dBu
Aux Input: +20 dBu | | Maximum Output Level | Headphone Outputs: 550 mW per channel at 47 Ohms (+21 dBu) | | Input Impedance | Main Input: 40 kOhms balanced, 20 kOhms unbalanced
Aux Input: 13 kOhms unbalanced | | Output Impedance | Headphone Outputs: 3 Ohms unbalanced | | Gain Range | Main Input: -67 to +19 dBu | | Function Controls | Power on/off
Main level knobs
In 1/2 switches per channel
Stereo/Mono switches per channel
Output knob per channel | | Frequency Response | 20 Hz to 20 kHz (
