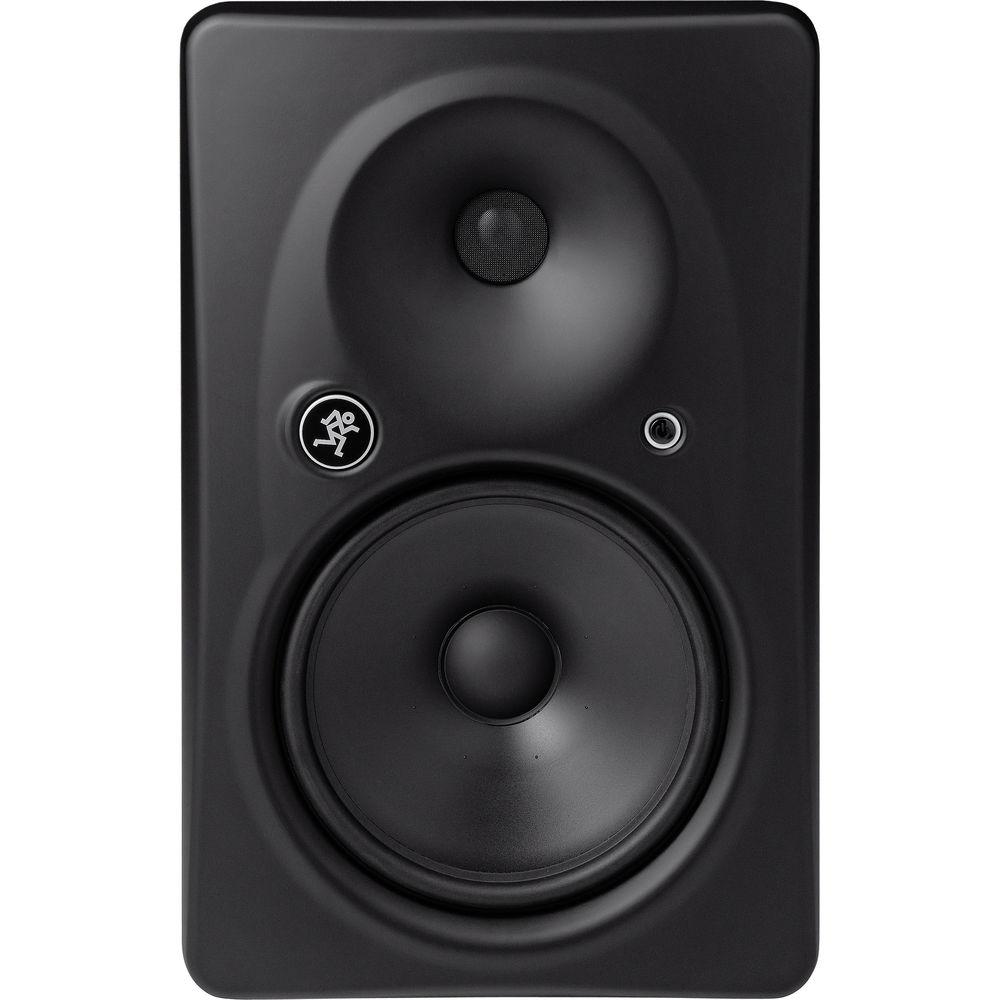

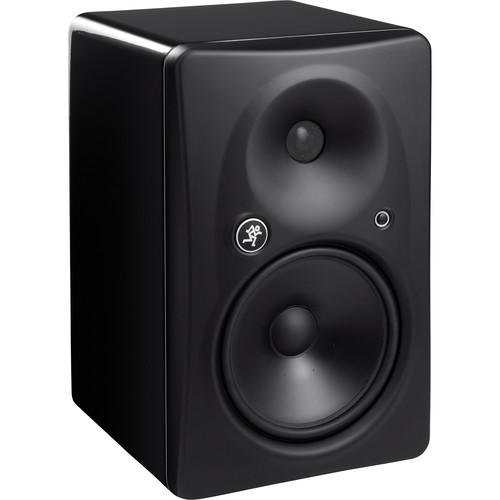

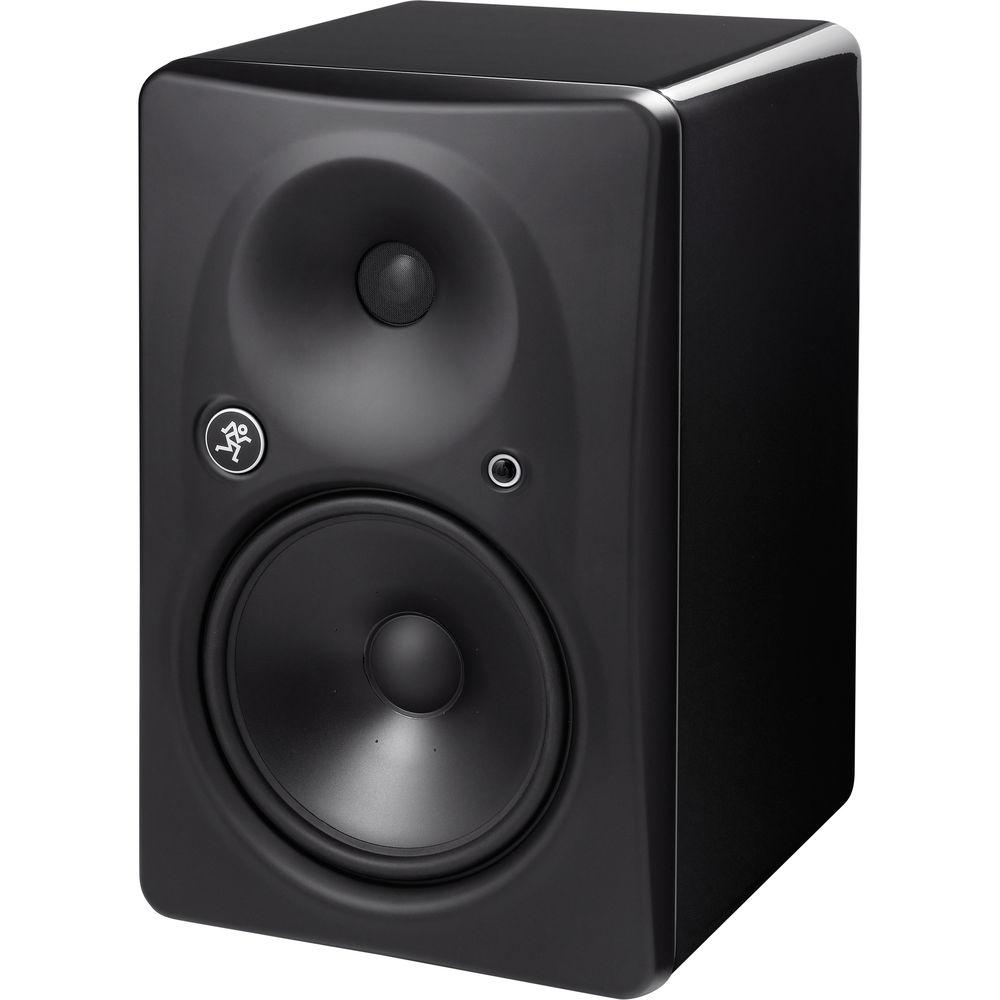

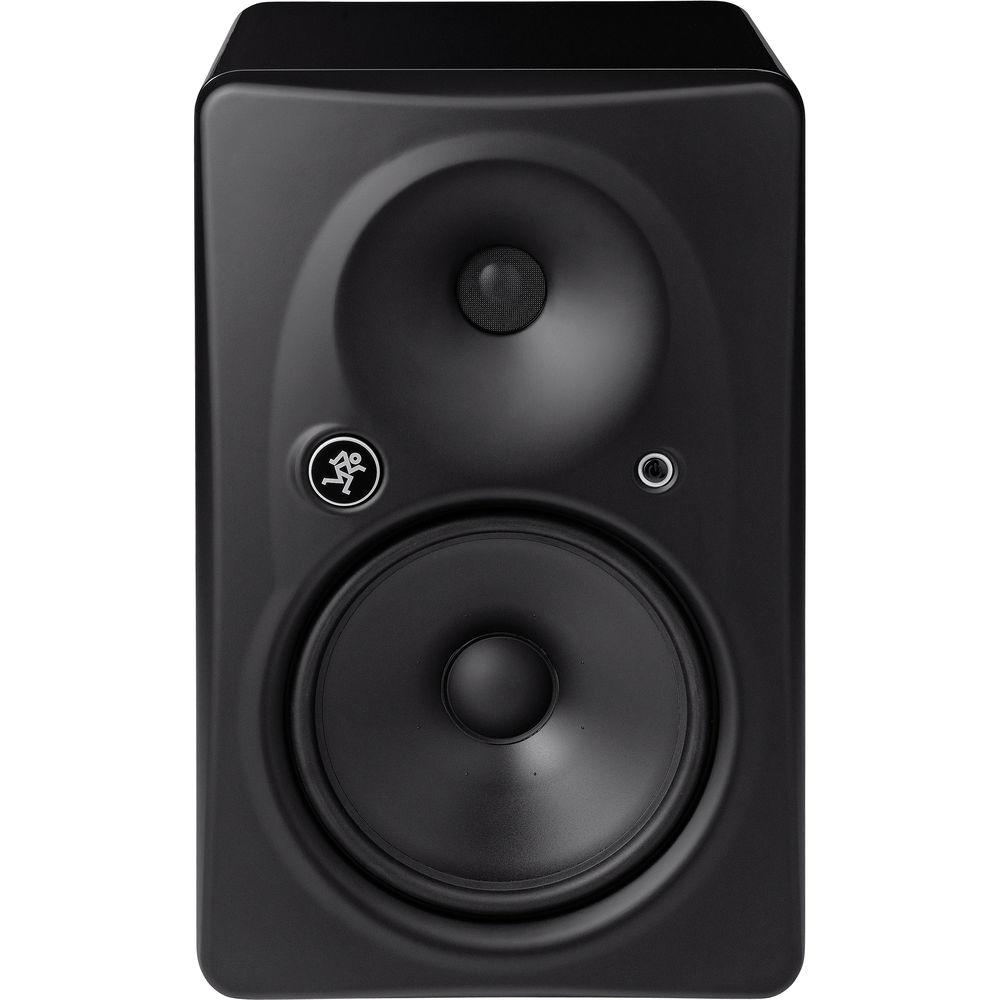

User Manual for Mackie HR824mk2 - 250W 8.75" Two-Way Active Studio Monitor with THX pm3 Certification Click to enlarge the picture
Contents of the user manual for the Mackie HR824mk2 - 250W 8.75" Two-Way
- Product category: Studio Monitors Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Studio Monitors
 |
User manual for the Mackie HR824mk2 - 250W 8.75" Two-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description The HR824mk2 from Mackie is a high-quality active two-way studio monitor, perfect for stereo or surround mixing applications. The monitor is THX pm3-certified, great for creating high-definition audio for video, film, and video game projects. The monitor has an 8.75" low-distortion woofer and a 1" titanium dome tweeter to provide clear, lifelike sound across a full frequency spectrum. Internal amplifiers provide 250W of total power for a strong performance
The cast-aluminum Zero Edge Baffle keeps diffraction to a minimum for excellent imaging, while the optimized waveguide provides a wide sweet spot, and the internal cabinet damping eliminates midrange artifacts. The cabinet is OmniMount ready, allowing it to be mounted easily on a wall or ceiling.

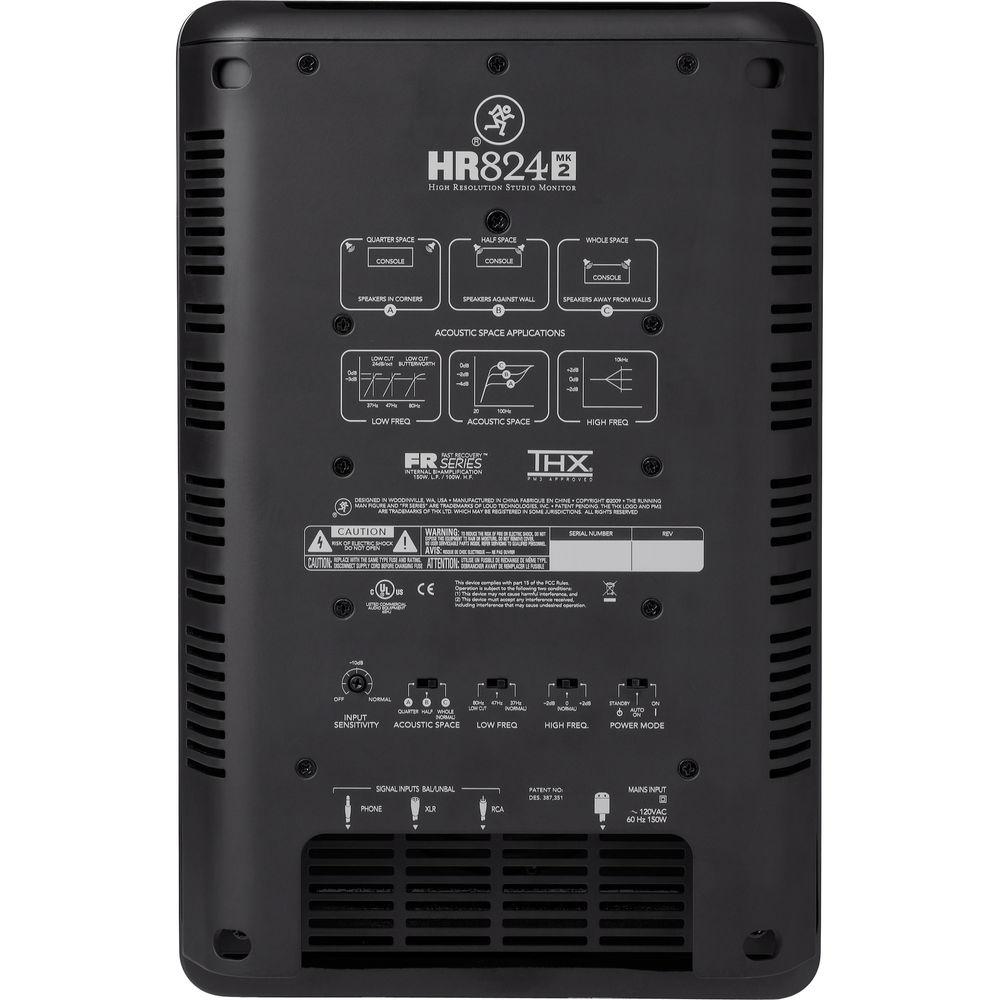

The rear panel of the cabinet has XLR, TRS, and RCA input connectors for compatibility with virtually any audio gear you can throw at it. Controls for LF and HF filters, along with acoustic space matching allow you to customize the monitor to your specific workspace for optimum performance. - Two-way active studio monitor for high-definition audio
- THX pm3 approved for surround mixing
- Full, ultra-linear frequency response for accurate mixing
- Large 8.75" woofer and 1" tweeter
- Two internal amplifiers for a combined total power of 250W
- Passive radiator for extended, tight bass
- Aluminum Zero Edge Baffle keeps diffraction to a minimum for excellent imaging
- Optimized waveguide for a large sweet spot
- Cabinet has full internal damping for eliminating artifacts
- Rear-panel controls for HF and LF filters, as well as acoustic space selection
- XLR, TRS, and RCA connectors for wide system compatibility
- OmniMount ready, for easy installation on a wall or ceiling
- High-gloss piano black wood cabinet provides great looks and a warm sound
UPC: 663961010732 In the Box Mackie HR824mk2 - 250W 8.75" Two-Way Active Studio Monitor with THX pm3 Certification Power Cord Limited 3-Year Warranty Limited 2-Year for Drivers User Manual PDF 1.1mbcwuqqbteutfbdubywsbyzvct Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie HR824mk2 - 250W 8.75" Two-Way Active Studio Monitor with THX pm3 Certification in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie 824 Specs | Low Frequency Driver | 8.75" (222mm) Die-Cast Magnesium Woofer with 1.6" Voice Coil | | High Frequency Driver | 1" (25mm) Titanium Dome Tweeter with Polymer Suspension and Neodymium Magnet | | LF Amplifier | 150W | | HF Amplifier | 100W | | Crossover | Modified Linkwitz-Riley, 24dB/Octave @ 1.9kHz | | Frequency Range | 37Hz - 20kHz, ±1.5dB | | Maximum Sound Pressure Level (SPL) | 91dB | | Connectors | 1 x AC Power Input
1 x XLR Input
1 x 1/4" TRS Input 1 x RCA Phono Input | | Input Impedance | 20 kOhms, Balanced
10 kOhms, Unbalanced | | Controls and Indicators | 1 x Input Sensitivity Control
1 x 3-Way Acoustic Space Selector Switch
1 x LF Filter Switch
1 x HF Filter Switch
1 x Power Switch | | Shielded | Yes | | Dimensions (HxWxD) | 16.8 x 10.8 x 13.8" (427 x 274 x 351mm) | | Weight | 34.6 lbs (15.7kg) | | | | Package Weight | 38.7 lb | | Box Dimensions (LxWxH) | 22.0 x 15.0 x 14.0" |
