User Manual for Mackie MDB-1P Passive Direct Box Click to enlarge the picture
Contents of the user manual for the Mackie MDB-1P Passive Direct Box
- Product category: Direct Boxes Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Direct Boxes
 |
User manual for the Mackie MDB-1P Passive Direct Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|

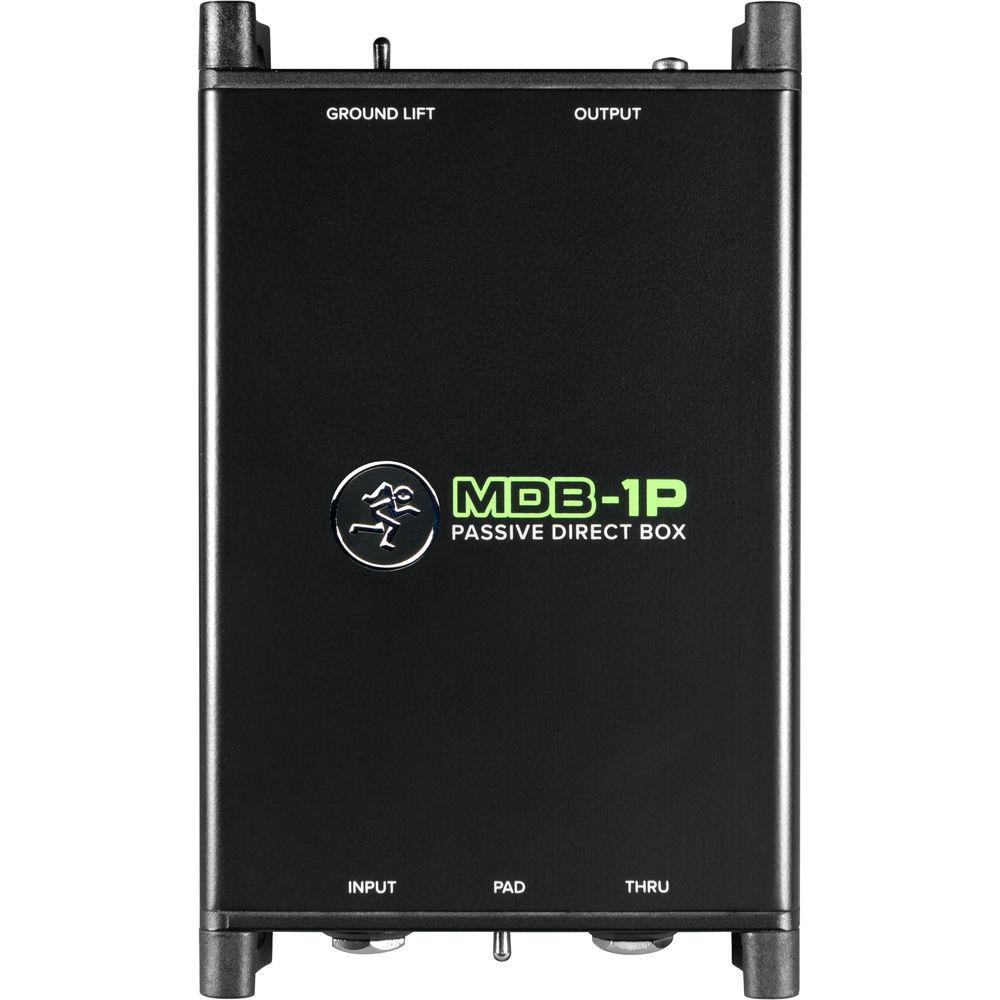

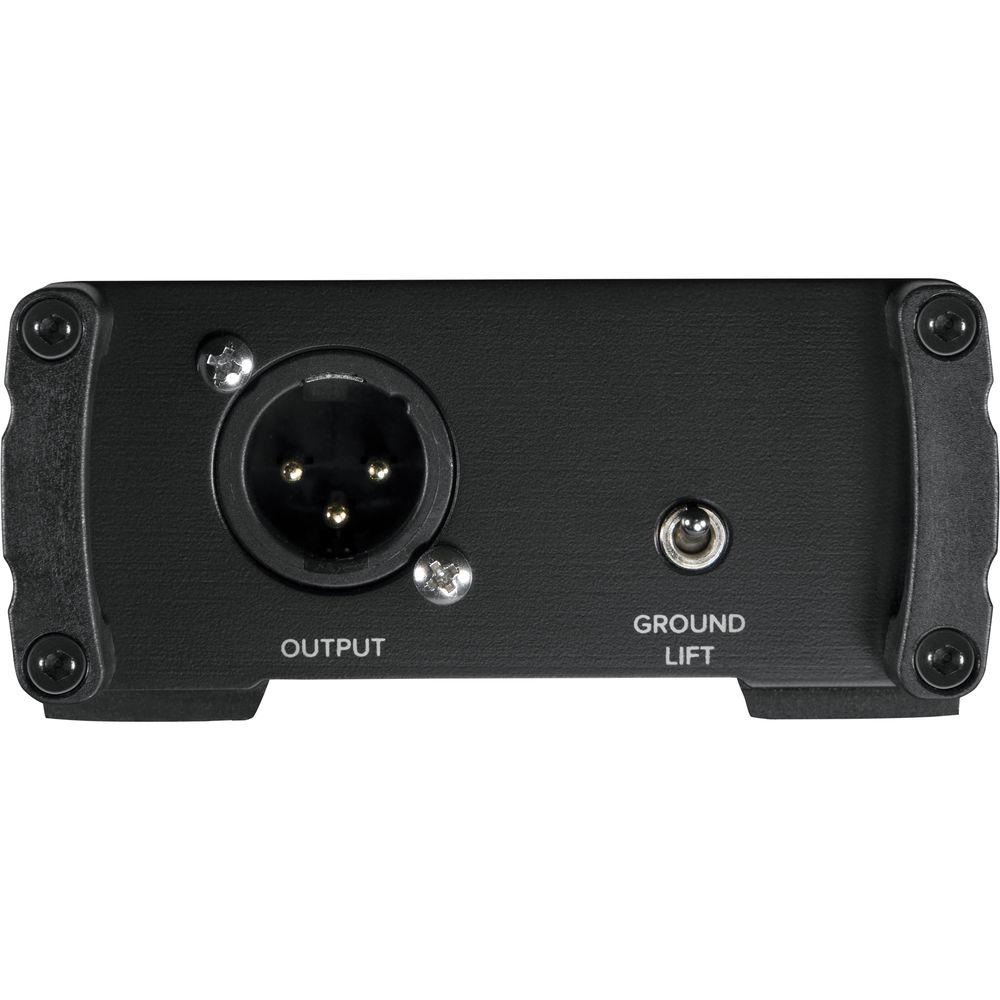

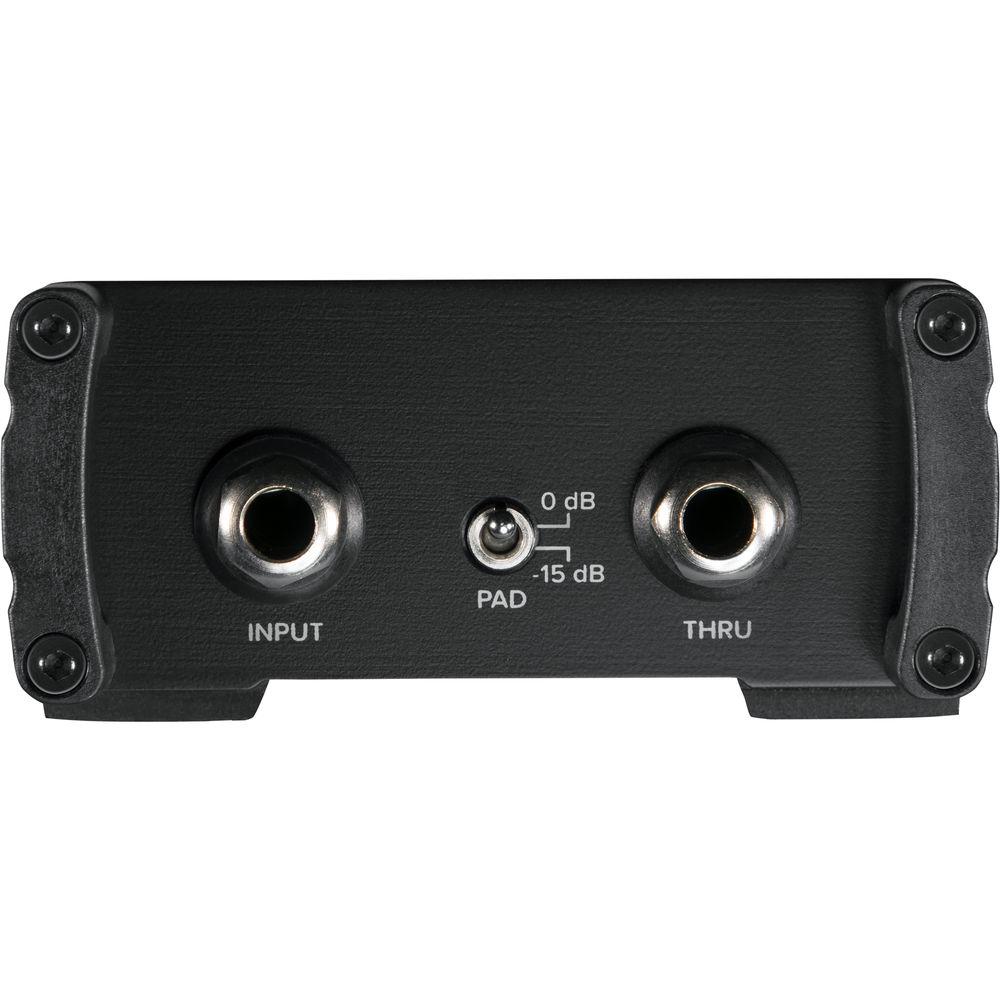

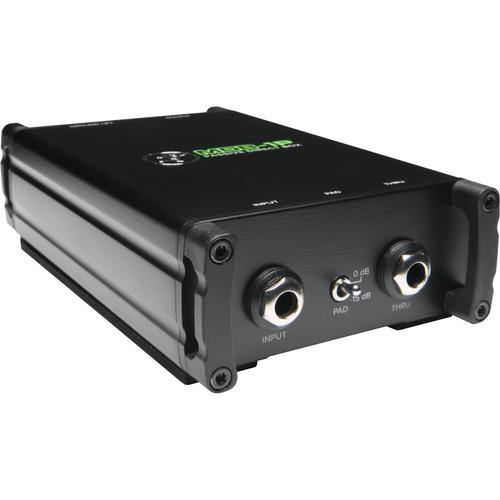

Product description The Mackie MDB-1P is a passive direct box designed to connect a single instrument such as a guitar, bass, or keyboard to a microphone preamp for musicians and audio engineers in recording sessions, houses of worship, and live stage applications. It converts a high-impedance, instrument-level signal via its 1/4" TS unbalanced input to a low-impedance, mic-level output via its balanced XLR 3-pin jack. A 1/4" thru jack allows simultaneous connection to an amplifier or pedalboard. A -15 dB pad reduces the input level to prevent distortion when using a high-gain source, and the ground-lift switch inhibits hum caused by ground loops. Due to its passive design, the MDB-1P requires no batteries or power supply. A sturdy steel chassis enables confident use in the studio or on the road. - Connect an instrument such as a guitar, bass, or keyboard to a microphone preamp
- Converts a high-impedance, unbalanced 1/4" input to a low-impedance, balanced XLR mic-level output
- 1/4" thru jack for routing to an amplifier
- -15 dB pad prevents overloading when accepting signal from a loud source
- Ground-lift switch minimizes hum
- Passive design requires no batteries or power supply
UPC: 663961053982 In the Box Mackie MDB-1P Passive Direct Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie MDB-1P Passive Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie MDB-1P Specs | Type | Passive | | Input Connections | 1 x 1/4" TS unbalanced | | Output Connectors | 1 x 1/4" TS unbalanced
1 x XLR 3-pin balanced | | Input Impedance | 140 kOhms unbalanced | | Output Impedance | 400 Ohms unbalanced | | Impedance Ratio | 350:1 | | Pad | -15 dB | | High-Pass Filter | None | | Controls | Pad
Ground-lift switch | | Frequency Response | 20 Hz to 20 kHz (
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
