User Manual for Mackie MDB-USB Stereo DAC Direct Box Click to enlarge the picture
Contents of the user manual for the Mackie MDB-USB Stereo DAC Direct Box
- Product category: Direct Boxes Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Direct Boxes
 |
User manual for the Mackie MDB-USB Stereo DAC Direct Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|

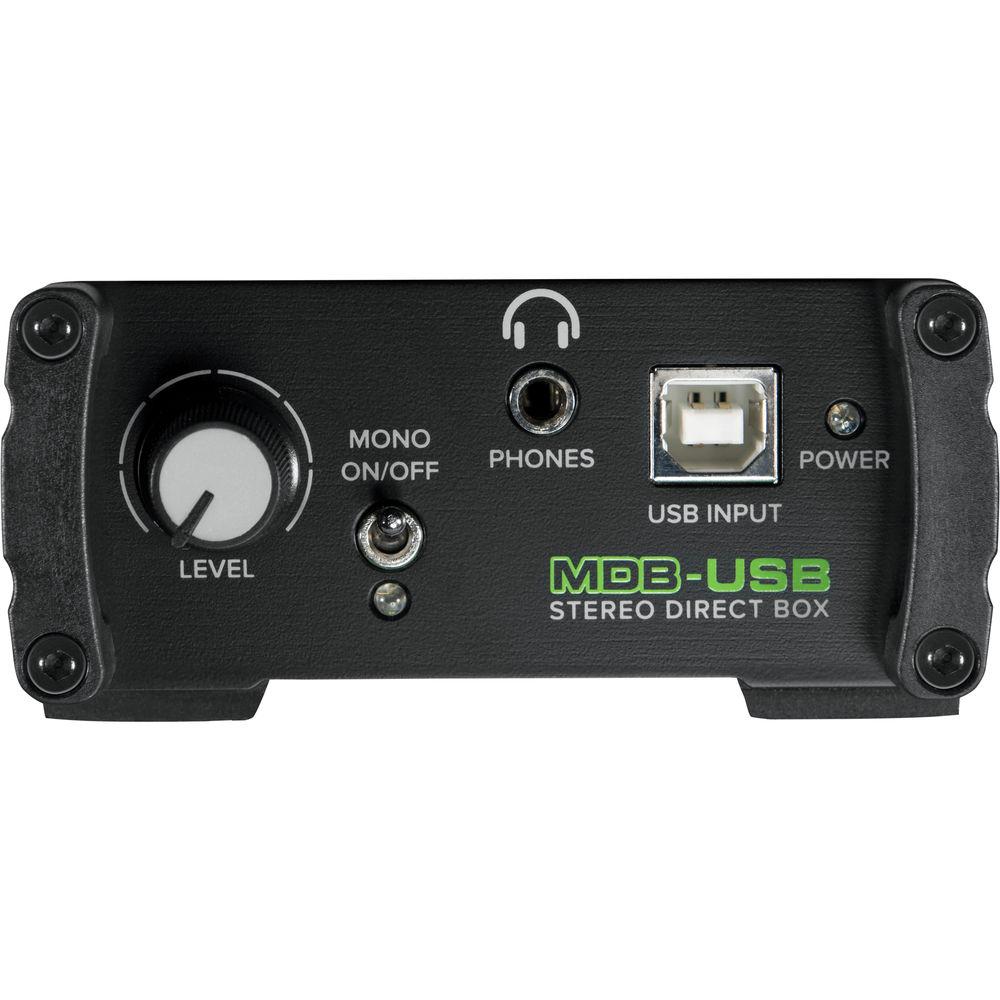

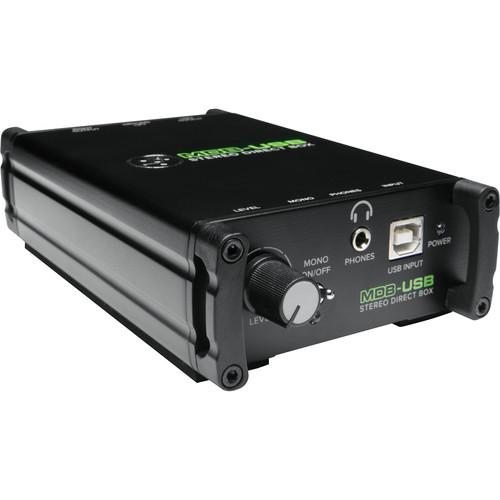

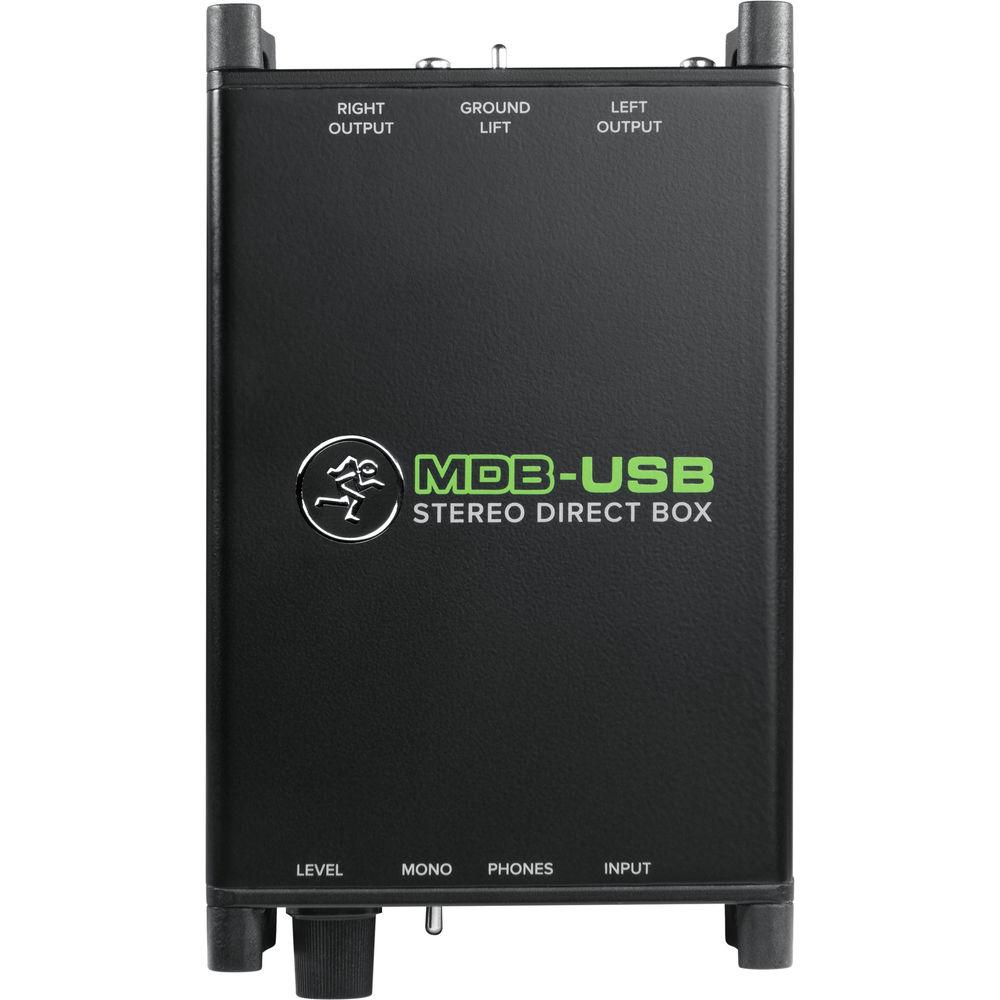

Product description The Mackie MDB-USB is a USB-powered stereo DAC direct box designed to connect stereo a signal from USB to microphone preamps for DJs, producers, musicians, and audio engineers in recording sessions, clubs, houses of worship, and live stage applications. It converts a stereo digital audio feed at up to 24-bit/96 kHz resolution via a USB 2.0 Type-B input to low-impedance, mic-level analog outputs via two balanced XLR 3-pin jacks. A 3.5mm headphone output is provided for easy monitoring. Optimize your gain stage using the level knob, which adjusts the output volume at the XLR and 3.5mm jacks. The mono on/off switch enables operation of the MDB-USB in stereo or mono. Its ground-lift switch inhibits hum caused by ground loops. A sturdy steel chassis enables confident use in the studio or on the road. - Connect the USB output from a stereo mixer, audio interface, or computer to microphone preamps
- Converts stereo digital signal from a USB connection to low-impedance, balanced XLR mic-level analog outputs
- USB 2.0 Type-B female input

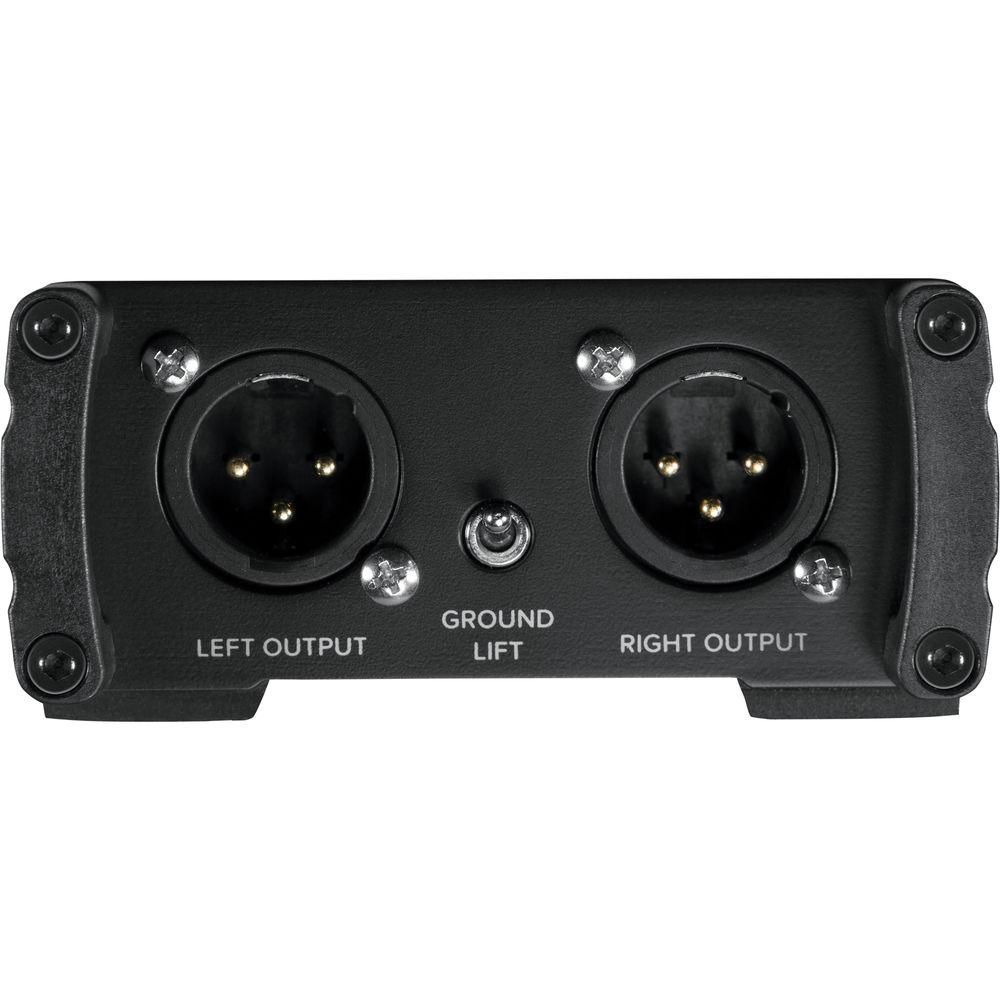

- Two XLR 3-pin balanced outputs
- 3.5mm stereo headphone output
- Supports up to 24-bit/96 kHz resolution
- Mono switch allows easy sum-to-mono functionality
- Ground-lift switch minimizes hum
- Level knob controls overall volume to the XLR and 3.5mm output jacks
- Powered via USB connection
UPC: 663961054019 In the Box Mackie MDB-USB Stereo DAC Direct Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie MDB-USB Stereo DAC Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie MDB-USB Specs | Type | DAC | | Input Connections | 1 x USB 2.0 Type-B female | | Output Connectors | 2 x XLR 3-pin balanced
1 x 1/8" (3.5 mm) stereo mini-jack | | Input Impedance | 330 kOhms balanced | | Output Impedance | XLR: 600 Ohms balanced
3.5 mm: 150 Ohms unbalanced | | Controls | 1 x mono switch
1 x ground-lift switch
1 x level knob | | Supported Resolution | Up to 24-bit/96 kHz | | Frequency Response | 20 Hz to 20 kHz (
