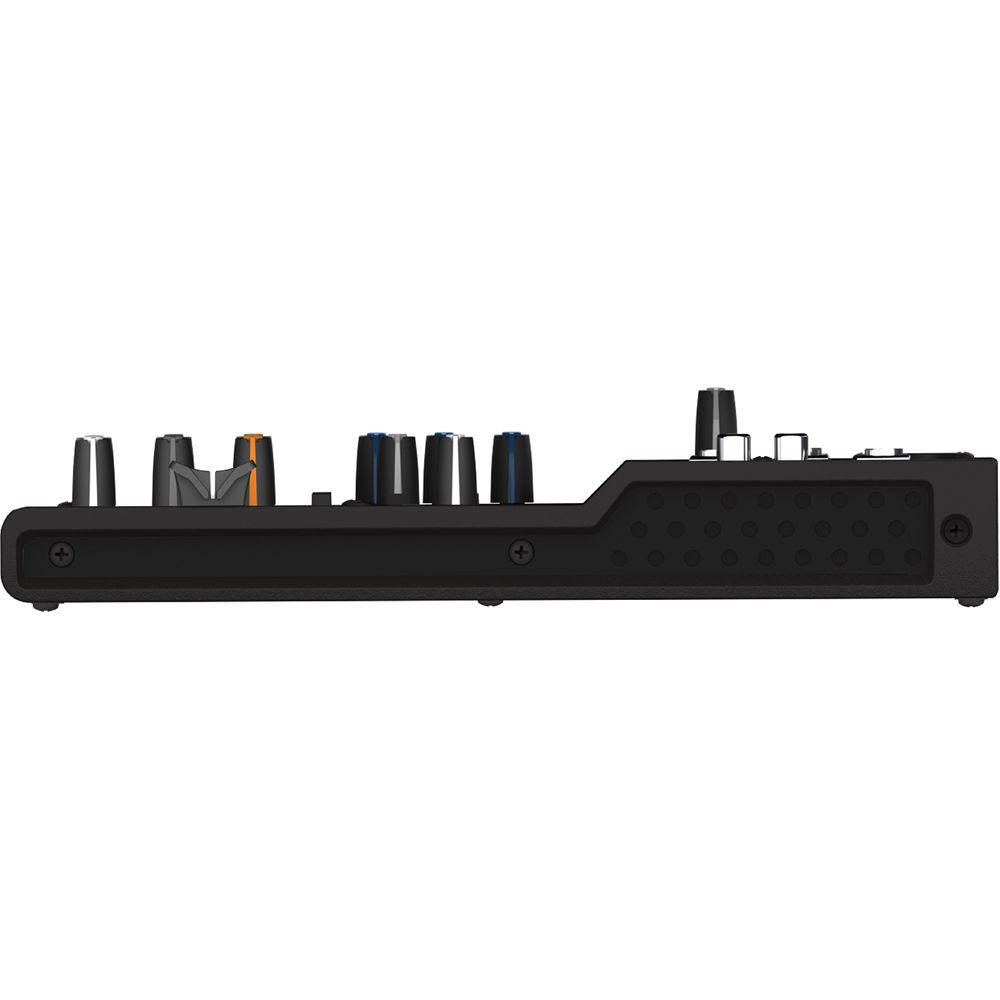

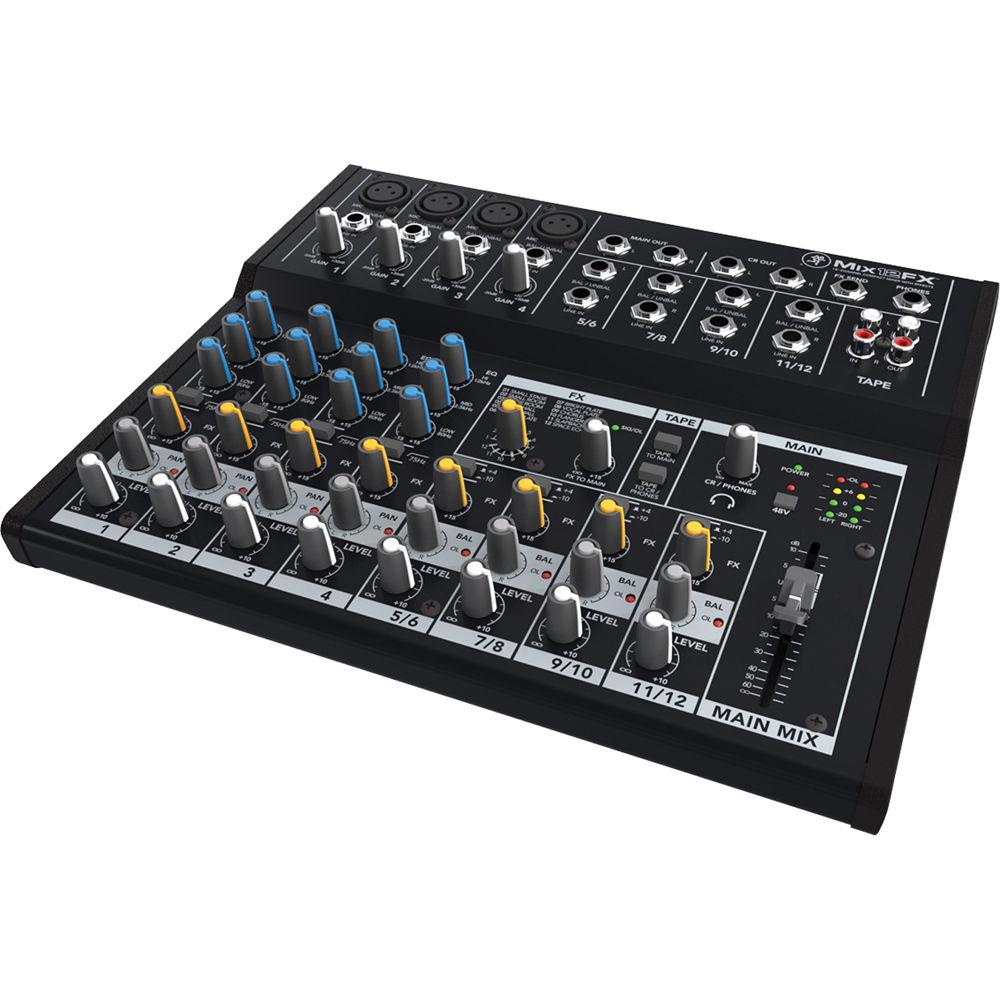

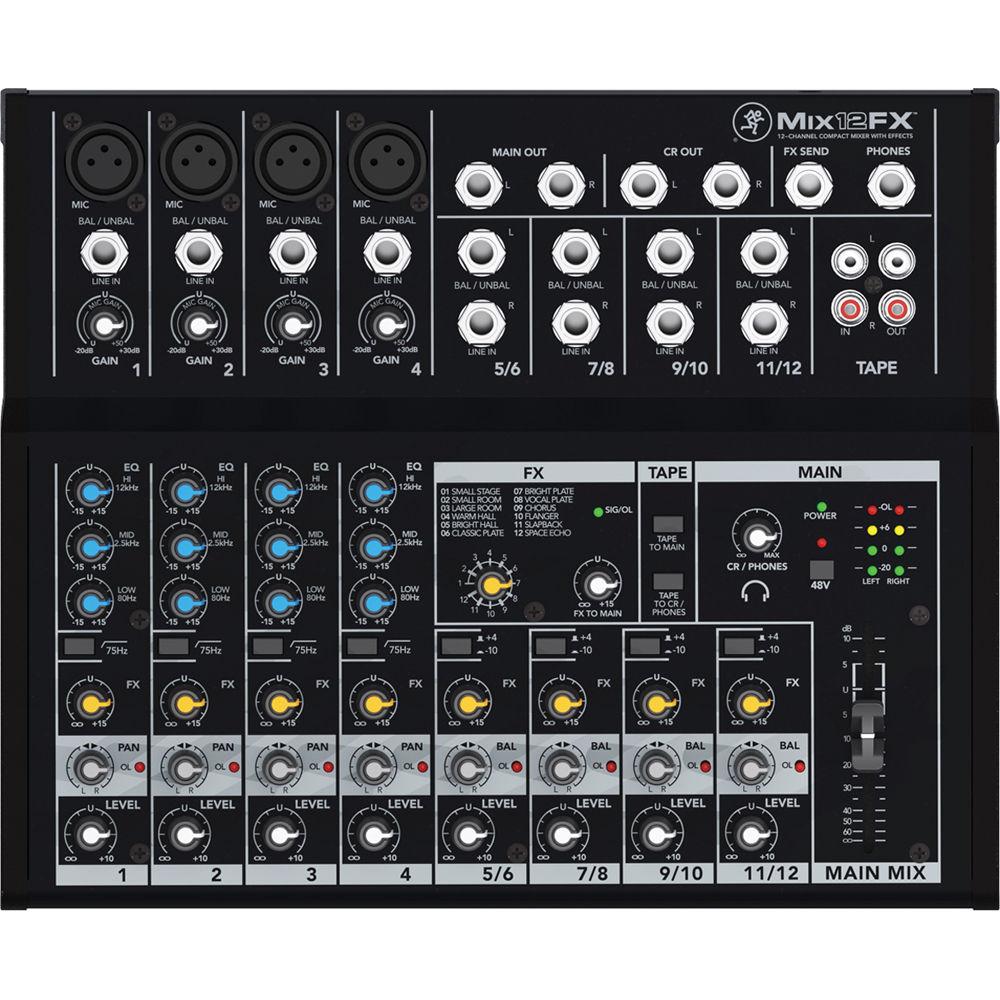

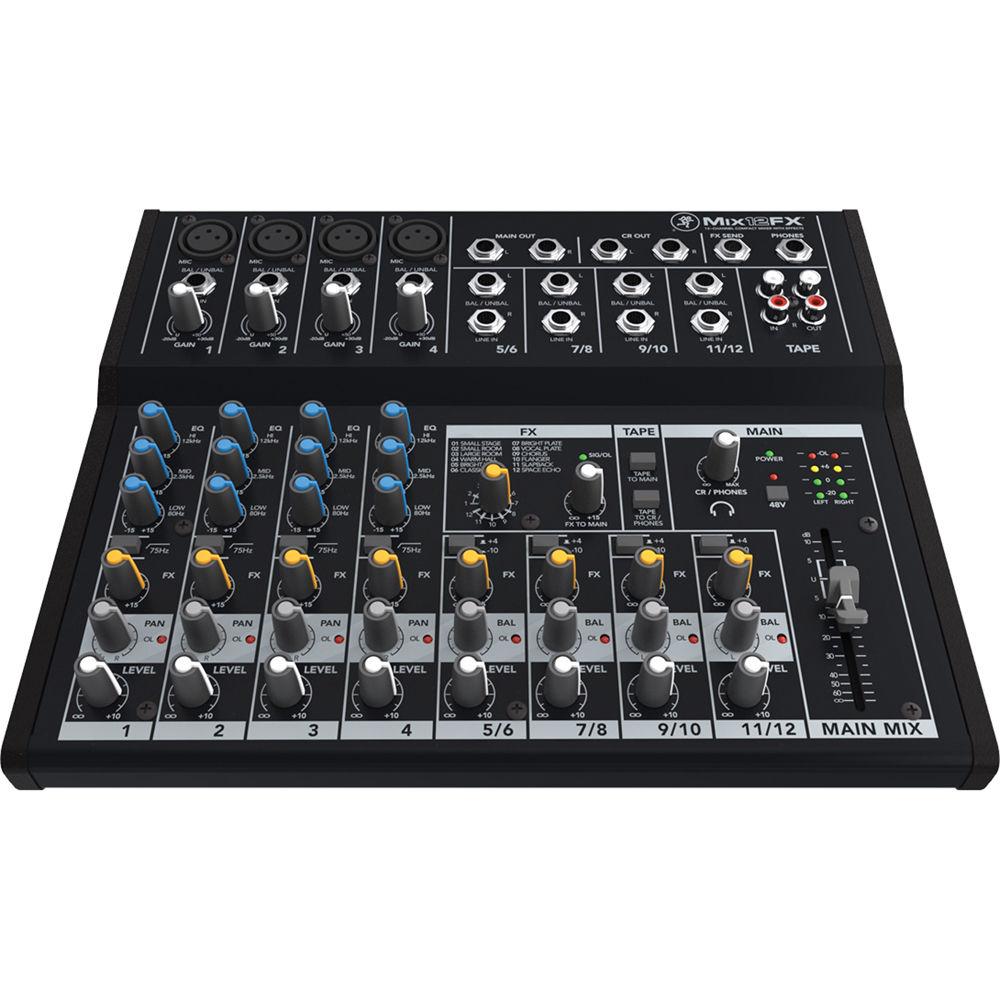

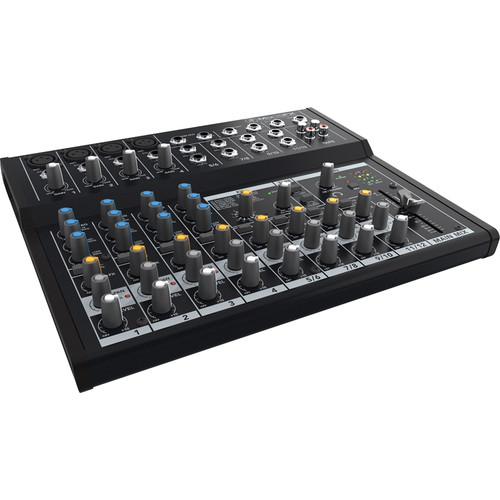

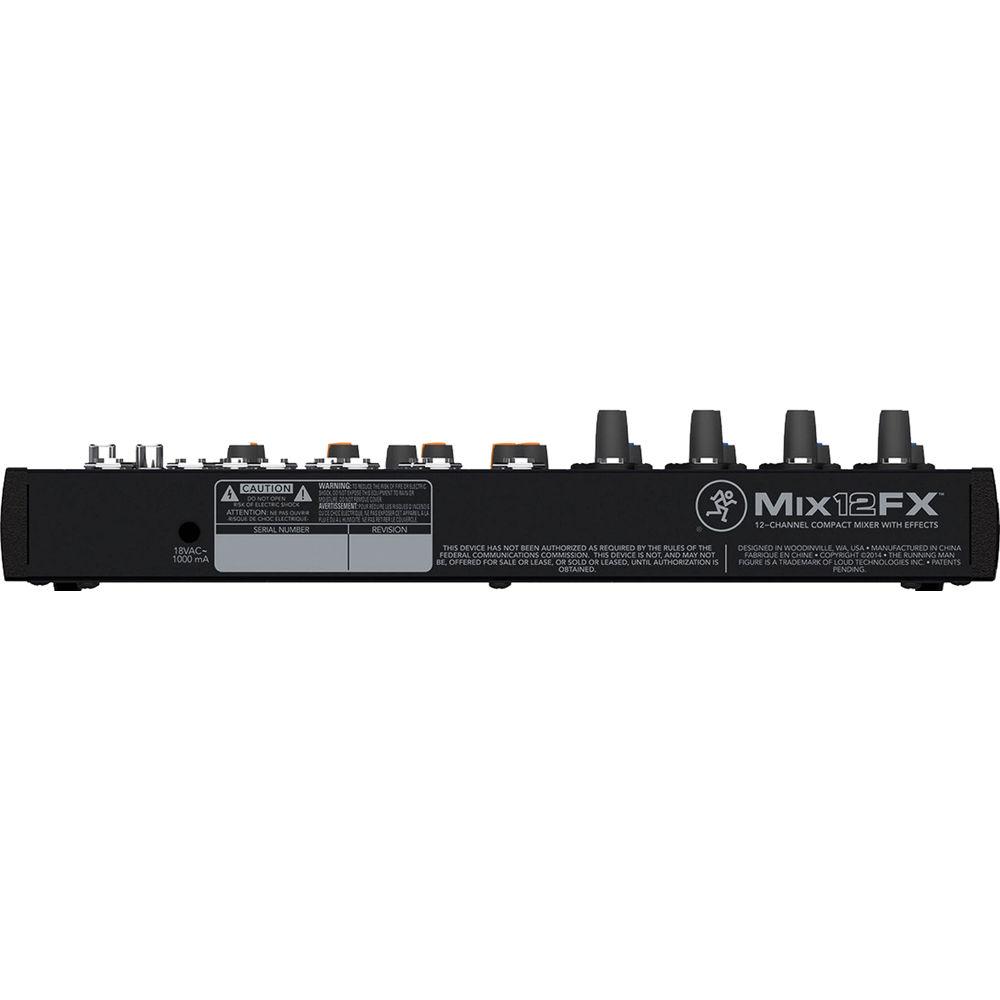

User Manual for Mackie Mix12FX - 12-Channel Compact Mixer with Effects Click to enlarge the picture
Contents of the user manual for the Mackie Mix12FX - 12-Channel Compact Mixer
- Product category: Analog Recording Mixers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Analog Recording Mixers
 |
User manual for the Mackie Mix12FX - 12-Channel Compact Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description - Mackie Mix Series Compact Mixers - Features and Benefits
The Mackie Mix12FX is a 12-channel compact mixer with built-in effects that features high quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features four mic/line inputs with 48V phantom power and four stereo 1/4" line inputs, capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.
Each of the four mic/line inputs is equipped with XLR and 1/4" connectors, a dedicated 3-band EQ, high-pass filter at 75 Hz, pan, level control and an LED overload indicator. The four stereo 1/4" line inputs each feature +4/-10dB operation, level control, balance control and also have an LED overload indicator.
In addition, the Mix12FX features 12 integrated effects for polishing your mix including reverbs, choruses and delays. -
- Dedicated stereo RCA inputs/outputs for playback or recording
- 60mm fader for Main L/R outputs
- Headphone and stereo control room outputs
- Rugged, reliable design built to last
- Compact and portable
UPC: 663961044911 In the Box Mackie Mix12FX - 12-Channel Compact Mixer with Effects Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie Mix12FX - 12-Channel Compact Mixer with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie MIX12FX Specs | Noise | (20 Hz – 20 kHz bandwidth, 150 ohm source impedance, EIN)All outputs, master levels and channel levels off –100 dBuAll outputs, master levels unity, all channel levels off –90 dBuAll outputs, master levels unity, 1 channel level unity –85 dBu | | THD+N | (20 Hz – 30 kHz bandwidth)Mic input to main output <0.25% @ +4 dBu output | | Attenuation and Crosstalk | (20 Hz – 20 kHz bandwidth)Inputs to outputs @1 kHz –85 dBMain mix off @1 kHz –75 dB | | Frequency Response | Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz | | Equivalent Input Noise | –122 dBu, (mic in to insert send out, max gain) | | Common Mode Rejection Ratio | 1 kHz better than –70 dB, (mic in to insert send out, max gain) | | Maximum Level | Mic Inputs (XLR): +19 dBuAll Other Inputs: +21 dBuAll Outputs: +21 dBu | | Impedance | Mic In: 3.8 kohms All Other Inputs: 10 kohms or greaterTape Out : 1 kohmsPhones: 22 ohmsAll Other Outputs: 120 ohms unbalanced, 240 ohms balanced | | Equalization | High Shelving: ±15 dB @ 12 kHzMid Peaking: ±15 dB @ 2.5 kHzLow Shelving: ±15 dB @ 80 HzLow Cut Filter: 18 dB/octave, –3 dB @ 75 Hz | | Power Requirements | Power Connection: 2-pin DC connector [US], 3-pin DC connector [EU]Input: 120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU]Output: 18 VAC, 1000 mA | | Dimensions | 2.1 x 11.7 x 9.6" (53 x 297 x 244 mm) | | Weight | 3.7 lb (1.7 kg) | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 14.5 x 13.2 x 3.2" |
