User Manual for Mackie MR524 - 5" 2-Way Powered Studio Monitor Click to enlarge the picture
Contents of the user manual for the Mackie MR524 - 5" 2-Way Powered
- Product category: Studio Monitors Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Studio Monitors
 |
User manual for the Mackie MR524 - 5" 2-Way Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|

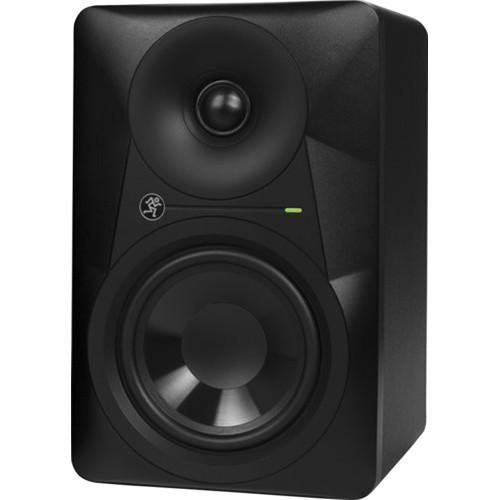

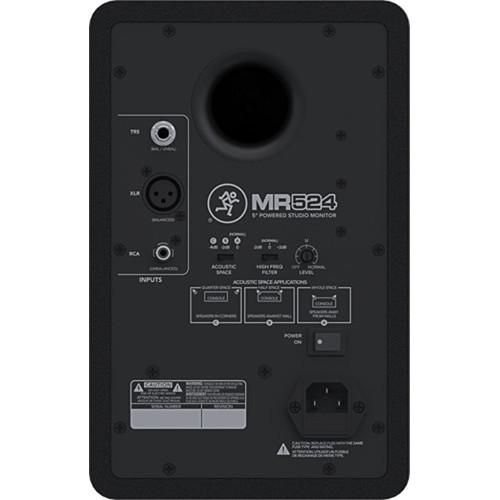

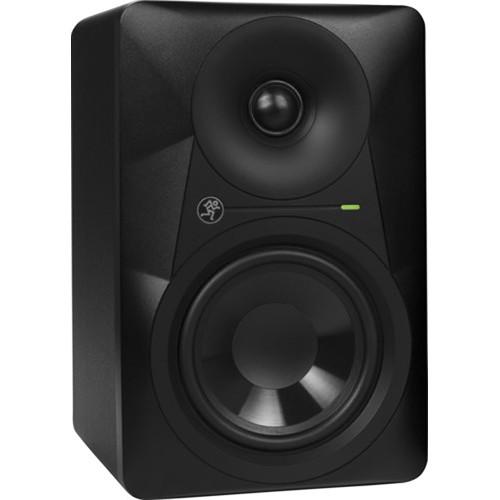

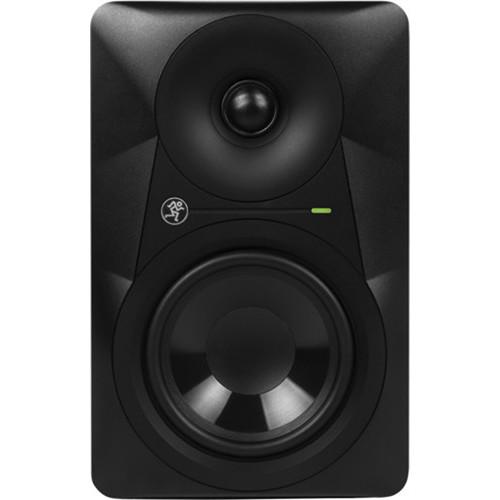

Product description Creating Accurate Mixes | Mackie MR Monitors & Big Knob Series Read More The MR524 Studio Monitor from Mackie is a powered 5" 2-way reference speaker that is designed for mixing and monitoring in your home or project studio. It features a logarithmic waveguide system that aims to minimize reflections and diffractions for a wider sweet spot, plus a custom-tuned rear port to help ensure an even bass response.The MR524 is equipped with matched amps and drivers for an optimized 50W Class-A/B bi-amplified system. The speaker can also be optimized to your mixing environment with the adjustable acoustic space filters designed to maintain a flat response in typical placement configurations. Additionally, a high-frequency filter applies a boost or cut to compensate for particularly bright- or dull-sounding rooms.The MR524 has been designed with flexibility in mind, featuring XLR, TRS and RCA monitor inputs. The speaker has been housed in an all-wood cabinet that has been treated with acoustic absorption material for a tighter response. Additionally, the MRS10 studio subwoofer can be added for a more powerful, extended low end. -
- Designed for superior mix translation and accuracy for professional results in any studio
- Equipped with Mackie’s proven logarithmic waveguide design
- Ultra-wide dispersion for enhanced stereo imaging and listening sweet spot
- Precise acoustic alignment offers incredibly balanced sound across the entire frequency spectrum
- 1” silk dome tweeter provides fast transient response for detailed high end and vocal clarity
- 5” polypropylene woofer delivers responsive, dynamic low frequency response
- 50-watts of bi-amplified Class A/B amplification
- Frequency response: 45 Hz – 20 kHz
- Optimize MR monitors for your mixing environment
- Adjustable acoustic space filters maintain flat response in typical placement configurations
- HF filter applies boost or cut to compensate for particularly dull- or bright-sounding rooms
- Professional all-wood cabinet design built to last and look great in any studio
- Custom-designed internal bracing adds stiffness for reduced distortion and enhanced low-frequency response
- Flexible inputs for simple connection to almost any audio source
- Acoustically optimized with sound-tightening acoustic absorption material
- Add the optional MRS10 studio subwoofer for powerful, deep low-frequency extension, well suited for electronic music, hip-hop and more
UPC: 663961052268 In the Box Mackie MR524 - 5" 2-Way Powered Studio Monitor (Single) Power Cord Limited 1-Year Warranty Guides & Manuals uwbzbbbbcaxbyqtbefebcyxaxvsdubysxu Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie MR524 - 5" 2-Way Powered Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Mackie MR524 - 5" 2-Way Powered Studio Monitor can be downloaded in PDF format at the link stated below.
Technical parametersMackie 524 Specs | Frequency Response | 57 Hz to 20 kHz, (-3 dB)
45 Hz to 20 kHz, (-10 dB) | | SPL | 102 dB SPL @ 3.3' / 1.0 m (+4 dBu into balanced input) | | Maximum SPL | 108 dB SPL @ 3.3' / 1.0 m (per pair) | | Transducer | Low Frequency: 5.25" / 133 mm (polypropylene-coated woofer)
High Frequency: 1.0" / 25 mm (silk dome tweeter) | | Power | 50 W | | Crossover | Crossover Frequency: 2 kHz | | Controls and Processing | Power
Level
HF-boost/cut
Acoustic space control | | AC Power | 100 to 120 VAC | | Enclosure | Rugged all-wood design, internal acoustic absorption material, minimum-diffraction molded baffle, custom-tuned zero-turbulence rear port, logarithmic waveguide, and textured finish | | Dimensions | 11.1 x 7.1 x 8.7" / 282.0 x 180.0 x 221.0 mm | | Weight | 10.2 lb / 4.6 kg | | | | Package Weight | 12.75 lb | | Box Dimensions (LxWxH) | 14.2 x 12.2 x 9.6" |
