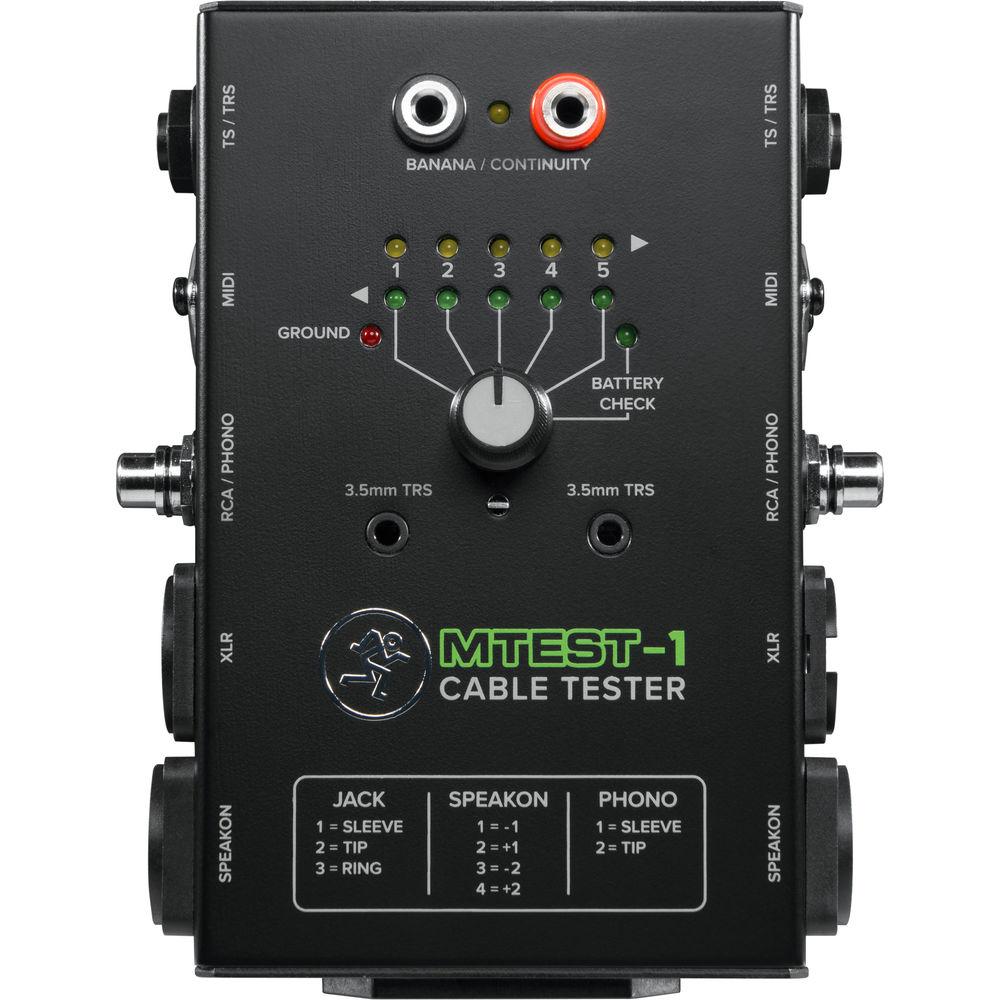

User Manual for Mackie MTest-1 Cable Tester Click to enlarge the picture
Contents of the user manual for the Mackie MTest-1 Cable Tester
- Product category: Cable Testers & Tone Generators Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Cable Testers & Tone Generators
 |
User manual for the Mackie MTest-1 Cable Tester contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|

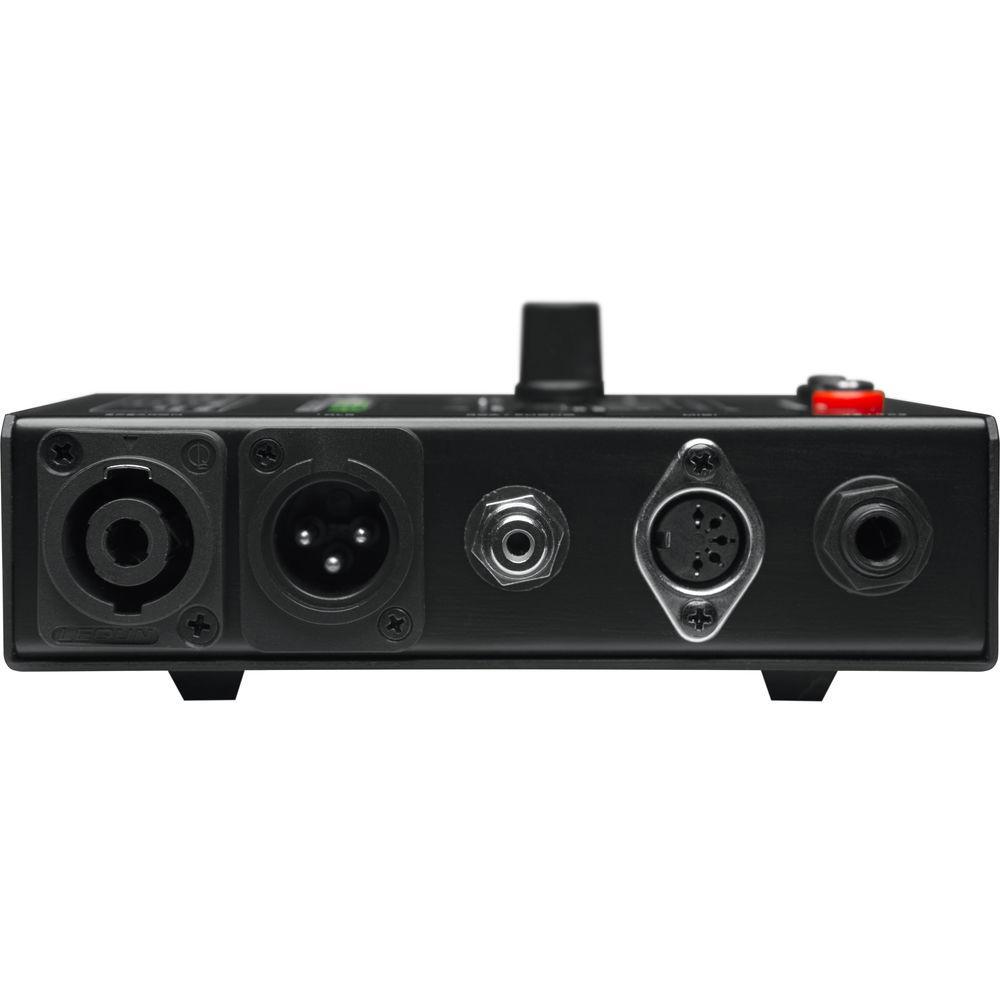

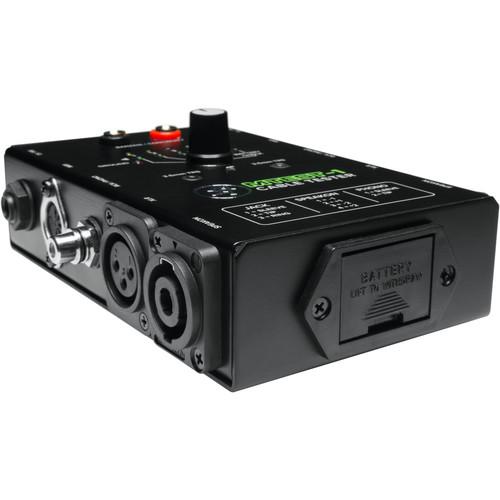

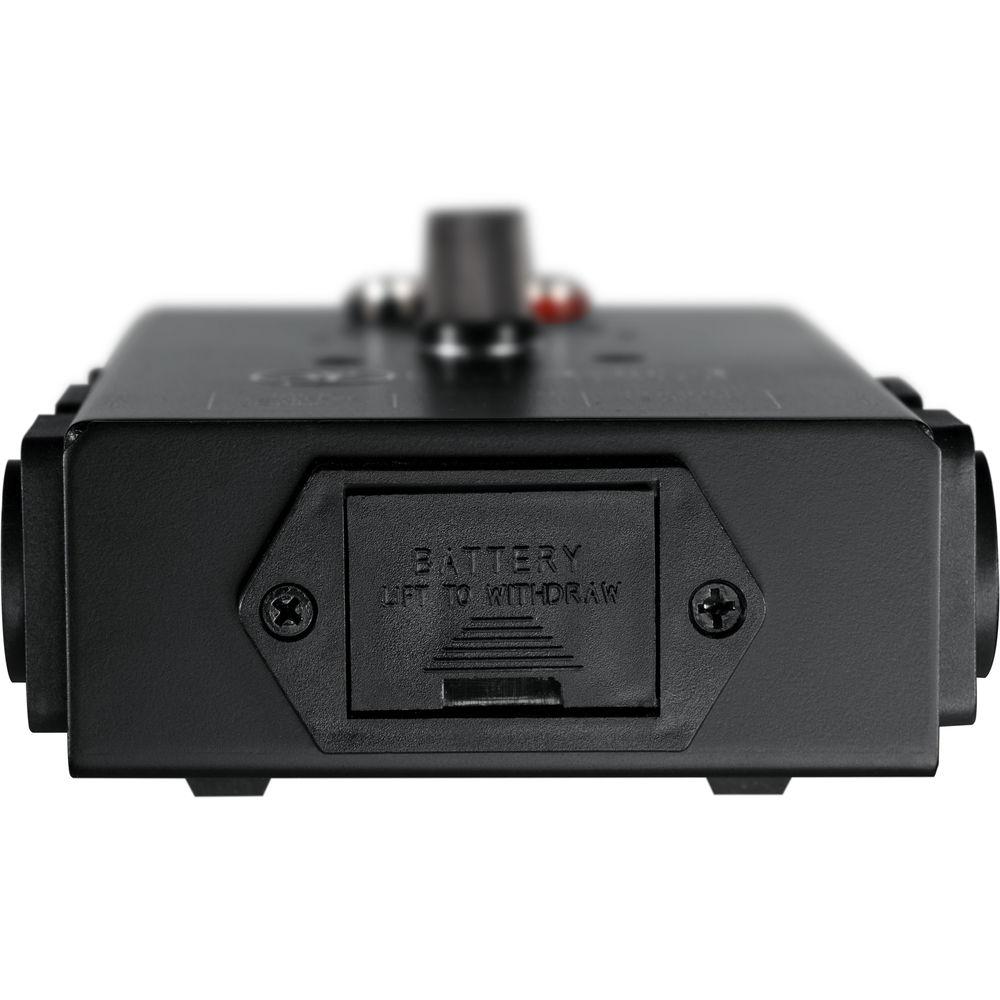

Product description The Mackie MTest-1 is a cable tester designed to provide pin-to-pin troubleshooting of multiple connection types for musicians, stage crews, and audio engineers in live stage applications and home, project, and mobile-recording studios. It features XLR 3-pin, speakON, RCA/phono, MIDI, banana/continuity, 3.5mm TRS, and 1/4" TRS/TS jacks and includes probes for testing other connectors and bare wire. Its 6-way switch offers a straightforward way to check battery status and the continuity of each pin. The MTest-1 is sturdily constructed with heavy-gauge steel for dependable use on tour or in the studio. Being powered by a single 9V battery, it requires no additional power supply. - Test common connector types for efficient troubleshooting
- XLR 3-pin, speakON, RCA/phono, MIDI, banana/continuity, 3.5mm TRS, and 1/4" TRS/TS jacks
- 6-way switch allows testing of each pin, ground connection, and battery status
- Dedicated LED indicator for ground check
UPC: 663961054026 In the Box Mackie MTest-1 Cable Tester 2 x Testing Probes Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie MTest-1 Cable Tester in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie MTEST-1 Specs | Connectors | 2 x 1/4" TRS/TS
2 x MIDI 5-pin
2 x RCA/phono
2 x XLR 3-pin
2 x speakON
2 x 1/8" (3.5 mm) TRS
2 x Banana/continuity | | Power Requirement | 1 x 9 V battery | | Construction Material | Heavy-gauge steel chassis | | Dimensions (H x W x D) | 2.7 x 6.5 x 4.8" / 69 x 165 x 122 mm | | Weight | 1.4 lb / 0.6 kg | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 8.8 x 5.7 x 3.2" |
