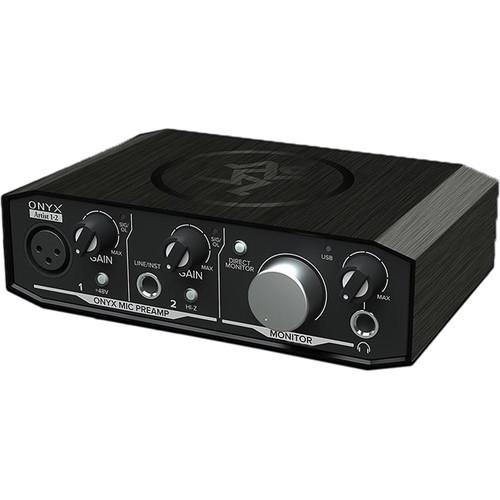

User Manual for Mackie Onyx Series Artist 1-2 Audio Interface Click to enlarge the picture
Contents of the user manual for the Mackie Onyx Series Artist 1-2 Audio
- Product category: Audio Interfaces & Systems Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Audio Interfaces & Systems
|
User manual for the Mackie Onyx Series Artist 1-2 Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description - Onyx Series USB Audio Interfaces - Overview
The Onyx Series Artist 1·2 is an interface designed to let you record audio to your computer, and to monitor that audio as well. With its Onyx microphone preamp, single XLR input, and 1/4" input switchable between line-level signal and Hi-Z instrument impedance, the unit is suitable for singer-songwriters, podcasters, content creators, and others who want a mobile setup for recording their own projects. In your own project studio, you'll be able to connect to your monitors by means of the 1/4" jacks located on the rear of the unit.
The interface is relatively lightweight at 1.1 lb and provides a 1/4" headphone output, so you can take it with you wherever you go. Mackie's rugged steel chassis hardware design aids in this endeavor, giving you a robust, roadworthy chassis for the circuitry inside. Should you monitor through headphones, a direct monitor switch is provided, which mitigates any latency as you record your audio. The unit is designed to connect to your Mac or Windows computer over USB, and is bus-powered by the host computer. - Analog Circuitry
- The Onyx Series Artist delivers high headroom and low noise by means of its analog circuitry, including its Onyx mic preamp.
- Direct Monitoring
- A true analog monitoring path allows you to hear audio directly from the preamps as you record, so you can eliminate the latency of hearing the audio through your DAW.
- Bus-Powered
- The interface features connectivity over USB 2.0 for fast data transfers and minimal latency. It's also bus-powered through this port, meaning no external power is required. The unit is compatible with Core Audio and ASIO drivers.
- All-Metal Enclosure Design
- The Onyx Series Artist gives you an all-metal enclosure and heavy-duty potentiometers, as well as a robust internal construction.
- Tracktion T7 Recording Software
- Included with the Onyx Series Artist is Tracktion T7, a DAW offering unlimited audio and MIDI tracks. You can record, mix, and share your music easily with this DAW. 16 effects are included for use within the DAW, so you can EQ and compress your signal within your computer.
- Key Features at a Glance
-
- Onyx mic preamp
- +48V phantom power for use with condenser mics
- 1/4" TRS input with Hi-Z switch for connecting guitar, bass, and more
- 2x2 interface with recording up to 24-bit / 192 kHz recording
- Zero-latency direct analog monitoring of inputs
- Dedicated 1/4" TRS outputs for connecting studio monitors
- Bus-powered for easy mobile recording
- USB 2.0 connectivity
- All-metal enclosure design to survive day-to-day abuse
- 1/4" headphone output
- Tracktion Music Production Software included
- Compatible with all major DAWs on Mac or Windows
UPC: 663961053173 In the Box Mackie Onyx Series Artist 1-2 Audio Interface Tracktion T7 DAW with 16 FX Limited 1-Year Warranty User Manual PDF 1.7mbwusewydcuvvbattacbtqzayysbyf Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie Onyx Series Artist 1-2 Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie ONYX ARTIST 12 Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | 1 x USB Type-B (USB 2.0) | | Analog I/O | 1 x XLR 3-Pin Input
1 x 1/4" (6.3 mm) TRS Line/Hi-Z Input
1 x 1/4" (6.3 mm) TRS Headphone Output
2 x 1/4" (6.3 mm) Monitor Output | | Phantom Power | +48 V | | Digital I/O | None | | MIDI I/O | None | | | | Power Requirements | USB Bus-Power | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 10.7 x 6.4 x 3.2" |
Rating46% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
