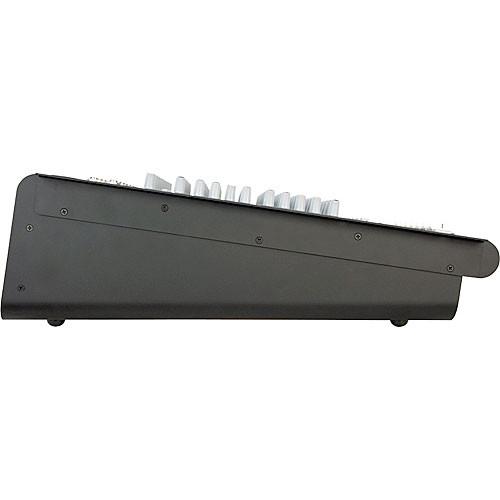

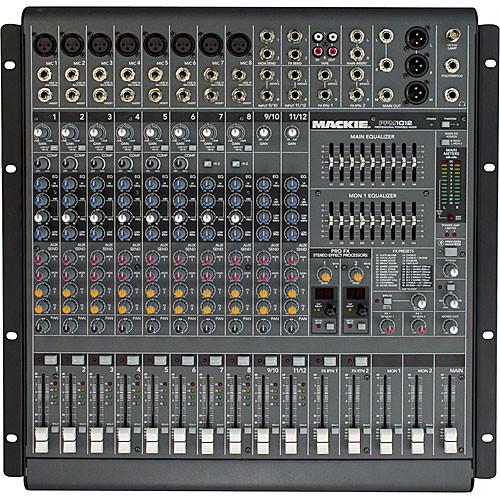

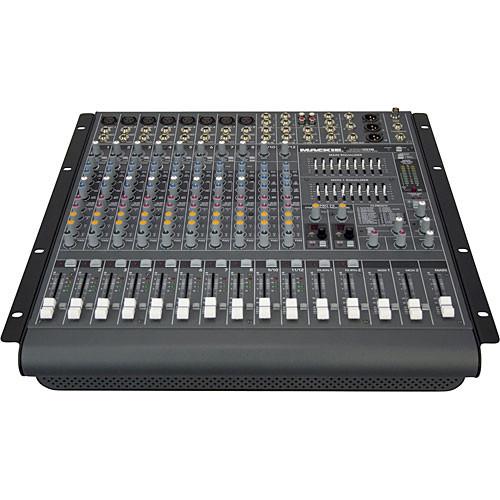

User Manual for Mackie PPM1012 12-Channel Professional Desktop Powered Mixer Click to enlarge the picture
Contents of the user manual for the Mackie PPM1012 12-Channel Professional Desktop Powered
- Product category: Sound Reinforcement Mixers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Sound Reinforcement Mixers
 |
User manual for the Mackie PPM1012 12-Channel Professional Desktop Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description The Mackie PPM1012 12-Channel Professional Powered Mixer features two built-in amplifiers that deliver a powerful 1600W (peak) to passive loud speakers. The mixer is a perfect match with Mackie passive loud speakers such as the C300 or S215 models.A total of 12-channels are comprised of 6 mono line, 2 line / DI switchable, and 2 stereo channels. The first 8 channels feature XLR microphone inputs with phantom power, and channels 7 and 8 also feature DI instrument inputs for direct connection of guitars.Built-in compression dials are featured on channels 1 through 6 for easy on-touch compression setting. The Running Man 32-bit effects processor delivers "gig ready" usable effects presets that include plate reverb, room reverb presets, chorus settings and delays.A full 3-band EQ section with mid-range sweep is featured on all mono inputs and two 9-band graphic EQ sections provide additional frequency contouring on output. The PPM1008 is designed for rigorous road use with built-in handles, rounded front chassis and ABS construction. The PPM1008 features the routing, features, sound quality, power and ruggedness expected for sound reinforcement on-the-go. - Plenty of Power
- Two built-in amplifiers deliver a powerful 1600W (peak) to passive loud speakers.
- Flexible Input Channels
- A total of 12-channels are comprised of 6 mono line, 2 line / DI switchable, and 2 stereo channels. The first 8 channels feature XLR microphone inputs with phantom power, and channels 7 and 8 also feature DI instrument inputs for direct connection of guitars.
- Running Man Effects Processor
- The Running Man 32-bit effects processor delivers "gig ready" usable effects presets that include plate reverb, room reverb presets, chorus settings and delays.
- Flexible EQ
- A full 3-band EQ section with mid-range sweep is featured on all mono inputs and two 9-band graphic EQ sections provide additional frequency contouring on output.
- Built-In Compressors
- Built-in compression dials are featured on channels 1 through 4 for easy on-touch compression setting.
UPC: 663961015638 In the Box Mackie PPM1012 12-Channel Professional Desktop Powered Mixer (1600W) 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie PPM1012 12-Channel Professional Desktop Powered Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie PPM1012 Specs | Power Rating | Dual 800 Watt Amplifiers for 1600 Watts of Total Peak System Power | | Mic/Line Inputs | 3-pin XLR Microphone x8
1/4" Phone Mono Line x6 L/R Stereo 1/4" Phone Line x2
L/R Stereo RCA Phono Line x2 1/4" Phone Mono Line/Instrument x2 | | Mains Inputs | Unbalanced 1/4" Phone A/B x2 | | In-Line Inputs/Returns | No | | Aux Sends | MON1 Send - 1/4" Phone
FX/MON2 Send - 1/4" Phone | | Aux Returns | No | | Inserts | 1/4" TRS Phone
All Mono and Instrument / Line Inputs | | BUS (Group) Outputs | MAIN Left/Right - L/R Stereo 1/4" Phone | | Main Output | Speaker Outputs - A/B Speakon and 1/4" Phone Connectors | | Tape I/O | L/R RCA Phono | | Monitor Outputs | MON1 Send - 1/4" Phone
FX/MON2 Send - 1/4" Phone | | EQ Section | Channel EQ
High Shelving: +/- 15dB @ 12kHz Mid Peak Sweep (Mono chs): +/- 15dB
Mid Sweep Range: 100Hz to 8kHz Hi Mid Peaking (Stereo chs): +/- 15dB @ 2.5kHz
Lo Mid Peaking (Stereo chs): +/- 15dB @ 400kHz Low Shelving: +/- 15dB @ 80Hz
9-Band Graphic EQ Main and Monitor 1: +/- 15dB @ 63, 125, 250, 500, 1k, 2k, 4k, 8k and 16kHz | | Solo/Mute | No | | Channel Level Control | Rotating Pot Controls | | Trim/Gain Control | Rotating Pot Controls | | Phantom Power | +48V | | Metering | Stereo Peak LEDs | | Frequency Response | Mic Mono Inputs: < 10Hz to 80kHz
Line Mono Inputs: < 10Hz to 40kHz Line Stereo Inputs: < 10Hz to 75kHz | | Signal-to-Noise Ratio | -128dBu | | Total Harmonic Distortion (THD) | Mic Mono: < 0.007% High Gain
Mic Mono: < 0.005% Low Gain Line Mono: < 0.005% Low Gain
Line Stereo: < 0.01% at Main Out | | Power Supply | 120VAC 50/60Hz
680W | | Dimensions (HxWxD) | 19.2 x 17.4 x 5.2" (487 x 442 x 133mm) | | Weight | 29 lbs (13.2kg) | | | | Package Weight | 37.0 lb | | Box Dimensions (LxWxH) | 24.0 x 23.0 x 10.0" |
