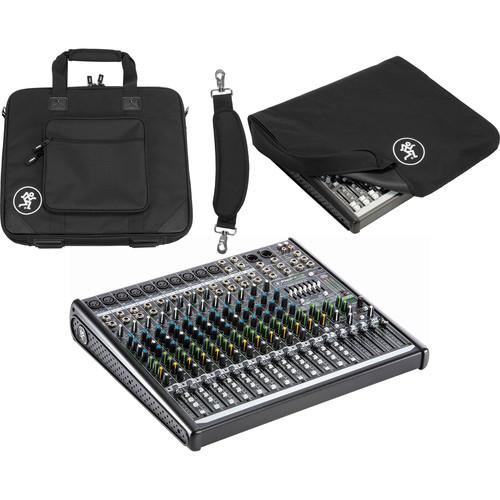

Product description The Mackie ProFX16v2 16-Channel Mixer with Dust Cover & Carry Bag Kit from comes with everything you need to take your show on the road, and to protect your valuable gear when it's not in use. Including the ProFX16v2 16-Channel Mixer with Built-In FX, a custom-fit dust cover, and a protective carry bag with plenty of extra storage space, this kit is a great start towards building your sound reinforcement rig. - Mackie ProFX16v2 16-Channel Sound Reinforcement Mixer with Built-In FX The ProFX16v2 16-channel mixing console from Mackie features a built-in effects engine, and is ideal for a plethora of live sound reinforcement applications ranging from live bands and DJs to lecturers and presenters. With 10 XLR mic inputs with low-noise Vita microphone preamps, per channel 3-band EQ, 2 aux sends, and an FX out for feeding external processors, the ProFX16v2 offers professional features to suit a wide variety of configurations.
In addition to the mic inputs, the ProFX16v2 includes 16 line inputs for connecting keyboards, samplers, and other gear. There is also an RCA tape input and output for connecting portable music players similar devices. In addition, the mixer has rugged 60mm faders for all input channels, return and main/monitor masters.
The ProFX16v2's effects engine offers 16 different effects, including reverbs, delays, and choruses. It also features a 7-band graphic EQ that can be used for tuning mains or monitors, and a built-in USB interface that can be used to record the show or provide music playback via Mac or Windows computer. - Features at a Glance:
-
- 10 low-noise Vita mic preamps
- ReadyFX effects engine with 16 effects like reverbs, delays, and choruses
- Single-knob channel compression for smooth, even dynamic control (ch. 5-8)
- 7-band graphic EQ for tuning mains or monitors
- Built-in USB interface to record the show or provide music playback
- 4 flexible subgroups for professional mix management
- 2 aux outputs for monitor mixes, fill speakers, and more
- 3-band EQ with sweepable mids on mono channels
- 16 high-headroom line level inputs
- Individual channel mutes and overload indication
- 100 Hz low-cut filters per channel (18 dB/octave)
- Channel inserts for connecting outboard processing (ch. 1-4)
- 60mm faders for input channels, subgroups and main masters
- 48V phantom power for connecting condenser mics
- FX mute with remote control via footswitch
- Break switch mutes all channels for music playback between sets
- Control room / headphone outs with level control
- Balanced XLR and balanced/unbalanced 1/4" main outputs
- Built-in USB recording interface with simple setup via Mac or Windows
- Choose to record subgroups 1/2 or main L/R mix
- Separate USB input level control to mains
- USB routable to full-featured channel strip
- For live recording and home studios
- Stream playback music for live or studio applications
- Includes user-friendly Tracktion recording software
- Solid steel chassis protects your investment
- Tough ABS side protection
- Robust internal multi-voltage power supply
UPC: 663961045680 - Mackie Bag for ProFX16 and ProFX16 v2 Mixers The Mackie Bag for ProFX16 and ProFX16 v2 Mixers is designed to protect and carry your valuable mixer. The tote bag has a main compartment, an outer accessories pocket, and zippered closures. It can be carried using the two interlocking carry handles or the included removable, padded shoulder strap.
- Bag Basics
-
- Main compartment with outer accessories pocket
- Zippered closures
- Carrying Options
-
- Two interlocking carry handles
- Removable, padded shoulder strap
UPC: 663961034233 - Mackie Dust Cover for ProFX16 & ProFX16v2 Mixers The Mackie Dust Cover for the ProFX16 & ProFX16v2 is designed specifically to cover your mixer, offering protection for your valuable equipment against dust and grime. UPC: 663961034257
In the Box - ProFX16v2 16-Channel Sound Reinforcement Mixer with Built-In FX ydsrecuuzabyzvedr
- USB Cable
- Power Cord
- Limited 1-Year Warranty
- Bag for ProFX16 and ProFX16 v2 Mixers
- Dust Cover for ProFX16 & ProFX16v2 Mixers
Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie ProFX16v2 16-Channel Mixer with Dust Cover & Carry Bag Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mackie ProFX16v2 16-Channel Sound Reinforcement Mixer with Built-In FX
| Equivalent Input Noise | 150 ohm source impedance, 20 Hz to 20 kHz:
Mic in to insert send out, max gain -128 dBu | | Residual Output Noise | All outputs, master levels off, all channel levels off: -95 dBu
All outputs, master levels unity, one channel level unity: -85 dBu | | Frequency Response | Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 40 kHz | | THD+N | 22 Hz to 80 kHz bandwidth: Mic in to Main out (+4 dBu output): < 0.01% | | Attenuation and Crosstalk | Adjacent Inputs @ 1 kHz: -90 dB
Inputs to Outputs @ 1 kHz: -80 dB
Fader Off @ 1 kHz: -75 dB
Mute Switch / Break Switch Mute @ 1 kHz: -100 dB | | Common Mode Rejection Ratio | Mic In to Main Out, max gain, 1 kHz: 70 dB | | Maximum Level | All inputs: +22 dB
Main Out XLR: +28 dBu
All other outputs: +22 dBu | | Impedance | Mic In 3.3 kOhms
Channel Insert Return 10 kOhms
All other inputs ≥ 20 kOhms
Tape output 1 kOhms
Phones output 25 ohms
All other outputs 120 ohms unbalanced, 240 ohms balanced | | Equalization | Mono Channels:
Low ±15 dB @ 80 Hz
Mid ±15 dB @ 100 Hz - 8 kHz
High ±15 dB @ 12 kHz
Low Cut Filter 18 dB/octave @ 100 Hz
Stereo Channels
Low ±15 dB @ 80 Hz
Mid ±15 dB @ 2.5 kHz
High ±15 dB @ 12 kHz | | Maximum Voltage Gain | Mic Input Channel to:
Insert Output: 50 dB
Tape Output: 60 dB
USB Output: 60 dB
1/4" Main Output: 70 dB
XLR Main Output: 76 dB
Monitor Send: 81 dB
FX Send: 90 dB
Mono Line Input Channel to:
Insert Output: 30 dB
Tape Output: 40 dB
USB Output: 40 dB
XLR Main Output: 56 dB
Monitor Send: 61 dB
FX Send: 70 dB
Stereo Line Input Channel to:
Tape Output: 30 dB
USB Output: 30 dB
XLR Main Output: 46 dB
Monitor Send: 51 dB
FX Send: 55 dB
Tape Input to:
XLR Main Output: 36 dB
USB Input to:
XLR Main Output: 36 dB
Stereo Return to:
Mon Output: 30 dB
XLR Main Output: 26 dB | | Digital Effects | I/O: mono input / stereo output
Number of Presets: 16 | | Meters | Main L/R Mix:
Two columns of 12 segments each: OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30
Channel OL LED:
Measured post-EQ, pre-fader (-3 dB before channel clipping): 18 dBu | | Graphic EQ | Frequency Centers [7-Band]: 125, 250, 500, 1k, 2k, 4k, 8k
Gain: ±15 dB
Assignable to Main or Monitor, bypassable | | USB | USB Recording to Computer (Mac & Win) | | Phantom Power | 48 VDC to all mic channels simultaneously | | AC Power Requirements | Power Consumption: 40 watts
Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz
Class II Detachable Line Cord: Yes | | Operating Temperature | 32 - 104˚F (0 - 40˚C) | | Dimensions | 3.8 x 18.7 x 16.0" (97 x 475 x 407 mm) | | Weight | 13.0 lb (5.9 kg) | | | | Box Dimensions (LxWxH) | 22.0 x 20.0 x 8.0" | - Mackie Bag for ProFX16 and ProFX16 v2 Mixers
| Material | Not specified by manufacturer | | Type of Closure | Zippered with pull tabs | | Exterior Dimensions | Not specified by manufacturer | | Interior Dimensions | Not specified by manufacturer | | Carrying/Transport Options | Interlocking top carry handles; removable shoulder strap | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 22.4 x 18.3 x 2.7" | - Mackie Dust Cover for ProFX16 & ProFX16v2 Mixers
| | | Box Dimensions (LxWxH) | 13.9 x 10.3 x 7.0" |
