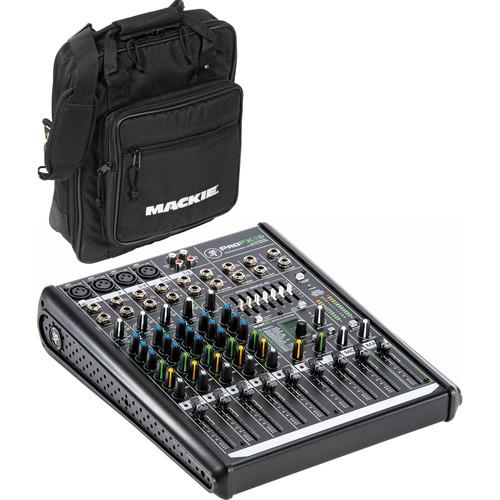

User Manual for Mackie ProFX8v2 - 8-Channel Live Sound Mixer with Carrying Bag Kit

• Product category: Sound Reinforcement Mixers Mackie
• Brand: Mackie
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Mackie Sound Reinforcement Mixers

Product description

• Mackie ProFX8v2 8-Channel Sound Reinforcement Mixer with Built-In FX The ProFX8v2 8-channel mixing console from Mackie features a built-in effects engine, and is ideal for a plethora of live sound reinforcement applications ranging from live bands and DJs to lecturers and presenters. With 4 XLR mic inputs with low-noise Vita microphone preamps, per channel 3-band EQ, 1 aux send, and an FX out for feeding external processors, the ProFX8v2 offers professional features to suit a wide variety of configurations.

  In addition to the mic inputs, the ProFX8v2 includes 8 line inputs for connecting keyboards, samplers, and other gear. There is also an RCA tape input and output for connecting portable music players similar devices. In addition, the mixer has rugged 60mm faders for all input channels, return and main/monitor masters.

  The ProFX8v2's effects engine offers 16 different effects, including reverbs, delays, and choruses. It also features a 7-band graphic EQ that can be used for tuning mains or monitors, and a built-in USB interface that can be used to record the show or provide music playback via Mac or Windows computer.
  Features at a Glance:
  • • 4 low-noise Mackie Vita mic preamps
    • ReadyFX effects engine with 16 effects like reverbs, delays, and choruses
    • 7-band graphic EQ for tuning mains or monitors
    • Built-in USB interface to record the show or provide music playback
    • Aux output ideal for driving a monitor mix
    • 3 stereo channels plus extra stereo return for external effects or stereo playback devices
    • 60mm faders for input channels, return, and main/monitor masters
    • 3-band EQ (80 Hz, 2.5 kHz, and 12 kHz) on all channels
    • Directly connect guitar, bass, and other instruments via Hi-Z input
    • Stereo RCA tape I/O with input level control
    • Headphone output with separate level control
    • Balanced XLR and balanced/unbalanced 1/4" main outputs
    • FX mute with remote control via footswitch
    • Break switch mutes all channels for music playback between sets
    • Built-in USB recording interface with simple setup via Mac or Windows
    • For live recording and home studios
    • Stream playback music for live or studio applications
    • Includes Tracktion recording software
    • Rugged design
    • Solid steel chassis protects your investment
    • Tough ABS side protection
    • Robust internal multi-voltage power supply
  UPC: 663961045581
• Mackie Bag for ProFX8, ProFX8 v2 and DFX6 Mixers The Mackie Bag for ProFX8, ProFX8 v2 and DFX6 Mixers is designed to protect and carry your valuable mixer. The tote bag has a main compartment, an outer accessories pocket, and zippered closures. It can be carried using the two interlocking carry handles or the included removable, padded shoulder strap.
  Bag Basics
  • • Main compartment with outer accessories pocket
    • Zippered closures
  Carrying Options
  • • Two interlocking carry handles
    • Removable, padded shoulder strap
  UPC: 889406825673

• ProFX8v2 8-Channel Sound Reinforcement Mixer with Built-In FX xywutcsfrxabtatcvaafvc
• USB Cable
• Power Cord
• Limited 1-Year Warranty

• Bag for ProFX8, ProFX8 v2 and DFX6 Mixers

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Mackie ProFX8v2 8-Channel Sound Reinforcement Mixer with Built-In FX

  Equivalent Input Noise	150 ohm source impedance, 20 Hz to 20 kHz: Mic in to insert send out, max gain -125 dBu
  Residual Output Noise	All outputs, master levels off, all channel levels off: -95 dBu All outputs, master levels unity, one channel level unity: -80 dBu
  Frequency Response	Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 30 kHz
  THD+N	22 Hz to 80 kHz bandwidth: Mic in to Main out (+4 dBu output): < 0.03%
  Attenuation and Crosstalk	Adjacent Inputs @ 1 kHz: -90 dB Inputs to Outputs @ 1 kHz: -80 dB Fader Off @ 1 kHz: -75 dB Mute Switch / Break Switch Mute @ 1 kHz: -90 dB
  Common Mode Rejection Ratio	Mic In to Main Out, max gain, 1 kHz: 70 dB
  Maximum Level	All inputs: +22 dB Main Out XLR: +28 dBu All other outputs: +22 dBu
  Impedance	Mic In 3.8 kOhms Channel Insert Return 10 kOhms All other inputs ≥ 20 kOhms Tape output 1 kOhms Phones output 25 ohms All other outputs 120 ohms unbalanced, 240 ohms balanced
  Equalization	Low ±15 dB @ 80 Hz Mid ±15 dB @ 2.5 kHz High ±15 dB @ 12 kHz Low Cut Filter 18 dB/octave @ 100 Hz
  Maximum Voltage Gain	Mic Input Channel to: Insert Output: 50 dB Tape Output: 60 dB USB Output: 50 dB 1/4" Main Output: 70 dB XLR Main Output: 76 dB Monitor Send: 76 dB FX Send: 90 dB Mono Line Input Channel to: Insert Output: 30 dB Tape Output: 40 dB USB Output: 30 dB XLR Main Output: 56 dB Monitor Send: 56 dB FX Send: 70 dB Stereo Line Input Channel to: Tape Output: 30 dB USB Output: 30 dB XLR Main Output: 46 dB Monitor Send: 46 dB FX Send: 60 dB Tape Input to: XLR Main Output: 36 dB USB Input to: XLR Main Output: 36 dB Stereo Return to: XLR Main Output: 26 dB
  Digital Effects	I/O: mono input / stereo output Number of Presets: 16
  Meters	Main L/R Mix: Two columns of 12 segments each: OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30 Channel OL LED: Measured post-EQ, pre-fader (-3 dB before channel clipping): 18 dBu
  Graphic EQ	Frequency Centers [7-Band]: 125, 250, 500, 1k, 2k, 4k, 8k Gain: ±15 dB Assignable to Main or Monitor, bypassable
  USB	USB Recording to Computer (Mac & Win)
  Phantom Power	48 VDC to all mic channels simultaneously
  AC Power Requirements	Power Consumption: 20 watts Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz Class II Detachable Line Cord: Yes
  Operating Temperature	32 - 104˚F (0 - 40˚C)
  Dimensions	3.6 x 11.4 x 14.1" (91 x 290 x 358 mm)
  Weight	7.1 lb (3.2 kg)

  Box Dimensions (LxWxH)	17.8 x 15.6 x 6.9"

• Mackie Bag for ProFX8, ProFX8 v2 and DFX6 Mixers

  Material	Not specified by manufacturer
  Type of Closure	Zippered with pull tabs
  Exterior Dimensions	Not specified by manufacturer
  Interior Dimensions	Not specified by manufacturer
  Carrying/Transport Options	Interlocking top carry handles; removable shoulder strap
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	17.05 x 14.75 x 4.7"
