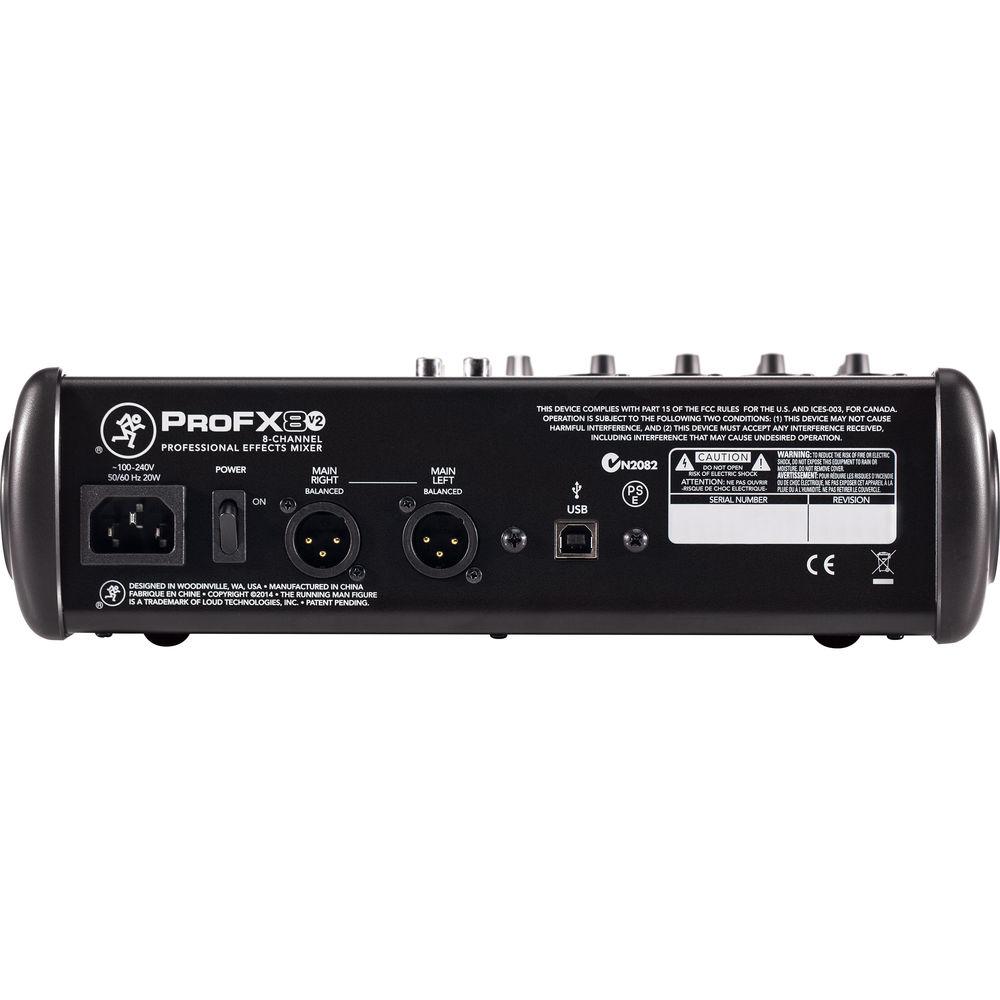

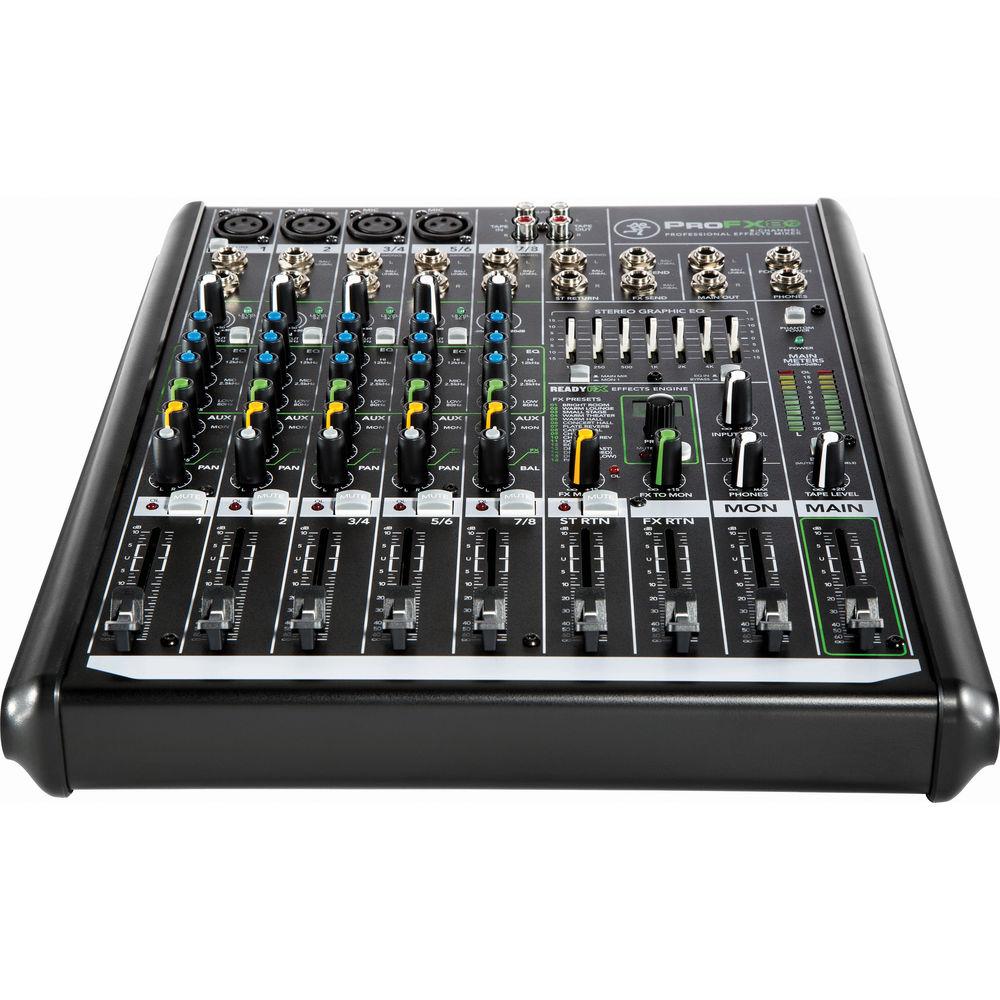

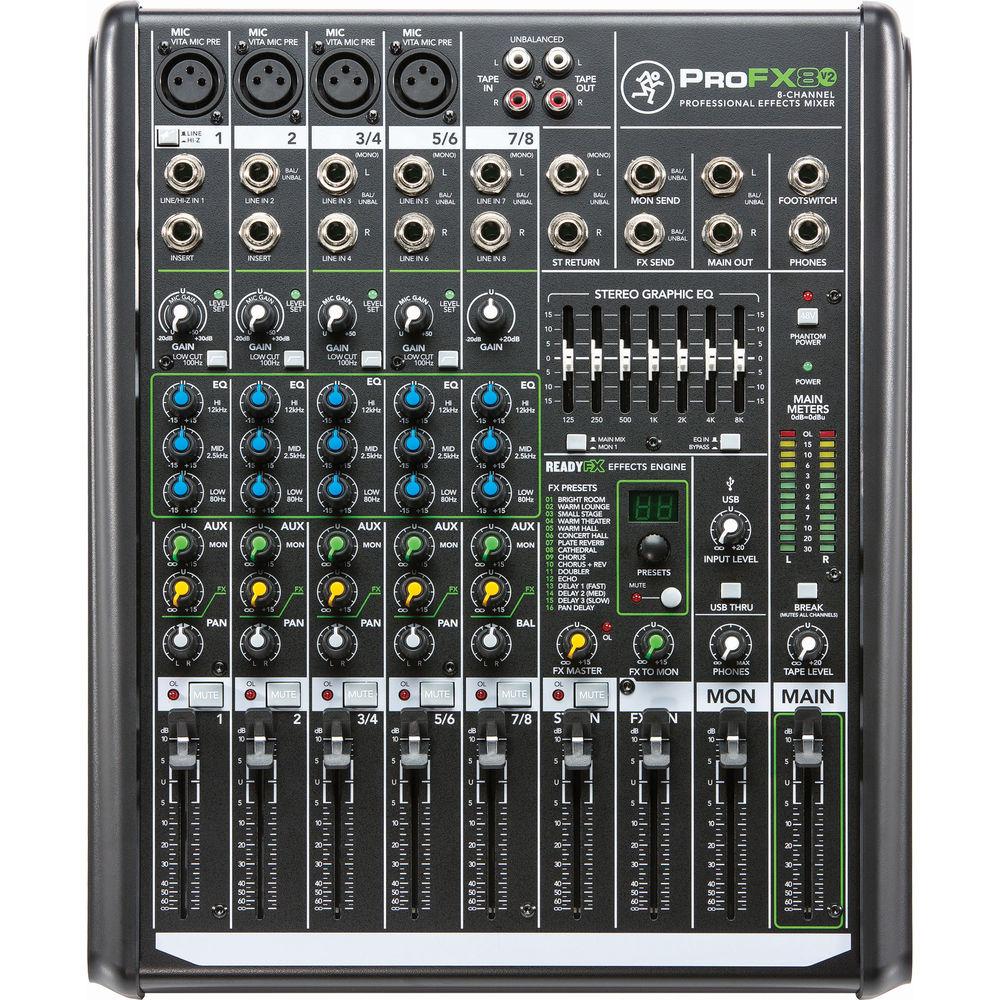

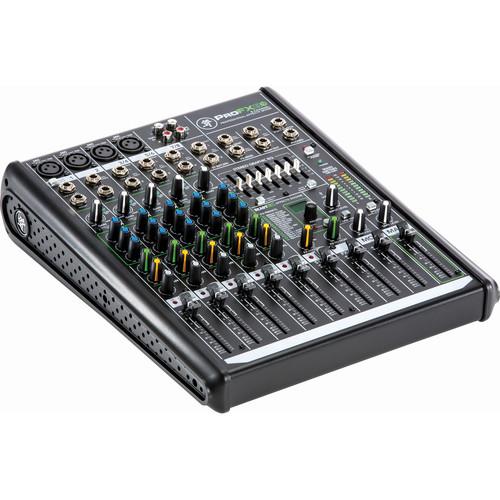

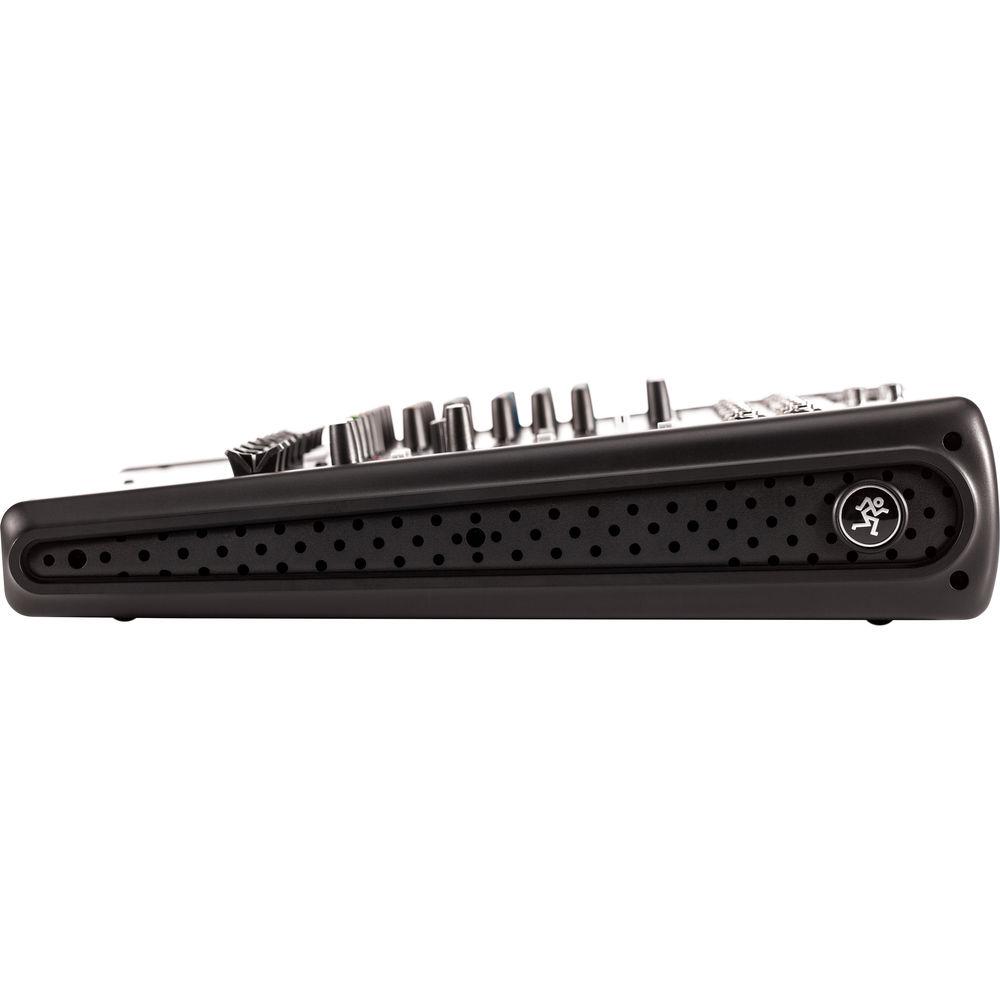

User Manual for Mackie ProFX8v2 8-Channel Sound Reinforcement Mixer with Built-In FX Click to enlarge the picture
Contents of the user manual for the Mackie ProFX8v2 8-Channel Sound Reinforcement Mixer
- Product category: Sound Reinforcement Mixers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Sound Reinforcement Mixers
 |
User manual for the Mackie ProFX8v2 8-Channel Sound Reinforcement Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description The ProFX8v2 8-channel mixing console from Mackie features a built-in effects engine, and is ideal for a plethora of live sound reinforcement applications ranging from live bands and DJs to lecturers and presenters. With 4 XLR mic inputs with low-noise Vita microphone preamps, per channel 3-band EQ, 1 aux send, and an FX out for feeding external processors, the ProFX8v2 offers professional features to suit a wide variety of configurations.
In addition to the mic inputs, the ProFX8v2 includes 8 line inputs for connecting keyboards, samplers, and other gear. There is also an RCA tape input and output for connecting portable music players similar devices. In addition, the mixer has rugged 60mm faders for all input channels, return and main/monitor masters.
The ProFX8v2's effects engine offers 16 different effects, including reverbs, delays, and choruses. It also features a 7-band graphic EQ that can be used for tuning mains or monitors, and a built-in USB interface that can be used to record the show or provide music playback via Mac or Windows computer. - Features at a Glance:
-
- 4 low-noise Mackie Vita mic preamps
- ReadyFX effects engine with 16 effects like reverbs, delays, and choruses
- 7-band graphic EQ for tuning mains or monitors
- Built-in USB interface to record the show or provide music playback
- Aux output ideal for driving a monitor mix
- 3 stereo channels plus extra stereo return for external effects or stereo playback devices
- 60mm faders for input channels, return, and main/monitor masters
- 3-band EQ (80 Hz, 2.5 kHz, and 12 kHz) on all channels
- Directly connect guitar, bass, and other instruments via Hi-Z input
- Stereo RCA tape I/O with input level control
- Headphone output with separate level control
- Balanced XLR and balanced/unbalanced 1/4" main outputs
- FX mute with remote control via footswitch
- Break switch mutes all channels for music playback between sets
- Built-in USB recording interface with simple setup via Mac or Windows
- For live recording and home studios
- Stream playback music for live or studio applications
- Includes Tracktion recording software
- Rugged design
- Solid steel chassis protects your investment
- Tough ABS side protection
- Robust internal multi-voltage power supply
UPC: 663961045581 In the Box Mackie ProFX8v2 8-Channel Sound Reinforcement Mixer with Built-In FX USB Cable Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie ProFX8v2 8-Channel Sound Reinforcement Mixer with Built-In FX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie PROFX8V2 Specs | Equivalent Input Noise | 150 ohm source impedance, 20 Hz to 20 kHz:
Mic in to insert send out, max gain -125 dBu | | Residual Output Noise | All outputs, master levels off, all channel levels off: -95 dBu
All outputs, master levels unity, one channel level unity: -80 dBu | | Frequency Response | Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 30 kHz | | THD+N | 22 Hz to 80 kHz bandwidth: Mic in to Main out (+4 dBu output): < 0.03% | | Attenuation and Crosstalk | Adjacent Inputs @ 1 kHz: -90 dB
Inputs to Outputs @ 1 kHz: -80 dB
Fader Off @ 1 kHz: -75 dB
Mute Switch / Break Switch Mute @ 1 kHz: -90 dB | | Common Mode Rejection Ratio | Mic In to Main Out, max gain, 1 kHz: 70 dB | | Maximum Level | All inputs: +22 dB
Main Out XLR: +28 dBu
All other outputs: +22 dBu | | Impedance | Mic In 3.8 kOhms
Channel Insert Return 10 kOhms
All other inputs ≥ 20 kOhms
Tape output 1 kOhms
Phones output 25 ohms
All other outputs 120 ohms unbalanced, 240 ohms balanced | | Equalization | Low ±15 dB @ 80 Hz
Mid ±15 dB @ 2.5 kHz
High ±15 dB @ 12 kHz
Low Cut Filter 18 dB/octave @ 100 Hz | | Maximum Voltage Gain | Mic Input Channel to:
Insert Output: 50 dB
Tape Output: 60 dB
USB Output: 50 dB
1/4" Main Output: 70 dB
XLR Main Output: 76 dB
Monitor Send: 76 dB
FX Send: 90 dB
Mono Line Input Channel to:
Insert Output: 30 dB
Tape Output: 40 dB
USB Output: 30 dB
XLR Main Output: 56 dB
Monitor Send: 56 dB
FX Send: 70 dB
Stereo Line Input Channel to:
Tape Output: 30 dB
USB Output: 30 dB
XLR Main Output: 46 dB
Monitor Send: 46 dB
FX Send: 60 dB
Tape Input to:
XLR Main Output: 36 dB
USB Input to:
XLR Main Output: 36 dB
Stereo Return to:
XLR Main Output: 26 dB | | Digital Effects | I/O: mono input / stereo output
Number of Presets: 16 | | Meters | Main L/R Mix:
Two columns of 12 segments each: OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30
Channel OL LED:
Measured post-EQ, pre-fader (-3 dB before channel clipping): 18 dBu | | Graphic EQ | Frequency Centers [7-Band]: 125, 250, 500, 1k, 2k, 4k, 8k
Gain: ±15 dB
Assignable to Main or Monitor, bypassable | | USB | USB Recording to Computer (Mac & Win) | | Phantom Power | 48 VDC to all mic channels simultaneously | | AC Power Requirements | Power Consumption: 20 watts
Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz
Class II Detachable Line Cord: Yes | | Operating Temperature | 32 - 104˚F (0 - 40˚C) | | Dimensions | 3.6 x 11.4 x 14.1" (91 x 290 x 358 mm) | | Weight | 7.1 lb (3.2 kg) | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 17.8 x 15.6 x 6.9" |
