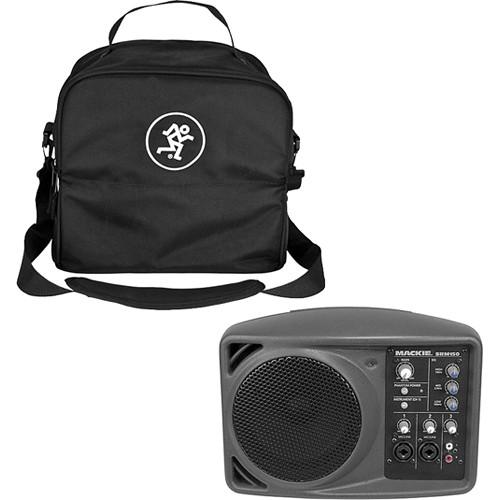

User Manual for Mackie SRM150 Compact Active PA System with Speaker Bag Kit Click to enlarge the picture
Contents of the user manual for the Mackie SRM150 Compact Active PA System
- Product category: Portable PA Systems Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie Portable PA Systems
|
User manual for the Mackie SRM150 Compact Active PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More tzazxvrdbqsdvccu This Kit includes the Mackie SRM150 Compact Active PA System and an official Mackie SRM150 Soft Carrying Bag. The PA system features a three channel mixer with two combo +48V phantom powered XLR/line inputs and a stereo RCA input for CD or MP3 players. A 5.25" full-range neodymium speaker driver and a 150W amplifier with 3-band active EQ provide a frequency response of 100 to 17,500 HZ and a maximum SPL of 120 dB. You can even attach the system to a microphone stand for live performances.
The padded carrying case enables easy transport of the portable PA system. The bag features both a hand strap and a detachable shoulder strap for different ways of carrying the system. - Mackie SRM150 5" Compact Active PA System The Mackie SRM150 5" Compact Active PA System is proof that size doesn't matter. This little beauty is a combination of Mackie's mixer and SRM active loudspeaker in an attractive, tiny PA system which is not only portable but also powerful. The built-in, three-channel mixer has two combo XLR/line inputs, a stereo channel for CD/MP3 and a powerful three-band active EQ. For positioning options, you can use the SRM150 as a personal monitor or mount it on a mic stand; the perfect PA for any application.
- Active Circuitry
- Control your performance with active electronics such as built-in EQ, phase alignment, crossover, and protection circuitry.
- Versatile and Expandable
- Experience versatility and expansion options with two combo XLR/line inputs with true 48V phantom power, an instrument-ready input, and a Neutrik Combo line-in for linking or adding inputs.
- Wide Audio Dispersion
- Reach the largest audience possible with the best sound available, through the wave-guide horn and direct-radiating woofer.
- Easily Portable
- The rugged, yet lightweight, design of the high-impact molded enclosure make it the perfect PA for an artist on the go.
- Mounting Options
- Cabinet design allows for use as a floor monitor, stand-mounting, or you can even mount the unit in a flying arrangement.
UPC: 663961009392 - Mackie Speaker Bag For SRM150 & C300z The Speaker Bag For SRM150 & C300z from Mackie protects your equipment from harm during transport & while in storage. The bag is designed for the following units:
- SRM150 Compact Active PA System
- C300z 2-Way Portable Passive Loudspeaker
UPC: 663961035131 In the Box - SRM150 5" Compact Active PA System
- Mic Stand Adapter
- Boom Extender
- Product Instructions
- Limited 3-Year Warranty for Electronics
- Limited 2-Year for Drivers
- Speaker Bag For SRM150 & C300z tzazxvrdbqsdvccu
Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie SRM150 Compact Active PA System with Speaker Bag Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mackie SRM150 5" Compact Active PA System
| Active or Passive | Active | | Frequency Response | 100Hz - 17.5kHz | | Power Capacity | 150W | | Maximum Sound Pressure Level (SPL) | 120dB | | Nominal Sensitivity | 90dB | | Impedance | 8 ohms | | Crossover | Not Specified by Manufacturer | | Low Frequency Driver | 5.25" Woofer | | High Frequency Driver | 1" Horn | | Enclosure Material | Polypropylene | | Input Connections | (2) Combo XLR line inputs | | Dimensions | 11.2 x 8 x 6.8" (28.4 x 20.3 x 17.3cm) | | Weight | 7.6 lbs (3.4kg) | | | | Box Dimensions (LxWxH) | 12.0 x 10.3 x 7.6" | - Mackie Speaker Bag For SRM150 & C300z
| | | Box Dimensions (LxWxH) | 14.7 x 8.8 x 5.2" |
