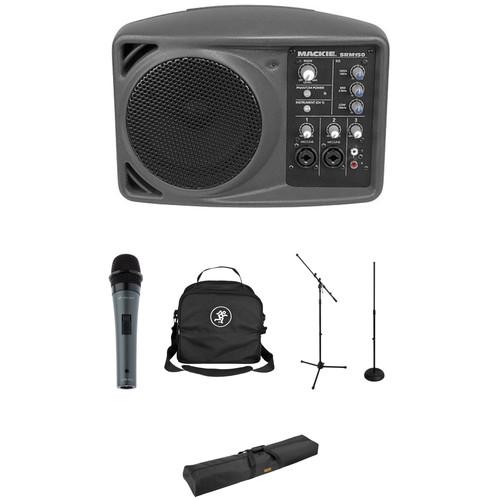

Mackie SRM150 Compact PA System Kit

User Manual for Mackie SRM150 Compact PA System Kit with Stage Package

• Product category: Portable PA Systems Mackie
• Brand: Mackie
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Mackie Portable PA Systems

Product description

• Mackie SRM150 5" Compact Active PA System The Mackie SRM150 5" Compact Active PA System is proof that size doesn't matter. This little beauty is a combination of Mackie's mixer and SRM active loudspeaker in an attractive, tiny PA system which is not only portable but also powerful. The built-in, three-channel mixer has two combo XLR/line inputs, a stereo channel for CD/MP3 and a powerful three-band active EQ. For positioning options, you can use the SRM150 as a personal monitor or mount it on a mic stand; the perfect PA for any application.
  Active Circuitry
  • Control your performance with active electronics such as built-in EQ, phase alignment, crossover, and protection circuitry.
  Versatile and Expandable
  • Experience versatility and expansion options with two combo XLR/line inputs with true 48V phantom power, an instrument-ready input, and a Neutrik Combo line-in for linking or adding inputs.
  Wide Audio Dispersion
  • Reach the largest audience possible with the best sound available, through the wave-guide horn and direct-radiating woofer.
  Easily Portable
  • The rugged, yet lightweight, design of the high-impact molded enclosure make it the perfect PA for an artist on the go.
  Mounting Options
  • Cabinet design allows for use as a floor monitor, stand-mounting, or you can even mount the unit in a flying arrangement.
  UPC: 663961009392
• Polsen HDM-16-S Handheld Dynamic Performance Microphone The HDM-16-S Handheld Dynamic Performance Microphone from Polsen is a reliable and rugged handheld microphone with an integrated on/off switch. The supercardioid polar pattern and frequency response is optimized for the human voice and can be used for live stage, vocal presentation, and studio applications. The microphone's polar pattern is designed to eliminate off-axis sound. Additionally, an on/off switch lets you quickly silence the mic when necessary. Built with rugged construction, the Polsen HDM-16-S will withstand the rigors of transport and live performances. A 16.4' XLR cable, carry pouch, and a mic clip are also included.
  Optimized for Vocals
  • The HDM-16-S microphone is optimized for live vocal performances. It has a wide frequency response with impressive sensitivity, which makes this microphone capable of capturing singers and presenters with clarity and accuracy.
  Supercardioid Polar Pattern
  • The dynamic supercardioid microphone capsule minimizes background noise, making the HDM-16-S ideal for vocals or speech, whether onstage or in the studio.
  On/Off Switch
  • Don't let your audience hear what you don't want them to hear. The on/off switch is a convenient feature that lets you quickly mute the microphone between songs or during a pause in your presentation.
  Rugged and Portable
  • Take your microphone anywhere. The heavy-duty metal construction will withstand the rigors of transport and onstage use. With the included 16-foot XLR cable, you can plug into any mixing board, sound system, or amplifier with an XLR input jack.
  UPC: 847628598447
• Mackie Speaker Bag For SRM150 & C300z The Speaker Bag For SRM150 & C300z from Mackie protects your equipment from harm during transport & while in storage. The bag is designed for the following units:
  • SRM150 Compact Active PA System
  • C300z 2-Way Portable Passive Loudspeaker
  UPC: 663961035131
• Auray MS-5230T Tripod Microphone Stand with Telescoping Boom The Auray MS-5230T Tripod Microphone Stand with Telescoping Boom features durable, steel construction. The telescoping boom arm is adjustable from 19.3 to 33.9" in length, allowing you to angle and extend the mic placement however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and non-slip feet keep it firmly and sturdily in place. The Auray MS-5230T mic stand collapses for easy transport. UPC: 847628015593
• On-Stage MS7201B Microphone Stand (Black) The black On Stage MS7201B Microphone Stand features a round-cast metal base and locking mid-point clutch for easy height adjustment. The stand telescopes between 33-60" and weighs approximately 7 lbs. UPC: 659814720033
• Auray Speaker Stand Bag 51" Interior (Black) The Speaker Stand Bag from Auray is a spacious, durable bag designed to hold and protect two speaker stands, six microphone stands, or miscellaneous hardware for DJs, bands, and engineers between gigs, parties, and special events. The 52” rugged nylon bag holds stands up to 51” in length.The smooth, coated interior won’t mar the finish of your stands. Dual large-gauge zippers provide easy and fast access to the bag’s contents. Webbed nylon handles with a padded touch-fastener wrap make carrying the bag, even with one hand, simple and balanced.The Auray logo is embroidered on the front and provides quick, stylish bag identification.
  Durable Protection
  • The heavy-duty nylon exterior resists rips and tears, and protects speaker stands from scuffs and scratches. The smooth, coated interior keeps your stands' finishes looking nice. The bag holds one or two speaker stands, six microphone stands, or miscellaneous hardware up to 51" in length.
  Reliable and Stylish
  • Dual large-gauge zippers allow you to open and close the bag easily on either side or the middle. Nylon extensions on the zippers make them even easier to grab. The Auray logo is embroidered on the front, providing easy bag identification.
  Easy Transport
  • Forget carrying one speaker stand in each hand. Put your stands in the bag, then carry the bag with one hand, thanks to the webbed nylon carry handles and padded handle wrap.
  UPC: 847628002432

• SRM150 5" Compact Active PA System txtauwaztwfyuqcrwyuqvzfz
• Mic Stand Adapter
• Boom Extender
• Product Instructions
• Limited 3-Year Warranty for Electronics
• Limited 2-Year for Drivers

• Polsen - HDM-16-S Handheld Dynamic Performance Microphone

• Speaker Bag For SRM150 & C300z

• Auray - MS-5230T Tripod Microphone Stand with Telescoping Boom

• On-Stage - MS7201B Microphone Stand (Black)

• Auray - Speaker Stand Bag 51" Interior (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Mackie SRM150 5" Compact Active PA System

  Active or Passive	Active
  Frequency Response	100Hz - 17.5kHz
  Power Capacity	150W
  Maximum Sound Pressure Level (SPL)	120dB
  Nominal Sensitivity	90dB
  Impedance	8 ohms
  Crossover	Not Specified by Manufacturer
  Low Frequency Driver	5.25" Woofer
  High Frequency Driver	1" Horn
  Enclosure Material	Polypropylene
  Input Connections	(2) Combo XLR line inputs
  Dimensions	11.2 x 8 x 6.8" (28.4 x 20.3 x 17.3cm)
  Weight	7.6 lbs (3.4kg)

  Box Dimensions (LxWxH)	12.0 x 10.3 x 7.6"

• Polsen HDM-16-S Handheld Dynamic Performance Microphone

  Transducer	Dynamic
  Polar Pattern	Supercardioid
  Frequency Response	50 Hz to 16 kHz
  Impedance	600 Ohms ±30% at 1 kHz
  Sensitivity	-54 dB ±3 dB (0 dB= 1 V/Pa @ 1 kHz)
  Output Connector	3-pin XLR
  Cable Length	16.4' (5 m)
  Dimensions (L x Diam)	7 x 2.1" (17.8 x 5.3 cm)
  Weight	0.7 lb (317.5 g)

  Box Dimensions (LxWxH)	8.7 x 4.9 x 2.7"

• Mackie Speaker Bag For SRM150 & C300z

  Box Dimensions (LxWxH)	14.7 x 8.8 x 5.2"

• Auray MS-5230T Tripod Microphone Stand with Telescoping Boom

  Height	36.2 to 63" / 91.9 to 160 cm
  Base Type	Tripod
  Base Dimensions	25.6 x 25.6" / 65 x 65 cm

  Length	19.3 to 33.9" / 49 to 86 cm

  Material	Steel
  Weight	4.6 lb / 2.1 kg

  Box Dimensions (LxWxH)	33.5 x 4.0 x 4.0"

• On-Stage MS7201B Microphone Stand (Black)

  Height	33 to 60" / 83 to 152.4 cm
  Base Type	Round
  Base Dimensions	10 x 10" / 25.4 x 25.4 cm

  Weight	7 lb / 3.2 kg

  Box Dimensions (LxWxH)	32.2 x 13.2 x 2.1"

• Auray Speaker Stand Bag 51" Interior (Black)

  Material	Nylon
  Type of Closure	Zipper
  Exterior Dimensions (H × W × D)	52 × 5 × 10.5" / 132.1 × 12.7 × 26.7 cm
  Carrying/Transport Options	Dual carry handles with padded touch-fastener wrap
  Weight	1.2 lb / 0.5 kg

  Box Dimensions (LxWxH)	16.6 x 10.8 x 2.2"
