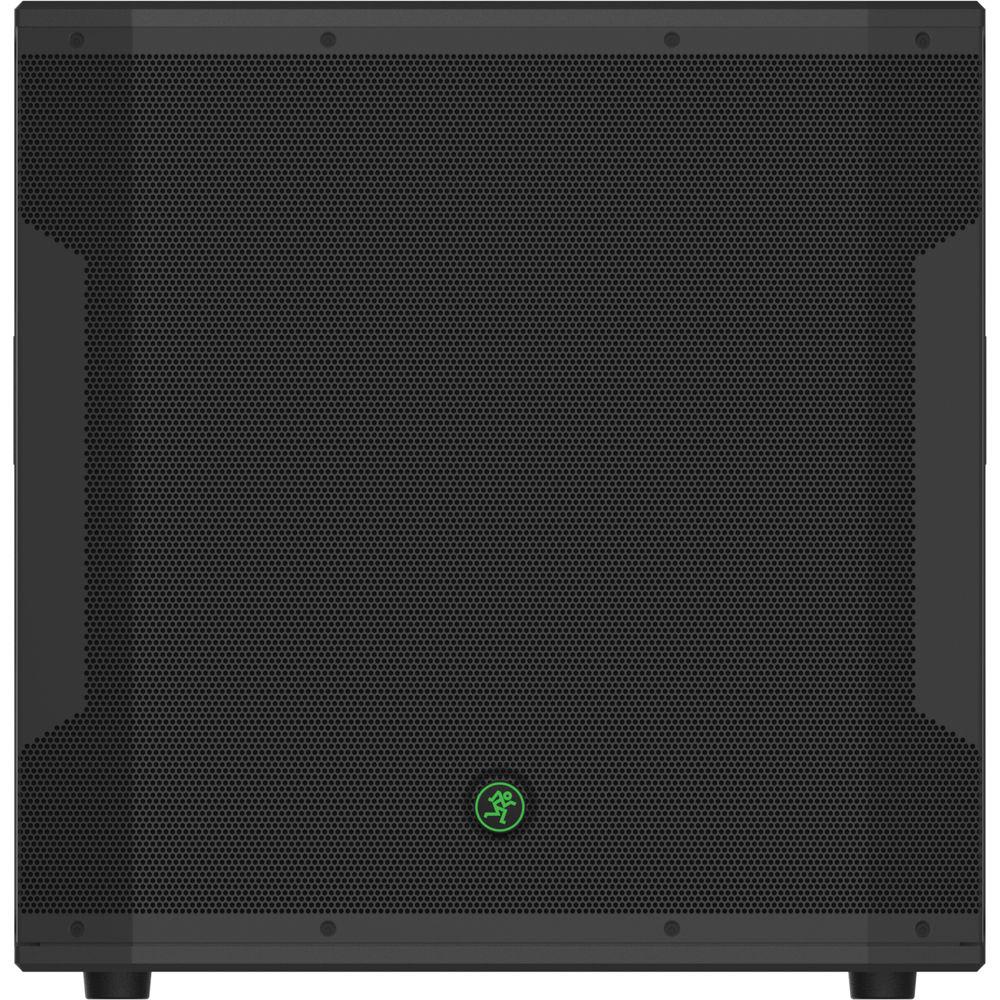

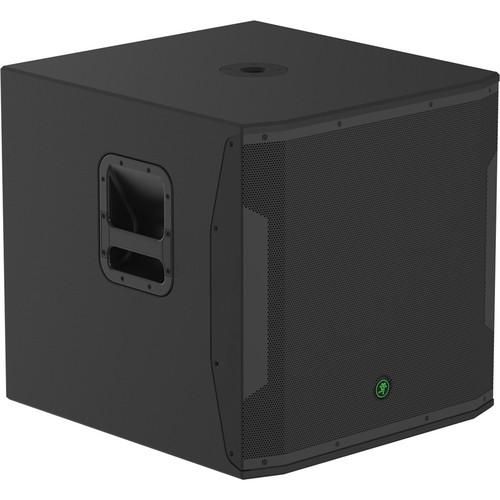

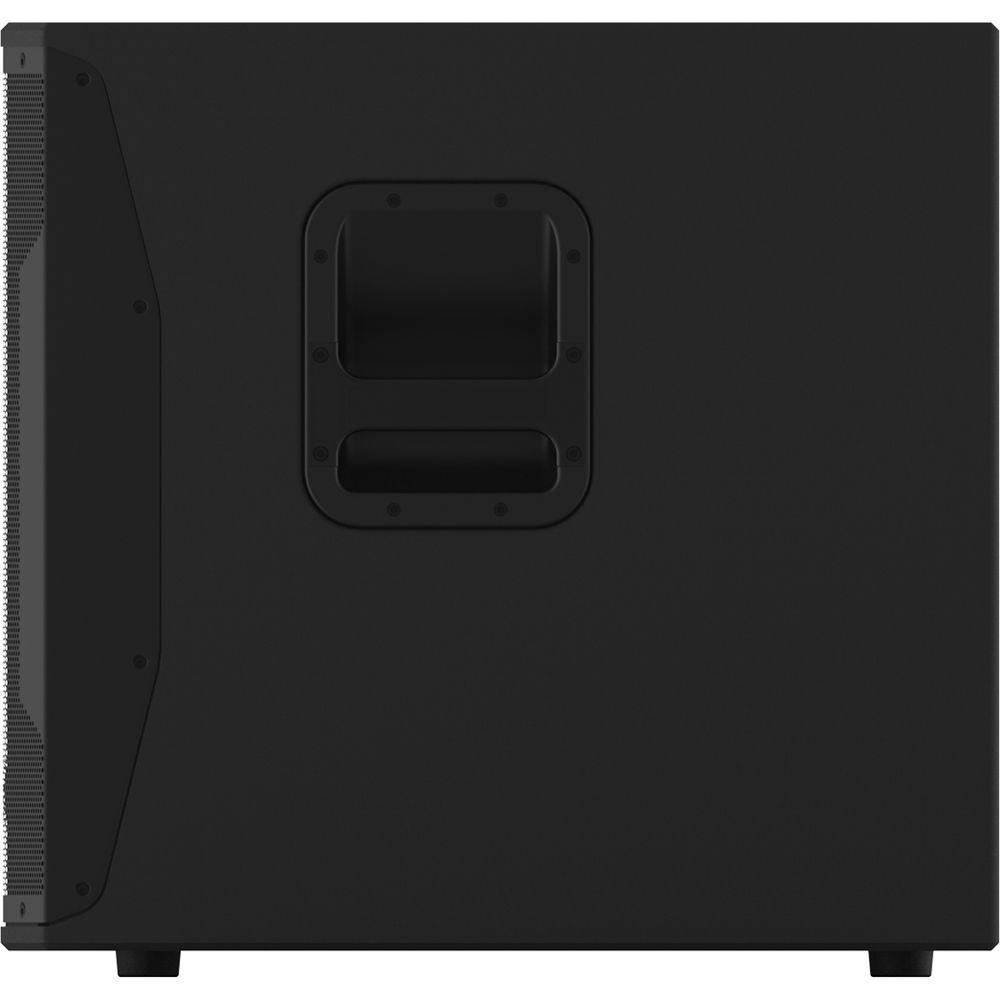

User Manual for Mackie SRM1850 1600W 18" Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Mackie SRM1850 1600W 18" Powered Subwoofer
- Product category: PA Speakers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie PA Speakers
 |
User manual for the Mackie SRM1850 1600W 18" Powered Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description The Mackie SRM1850 1600W 18" Powered Subwoofer is for extending the low-frequencies in a sound system. It is used in various environments for sound reinforcement applications such as portable DJ's, live stage, houses of worship, theater, rehearsals and more. It features 1600W of power and has an 18" subwoofer. The subwoofer is enclosed in a front ported internally-braced all-wooden cabinet and delivers maximum low-frequency extension and punch. It is built to provide tour level road-worthiness. The SRM1850 subwoofer features stereo XLR inputs, full-range and high-pass outputs, and a variable digital crossover that includes presets for the SRM550 and SRM650 loudspeakers (sold separately). It features a Smart Protect DSP that protects the subwoofer from overloads if things get pushed a little too hard. The driver has its own compression circuit which helps protect it from damaging transient peaks. This compressor is designed to be transparent and is not noticeable under normal operating conditions. An AC power cord is included. Note: The SRM1850 18" powered subwoofer is designed to sit on the floor or stage. It is not designed to be pole-mounted or suspended. The cabinet has no rigging points and is not suitable for rigging. Never attempt to suspend the subwoofer by its handles. - 1600W of power paired with a 18" woofer for high low-end performance
- All-wood construction with internally-braced cabinet for near-zero distortion
- Front ported for maximum low-frequency extension and punch

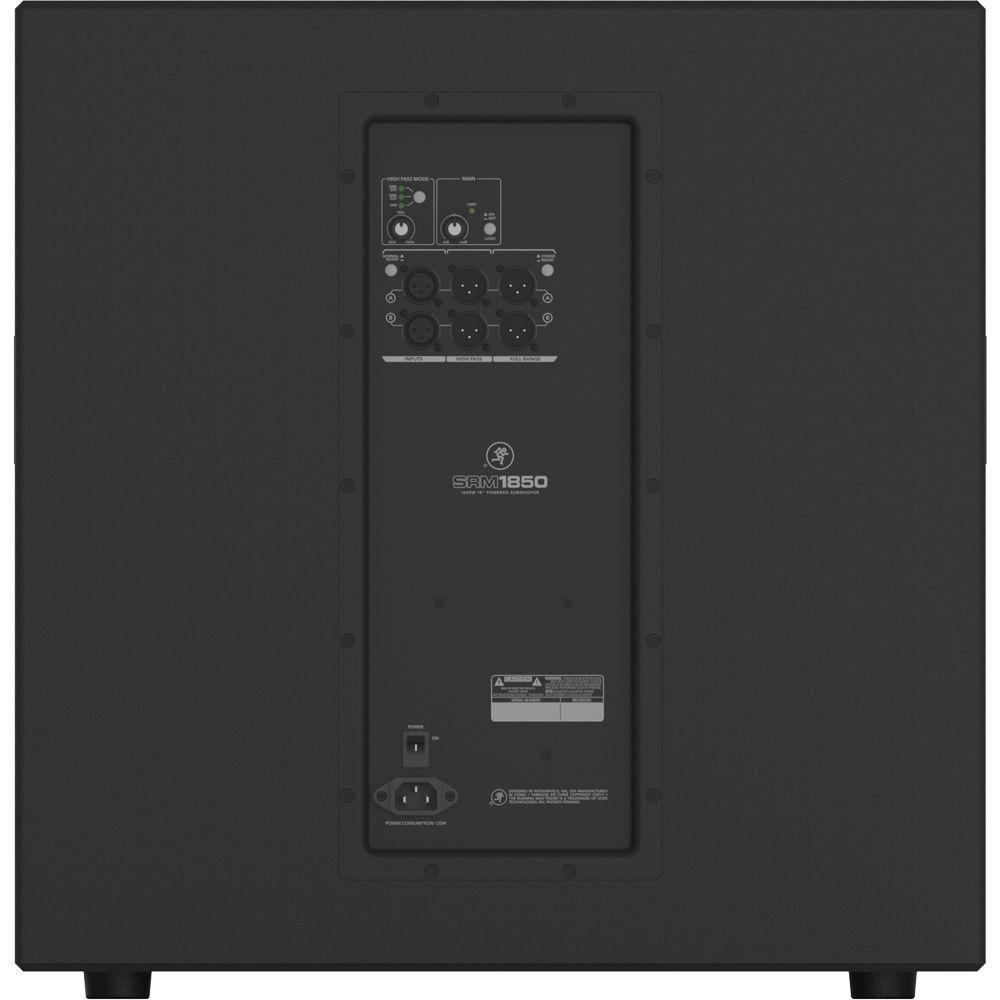

- Stereo XLR inputs and stereo XLR full-range and high-pass outputs
- Integrated digital crossover with variable control and presets for the SRM550 and SRM650 Loudspeakers (sold separately)
- Smart Protect DSP for protection
- Built-in cup for easily pole-mounting full-range loudspeakers
UPC: 663961036381 In the Box Mackie SRM1850 1600W 18" Powered Subwoofer AC Power Cord Limited 3-Year for Electronics Limited 2-Year for Driver User Manual PDF 2.1mbscrdwaudaxrarrsr Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie SRM1850 1600W 18" Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie SRM1850 Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 800 W RMS
1600 W Peak | | Amplifier Class | Class-D | | | | LF Driver | 1 x 18" / 457 mm Woofer | | LF Voice Coil | 3" / 76 mm | | Magnet | Ferrite | | | | Frequency Response | 40 Hz to 120 Hz -3 dB
35 Hz to 150 Hz -10 dB | | Maximum SPL | 132 dB | | I/O Impedance | Input:
20 kOhms (Balanced)
10 kOhms (Unbalanced) | | THD | <1% | | Protections | RMS, Thermal | | | | Audio I/O | 2 x XLR Female Balanced Input
2 x XLR Male Balanced Output
2 x XLR Male Balanced High-Pass Output Inputs and Output Parallel | | | | Crossover | 60 to 120 Hz Slope: 18 dB/Octave HP, 24 dB/Octave LP | | Dynamic Processing | Peak Limiter | | Alignment Delay | Yes | | | | AC Input Power | 100 to 120 VAC, 60 Hz | | AC Power Connector | 1 x IEC | | Power Consumption | 200 W | | | | Handles | 2 x Side | | Cooling | Convection | | Construction Material | Metal Grille, Plywood | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 22.5 x 22.2 x 23.9" / 572.0 x 565.0 x 608.0 mm | | Weight | 64 lb / 29 kg | | | | Package Weight | 83.0 lb | | Box Dimensions (LxWxH) | 29.0 x 27.5 x 25.0" |
