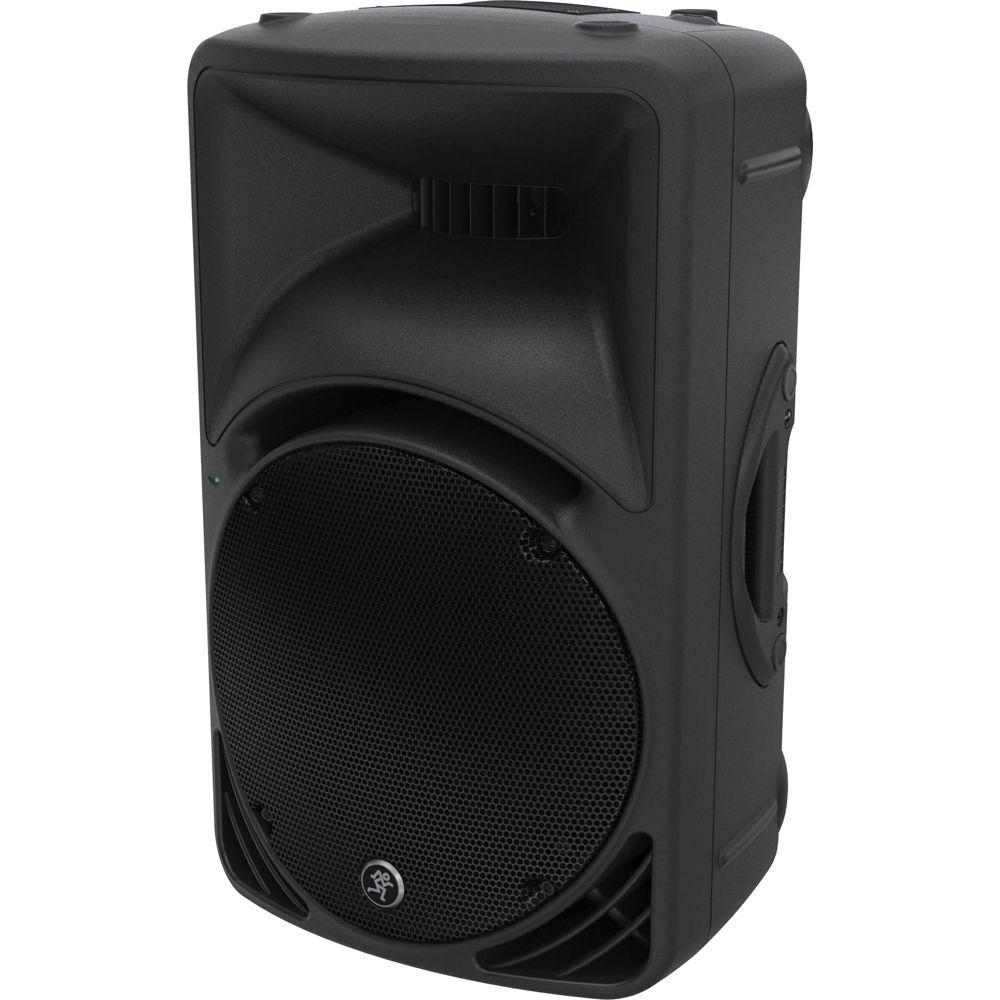

User Manual for Mackie SRM450 - 1000W 12" Portable Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Mackie SRM450 - 1000W 12" Portable
- Product category: PA Speakers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie PA Speakers
 |
User manual for the Mackie SRM450 - 1000W 12" Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|

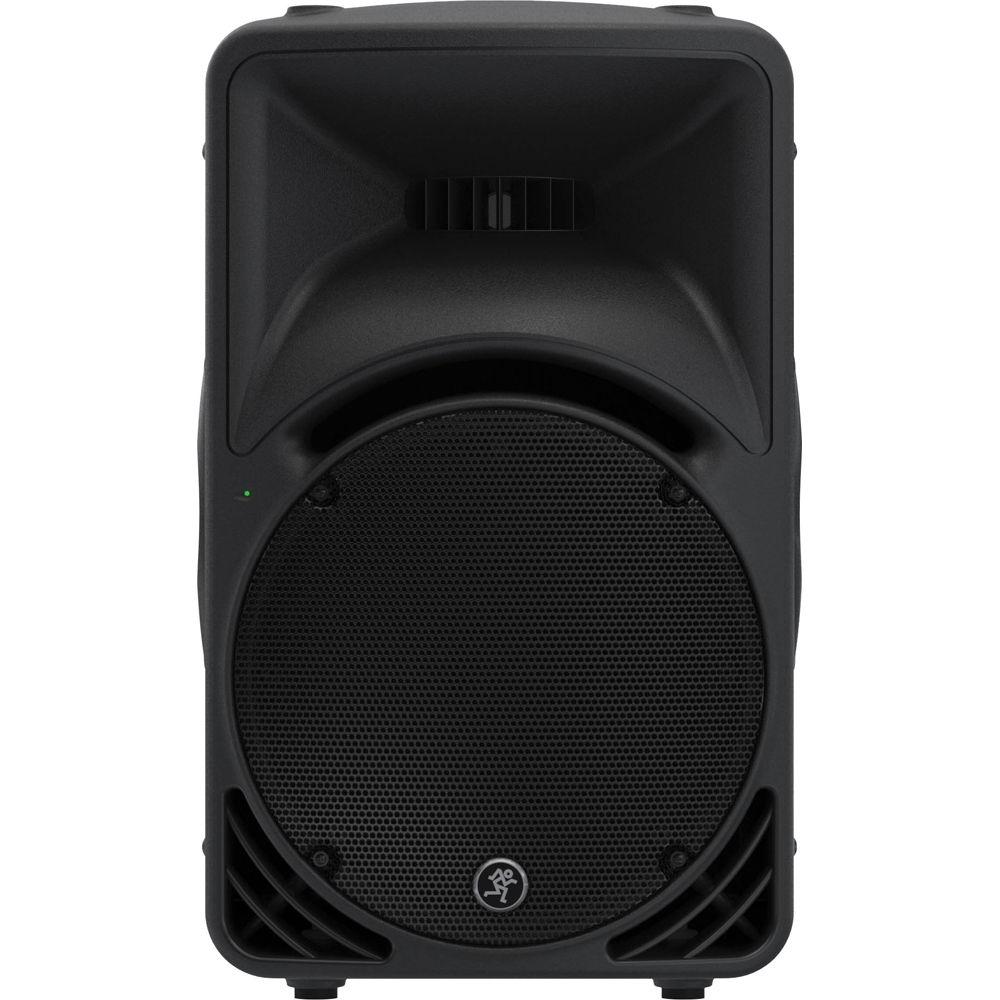

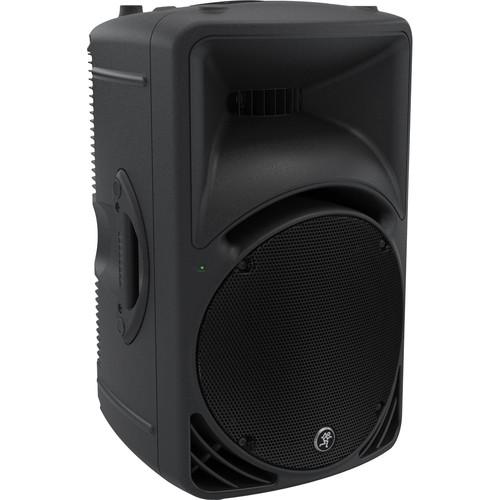

Product description The Mackie SRM450 is a powered loudspeaker that features a 12" high-output woofer and a 1.4" titanium dome compression driver. With 1000 watts of power, you get the high output you need in a package that is designed to be tough, lightweight and portable.
Featuring one-button speaker mode selection for scenario-specific voicing (PA, DJ, Monitor and Soloist), the speaker allows you to customize your sound to best fit your application. Complete with an integrated, gain adjustable 2-channel mixer that features two XLR/TRS Combo inputs and a stereo RCA input, the SRM450 can handle anything from mics to guitars to MP3 players and more. - Features:
-
- 12" high-output woofer
- 1.4" titanium dome compression driver
- Eliminate feedback with one-button automatic "Feedback Destroyer"
- Precision 2-way crossover
- Driver time alignment & phase correction
- System protection / limiting

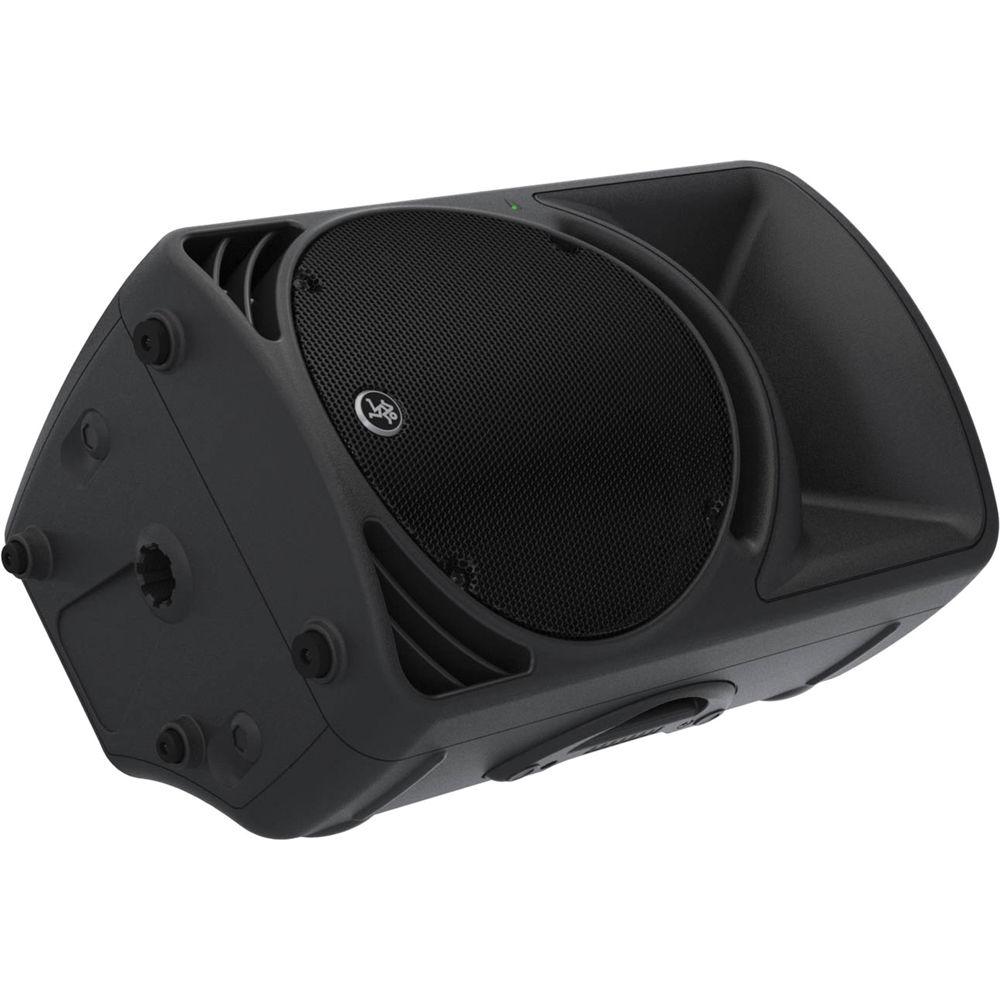

- Monitor-specific angle and voicing mode perfect for cutting through on stage

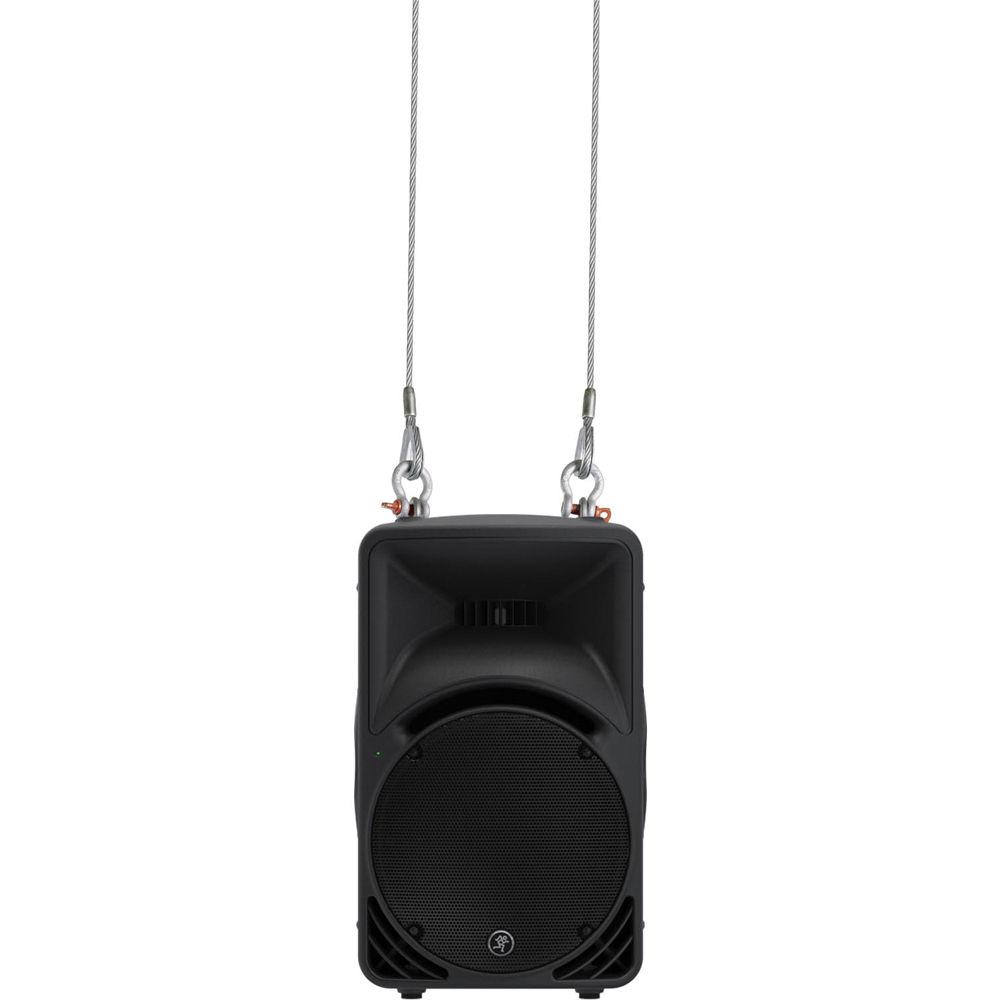

- Flyable for permanent install, both vertically and horizontally

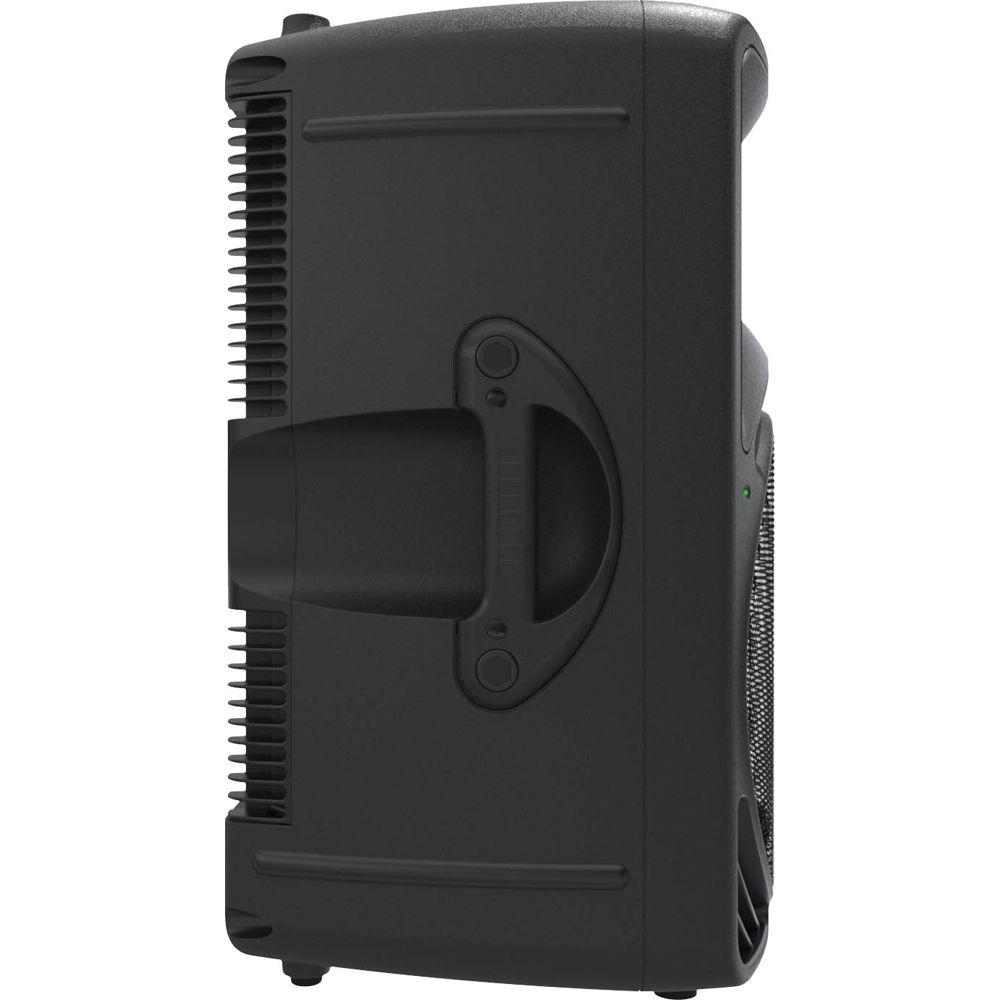

- Durable, portable design
- Weight: 37.0 lb (16.8 kg)
UPC: 663961044225 In the Box Mackie SRM450 - 1000W 12" Portable Powered Loudspeaker Limited 3-Year Warranty for Electronics Limited 2-Year for Drivers User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie SRM450 - 1000W 12" Portable Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie SRM450V3 Specs | | | Configuration | Active | | Total Power Capacity | 500 W RMS
1000 W Peak | | Amplifier Power Rating | LF:
400 W RMS
800 W Peak
HF:
100 W RMS
200 W Peak | | Amplifier Class | LF:
Class-D
HF:
Class-AB | | | | HF Driver | 1 x 1.4" / 36 mm Titanium Tweeter | | LF Driver | 1 x 12" / 304.8 mm Woofer | | Magnet | HF:
Ferrite
LF:
Ferrite | | | | Frequency Response | 47 Hz to 20 kHz -3 dB
42 Hz to 23 kHz -10 dB | | Maximum SPL | 128 dB SPL | | Coverage Angle | 90° H x 45° V | | I/O Impedance | Input:
8 kOhms (Balanced)
10 MOhms (Unbalanced)

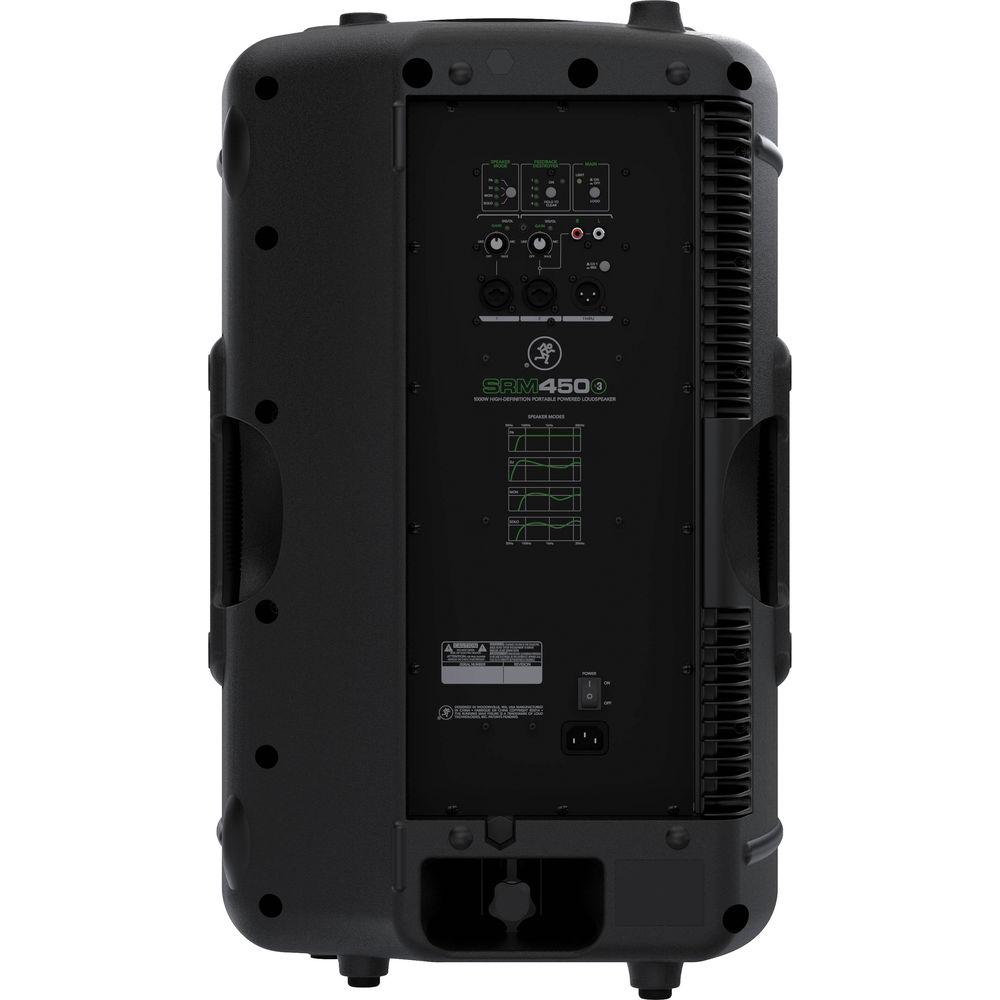

25 kOhms (Unbalanced) | | THD | <1% | | Protections | Power Supply, RMS, Thermal | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Line/Mic Input
1 x Stereo RCA Input
1 x XLR Male Balanced Thru Passive when the Ch 1 / Mix switch is in the "out" (Ch 1) position. Active when the Ch 1 / Mix switch is in the "in" (Mix) position | | | | Crossover | 3 kHz | | Dynamic Processing | Peak Limiter | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz

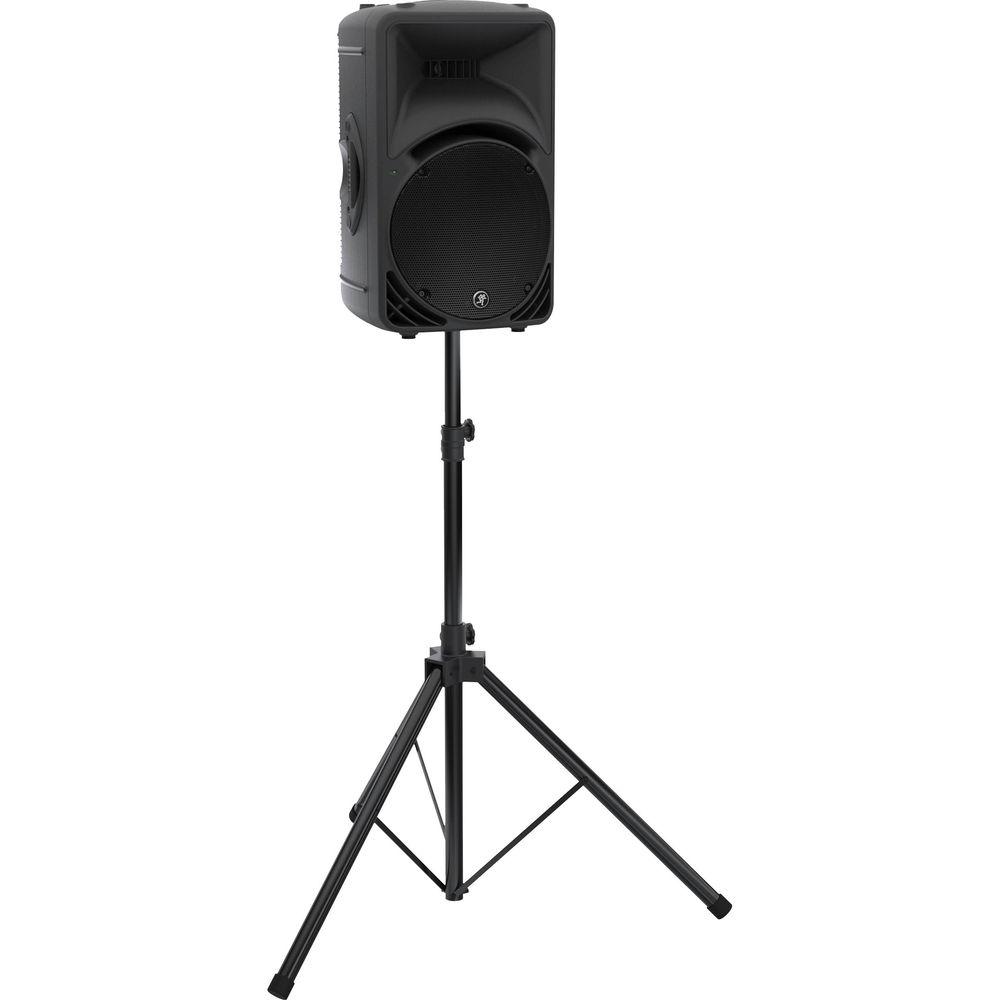

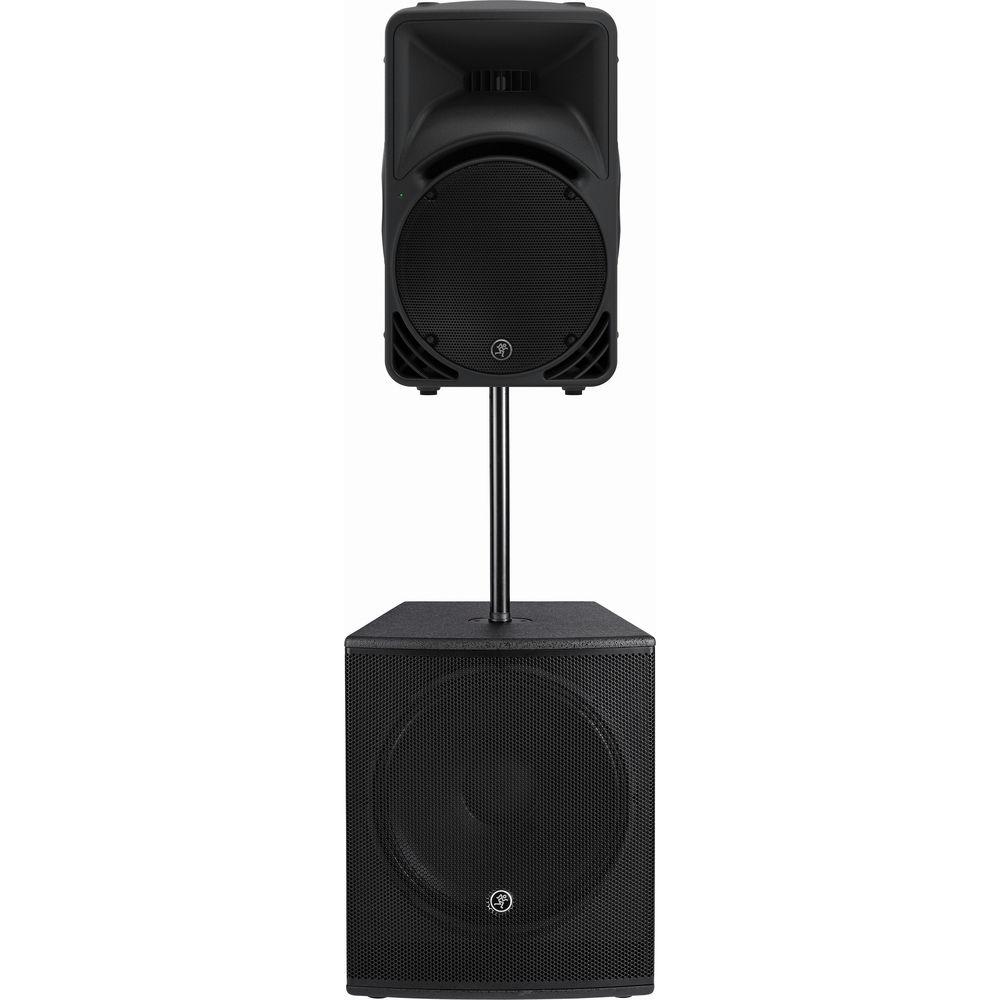

220 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC | | Power Consumption | 160 W | | | | Mounting | 1 x Pole Socket
3 x M10 | | Cooling | Convection | | Construction Material | Metal Grille, Polypropylene | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 26.1 x 16.0 x 14.8" / 663.0 x 406.0 x 376.0 mm | | Weight | 37 lb / 16.8 kg | | | | Package Weight | 41.7 lb | | Box Dimensions (LxWxH) | 27.5 x 16.5 x 15.0" |
