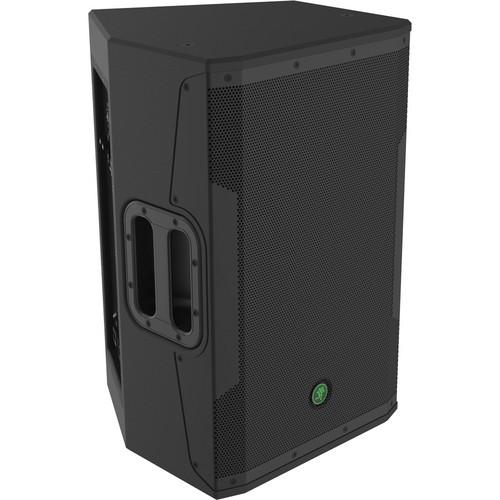

Product description The Mackie SRM550 1600W High-Definition Powered Loudspeaker delivers SRM ruggedness, output, clarity, and simplicity in a 12" design that is suitable as a main or monitor. Truly built-like-a-tank, huge system power is paired with custom transducers within professional-grade, internally braced all-wood cabinets that redefine tough.
The loudspeaker features High-Definition Audio Processing, including acoustic correction DSP for high-definition sound plus system optimization tools like application-specific speaker modes and an accurate feedback destroyer. The integrated 2-channel mixer with Wide-Z inputs can handle any signal with ease. The loudspeaker delivers modern output, amazing sound, and the proven durability you demand from a portable loudspeaker. - 1600W system power paired with custom transducers deliver gig-level volumes with room to spare
- 12" high-output LF driver
- 1.4" titanium dome compression driver
- Built-like-a-tank all-wood, internally-braced cabinet delivers professional-grade road-worthiness

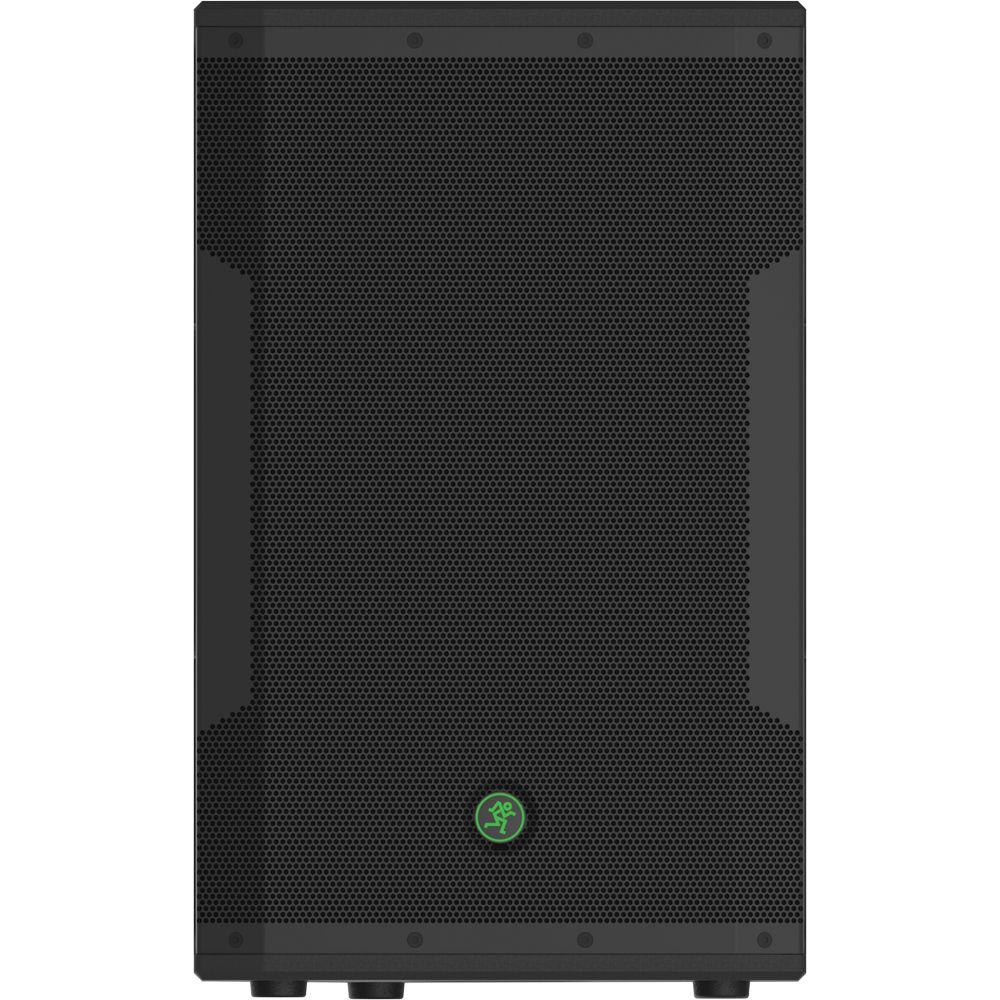

- Rugged 18-gauge steel grille and fine-textured, sleek black cabinet finish
- Front ported for maximum low-end extension and punch
- High-Definition Audio Processing for professional sound with unmatched clarity
- Acoustic correction developed with touring geniuses at EAW
- Precision 2-way digital crossover
- Driver time alignment and phase correction

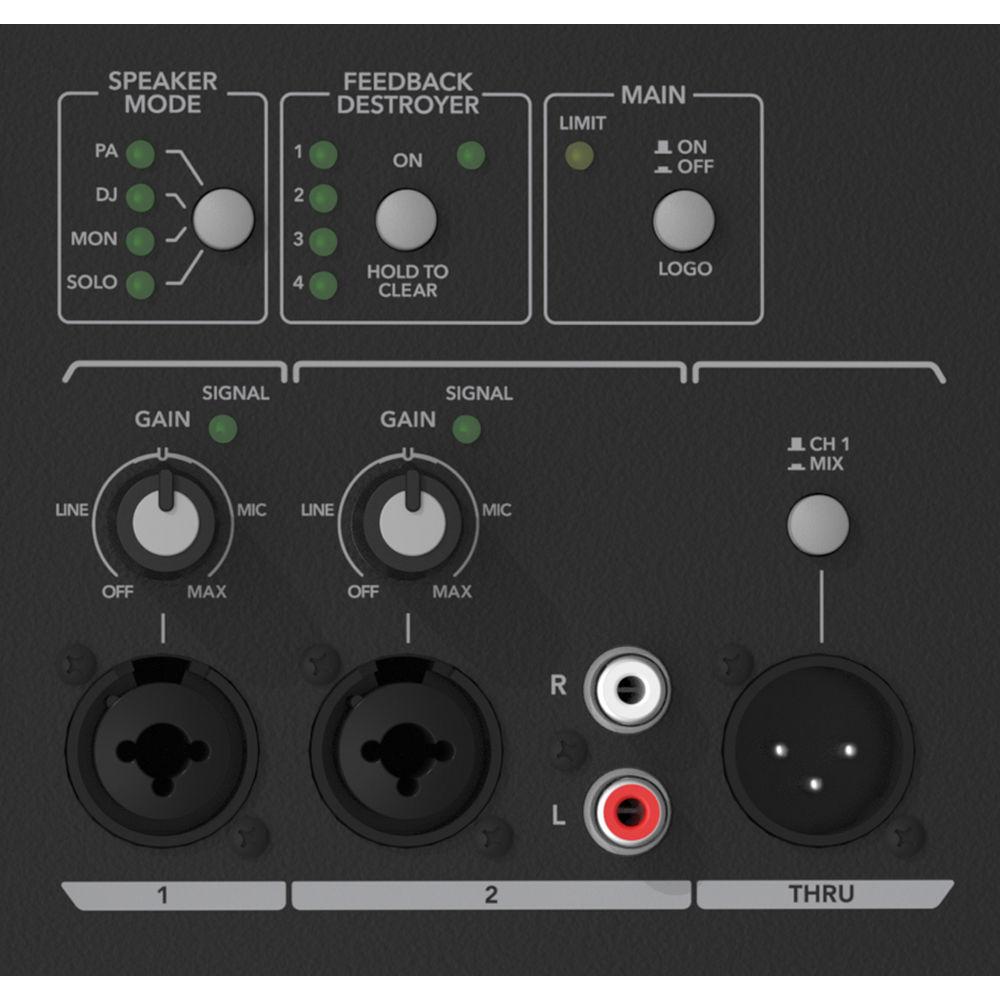

- Quick one-button Speaker Mode selection for application-specific voicing (PA, DJ, monitor, and soloist)
- Effortlessly eliminate nasty feedback with one-button automatic Feedback Destroyer
- Integrated 2-channel mixer featuring dual Wide-Z inputs
- Handles anything from microphones to guitars to mixers with a single twist of the gain knob
- Includes stereo RCA inputs for easy connection to music source
- Suitable for the singer / songwriter, plug in and leave the mixer at home
- Smart Protect DSP protects the speaker

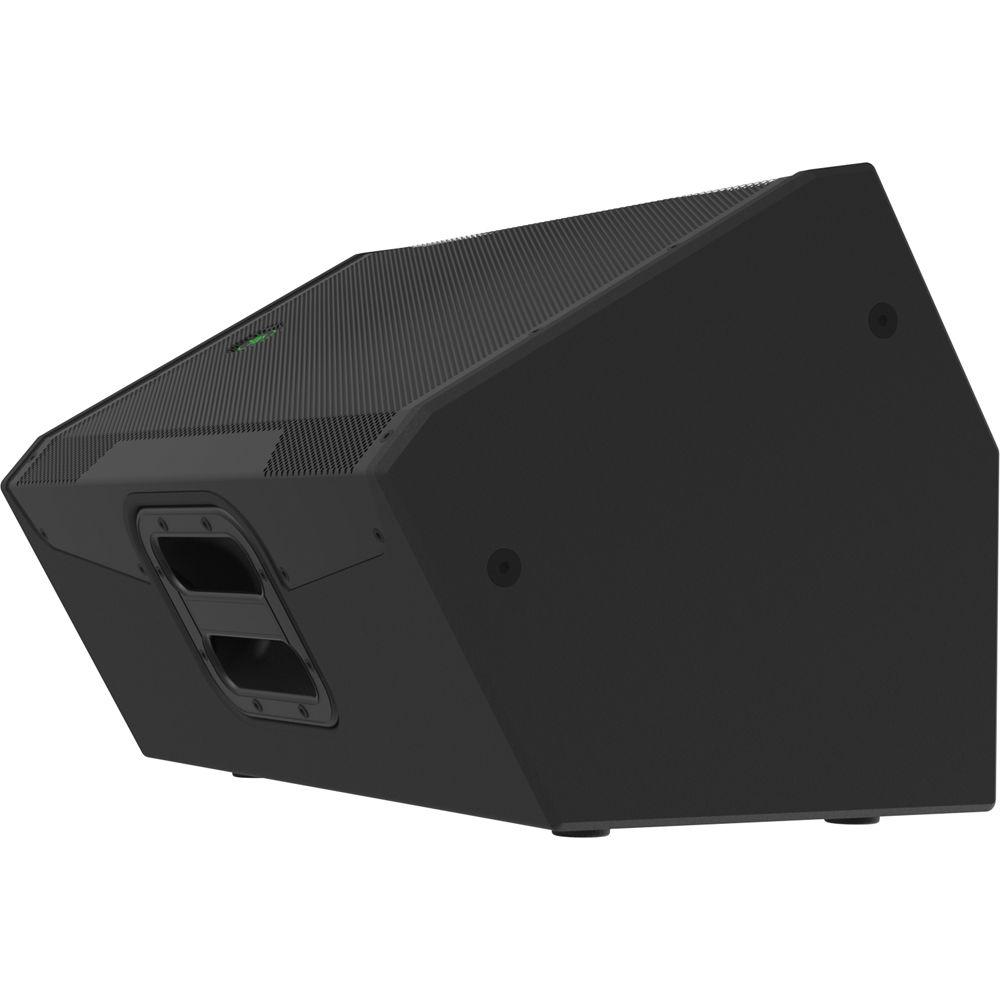

- Monitor-specific 60° angle and voicing mode well-suited for cutting through on stage
UPC: 663961036367 In the Box Mackie SRM550 1600W High-Definition Powered Loudspeaker (12") Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie SRM550 1600W High-Definition Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie SRM550 Specs | Acoustic | Frequency Response:
55 Hz to 17 kHz (-3 dB)
49 Hz to 20 kHz (-10 dB)
Maximum Peak SPL: 132 dB
Crossover Point: 3 kHz
Dispersion: 90 x 50° | | Section | High-Frequency:
Voice Coil Diameter: 1" (25 mm)
Horn Entry Diameter: 1.4" (36.0 mm)
Diaphragm Material: Titanium
Magnet Material: Ferrite
Low-Frequency: Woofer Diameter 12" (305.0 mm)
Voice Coil Diameter 2.6" (66.0 mm)
Diaphragm Material: Paper
Magnet Material: Ferrite | | Amplifier | System Power Amplification:
Rated Power:
800 W RMS
1600 W peak
Low Frequency & High Frequency Power Amplifier:
Rated Power:
400 W RMS
800 W peak
Rated THD: < 1%
Cooling: Convection

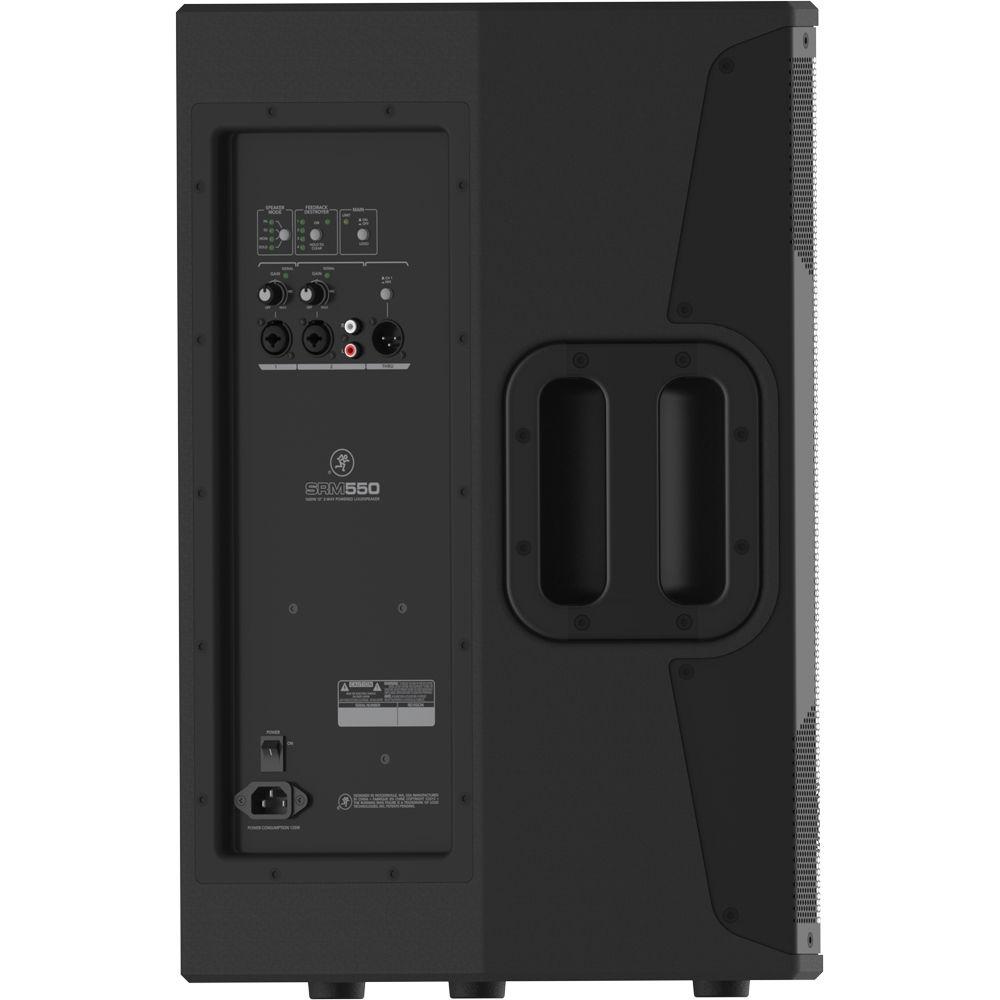

Design: Class D | | Input/Output | Channel 1:
Microphone-Line: 8 kOhms balanced
1/4" TRS, Wide-Z: 1 MOhm unbalanced
Channel 2:
Microphone-Line: 8 kOhms balanced
1/4" TRS, Wide-Z: 1 MOhm unbalanced
RCA: 25 kOhms unbalanced
Thru:
Male XLR balanced
Passive when the channel 1 / mix switch is in the out (channel 1) position
Active when the channel 1 / mix switch is in the in (Mix) position | | Power | US Detachable Line Cord: 90 to 130 VAC, 60 Hz, 200 W
AC Connector: 3-pin IEC 250 VAC
Power Supply Type: Switch mode | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Safety | Input Protection: Peak and RMS limiting, power supply, and amplifier thermal protection | | LEDs | Defeatable front power ON (running man logo)
Front load power limiter
Speaker mode
Feedback destroyer
Input signal | | Construction | Cabinet: 15 mm Poplar
Finish: High-durability black paint

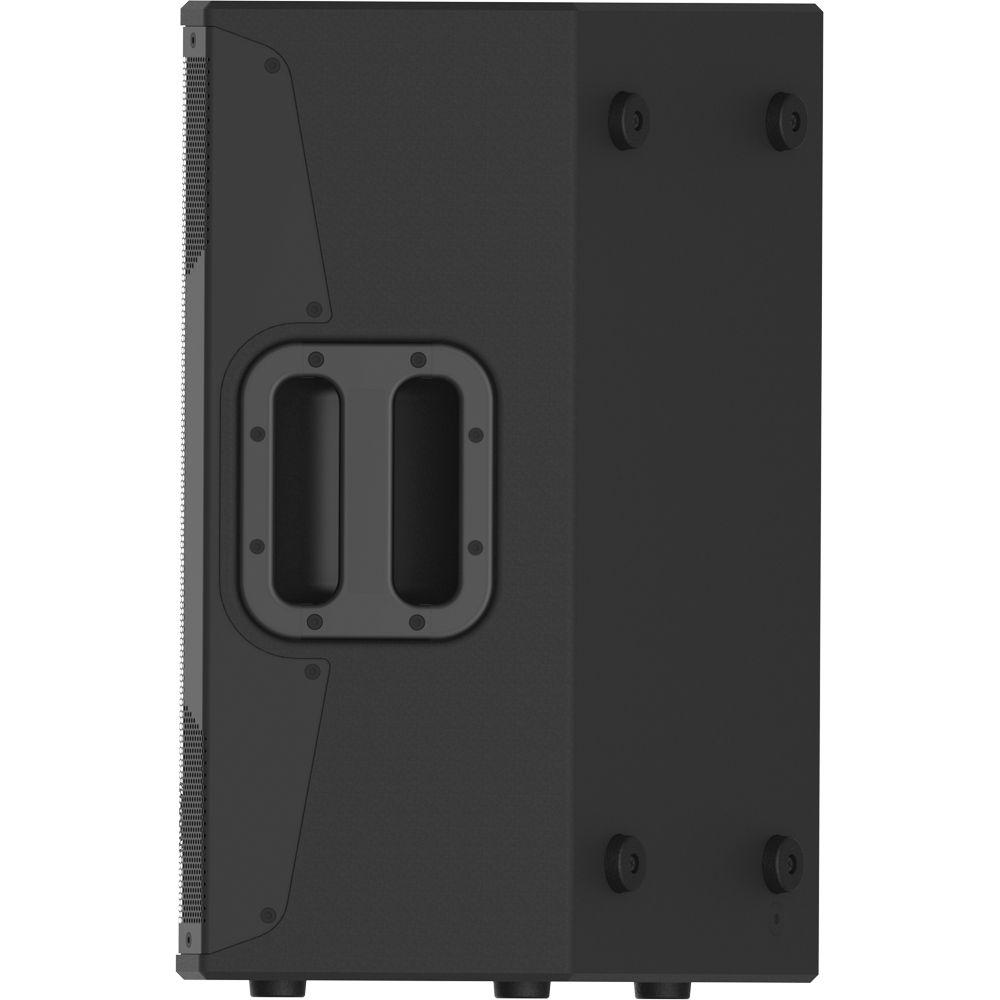

Handles: One on each side
Grille: Powder-coated 18 gauge steel

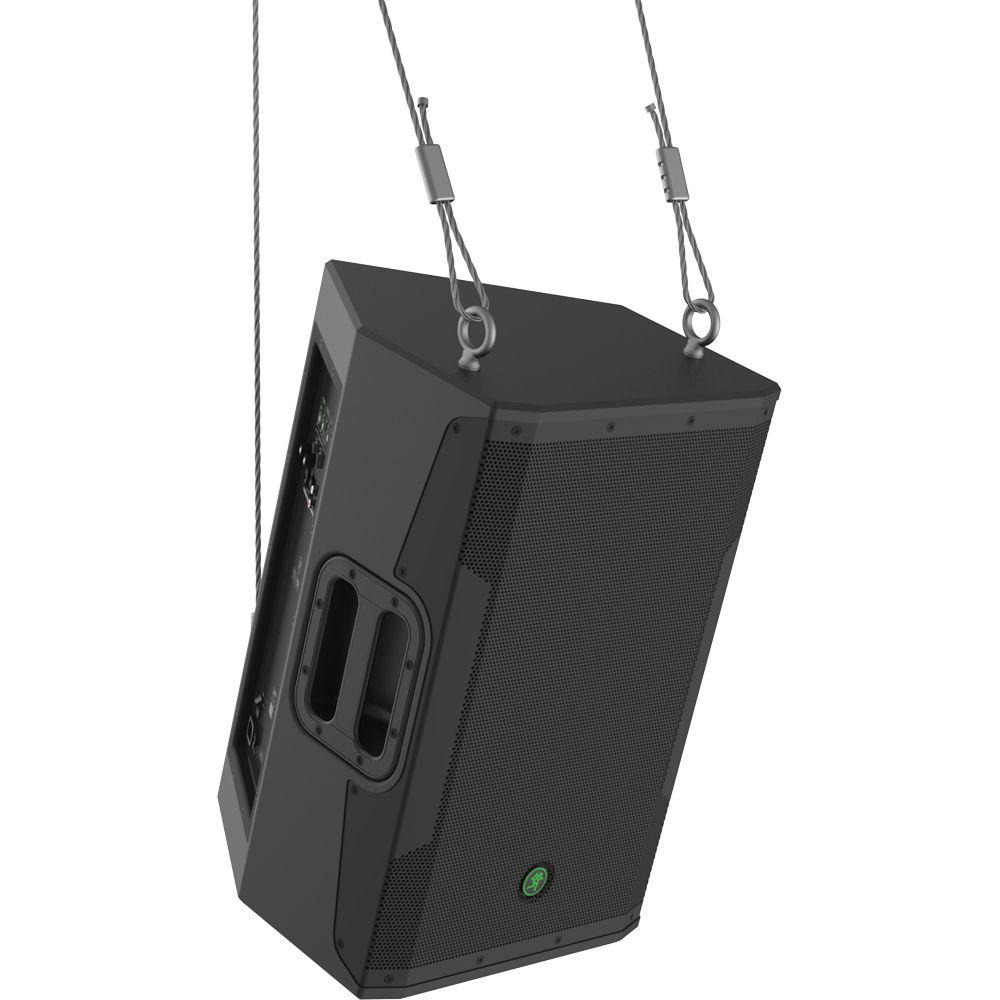

Fly Points: Three M10 x 1.5 x 37.0 mm
Monitor Angle: 60° | | Mounting Method | Floor mount, pole mount, or fly Mounting via 3 integrated M10 mounting points (using M10 x 1.5 x 37 mm forged shoulder eyebolts). | | Dimensions (H x W x D) | 23.0 x 14.2 x 14.9" (585.0 x 360.0 x 377.0 mm) | | Weight | 37.0 lb (16.8 kg) | | | | Package Weight | 47.8 lb | | Box Dimensions (LxWxH) | 25.0 x 18.5 x 18.5" |
