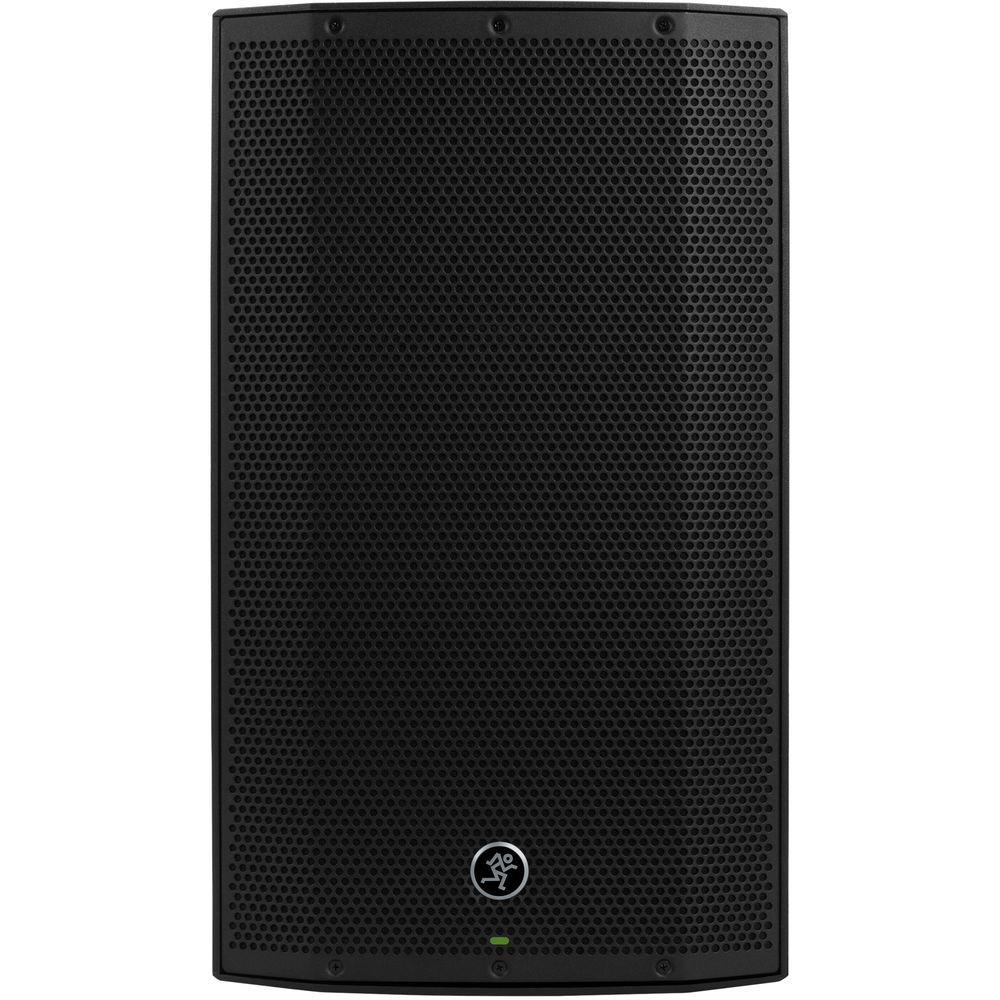

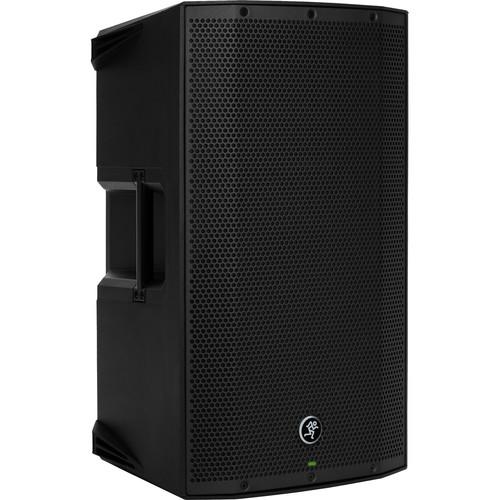

User Manual for Mackie Thump12A - 1300W 12" Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Mackie Thump12A - 1300W 12" Powered
- Product category: PA Speakers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie PA Speakers
 |
User manual for the Mackie Thump12A - 1300W 12" Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|
Product description The Mackie Thump12A is a 1300W 12" powered loudspeaker with a redesigned amplifier with Dynamic Bass Response, which provides chest-thumping low end for a variety of applications including rehearsal studios, small bars & coffee shops, small night clubs, karaoke events, weddings, houses of worship, fitness centers, and mobile DJs.
The loudspeaker features a Class-D amplifier that drives 1000W to the high-output 12" woofer, and 300W into the 1.4" titanium dome compression driver, which combine to provide a frequency response of 50 Hz to 23 kHz with a maximum SPL of 126 dB. The integrated 2-channel mixer features Vita preamps with Wide-Z technology for handling a variety of sources including microphones, Hi-Z instruments, and line signals with ease. An XLR output is available for connecting to other Thump loudspeakers to increase output and coverage.
There are four application-specific speaker modes for quick and easy system optimization, which includes a precision digital crossover and transducer alignment. The built-in system protection and thermal limiting is designed to keep your system safe. The lightweight enclosure features four handles for ease in transport, and offers dual angles for use as a stage monitor, while the integrated pole-cup allows the Thump 12A to be used with speaker stands and pole-mounts. -
- Thump Performance
- 12″ high-output woofer / 1.4″ titanium dome compression driver
- 1300W of ultra-efficient Class-D power
- Next-generation system protection, and thermal limiting keep your system safe
- Chest Thumping Low-End
- Cutting-edge amplifier design with Dynamic Bass Response technology allows for incredibly fast transient response delivering more chest-thumping low-end than ever
- Highly Flexible

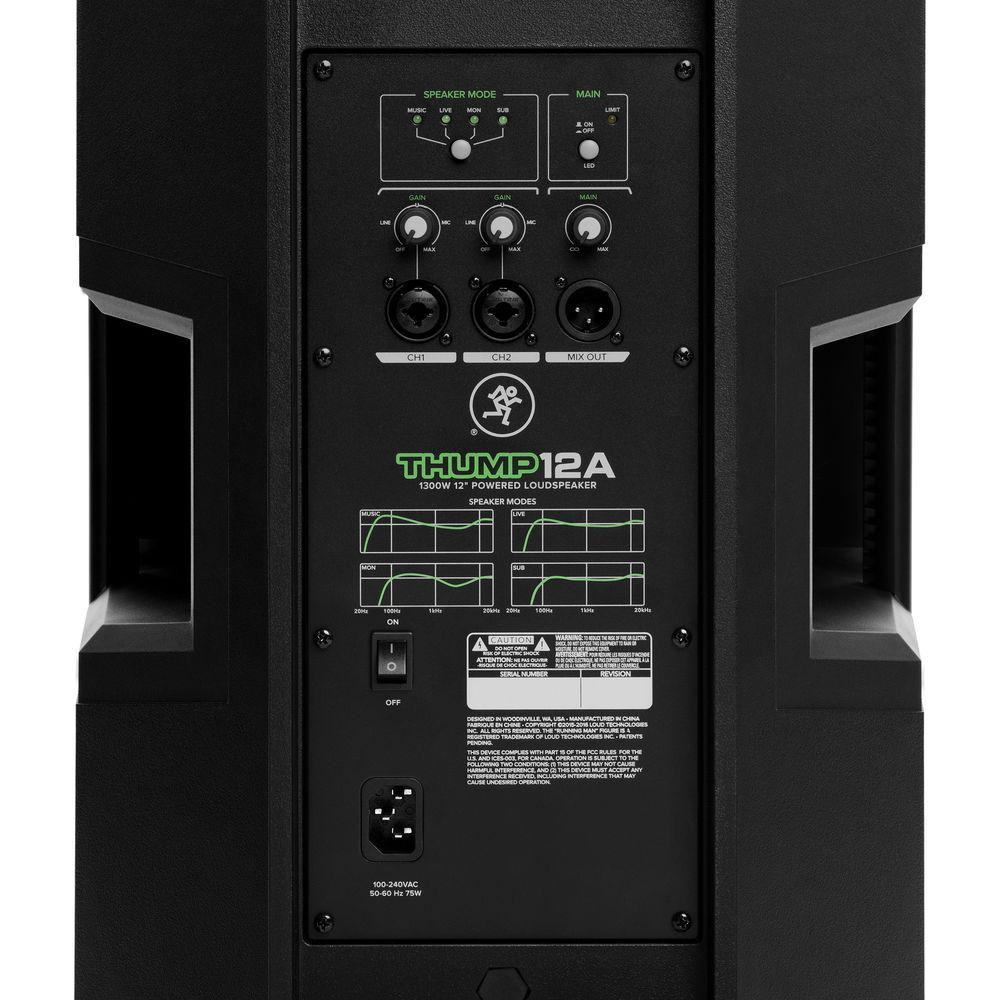

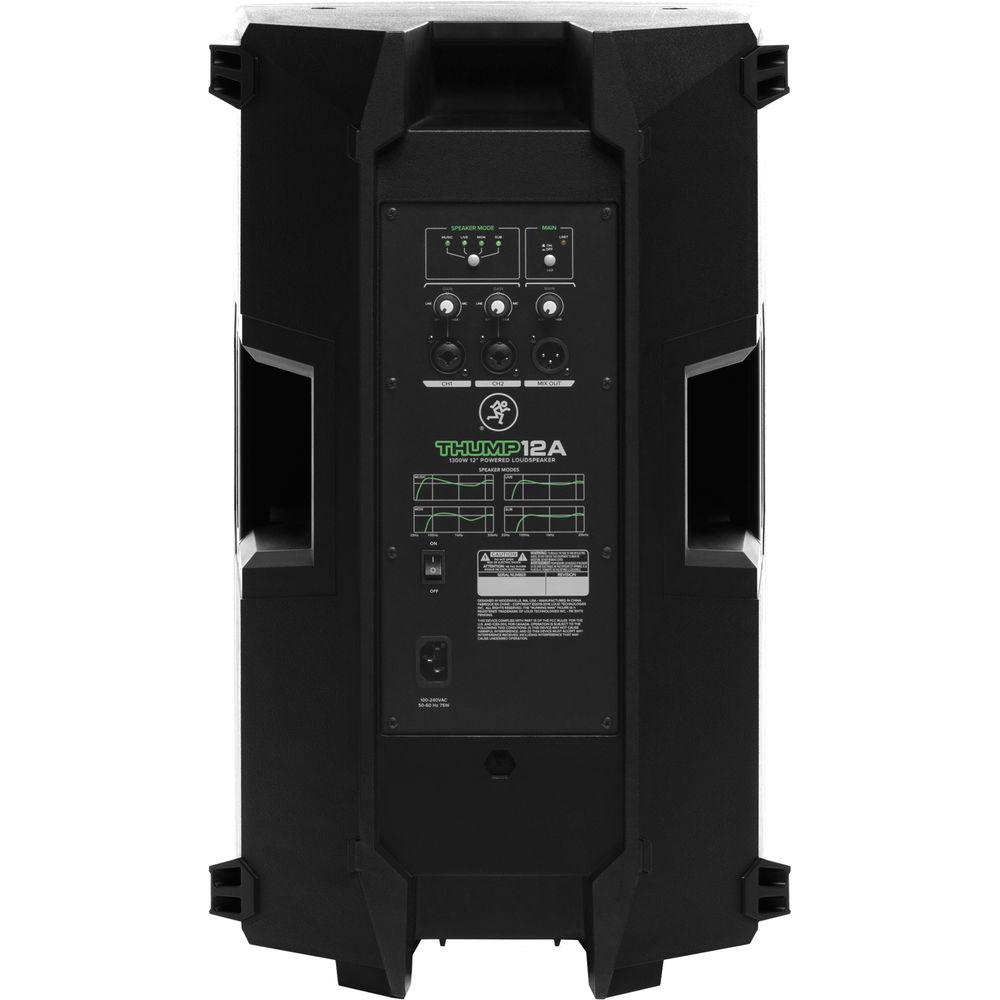

- Built-in 2-channel mixer features Vita preamps with Wide-Z technology to handle mic, line, and instrument signals with ease
- XLR thru output allows for simple wired connection to other Thump loudspeakers
- Flexible mounting options including tripod and pole-mounting

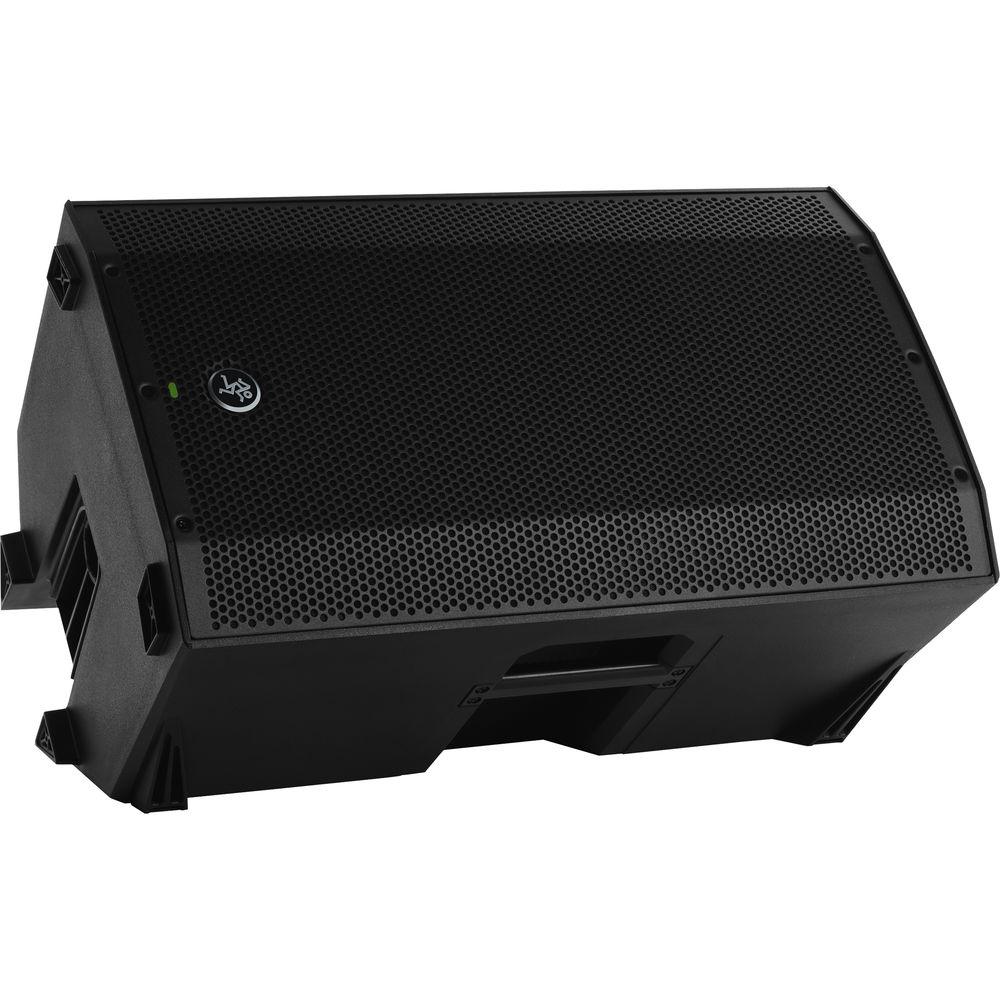

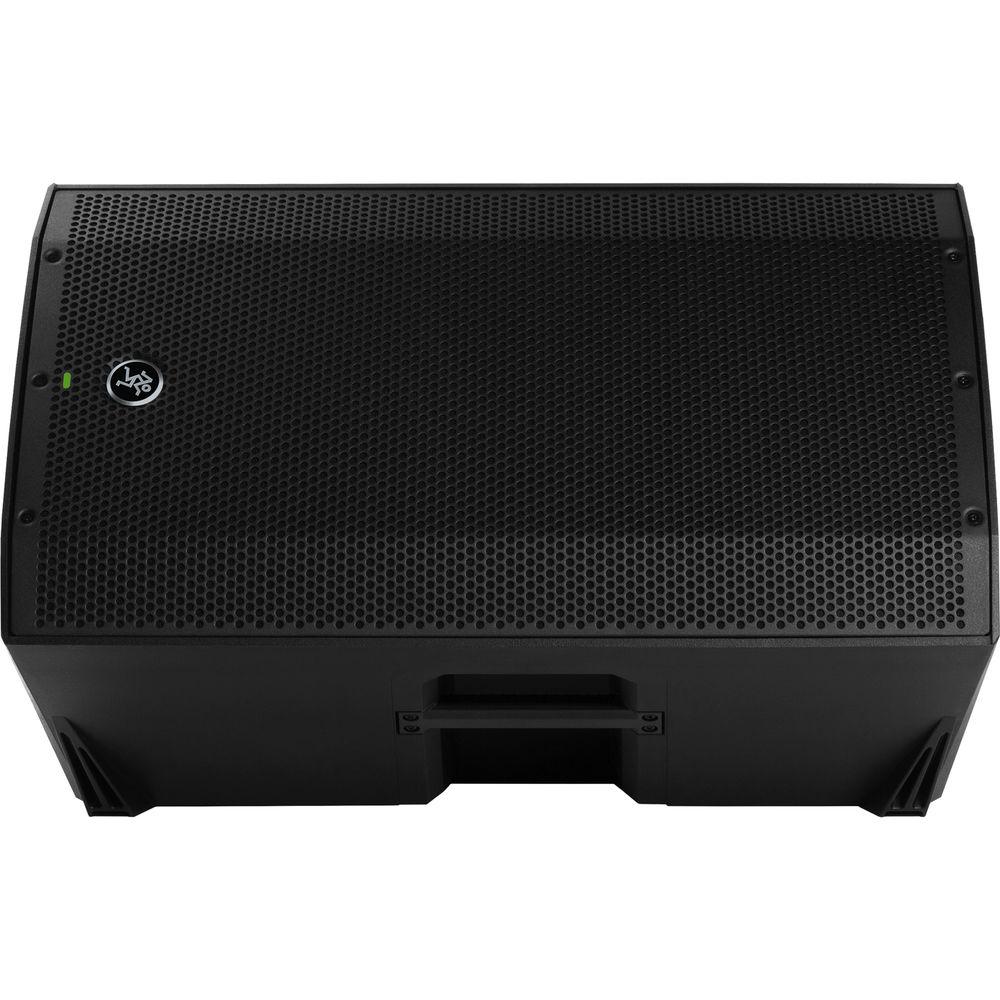

- Dual-angle design perfect for use as a stage monitor
- System Optimization
- Four Application-specific speaker modes for instant system optimization
- Precision digital crossover
- Transducer time alignment
- Universal power supply (100-240 VAC) with Power Factor Correction technology ensures consistent performance even with unstable AC power
- Lightweight and Portable
- Completely redesigned professional enclosure designed for heavy use

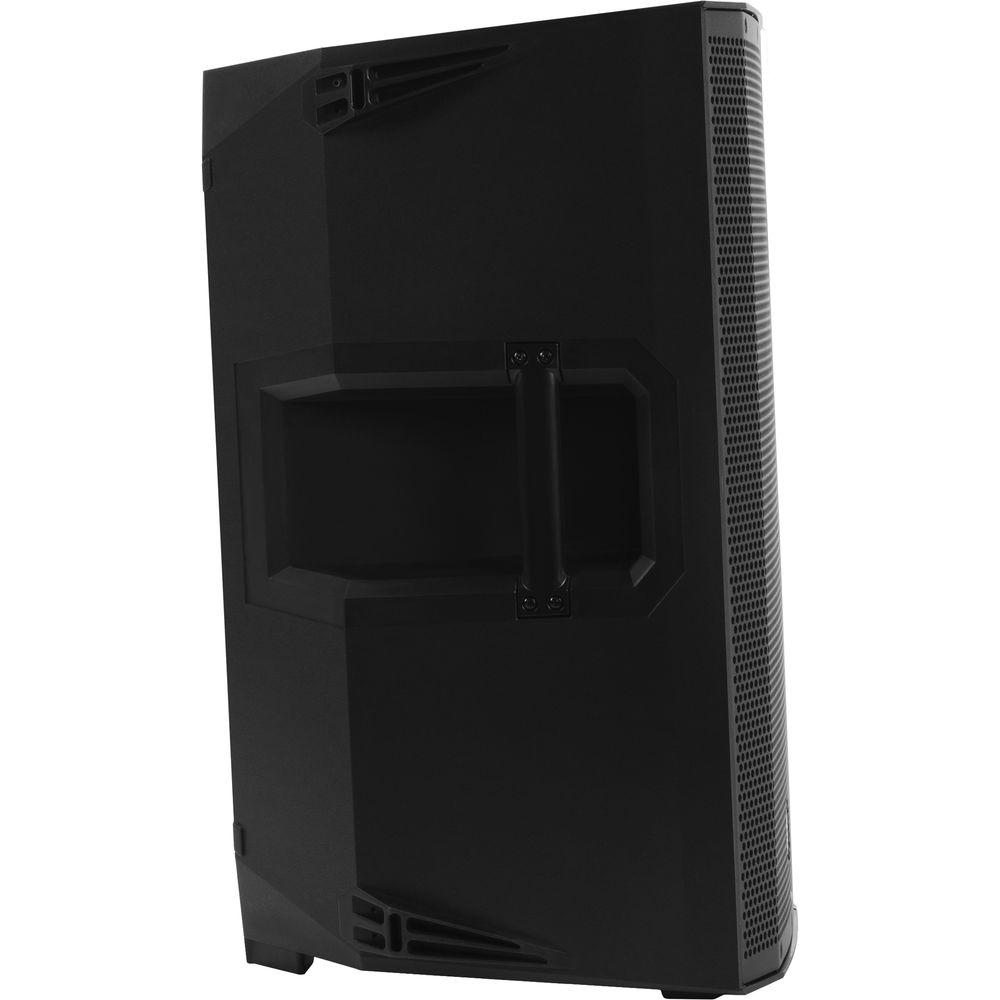

- Loading in and out is easy with a new 4-handle design
- 35.5 lbs. / 16.1 kg
UPC: 663961052077 In the Box Mackie Thump12A - 1300W 12" Powered Loudspeaker (Single) Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie Thump12A - 1300W 12" Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie THUMP12A Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1300 W | | Amplifier Power Rating | LF:
1000 W
HF:
300 W | | | | HF Driver | 1 x 1.4" / 35.6 mm Titanium Dome Compression Driver | | LF Driver | 1 x 12" / 30.5 cm Woofer | | | | Frequency Response | 50 Hz to 23 kHz | | Maximum SPL | 126 dB | | Coverage Angle | 90° H x 60° V | | Protections | RMS, Thermal | | | | Audio I/O | 2 x Combo XLR / 1/4" Input
1 x XLR Output | | | | Dynamic Processing | Peak Limiter | | Alignment Delay | Yes | | | | AC Input Power | Universal:
100 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC | | | | Mounting | Pole Socket | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 14.0 x 14.1 x 24.2" / 35.6 x 35.8 x 61.5 cm | | Weight | 35.5 lb / 16.1 kg | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 27.0 x 17.0 x 17.0" |
