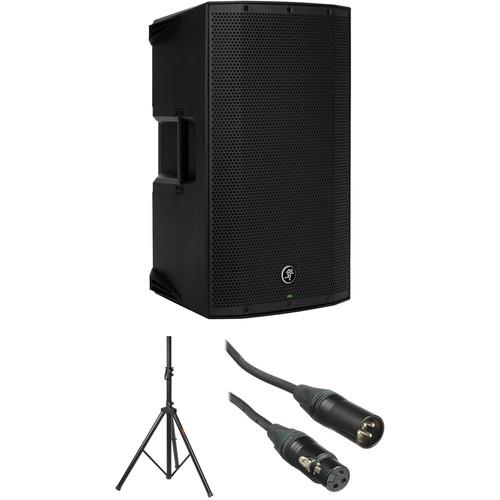

Mackie Thump12A Speaker Kit with Stand

User Manual for Mackie Thump12A Speaker Kit with Stand and Cable

• Product category: PA Speakers Mackie
• Brand: Mackie
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Mackie PA Speakers

Product description

• Mackie Thump12A - 1300W 12" Powered Loudspeaker (Single)
  • Thump Series Overview
  The Mackie Thump12A is a 1300W 12" powered loudspeaker with a redesigned amplifier with Dynamic Bass Response, which provides chest-thumping low end for a variety of applications including rehearsal studios, small bars & coffee shops, small night clubs, karaoke events, weddings, houses of worship, fitness centers, and mobile DJs.

  The loudspeaker features a Class-D amplifier that drives 1000W to the high-output 12" woofer, and 300W into the 1.4" titanium dome compression driver, which combine to provide a frequency response of 50 Hz to 23 kHz with a maximum SPL of 126 dB. The integrated 2-channel mixer features Vita preamps with Wide-Z technology for handling a variety of sources including microphones, Hi-Z instruments, and line signals with ease. An XLR output is available for connecting to other Thump loudspeakers to increase output and coverage.

  There are four application-specific speaker modes for quick and easy system optimization, which includes a precision digital crossover and transducer alignment. The built-in system protection and thermal limiting is designed to keep your system safe. The lightweight enclosure features four handles for ease in transport, and offers dual angles for use as a stage monitor, while the integrated pole-cup allows the Thump 12A to be used with speaker stands and pole-mounts.
  • • Thump Performance
      • 12″ high-output woofer / 1.4″ titanium dome compression driver
      • 1300W of ultra-efficient Class-D power
        • LF: 1000W
        • HF: 300W
      • Next-generation system protection, and thermal limiting keep your system safe
    • Chest Thumping Low-End
      • Cutting-edge amplifier design with Dynamic Bass Response technology allows for incredibly fast transient response delivering more chest-thumping low-end than ever
    • Highly Flexible
      • Built-in 2-channel mixer features Vita preamps with Wide-Z technology to handle mic, line, and instrument signals with ease
      • XLR thru output allows for simple wired connection to other Thump loudspeakers
      • Flexible mounting options including tripod and pole-mounting
      • Dual-angle design perfect for use as a stage monitor
    • System Optimization
      • Four Application-specific speaker modes for instant system optimization
      • Precision digital crossover
      • Transducer time alignment
      • Universal power supply (100-240 VAC) with Power Factor Correction technology ensures consistent performance even with unstable AC power
    • Lightweight and Portable
      • Completely redesigned professional enclosure designed for heavy use
      • Loading in and out is easy with a new 4-handle design
      • 35.5 lbs. / 16.1 kg

  UPC: 663961052077
• Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single)
  • Thump Series Overview
  This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
  • Thump Series Overview
  The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558304

• Thump12A - 1300W 12" Powered Loudspeaker (Single) dvuuqqxrabftrcwwuuaccfrxsarqab
• Power Cord
• Limited 1-Year Warranty

• Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Mackie Thump12A - 1300W 12" Powered Loudspeaker (Single)

  Configuration	Active 2-Way
  Total Power Capacity	1300 W
  Amplifier Power Rating	LF: 1000 W HF: 300 W

  HF Driver	1 x 1.4" / 35.6 mm Titanium Dome Compression Driver
  LF Driver	1 x 12" / 30.5 cm Woofer

  Frequency Response	50 Hz to 23 kHz
  Maximum SPL	126 dB
  Coverage Angle	90° H x 60° V
  Protections	RMS, Thermal

  Audio I/O	2 x Combo XLR / 1/4" Input 1 x XLR Output

  Dynamic Processing	Peak Limiter
  Alignment Delay	Yes

  AC Input Power	Universal: 100 to 240 VAC, 50 / 60 Hz
  AC Power Connector	1 x IEC

  Mounting	Pole Socket
  Construction Material	Metal Grille, Polypropylene
  Dimensions	14.0 x 14.1 x 24.2" / 35.6 x 35.8 x 61.5 cm
  Weight	35.5 lb / 16.1 kg

  Box Dimensions (LxWxH)	27.0 x 17.0 x 17.0"

• Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single)

  Type	Speaker Stand
  Mount Size	1-3/8"
  Height Adjustment Range	50 to 75" / 1.27 to 1.9 m
  Material of Construction	Steel
  Base Spread	54" / 137 cm
  Weight	6.2 lb / 2.8 kg

  Box Dimensions (LxWxH)	40.0 x 5.0 x 5.0"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.6 x 7.0 x 0.4"
