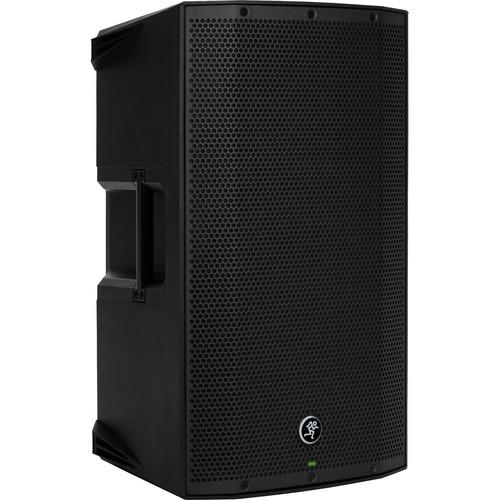

Product description The Mackie Thump12BST Boosted is an advanced 1300W 12" powered loudspeaker with wireless control and streaming. The redesigned amplifier with Dynamic Bass Response provides chest-thumping low end for a variety of applications including rehearsal studios, small bars & coffee shops, small night clubs, karaoke events, weddings, houses of worship, fitness centers, and mobile DJs.
The loudspeaker features a Class-D amplifier that drives 1000W to the high-output 12" woofer and 300W into the 1.4" titanium dome compression driver, which combine to provide a frequency response of 50 Hz to 23 kHz with a maximum SPL of 126 dB. The integrated mixer offers a 3-band EQ on each channel and features two Vita+ preamps with Wide-Z technology for handling a variety of sources including microphones, Hi-Z instruments, and line signals with ease. A high-pass filter is also available on channels one and two, while the third channel is allocated for Bluetooth streaming. An XLR output is available for connecting to other Thump loudspeakers to increase output and coverage.

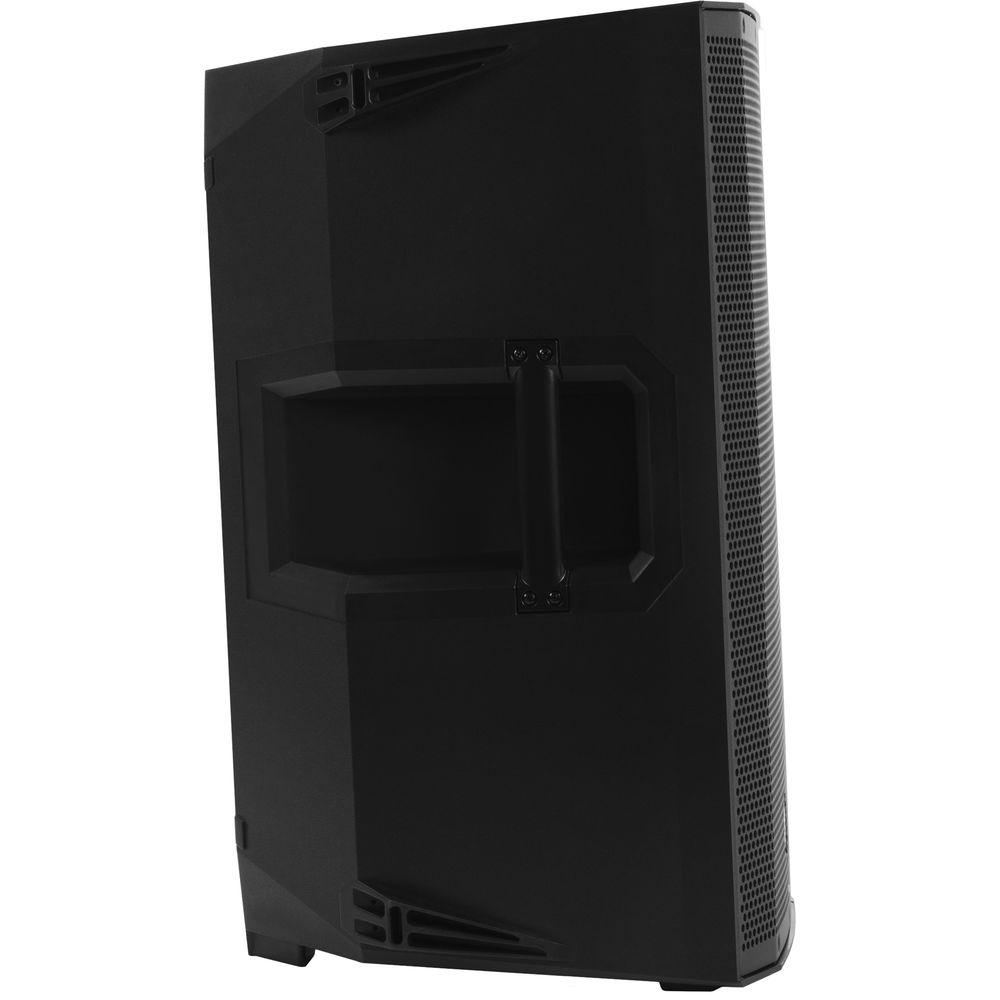

There are six application-specific speaker modes for quick and easy system optimization, as well as a precision digital crossover and transducer alignment. The built-in system protection and thermal limiting is designed to keep your system safe. The lightweight enclosure features four handles for ease in transport and offers dual angles for use as a stage monitor, while the integrated pole-cup allows the Mackie Thump12BST to be used with speaker stands and pole-mounts. -
- Thump Performance
- 12″ high-output woofer / 1.4″ titanium dome compression driver
- 1300W of ultra-efficient Class-D power
- Next-generation system protection and thermal limiting keep your system safe
- Powerful On-Board Mixer
- 3-channel digital mixer
- High-resolution full-color screen displays levels, metering, channel EQ, and more
- Two digitally-controlled Vita+ preamps with Wide-Z technology handle mic, line, and instrument signals with ease
- Stereo Bluetooth input
- LR thru for simple wired connection to additional speakers
- Powerful DSP ensures you always get the best sound and performance from your Thump system

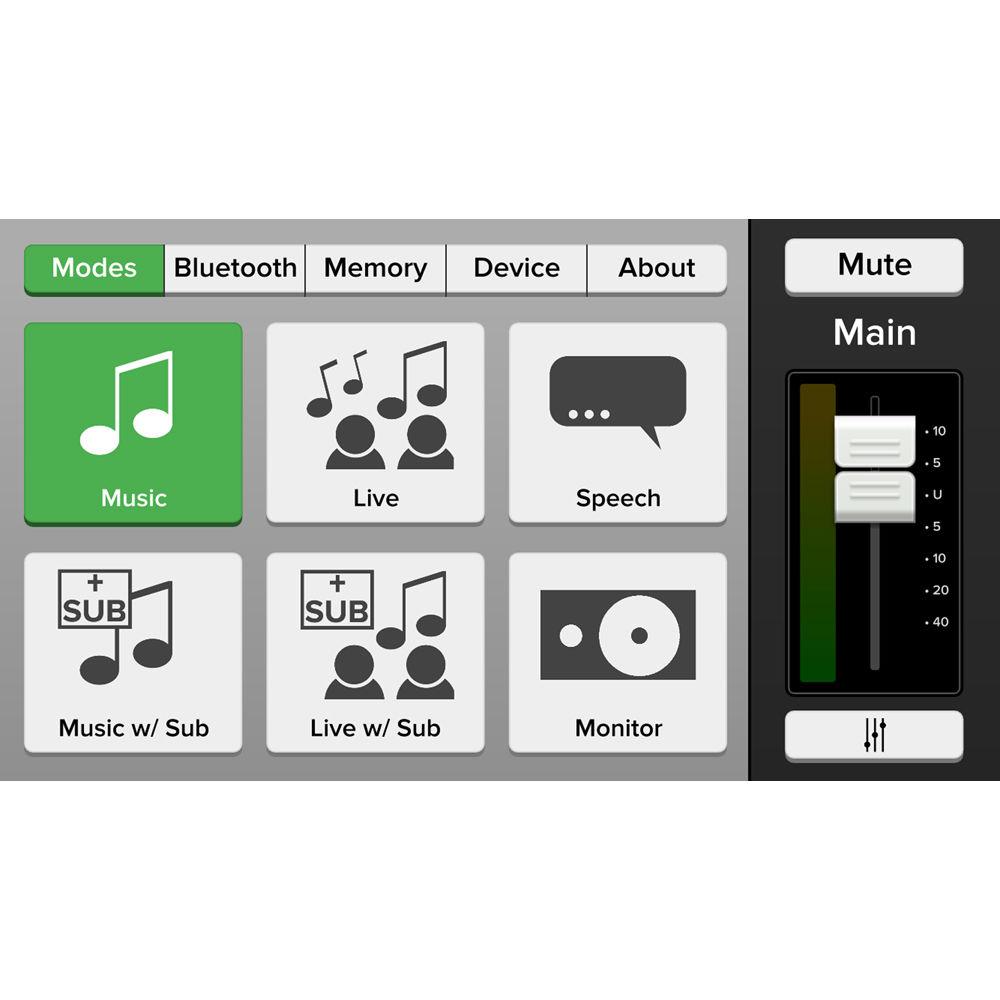

- Six application-specific speaker modes that voice the speaker, allowing Thump to sound and perform at its best for your application
- Tweak each input with a 3-band channel EQ plus variable high-pass filters on Ch. 1/2
- Wireless Control, Streaming, and Linking

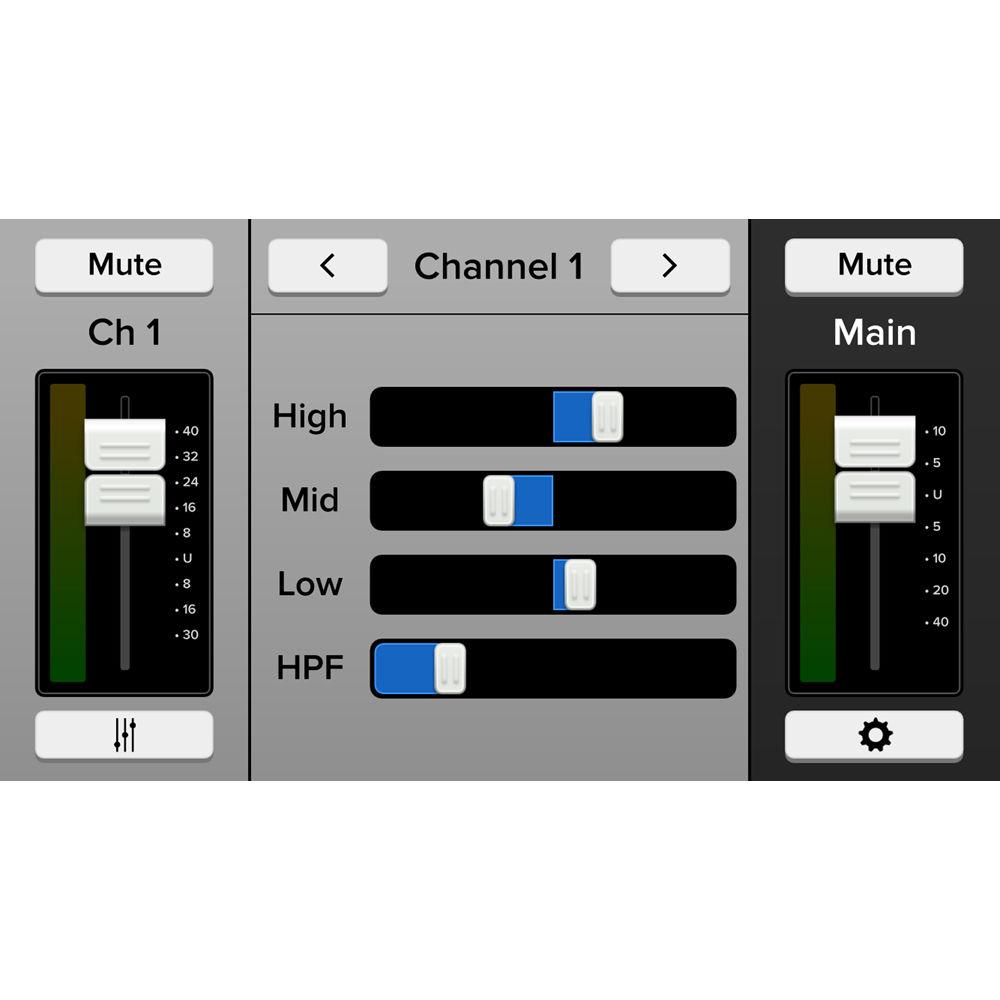

- Thump Connect control app for iOS and Android
- Get total control over your system, including levels and DSP
- 3 recallable memory presets

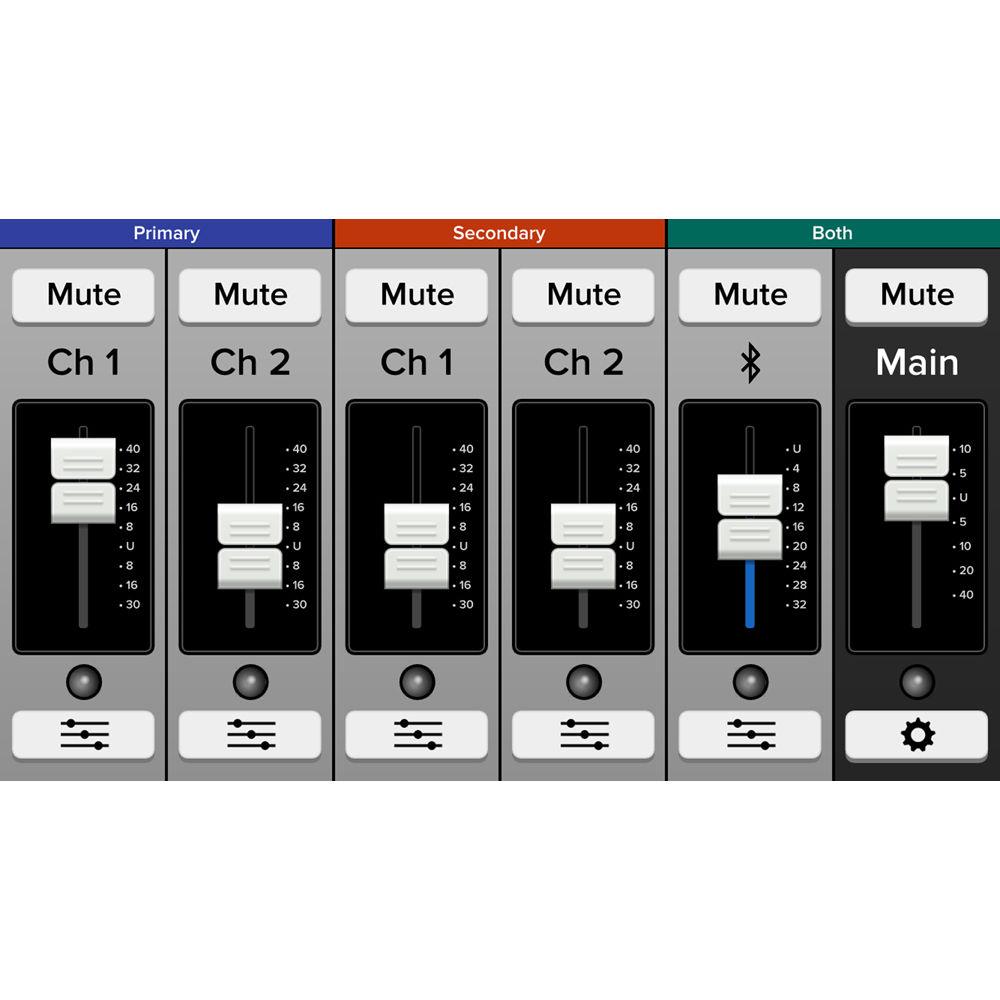

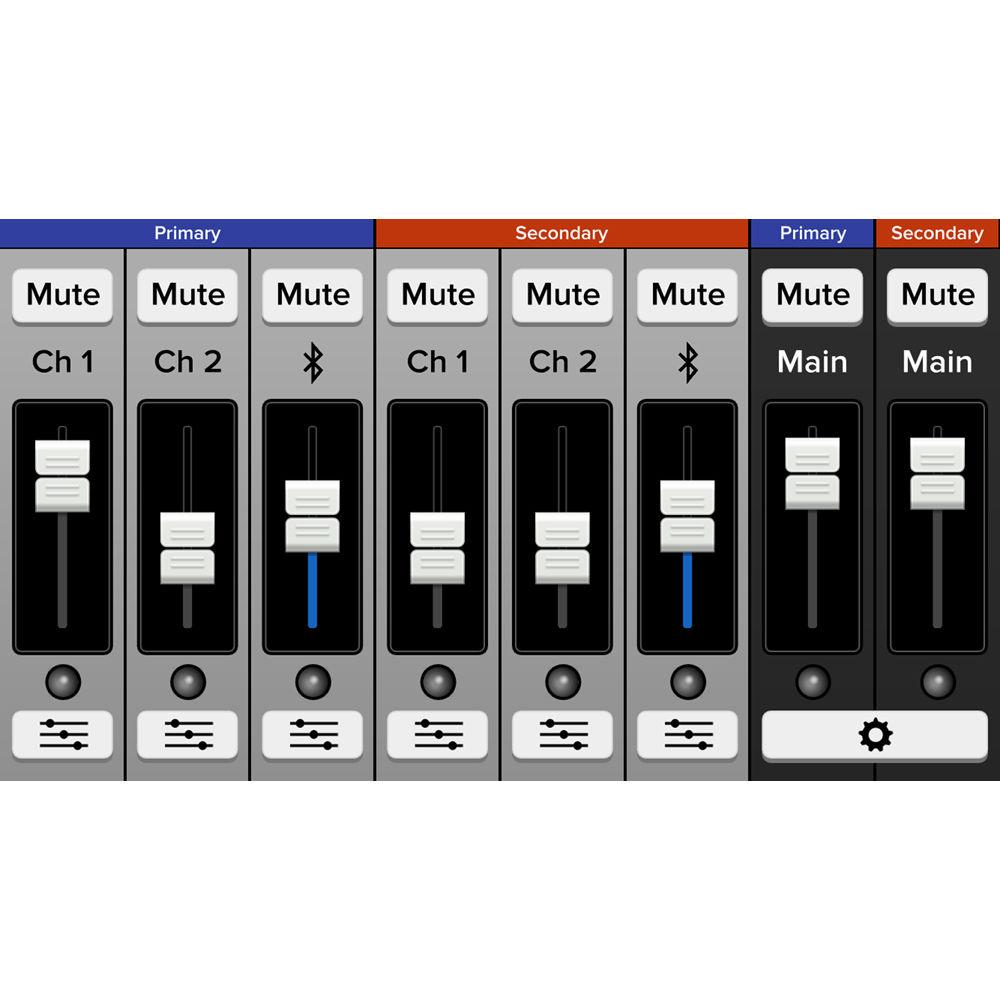

- Full control of all input and master volume controls when speakers are linked
- Stream music directly to the system from your Bluetooth-equipped device
- Wirelessly link Thump Boosted speakers together for music streaming applications plus complete control over the entire Thump system
- Cutting-edge Bluetooth technology allows up to 100 meters of range between linked speakers

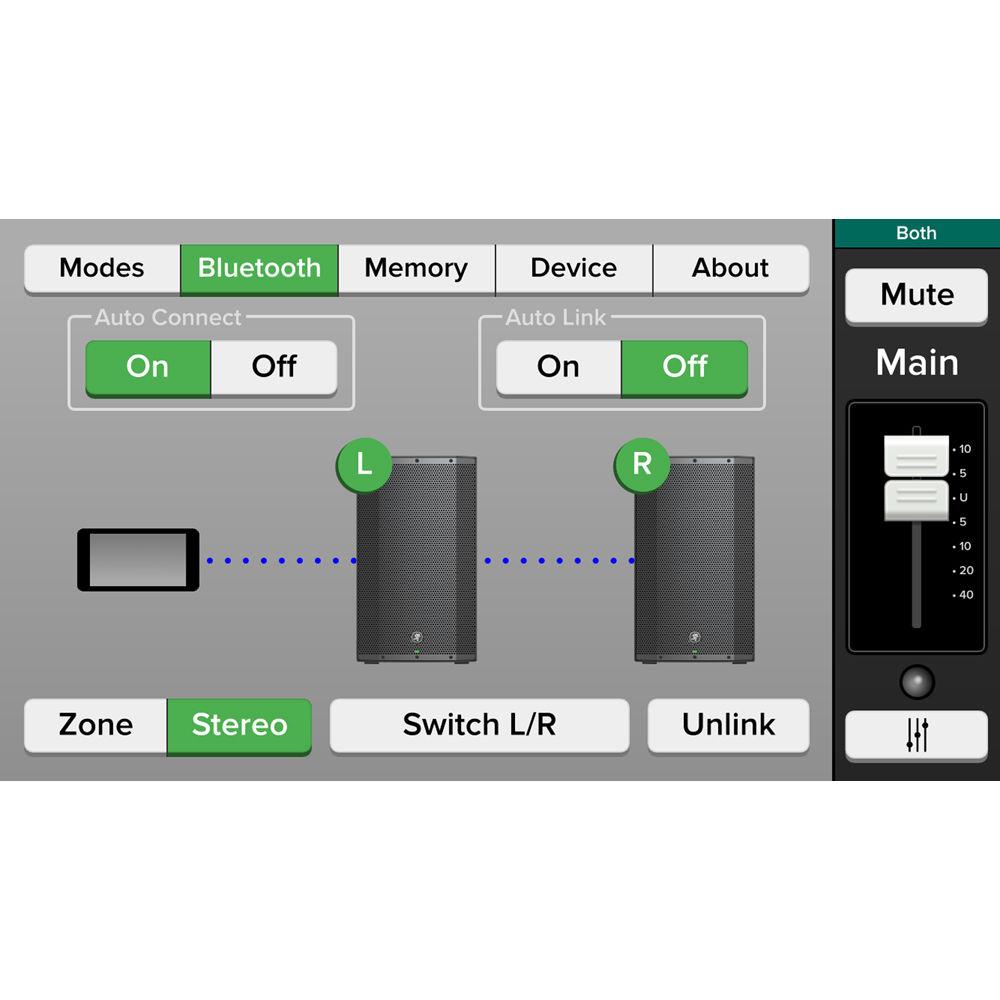

- Stereo or dual zone linking modes
- Creates an incredibly clean setup in minutes
- Control it all from your phone or tablet with the Thump Connect app
- Rugged and Versatile Enclosure
- Completely redesigned professional enclosure designed for heavy use

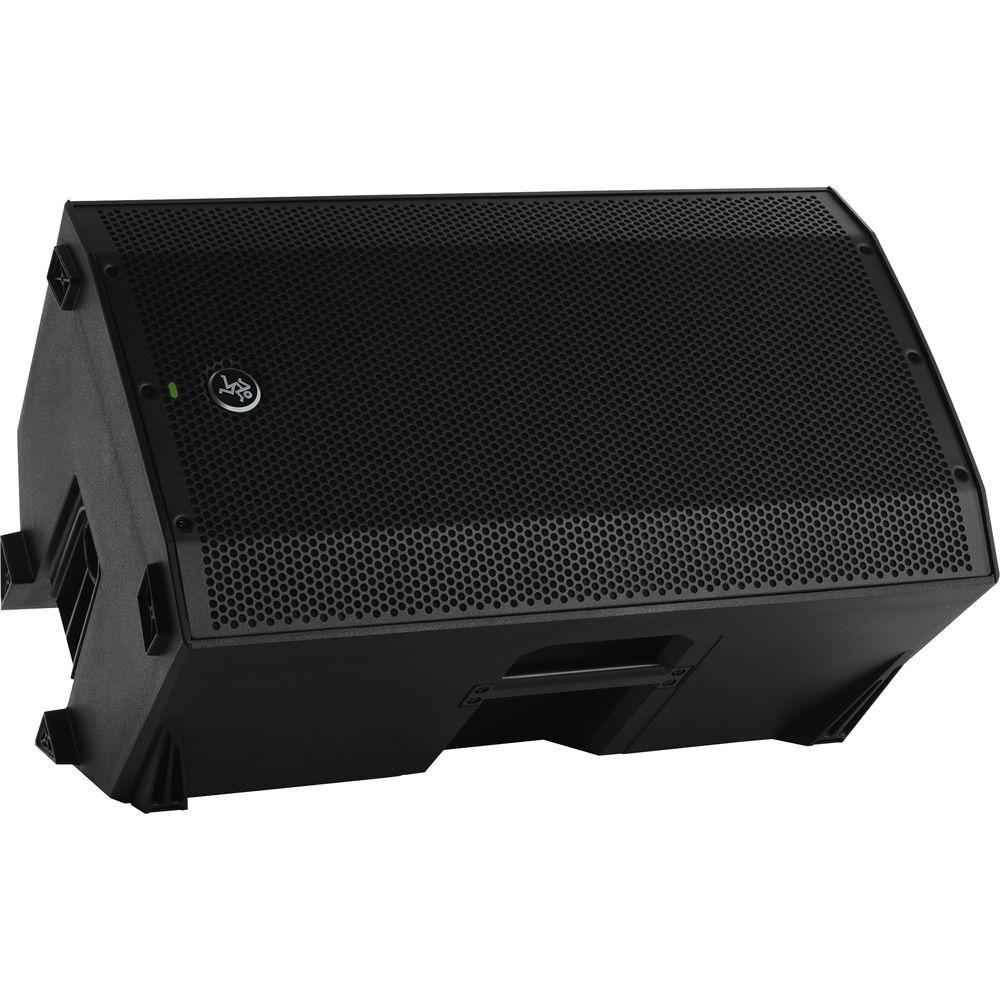

- Dual symmetrical monitor angles
- Loading in and out is easy with a new 4-handle design
- Equipped with fly points for permanent install
- Flexible mounting options including tripod and pole-mounting
- Universal power supply (100–240 VAC) with Power Factor Correction technology ensures consistent performance even with unstable AC power
- Lightweight: 36 lb
UPC: 663961052633 In the Box Mackie Thump12BST Boosted - 1300W 12" Advanced Powered Loudspeaker (Single) Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie Thump12BST Boosted - 1300W 12" Advanced Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMackie THUMP12BST Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1300 W | | Amplifier Power Rating | LF:
1000 W
HF:
300 W | | | | HF Driver | 1 x 1.4" / 35.6 mm Titanium Dome Compression Driver | | LF Driver | 1 x 12" / 30.5 cm Woofer | | | | Frequency Response | 50 Hz to 23 kHz | | Maximum SPL | 126 dB | | Coverage Angle | 90° H x 60° V | | Protections | RMS, Thermal | | | | Audio I/O | 2 x Combo XLR / 1/4" Input
1 x XLR Output | | | | Dynamic Processing | Peak Limiter | | Alignment Delay | Yes | | | | AC Input Power | Universal:
100 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC | | | | Mounting | Pole Socket
Fly Point | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 14.0 x 14.1 x 24.2" / 35.6 x 35.8 x 61.5 cm | | Weight | 36 lb / 16.3 kg | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 26.25 x 17.0 x 17.0" |
