User Manual for Mackie Thump15A Speaker Kit with Stand and Cable Click to enlarge the picture
Contents of the user manual for the Mackie Thump15A Speaker Kit with Stand
- Product category: PA Speakers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie PA Speakers
|
User manual for the Mackie Thump15A Speaker Kit with Stand contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|

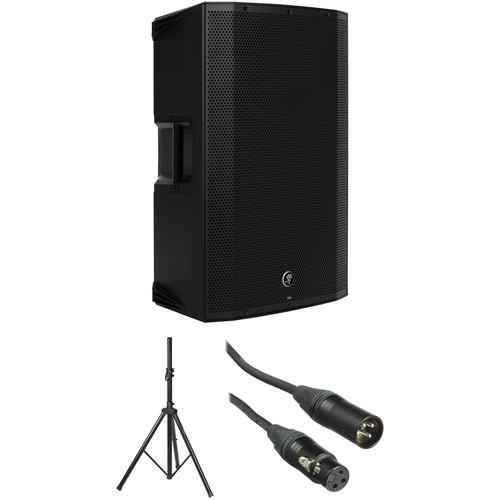

Product description This B&H Kit combines a Mackie Thump15A - 1300W 15" Powered Loudspeaker with an adjustable speaker stand, and a premium XLR cable to provide the primary components of a sound system setup. - Mackie Thump15A - 1300W 15" Powered Loudspeaker (Single) The Mackie Thump15A is a 1300W 15" powered loudspeaker with a redesigned amplifier with Dynamic Bass Response, which provides chest-thumping low end for a variety of applications including rehearsal studios, small bars & coffee shops, small night clubs, karaoke events, weddings, houses of worship, fitness centers, and mobile DJs.
The loudspeaker features a Class-D amplifier that drives 1000W to the high-output 15" woofer and 300W into the 1.4" titanium dome compression driver, which combine to provide a frequency response of 32 Hz to 23 kHz with a maximum SPL of 127 dB. The integrated 2-channel mixer features Vita preamps with Wide-Z technology for handling a variety of sources including microphones, Hi-Z instruments, and line signals with ease. An XLR output is available for connecting to other Thump loudspeakers to increase output and coverage.
There are four application-specific speaker modes for quick and easy system optimization, as well as a precision digital crossover and transducer alignment. The built-in system protection and thermal limiting is designed to keep your system safe. The lightweight enclosure features four handles for ease in transport and offers dual angles for use as a stage monitor, while the integrated pole-cup allows the Thump 15A to be used with speaker stands and pole-mounts. -
- Thump Performance
- 15″ high-output woofer / 1.4″ titanium dome compression driver
- 1300W of ultra-efficient Class-D power
- Next-generation system protection, and thermal limiting keep your system safe
- Chest Thumping Low-End
- Cutting-edge amplifier design with Dynamic Bass Response technology allows for incredibly fast transient response delivering more chest-thumping low-end than ever
- Highly Flexible
- Built-in 2-channel mixer features Vita preamps with Wide-Z technology to handle mic, line and instrument signals with ease
- XLR thru output allows for simple wired connection to other Thump loudspeakers
- Flexible mounting options including tripod and pole-mounting
- Dual angle design perfect for use as a stage monitor
- System Optimization
- Four Application-specific speaker modes for instant system optimization
- Precision digital crossover
- Transducer time alignment
- Universal power supply (100-240 VAC) with Power Factor Correction technology ensures consistent performance even with unstable AC power
- Lightweight and Portable
- Completely redesigned professional enclosure designed for heavy use
- Loading in and out is easy with a new 4-handle design
- 40 lb / 18.1 kg
UPC: 663961052084 - Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single) This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744
- Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 In the Box - Thump15A - 1300W 15" Powered Loudspeaker (Single) uqqbcscdxwzxbysxsyxrxq
- Power Cord
- Limited 1-Year Warranty
- Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie Thump15A Speaker Kit with Stand and Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mackie Thump15A - 1300W 15" Powered Loudspeaker (Single)
| | | Configuration | Active 2-Way | | Total Power Capacity | 1300 W | | Amplifier Power Rating | LF:
1000 W
HF:
300 W | | | | HF Driver | 1 x 1.4" / 35.6 mm Titanium Dome Compression Driver | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Response | 32 Hz to 23 kHz | | Maximum SPL | 127 dB | | Coverage Angle | 90° H x 60° V | | Protections | RMS, Thermal | | | | Audio I/O | 2 x Combo XLR / 1/4" Input
1 x XLR Output | | | | Dynamic Processing | Peak Limiter | | Alignment Delay | Yes | | | | AC Input Power | Universal:
100 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC | | | | Mounting | Pole Socket | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 14.0 x 17.4 x 27.0" / 35.6 x 44.2 x 68.6 cm | | Weight | 40 lb / 18.1 kg | | | | Box Dimensions (LxWxH) | 30.0 x 19.0 x 16.5" | - Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single)
| Type | Speaker Stand | | Mount Size | 1-3/8" | | Height Adjustment Range | 50 to 75" / 1.27 to 1.9 m | | Material of Construction | Steel | | Base Spread | 54" / 137 cm | | Weight | 6.2 lb / 2.8 kg | | | | Box Dimensions (LxWxH) | 40.0 x 5.0 x 5.0" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" |
