User Manual for Mackie Thump18S 1200 W 18" Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Mackie Thump18S 1200 W 18" Powered
- Product category: PA Speakers Mackie
- Brand: Mackie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mackie PA Speakers
 |
User manual for the Mackie Thump18S 1200 W 18" Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mackie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mackie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mackie product will considerably shorten its lifespan!
|

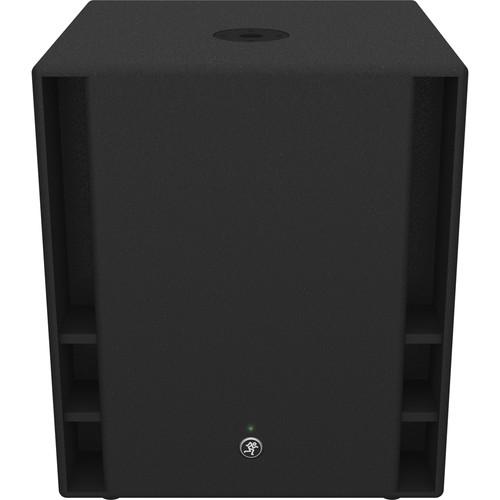

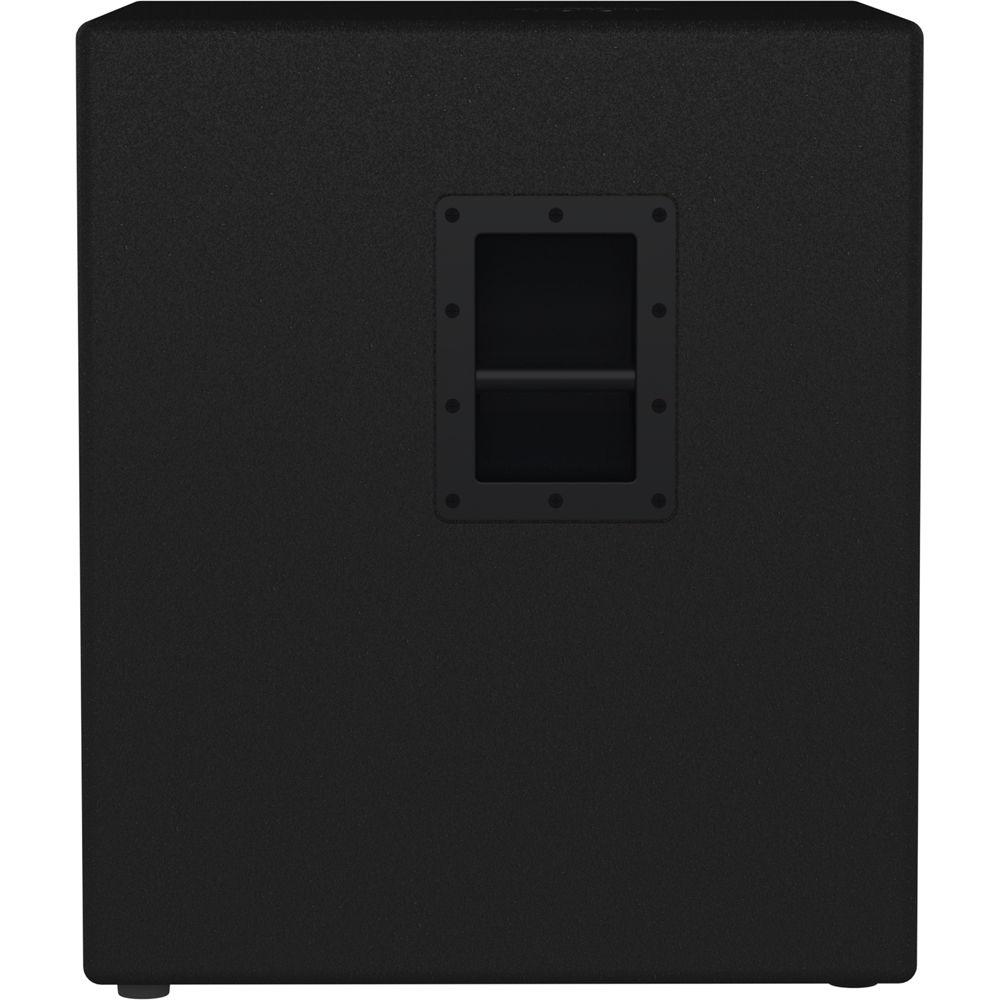

Product description The Mackie Thump18S is a powered subwoofer that features an 18" custom high-output woofer. With 1200 watts of power, you get the high bass output you need in a package that is designed to be tough and portable.
Featuring a built-in crossover at 140 Hz, stereo high-pass outputs and full-range outputs, the Thump18S allows you to connect top speakers and additional subwoofers without any extra hardware. Using efficient Class-D amplification and a dynamic bass frequency response, the speaker is designed to deliver a clear and present low end at any volume. - Features:
-
- Professional band-pass design for maximum output and deep, room-filling lows
- 18" custom high-output woofer
- Class-D amplification designed for cool running
- Precision crossover (140 Hz)
- Tuning filters deliver highly accurate bass response
- Robust system protection

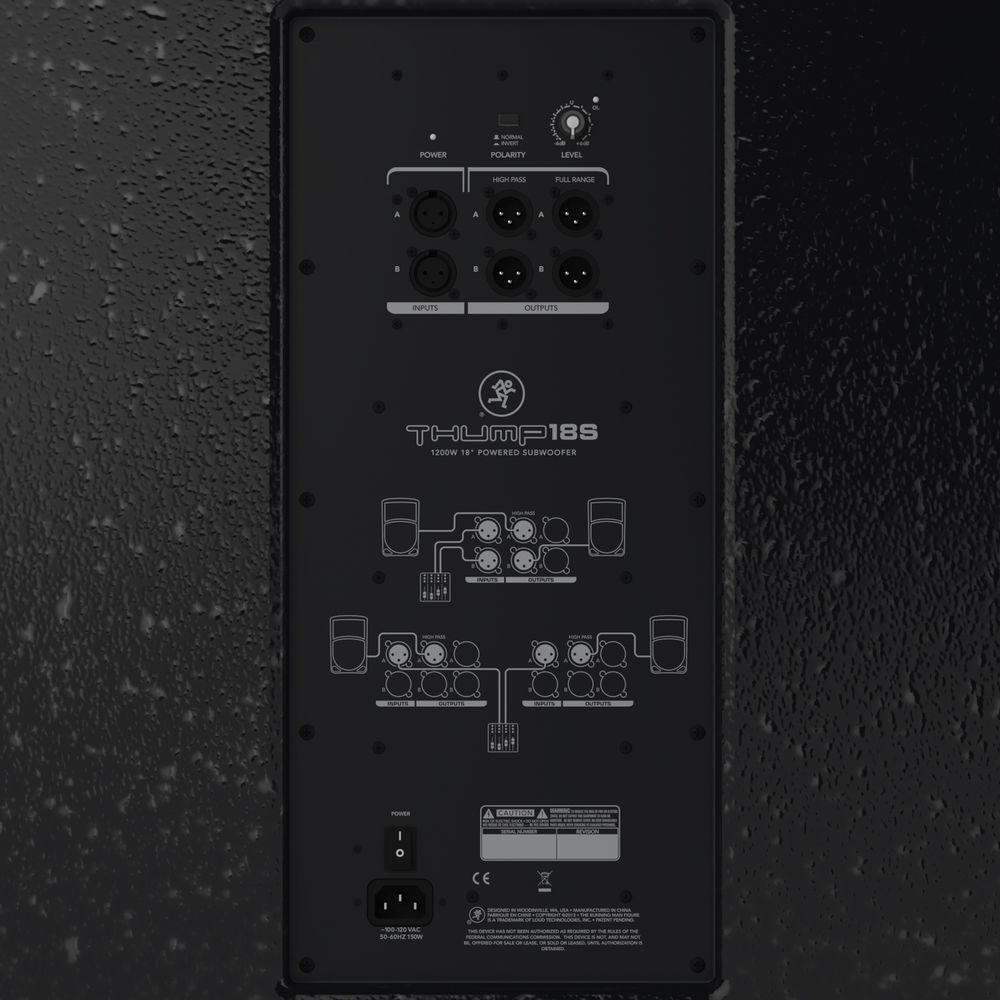

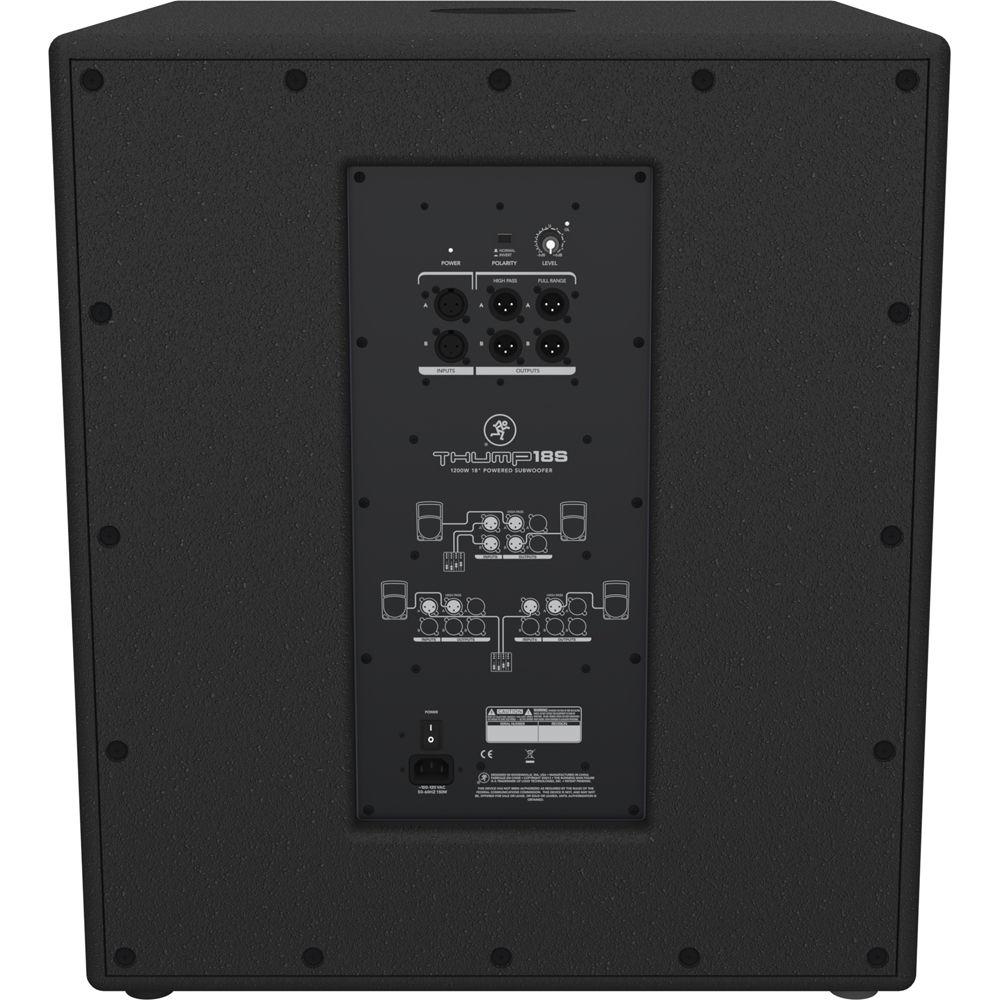

- Dual XLR inputs for mono or stereo applications
- Stereo high-pass outputs optimize sound when connecting top boxes
- Stereo full-range outputs perfect for adding more subwoofers
- User-adjustable level and polarity controls
- Easily mount your full-range loudspeaker via pole cup
UPC: 663961041774 In the Box Mackie Thump18S 1200 W 18" Powered Subwoofer Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie Thump18S 1200 W 18" Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Mackie Thump18S 1200 W 18" Powered Subwoofer can be downloaded in PDF format at the link stated below.
Technical parametersMackie THUMP18S Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 600 W RMS
1200 W Peak | | Amplifier Class | Class-D | | | | LF Driver | 1 x 18" / 45.72 cm Woofer | | LF Voice Coil | 3" / 76.2 mm | | Magnet | Ferrite | | | | Frequency Response | 40 Hz to 120 Hz -3 dB
30 Hz to 132 Hz -10 dB | | Maximum SPL | 130 dB | | I/O Impedance | Input:
20 kOhms (Balanced)
20 kOhms (Unbalanced) | | THD | <1% | | Protections | Power Supply, RMS, Thermal | | | | Audio I/O | 1 x XLR Female Balanced Input
1 x XLR Male Balanced Output
1 x XLR Male Balanced High-Pass Output | | | | Crossover | High-Pass:
140 Hz, 12 dB/Octave
Low-Pass:
140 Hz, 24 dB/Octave | | Dynamic Processing | Peak Limiter | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC | | Power Consumption | 160 W | | | | Handles | 2 x Side | | Cooling | Convection | | Construction Material | Plywood | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 26.5 x 22.6 x 22.8" / 672.0 x 573.0 x 580.0 mm | | Weight | 82 lb / 37.2 kg | | | | Package Weight | 94.0 lb | | Box Dimensions (LxWxH) | 28.0 x 28.0 x 28.0" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
