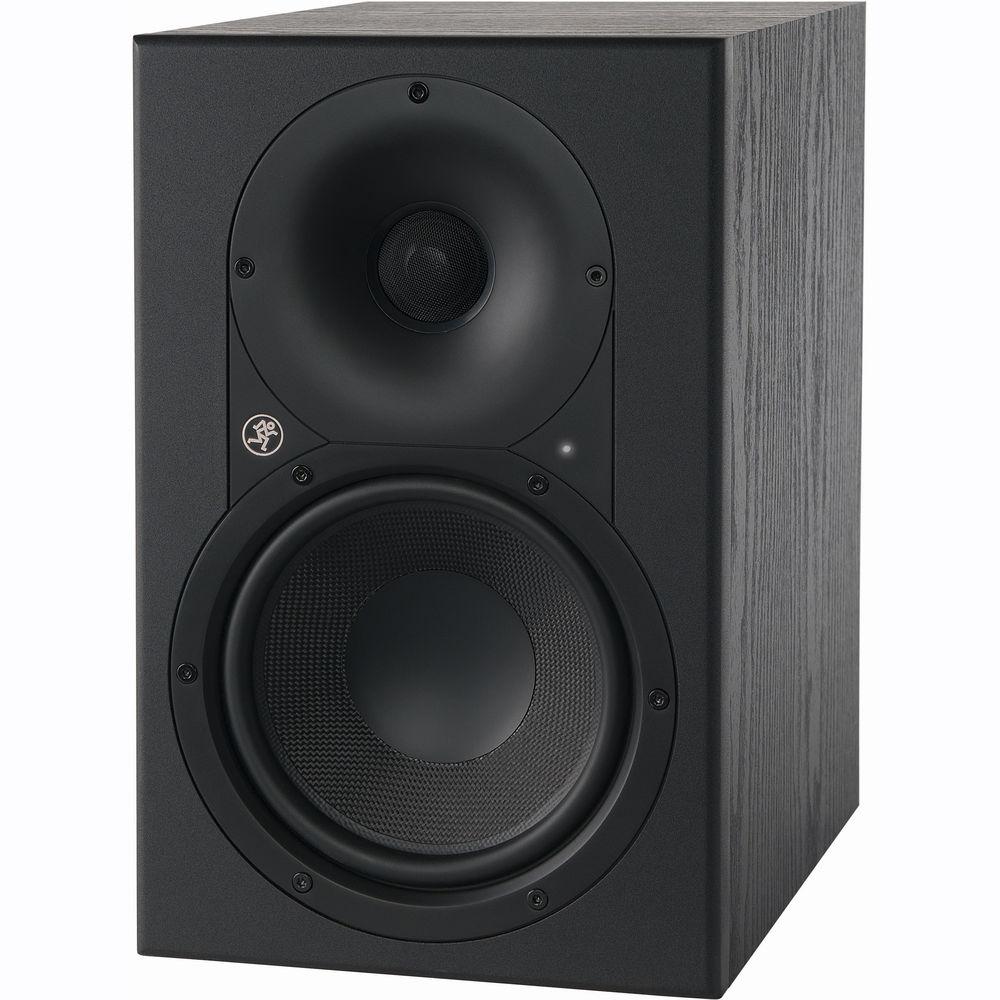

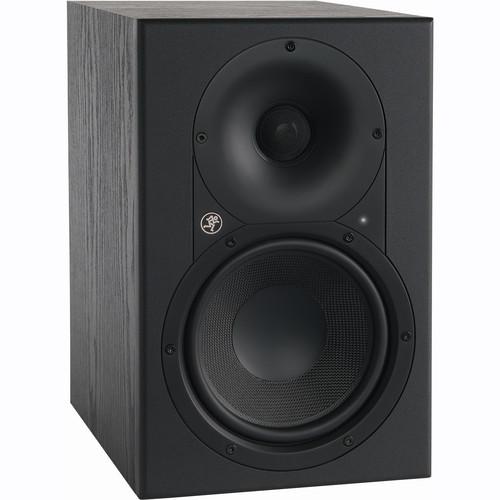

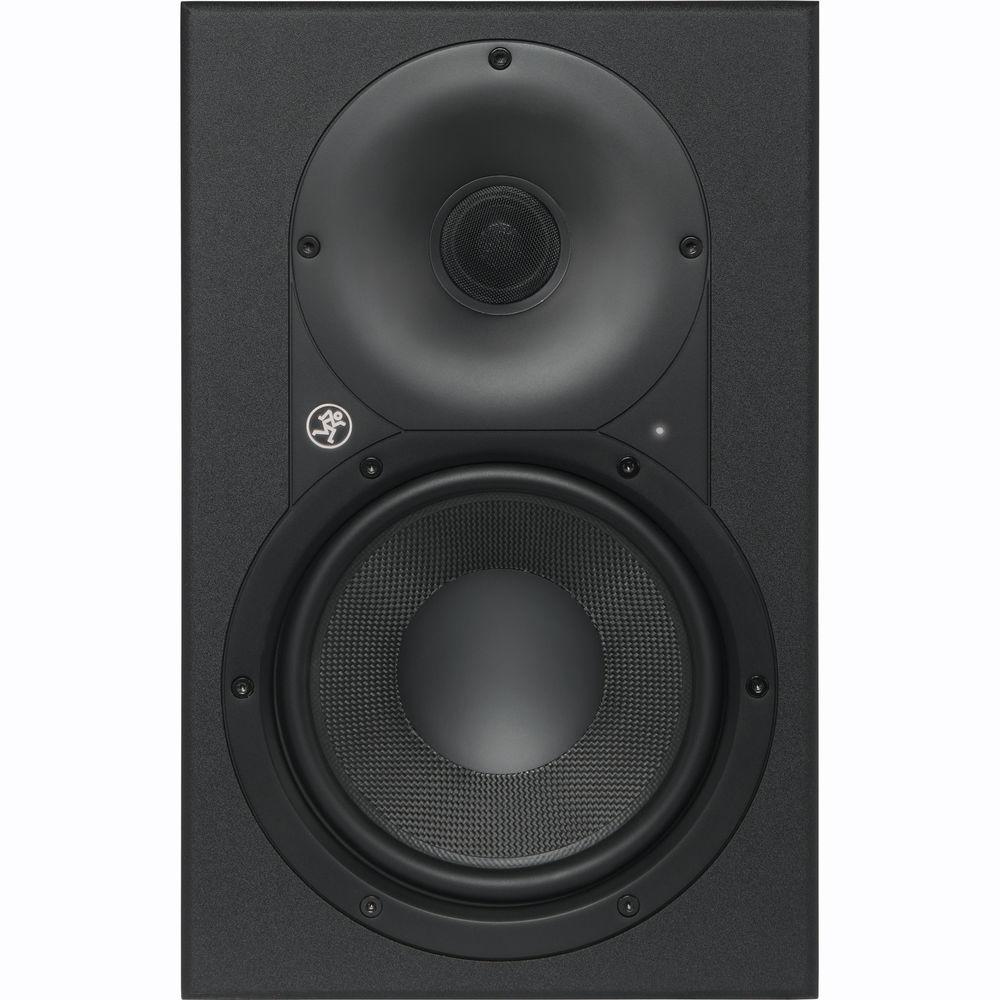

The single XR624 6.5" Professional Studio Monitor from Mackie is designed to reveal your true mix in a way that feels natural and accurate without the fatigue monitors can bring after long hours at the mixing desk. It can be used in various applications for recording studios, video production houses, voice-over studios, and more.The monitor has XLR and TRS audio inputs and a 45 Hz to 22 kHz frequency response. For clarity, it features an XR logarithmic waveguide that matches the dispersion pattern of the 6.5" Kevlar woofer for midrange transition, which recesses the 1" tweeter so that its active area is on the same axis with the woofer. It provides the acoustic alignment of high and low frequencies for balance.The ELP Bass Reflex System utilizes an extended length, internally curved design that provides extended low-frequency response and increased output capability, even at high volumes without any "air noise", which plagues typical ports. Also, the monitors are easily adaptable to suit your mixing environment with three adjustable switches: Acoustic Space, HF filter, and LF filter.Finally, the XR series monitors are equipped with a rigid, ultra-low distortion Kevlar woofer that maintains its shape even under a high amount of stress. This provides fast recovery from transients and accurate, detailed low-end. - Its logarithmic waveguide provides the acoustic alignment for balanced sound across the entire frequency spectrum
- The ELP Bass Reflex System is engineered for zero turbulence, providing greatly increased output capability and extended low-frequency response
- Its 1" black anodized aluminum tweeter reveals the finest details and upper harmonics of your mix
- A 6.5" Kevlar woofer offers fast transient recovery for incredibly accurate low-frequency response
- The specially designed internal bracing adds stiffness for reduced distortion and enhanced clarity
- 160W bi-amplified Class-D amplification (100LF / 60HF)
- Frequency response: 45 Hz to 22 kHz
- The adjustable, acoustic space filters maintain a flat response in typical monitor placement
- The HF filter applies boost or cut to compensate for particularly dull- or bright-sounding rooms
- The LF filter rolls off the low end to simulate smaller speakers for reference
- Features an eco-friendly auto turn-off / turn-on

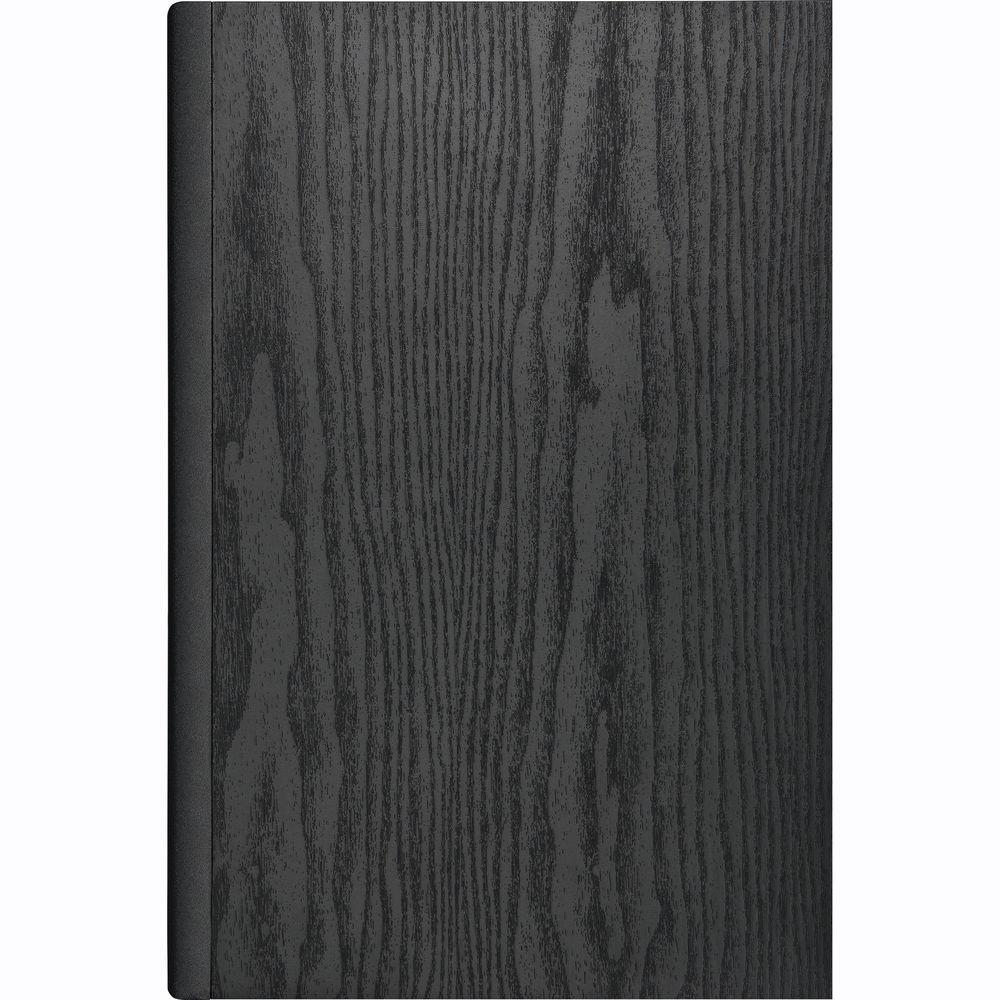

- The black, wood grain finish provides a classic studio feel
- Includes a custom acoustic isolation pad that reduces unwanted resonance and improves bass response
UPC: 663961049343 In the Box Mackie XR624 - 160W 6.5" Two-Way Active Professional Studio Monitor (Single) AC Power Cord Limited 1-Year Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Mackie XR624 - 160W 6.5" Two-Way Active Professional Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

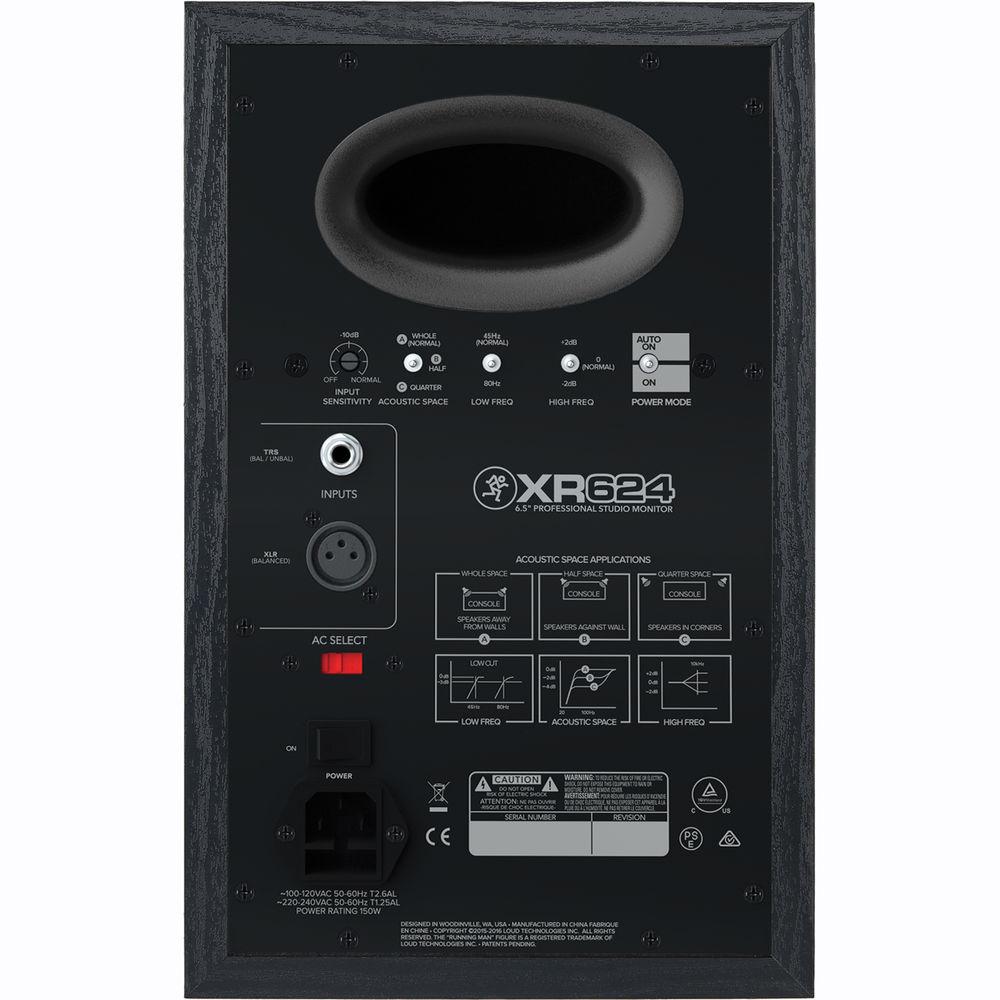

Technical parametersMackie 624 Specs | | | Frequency Response | 45 Hz to 22 kHz (-3 dB) | | Sound Pressure Level | +4 dBu into Balanced Input @ 3.3' / 1 m: 107 dB SPL @ 3.3' / 1 m | | Maximum SPL | Per Pair: 113 dB SPL @ 3.3' / 1 m | | | | Low Frequency Driver | 6.5" (165 mm) Kevlar woofer | | High Frequency Driver | 1" (25 mm) black anodized aluminum tweeter | | | | Power | Low Frequency: 100 W
High Frequency: 60 W | | Type | Class D power amplifier | | | | Type | Linkwitz-Riley, 24 dB/octave | | Crossover Frequency | 2.7 kHz | | | | Low Frequency EQ | -3 dB @ 45 Hz
-3 dB @ 80 Hz | | High Frequency EQ | ±2 dB @ 10 kHz, shelving | | Acoustic Space Filter | Whole: Flat
Half: -2 dB @ 100 Hz
Quarter: -4 dB @ 100 Hz | | | | Input Impedance | 20 kOhms balanced bridging
10 kOhms unbalanced | | Input Type | Balanced differential XLR and 1/4" TRS (6.3 mm) | | Input Protection | RFI and level protected | | Maximum Input Level | +20 dBu | | | | AC Connector | 3-pin IEC 250 VAC, 16 a male
100 to 120 VAC, 50 to 60 Hz, 150W
220 to 240 VAC, 50 to 60 Hz, 150 W | | Voltage Selector Switch | Yes | | Fuse | 115 VAC: T 2.5 AL, 250 V
230 VAC: T 1.25 AL, 250 V | | On/Off Control | Auto On/Off Standby Mode: <0.5 W | | | | Enclosure | All-wood MDF construction and internal cabinet bracing | | Damping | Open cell adiabatic "foam fill" acoustic batting | | Finish | Black, wood grain vinyl and black paint | | Dimensions (H x W x D) | 13.1 x 8.6 x 12.6" (333 x 218 x 320 mm) | | Weight | 23.4 lb (10.6 kg) | | | | Package Weight | 17.5 lb | | Box Dimensions (LxWxH) | 16.0 x 14.0 x 11.5" |
