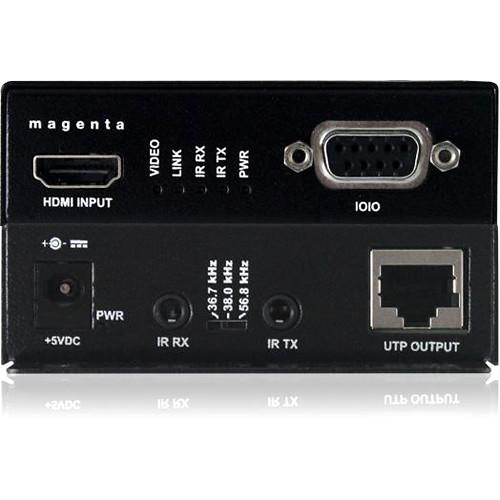

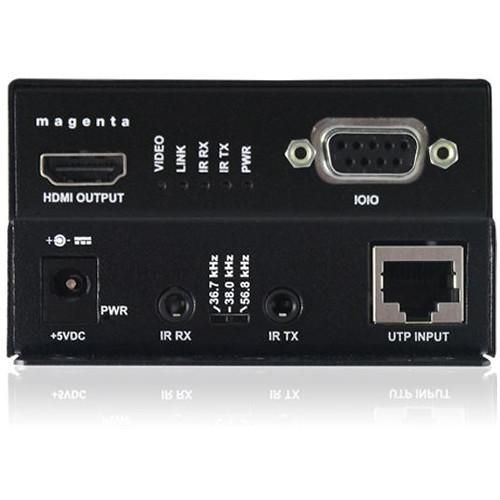

Product description The Magenta Research HD-One LX500 HDMI, IR, and RS-232 Extender Kit delivers reliable, uncompressed, high-definition video over a single CAT5e/6/6e/7 cable to a distance of up to 500’ (152m). It consists of a transmitter and an extender unit. It uses less power, dissipates less heat, and provides significantly better resistance to environmental emissions and interference.
This LX series extender offers additional support for bidirectional RS-232 and 2-way IR signals. For ease of use, the LX kit comes with a set of IR emitter/receiver cables. The LX receiver is also tunable to 3 different IR bands (36.7, 38.0, or 58.8 kHz). This extender kit is fully HDCP compliant and features plug-and-play functionality.
HDMI cables are difficult to terminate. UTP cables, meanwhile, are both cost-effective and easy to terminate in the field, making it easy for extending and HDMI or DVI source to almost any display. Note: This equipment is not intended for, nor does it support, distribution through an Ethernet network. Do not connect these devices to any sort of networking or telecommunications equipment.
The transmitter and receiver units do not feature daisy chain capability. The extender also supports other category cables, but CAT6 is recommended. For the types of supported cables, please refer to the specifications. - Includes one IR emitter/receiver pair
- Extends HDMI or DVI, serial, and IR signals over Category 5e/6/6a/6e/7 UTP, STP, or FTP cable
- Single UTP cable (sold separately) transfers video, audio, and HDCP signals
- An external switch lets you easily select from the following IR operating modes: 36.7, 38, or 56.8 kHz
- Extends uncompressed HD video (1920 x 1200 @ 60Hz) up to 500' (152m)
- Audio transmission supports Dolby TrueHD and DTS-HD Master Audio
- HDMI 1.4 and HDCP compliant
- No adjustments or tuning required
- Bidirectional RS-232 interface
- Two-way IR support (two IR dongles included)
- Integrated mounting flange
- Tolerances designed for commercial environments
- Typical applications include museums, large retail environments, high-end security, education, and residential environments, digital signage, way-finding installations, and home theater
In the Box Magenta HD-One LX500 HDMI, IR, and RS-232 Extender Kit Transmitter/Emitter Receiver Unit 2 x IR Dongle 2 x Universal Power Supply Unit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magenta HD-One LX500 HDMI, IR, and RS-232 Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagenta 2211113-02 Specs | Connectors | Transmitter & Receiver
1 x HDMI Type A
1 x RJ45 (UPT in/out)
1 x DC power
1 x RS-232 (DB9 female)
2 x 3.5 mm jack | | Audio In/Out | Embedded with video signal | | Video Supported | HDMI 1.4, HDCP compliant
Standard formats @ 60 Hz: 640 x 480, 800 x 600, 1024 x 768, 1152 x 864, 1280 x 768, 1280 x 960, 1280 x 1024, 1360 x 760, 1366 x 768, 1600 x 1200,1680 x 1050, 1920 x 1080, 1920 x 1200
HDTV: 480p, 720p, 1080i, and 1080p | | Resolution | WUXGA 1920 x 1200 @ 60 Hz
Note: To achieve maximum resolution and/or distance, it is strongly recommended that you use standard network CAT6 or better cable with a solid 24 AWG copper wire. The use of lower quality cables will lower overall performance. Please contact Magenta for cable recommendations. | | Audio Support | HDMI 1.3 Audio: SPDIF 2-channel PCM or 5.1, 6.1 Dolby Digital or DTS | | Transmission Distance | 500' / 152 m
Note: To achieve maximum resolution and/or distance, it is strongly recommended that you use standard network CAT6 or better cable with a solid 24 AWG copper wire. The use of lower quality cables will lower overall performance. Please contact Magenta for cable recommendations. | | Cables Supported | CAT5e, CAT6, CAT6a, CAT6e, CAT7 UTP, STP, or FTP (CAT6 or better is recommended)
Note: For best performance, use one continuous UTP / STP or FTP cable with as few breaks as possible (i.e., patch bays, wall plates, or floor boxes).
Magenta recommends mounting and connecting all cables to the HD-One DX500 Series components before applying power.
Make sure that the Category cable you intend to use has been tested to comply with the T568B wiring specification.
Magenta recommends that all Category cables be pre-terminated and tested. Cables terminated on-site or in an existing infrastructure should be tested before use to ensure compliance with the TIA-EIA T568B specification. Using incorrectly terminated category cables can damage the extender units. | | Bandwidth | 3.4 Gb/s | | Baud Rate (RS-232) | Up to 115,200 bps, full duplex | | IR Carrier | 36.7, 38, 56.8 kHz modulated emitter output, bidirectional | | Enclosure | Metal | | Indicators | Video status, data link, power | | Compliance | RoHS, CE, FCC Class A | | Power Requirements | Each Unit: 5 VDC @ 2.6 A maximum | | Power Consumption | 1200 mA maximum | | Temperature Tolerance | Operating: 32 to 131°F / 0 to 55°C
Storage: -4 to 185°F / -20 to 85°C | | Humidity Tolerance | Up to 95% non-condensing | | Dimensions | Each Unit: 5.1 x 3.5 x 1.2" / 13.0 x 8.8 x 3.0 cm | | Weight | Each Unit: 0.60 lb / 0.27 kg | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 12.5 x 8.0 x 2.5" |
