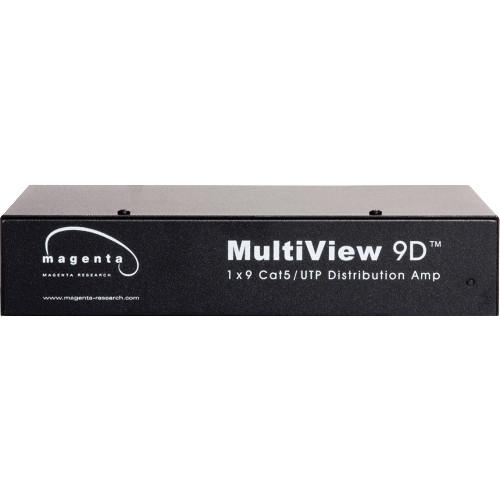

Product description The MultiView 9D Cat5/UTP 1 x 9 Distribution Amplifier from Magenta Research is a distribution amplifier for the MultiView Series System. The MultiView 9D splits the UTP output source from any MultiView transmitter into 9 UTP outputs that can be connected to MultiView receivers, daisy chain of receivers, distribution amplifiers, or matrix switchers. This amplifier supports all MultiView functionalities and sustains the resolution and distance capabilities of the receivers when splitting the UTP signals. - Splits 1 UTP input into 9 UTP outputs
- Supports all MultiView functionality versions
- Compatible with all MultiView transmitters, receivers, distribution amplifiers, and matrix switchers
- Enables extension up to 1200ft at 1920 x 1200 video resolution
In the Box Magenta MultiView 9D Cat5/UTP 1 x 9 Distribution Amplifier Ground Wire External Power Supply with Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magenta MultiView 9D Cat5 UTP 1 x 9 Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagenta 221R1029-01 Specs | Input Connector | 1 x RJ45 UTP | | Output Connectors | 9 x RJ45 UTP | | Video Support | MultiView transmitter/receiver dependent
All VESA modes to WUXGA (1920 x 1200), RGBHV, RGB Composite (NTSC, PAL, SECAM), S-Video, Component Video Widescreen Modes, HDTV Modes including 1080p, 1080i, and 720p | | Video Resolution | 1920 x 1200 (MultiView receiver-dependent) | | Audio Support | Line-level combined L&R, stereo, or SPDIF digital audio | | Serial Support | Uni-directional RS232 to 19.2k baud | | Cables Supported | Category 5, 5e, and 6 Shielded Twisted-Pair (STP) or Unshielded Twisted-Pair (UTP) | | Temperature Tolerance | Operating: 32 to 104°F (0 to -40°C)
Storage: -4 to 140°F (-20 to 60°C) | | Humidity Tolerance | Up to 80% Non-Condensing | | Enclosure | Steel | | Certifications & Approvals | CE, FCC | | Power | 100 - 250 VAC, 50/60 Hz | | Power Input | 5 VDC, 1.75 A | | Max Power Consumption | 12 W | | Dimensions (H x W x D) | 1.75 x 8.1 x 6.5" (4.45 x 20.6 x 16.5 cm) | | Weight | 2.2 lb (1.0 kg) | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 13.8 x 8.8 x 3.0" |
