User Manual for Magenta Research Encoder-100 Single-Channel Streaming Media Encoder Click to enlarge the picture
Contents of the user manual for the Magenta Research Encoder-100 Single-Channel Streaming Media
- Product category: Signal Converters Magenta Research
- Brand: Magenta Research
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magenta Research Signal Converters
 |
User manual for the Magenta Research Encoder-100 Single-Channel Streaming Media contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magenta Research product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magenta Research user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magenta Research product will considerably shorten its lifespan!
|

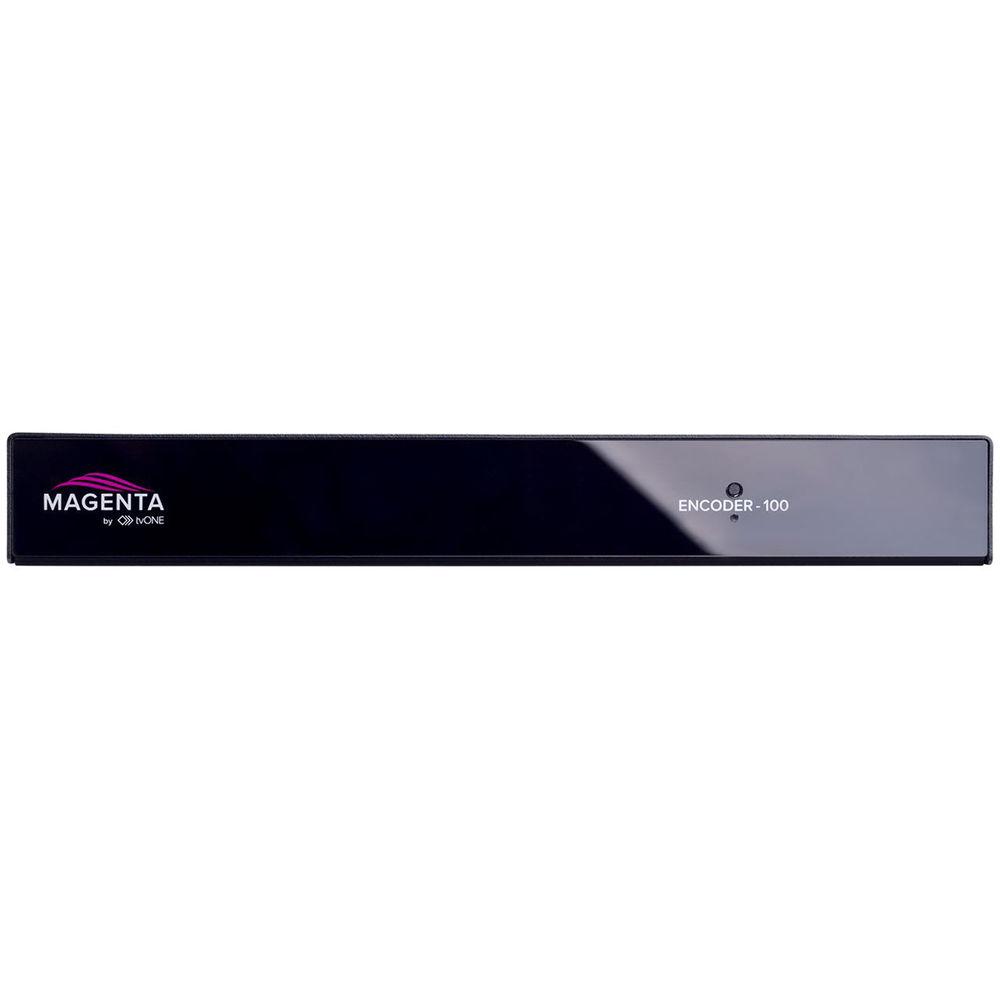

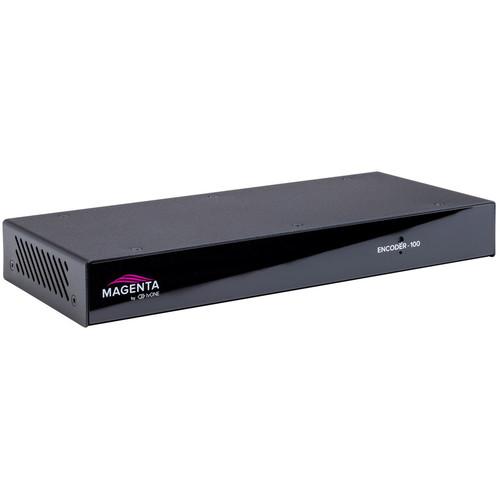

Product description The Encoder-100 Single-Channel Media Encoder from Magenta Research allows for encoding and streaming of high-quality video and audio over standard IP networks. It works seamlessly with the tvONE CORIOmaster, CORIOmaster mini, and CORIOmaster micro 4K streaming media input modules. It supports resolutions up to 1920 x 1200 and video streams can be scaled before distribution to reduce bandwidth consumption. For easy set-up, the CORIOgrapher software (available separately) will automatically recognize the encoder even if it is on a different subnet. - Extend/record up to full HD 1080p60 and 1920 x 1200 video and audio
- H.264 compression for high-quality, low-bandwidth AV-over-IP
- Supports widescreen and standard aspect ratios
- Scale streams before distribution for lower bandwidth consumption
- Open encoding allows for third-party software decode like VLC
- Compatible with WOWZA Server and other streaming services
- Seamless control via tvONE's CORIOgrapher software (available separately)
- Supports unicast and multicast streaming

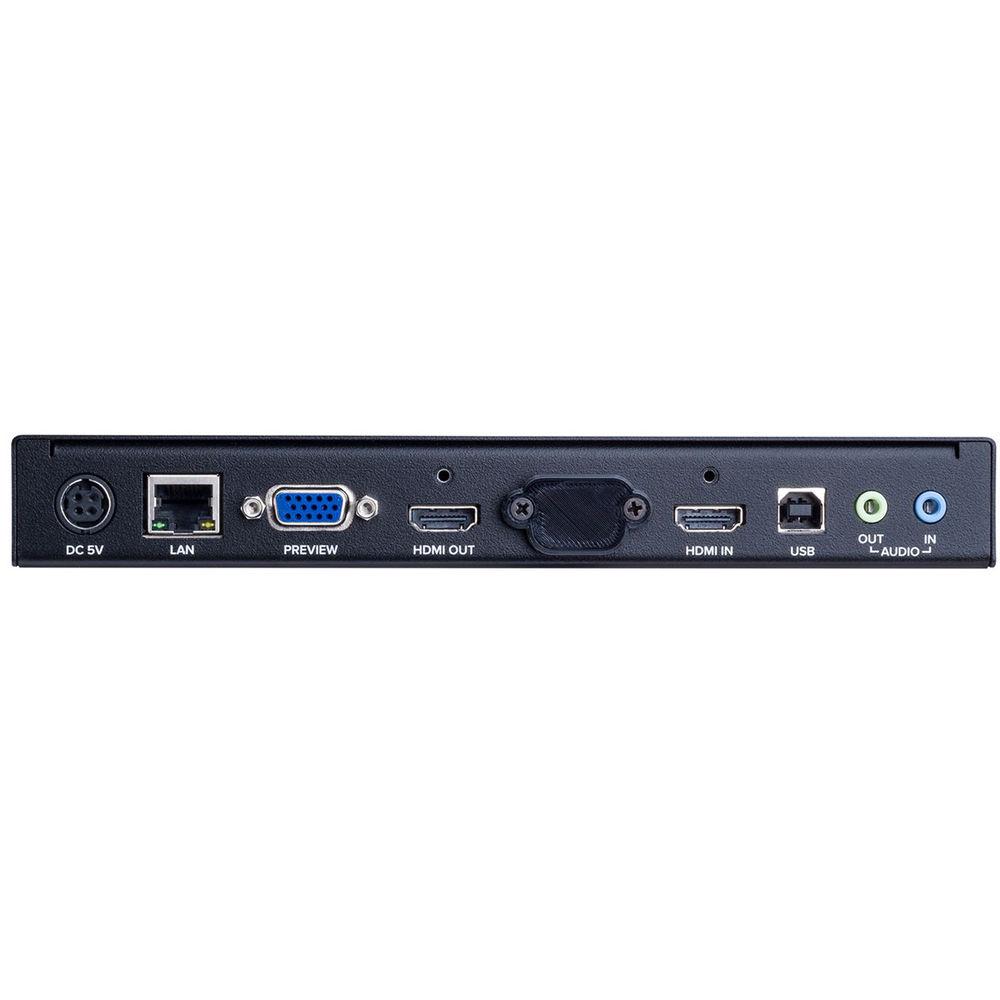

- HDMI video and audio input and output
- Analog audio input and output
- Preview your video signal and stream separately
In the Box Magenta Research Encoder-100 Single-Channel Streaming Media Encoder Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magenta Research Encoder-100 Single-Channel Streaming Media Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagenta Research ENCODER-100 Specs | Video Input | HDMI with L-PCM audio | | Video Output | HDMI with L-PCM audio (loop out) | | Resolutions | Up to 1920 x 1080 at 60 Hz, 1920 x 1200 | | Preview | Preview mode with optional scaling; HDMI and VGA | | Audio Support | L-PCM audio via HDMI | | Audio Input / Output | Line-In: 1/8"/ 3.5 mm analog stereo audio
Line-Out (Loop Out): 1/8"/ 3.5 mm analog stereo audio | | Network Connectors | 1 x RJ45 | | Video Compression | H.264/MPEG4 Part 10 (AVC) | | Bit Rates | 100 kb/s to 20 Mb/s | | Power | 100 to 240 VAC input, 5 VDC output
15 W DIN-4 locking power connector | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Storage Temperature | -40 to 131°F (-40 to 55°C) | | Operating Humidity | 20 to 80% (non-condensing) | | Storage Humidity | 5 to 95% (non-condensing) | | MTBF | 135.05 years at 104°F (40°C) | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer |
