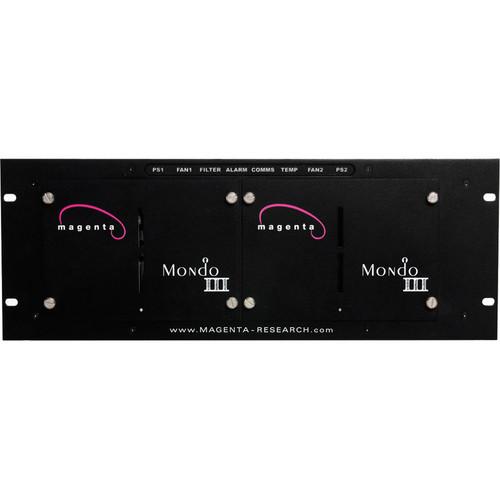

Product description The Mondo III 16 x 16 Full Matrix UTP Switch 4U Frame from Magenta Research is a full-matrix switching and UTP extension platform, capable of switching and extending high definition video, stereo audio, and addressable duplex serial signals in one switching platform. The Mondo III is a modular platform which is scalable from 16 x 16 to a switching capacity of 256 x 512. It allows for additional inputs to be added in the field in increments of 16. The addressable duplex serial capability enables digital signage applications to collect individual display data and metrics in addition to independent control over each display. The Mondo III is compatible with all MultiView products, and enables the extension of 1920 x 1200 video, stereo audio and serial signals over a range of 1200ft.
The Mondo Matrix III can be programmed and controlled using the onboard touch-screen, Windows HyperTerminal, Magenta's Mondo Matrix Control Software, or other control systems. The Mondo III also supports the option to integrate video inputs directly into a switch. The Mondo Direct option eliminates the need for separate MultiView transmitters. The Mondo III includes front-panel indicator lights, allowing switch operators to check status on the unit's power supplies, fans, filter and temperature at a glance. The Mondo III also features a replaceable air filter, two DB9 serial connections, redundant power supplies and a backlit 2 x 16 character LCD designed to aid in configuration and diagnostics. - Full matrix switching and UTP extension of HD-video, stereo audio and serial signals
- Supports addressable duplex serial through a switch
- Audio and serial signals can be switched independently of video
- Compatible with all MultiView-SAP transmitters, receivers and distribution amplifiers
- Enables extension of 1920 x 1200 resolution video up to 1200' (365.8 m)
- Option to add up to 8 serial input ports
- 64 x 16 support in a 4U Chassis uses significantly lower rack-space than RGB co-axial switchers
In the Box Magenta Research Mondo III 16 x 16 Full Matrix UTP Switch 4U Frame Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magenta Research Mondo III 16 x 16 Full Matrix UTP Switch 4U Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagenta Research 223R3001-16X16 Specs | Input Connectors | 16 x RJ45, UTP female
1 x 10 position Phoenix (compatible with Mondo II 7-position Phoenix) | | Output Connectors | 16 x RJ45, UTP female
1 x 10 position Phoenix (compatible with Mondo II 7-position Phoenix) | | Video Support | RGBHV, Component, Y/C, Composite | | Loop Output Connector | 16 x RJ45, UTP female | | Resolution and Refresh | MultiView Receiver Dependent | | Required Impedance | MultiView Transmitter/Receiver Dependent | | Audio Support | MultiView Transmitter/Receiver Dependent | | Serial Support | RS-232/RS-422 | | Cables Supported | Category 5, 5e and 6 Shielded Twisted-Pair (STP) or Unshielded Twisted-Pair (UTP) or skew-free cable. | | Protocol | To switch: RS232 /RS422, Selectable; 9600 baud standard
Between master and slave frames: RS485 | | Auxiliary Input | (Optional)DB9-female, RS-232 interface All input to output switching commands are received and processed by the master frame. Additional frames used within the matrix are connected in a daisy chain and receive processed complex routing commands from the master frame. | | Rear Panel | 2 x 16 LCD display
4 x push button | | Compliance | CE; FCC Class A Safety: EN60950 | | Temperature Tolerance | Operating: 0° to 100°F (0° to 37°C)
Storage: 40° to 158°F (-40° to 70°C) 10% to 90% non-condensing | | Humidity Tolerance | Up to 80% Non-Condensing | | Mounting | Rack Mount Standard | | Enclosure | Powder coat chassis, passivated aluminum | | Power | 90 - 264 V, 50 - 60 Hz | | Max Power Consumption | 150 W | | Dimensions (H x W x D) | 6.7 x 19 x 10.5" (170 x 483 x 267 mm) | | Weight | 17 lb (7.7 kg) (fully populated) |
