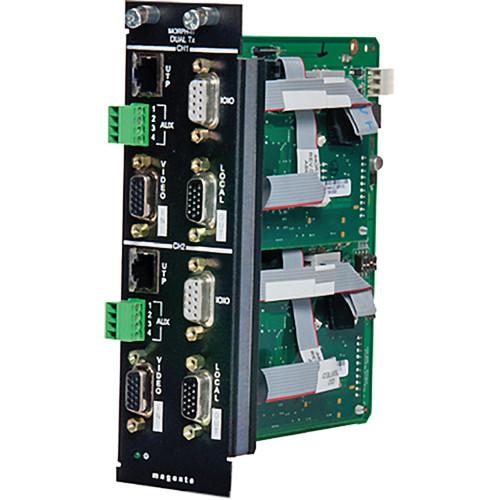

Product description The Magenta Research MultiView Morph-It Dual-TX 232 Transmitter Card is used with the 4U Morph-It Chassis to provide a modular transmitter solution without the clutter of multiple boxes, power supplies, and redundant cabling. This card can be paired with all MultiView building block components, and can transmit 1920 x 1200 resolution videos for a maximum 2,000’ (609m) when used with the appropriate receivers.
Suitable for use in installations that have a large number of sources, this card packs the equivalent of 2 transmitters, can deliver sixteen transmitters per 16-slot chassis, and is powered by a single backplane and power cord. It can be used to effectively shorten UTP cable input lengths to a switch, ensuring that MultiView receiver adjustments remain accurate while allowing for (in some instances) the use of shorter-range receivers. - 16 transmitters per 4U Morph-It chassis
- No external power supplies needed as it is powered by the Morph-It backplane
- RGBHV and non-RGBHV video support 1
Please Note: Non-RGBHV includes S-Video, composite, and component video, and requires an optional Multimedia breakout cable (sold separately). close - Compatible with all MultiView transmitters, receivers, distribution amplifiers, and matrix switchers
- Supports 1920 x 1200 resolution videos
- Transmission range of 2,000' (609m) depending on the receiver's distance specification
- Local out / Cascade support 2
Please Note: Local VGA output can be used for local monitoring or for cascading to any other transmitter type for additional outputs. External splitters may be used to distribute audio and serial signals to cascaded transmitters. close In the Box Magenta Research MultiView Morph-It Dual-TX-232 Video & Duplex Serial Transmitter Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magenta Research MultiView Morph-It Dual-TX-232 Video & Duplex Serial Transmitter Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagenta Research 400R3384-01 Specs | Video In/Out | 2 x HD15 female | | Serial Input | 2 x DB9 female | | UTP Output | 2 x RJ-45 | | Video Support | All VESA modes to WUXGA (1920 x 1200), RGBHV, RGB composite (NTSC, PAL, SECAM), S-Video, component video widescreen modes, HDTV modes including 1080p, 1080i, and 720p | | Resolution | MultiView receiver dependent | | Refresh Rate | MultiView receiver dependent | | Size | Morph-It double-slot form factor (maximum 8 per frame) | | Serial Support | Duplex-data rates to 19.2 kb/s | | Cable Support | Category 5, 5e, and 6 shielded (STP), unshielded twisted-pair (UTP), or skew-free cable | | Cascadability | Yes, video only | | Compliance | CE, FCC Class A, IC Class A, RoHS | | Power | Maximum 170 mA (driving white screens) | | Mounting | Housed in Morph-It Chassis |
