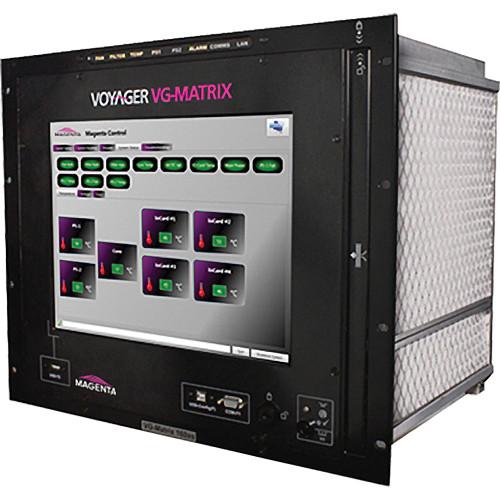

User Manual for Magenta Research VG-Matrix 160-Port Fiber Optic Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Magenta Research VG-Matrix 160-Port Fiber Optic
- Product category: Video Extenders & Repeaters Magenta Research
- Brand: Magenta Research
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magenta Research Video Extenders & Repeaters
|
User manual for the Magenta Research VG-Matrix 160-Port Fiber Optic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magenta Research product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magenta Research user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magenta Research product will considerably shorten its lifespan!
|
Product description The Magenta Research VG-Matrix 160-Port Fiber Optic Matrix Switcher delivers a modular and scalable full cross-point matrix switching platform that can be field configured in increments of 8 inputs and/or outputs up to a maximum of 160 x 160. Fiber I/O cards connect seamlessly to the fiber inputs or outputs of Voyager transmitters and receivers delivering matrix switching and long distance extension in one platform.
When fully populated, the 160 port Voyager VG-Matrix Switcher operates as a 160 x 160 in simplex mode. An optional, integrated touch-screen controller can also be factory installed in the VG-Matrix 160x Matrix Switcher for additional ease of use. The switch can also be controlled via Magenta's MaGUI software from a PC using an RS-232 port. - Full-matrix cross-point switching with Fiber I/O or Fiber I/O with HDCP
- Modular and scalable from 8 x 8 to 160 x 160 1
Please Note: Simplex mode configurations. close - Switching and fiber extension in one platform
- FiberMAX Engine for high-bandwidth multi-signal transmission from source to display over fiber
- Uncompressed multi-format digital and analog video at 1920 x 1200 (HDMI, DVI, VGA, YUV, Y/C, Composite) determined by the connected VG-TX or VG-RX
- Multi-format audio and RS-232 (unidirectional) determined by the connected VG-TX or VG-RX 2
Please Note: Bidirectional RS-232 requires duplex fiber. Bidirectional RS-232 and audio is supported in 1:1 and 1:n distribution modes. close - Auto format conversion between video and audio signal types
- Distance range of up to 18.75MI/30KM determined on input and output 3
Please Note: 300m (50 um cable), 3300'/1 km (OM3 cable), 6600' /2 km (OM4 cable). The operating distances are approximate and base on typical distances. The maximum distance may vary due to fiber type, bandwidth, connector splicing, losses and dispersion. close - Mixed single mode and multimode fiber support 4
Please Note: Determined by receiver type. The attached receiver includes an extra MM or SM fiber module for the transmitter side fiber output. close - Advanced EDID management and full HDCP compliance
- Dual redundant, hot swappable power supplies with dual AC inputs
- Optional touch screen control panel
In the Box Magenta Research VG-Matrix 160-Port Fiber Optic Matrix Switcher Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magenta Research VG-Matrix 160-Port Fiber Optic Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagenta Research 2330001-01 Specs | Range | Multimode: 1000'/300 m (50 um), 3300' /1 km (OM3), 6600' /2 km (OM4)
Single mode: 18.75 MI/30 km | | Modes | Simplex
Video (without auto-DDC or HDCP)
Audio, Unidirectional RS-232 and IR Requires only one LC Fiber. | | Configuration Options | Configurations: 8 x 8 to 160 x 160
I/O Upgradability: 8 x 8 (each I/O card adds 8 inputs and 8 outputs; maximum 20 cards) | | Cable Requirements | LC terminated, fiber optic cables
When using multi-mode SFP optic modules: Compatible with standard OM1 through OM4-grade (and better) cables
When using single-mode SFP optic modules: Compatible with standard OS1, OS2-grade (and better) cables Please also refer to the Voyager link user guide for additional details regarding fiber-optic cables. | | Serial Characteristics | Default Serial Format: 9600 kb/s baud rate, no parity, 8 data bits, 1 stop bit (9600,n,8,1)
Available Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400
Available Data Formats: 7- or 8-bit ASCII (high bit is forced to 0)
Available Parity Bits: Odd, even, none, mark, space
Available Stop Bits: 1, 1.5, 2, none
Available Handshaking: None | | Connectors | USB (Host): 3, Type A (if touch-screen option is installed)
USB (Device): 1 Type B
Serial: 3, DB-9F (plus 1, DB-9M if touch-screen option is installed)
Alarm Relay: 3 pin Phoenix
I/O: Up to 160 SFP transceiver modules (duplex LC connector) | | Air Filter | Recommended Service Interval: 30 days | | Enclosure Type | Front Panel: Powder coated aluminum
Enclosure: Aluminum | | Power | 110 to 240 VAC, 50/60 Hz, 9 A per power supply module
2 Independent fully-redundant AC mains inputs | | MTBF | 100,000 hours | | Rack Mount | Standard, 9 RU x 19" EIA | | Compliance | CE, FCC Part 15 Class A, C-Tick, cTUVus, RoHS | | Humidity | Up to 80% non-condensing | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140F (-20 to 60°C) | | Dimensions (HxWxD) | 15.75 x 19.0 x 16.9" (40.00 x 48.3 x 43.0 cm) | | Weight | 50.0 lb (22.7 kg) |
