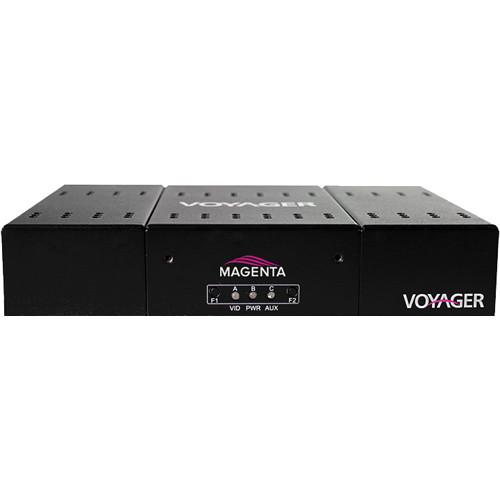

User Manual for Magenta Research VG-RX2-MM-SRxHDMI-ISA 2-Port HDMI Scaling Receiver with HDCP, Audio, Duplex RS-232 Click to enlarge the picture
Contents of the user manual for the Magenta Research VG-RX2-MM-SRxHDMI-ISA 2-Port HDMI Scaling
- Product category: Video Extenders & Repeaters Magenta Research
- Brand: Magenta Research
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magenta Research Video Extenders & Repeaters
|
User manual for the Magenta Research VG-RX2-MM-SRxHDMI-ISA 2-Port HDMI Scaling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magenta Research product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magenta Research user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magenta Research product will considerably shorten its lifespan!
|
Product description The VG-RX2-MM-SRxHDMI-ISA 2-Port HDMI Scaling Receiver with HDCP, Audio, Duplex RS-232 from Magenta Research accepts video, audio, and 2-way serial from any Voyager transmitter (HDMI, DVI, VGA, or component). The receiver supports HDCP-protected video and is rated for 1920 x 1200 uncompressed video signals, to distances up to 6,600' over multimode fiber. One multimode fiber-optic module is included with each unit. Up to 10 (or more, depending on distance and the specific type of fiber being used) Voyager receivers can ultimately be daisy-chained together to increase the transmission distance. The ISA module allows analog audio to be received. The analog audio can also be embedded with video and outputted via a single HDMI connector. Conversely, embedded HDMI audio can also be de-embedded and broken out separately, via the analog audio output on the receiver. The Voyager HDMI-SRx module can be used with both two and four-port cores. This module takes video from any Voyager transmitter and outputs one of 29 different stored video resolutions. A 30th resolution can be custom configured by the user. When operating in its default mode, and connected with a display, the SRx scaling receiver will automatically read EDID information and configure itself in order to output the screen’s preferred resolution. - Transmission over multimode fiber
- SRx-HDMI module scales video to one of 30 different resolutions
- 2-port (VG-RX2) functionality
- Uncompressed multi-format video at 1920 x 1200
- Multi-format audio & RS-232
- Daisy-chain capability with full bi-directional signal support
- Advanced EDID management and HDCP compliance
- Host of audio options for de-embedding HDMI audio or embedding analog audio into the HDMI stream
- Unit comes with a multimode fiber optic SFP module and power supply
In the Box Magenta Research VG-RX2-MM-SRxHDMI-ISA 2-Port HDMI Scaling Receiver with HDCP, Audio, Duplex RS-232 Multimode Fiber Optic SFP Module Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magenta Research VG-RX2-MM-SRxHDMI-ISA 2-Port HDMI Scaling Receiver with HDCP, Audio, Duplex RS-232 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagenta Research 2320008-01 Specs | DC Input | Provided by the CORE module. However, power consumption of this module alone is approximately 0.5 W | | Video Support | Video output formats
Maximum resolution supported = 1080p or 1920 x 1200
Maximum color-depth = 24 bits per pixel (8 bits per color)
Maximum refresh rate = 60 Hz @ 1920 x 1200 | | Audio Characteristics | This module automatically provides embedded HDMI-audio (if audio is available at the source AND if the EDID in the sink or display device supports it). For analog-audio output, please use the ISA auxiliary module. | | Connectors | 1 x HDMI output, 1 x CORE docking connector | | EDID/DDC | This module supports the EDID/DDC connections on the HDMI connector. | | HDMI | Version 1.3b | | HDCP | Version 1.1. Classification: HDCP Repeater Device | | Interface | The HDMI "CEC" interface protocol is not currently supported. The hardware is capable. A future firmware upgrade may enable this functionality. | | Environmental | Operating temperature: 32 to 104°F (0 to 40°C)
Storage temperature: -4 to +140°F (-20 to +60°C)
Humidity: 80% RH, non-condensing | | MTBF | 100,000 hours | | Serial Interface | RS232 standard serial interface. Reflects DCE pinout standard
Signals: TXD, RXD, RTS, CTS, DSR, DTR, DCD and RI
Speeds: 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 baud
Format: 8 data. 1 or 2 stop bits. No parity bit
Flow control: Hardware and software flow-control is available, configurable On/Off
Connector: DB9 female, with 4-40 standoffs
The ISA hardware is capable hardware and software (Xon/Xoff) handshaking. Speed and data format are software-configurable via MAGui. | | Audio Interface | Discrete Left and Right line-level audio
This module can function as an input (for TX) or output (for RX) device. The audio signal direction is under software control, and is selected automatically by the type of CORE module being used
Audio-input mode (when used with VG-TX2 CORE): Input voltage: 2 V peak-to-peak, maximum
Input impedance: >= 10k Ω
Input coupling: AC (capacitive)
Input sample rate: 48 kHz
Input frequency response: 20 to 20 kHz, (@-3 dB)
Audio-output mode (when used with VG-RX CORE):
Output voltage: 2V peak-to-peak, maximum
Output impedance: <= 100 Ω
Output coupling: AC (capacitive)
Output sample rate: 48 kHz
Output frequency response: 20 to 20 kHz, (@-3 dB)
Connector: 1/8" (3.5 mm) stereo-phono type jack | | | | Material | 0.040" (1.000 mm) thick steel | | Finish | Powder-coat black paint, white epoxy graphics | | | | Dimensions (H x W x D) | 1.75 x 7.75 x 5.25" (4.45 x 19.68 x 13.33 cm) Assumes a typical 3-module configuration consisting of: VIDEO + CORE + ISA modules, docked together | | Weight | 2.2 lb (0.99 kg) | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 9.5 x 8.4 x 3.0" |
