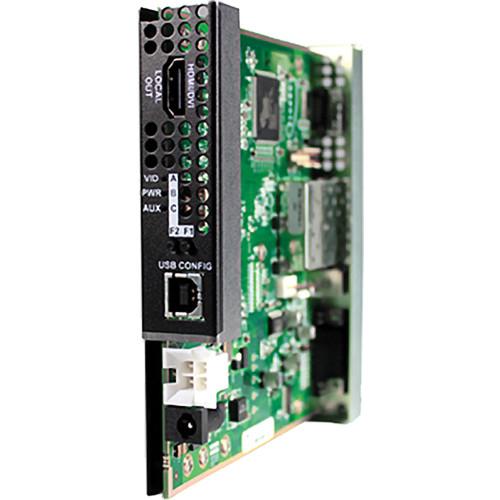

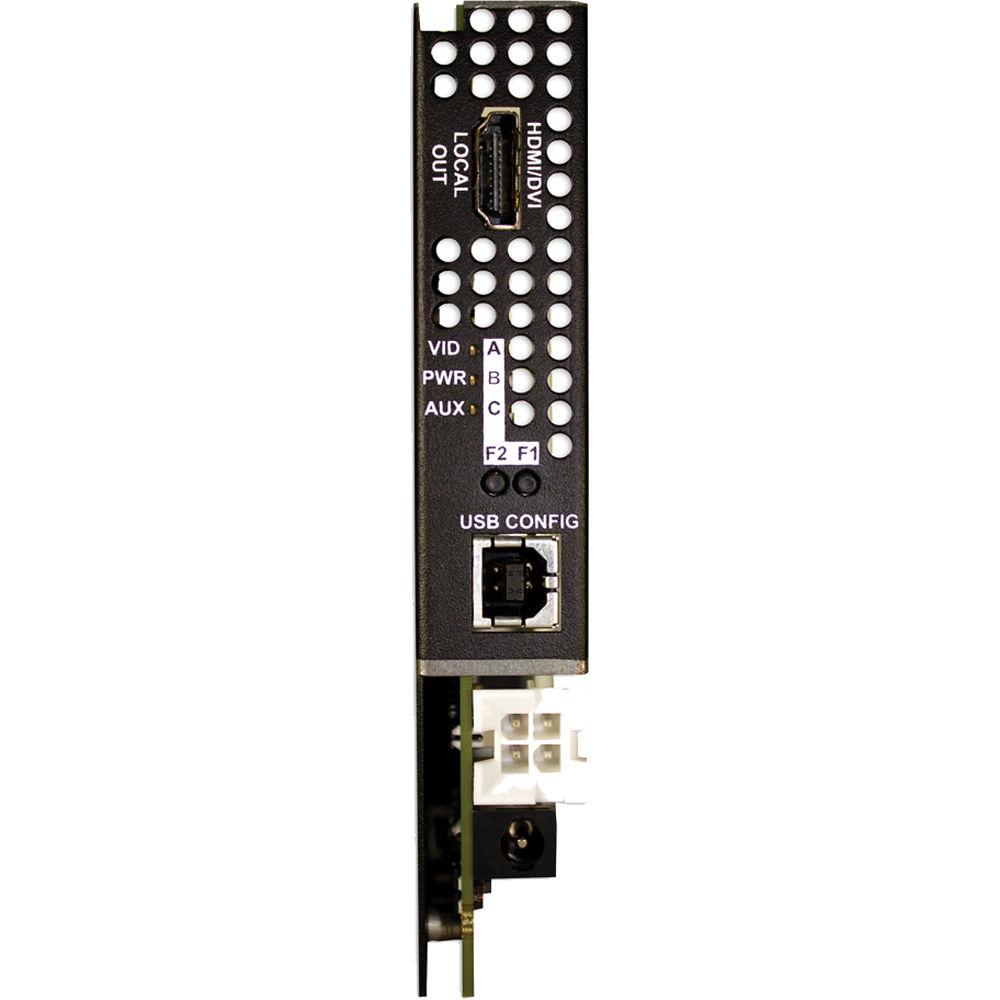

Product description The Magenta Research Voyager CF-HDMI-TX2 Transmitter Card is used with the Voyager CF-18 Chassis, and serves as a starting point for the extension and distribution of video (HDMI with HDCP or DVI), audio, and serial signals over a fiber-optic cable (sold separately). It can send 1920 x 1200 resolution uncompressed video (either HDMI w HDCP or DVI) plus audio and serial signals over a distance of up to 6,600’ via a multi-mode fiber optic cable. Its range can be extended to up to 2.5 mi (4km) or 18.6 mi (30km) by using single-mode fiber optic modules (sold separately).
This transmitter card comes with one multi-mode fiber SFP standard module and features a second port that, when populated with a second SFP, introduces a variety of signal distribution options. For example, users could cascade signals to a second transmitter or feed a second grouping of receivers (which can be daisy chained). - Two duplex fiber output ports
- Uncompressed multi-format video at 1920 x 1200 resolution
- Transmission range of up to 18.6 mi (30km) depending on the receiver
- Single-mode and multi-mode fiber support
- Advanced EDID management and HDCP compliance
- Video Output Formats: The local port is essentially a direct copy of the video input port. However, the output video color-space is always RGB regardless of the input video color-space
- Recognizes all 8 channels (if present) of embedded HDMI audio and passes them through the system to the receiver
- Supports EDID/DDC connections on the HDMI connectors
In the Box Magenta Research Voyager CF-HDMI-TX2 Two-Port Compact Format HDMI/DVI Transmitter Card with HDCP Multi-Mode Fiber Optic SFP Module Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magenta Research Voyager CF-HDMI-TX2 Two-Port Compact Format HDMI DVI Transmitter Card with HDCP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

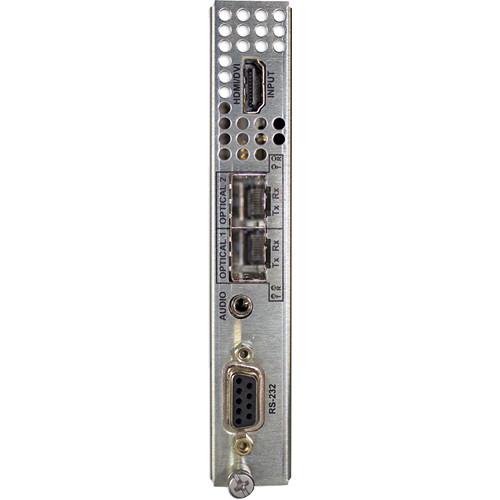

Technical parametersMagenta Research 2211107-01 Specs | | | Maximum Resolution | 1080p, 1920 x 1200 | | Color Depth | Maximum: 24 bits/pixel (8 bits/color) | | Refresh Rate | Maximum: 60 Hz @ 1920 x 1200 | | | | Serial Interface | RS232 standard serial interface, reflects DCE pinout standard Speed & data format are software configurable via MAGui. The ISA hardware is capable of HW/SW handshaking, but this capability is not yet enabled. Check with Magenta Research for firmware updates. | | Signal | TXD, RXD, RTS, CTS, DSR, DTR, DCD, and RI | | Speeds | 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 Baud | | Format | 8 data; 1 or 2 stop bits, no parity bit | | Flow Control | Hardware and software flow-control, configurable on/off | | Connector | DB9 female, with 4-40 standoffs | | | | Audio Interface | Discrete left and right line-level audio This module can function as an input or output device. The audio signal direction is under software control and is selected automatically by the CORE module. | | Audio Input | When used with VG-TX2 CORE:
Input Voltage: 2 V peak-to-peak, maximum
Input Impedance: ≥10 kΩ
Input Coupling: AC (capacitive)
Input Sample Rate: 48 kHz
Input Frequency Response: 20 to 20 kHz at -3 dB | | Audio Output | When used with VG-RX CORE:
Output Voltage: 2 V peak-to-peak, maximum
Output Impedance: ≤100 Ω
Output Coupling: AC (capacitive)
Output Sample Rate: 48 kHz
Output Frequency Response: 20 to 20 kHz at -3 dB
Connector: 3.5 mm (1/8") stereo-phono type jack | | | | Input/Output | Input: 1 x HDMI
Output: 1 x HDMI | | Environmental | Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 80% RH, non-condensing | | Enclosure | Steel | | MTBF | 100,000 hours | | Power | +5 VDC, Consumption: 5 W maximum | | Version | HDMI version 1.3b
HDCP version 1.1; Classification: HDCP repeater device | | Dimensions | 0.8 x 6.0 x 5.0" (2.2 x 15.2 x 14.0 cm) Assumes a typical 3-module configuration consisting of VIDEO + CORE + ISA modules, docked together. | | Weight | 1.4 lb (0.6 kg) |
