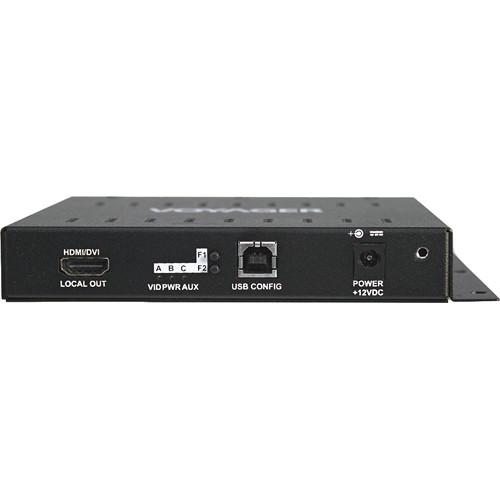

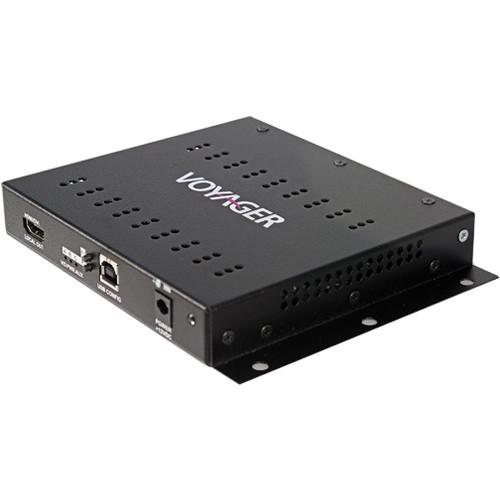

Product description The Voyager CFS-HDMI-TX2 2-Port Compact Format Standalone Transmitter from Magenta Research extends 1920 x 1200 uncompressed HDMI or DVI video, audio, and serial signals up to 6,600’ (2km) over multi-mode fiber optic cables. The transmitter has a small form factor and can be easily and securely mounted behind a screen or other small areas via the built-in mounting flange. Its range can be extended to up to 2.5 mi (4km) and 18.6 mi (30km) by using optional single-mode fiber optic modules (sold separately).

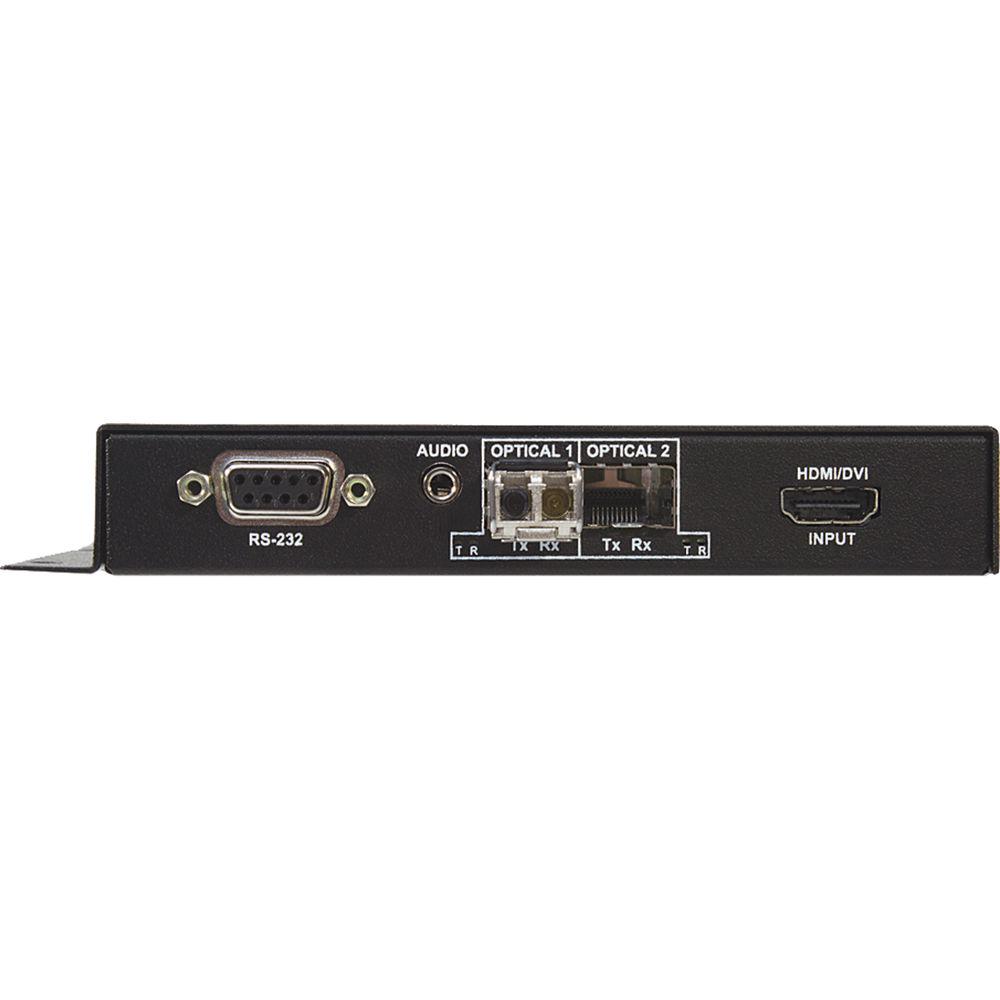

While it ships with one MMF SFP standard module, the CFS-HDMI-TX2 Transmitter features a second port that, when populated with a second SFP (sold separately), introduces a variety of signal distribution options. For example, you could cascade signals to a second transmitter, or feed a second grouping of Voyager receivers (which can be daisy-chained). - Two duplex fiber optic output ports
- Small form factor makes mounting easy
- Uncompressed multi-format video at 1920 x 1200 resolution
- Transmission range of up to 18.75 mi (30km) using optional single-mode fiber optic modules
- Single-mode and multi-mode fiber support (single-mode modules sold separately; one MMF module included)
- Advanced EDID management and HDCP compliance; supports EDID/DDC connections on HDMI connectors
- Recognizes all 8 channels (if present) of embedded HDMI audio, passing them through the system to the receiver
- Video Output Formats: The local port is essentially a direct copy of the video input port, but the output video color-space is always RGB regardless of the input video color space
In the Box Magenta Research Voyager CFS-HDMI-TX2 2-Port Compact Format Standalone HDMI/DVI Transmitter with HDCP Multi-Mode Fiber Optic SFP Module Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magenta Research Voyager CFS-HDMI-TX2 2-Port Compact Format Standalone HDMI DVI Transmitter with HDCP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagenta Research 2211108-01 Specs | Maximum Resolution | 1080p, 1920 x 1200 | | Color Depth | Maximum: 24 bits/pixel (8 bits/color) | | Refresh Rate | Maximum: 60 Hz @ 1920 x 1200 | | Connectors | Input: 1 x HDMI
Output: 1 x HDMI
1 x CORE docking connector | | HDMI | Version 1.3b | | HDCP | Version 1.1; Classification: HDCP repeater device | | Power | Approximately 0.5 W Provided by the CORE module | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 80% RH, non-condensing | | Enclosure | Steel | | MTBF | 100,000 hours | | Dimensions | 1.75 x 5.50 x 5.25" (4.45 x 13.97 x 13.33 cm) Assumes a typical 2-module configuration consisting of VIDEO + CORE modules, docked together | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 9.5 x 8.4 x 3.0" |
