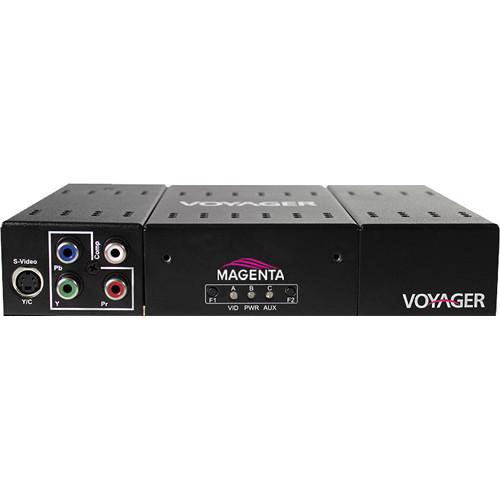

Product description The Voyager VG-TX2-MM-VGA-ISA 2-Port Transmitter from Magenta Research accepts any type of analog video (RGBHV, component, S-Video, or composite) signals as input and converts the output to crisp 1080p digital signals for use with a Voyager HDMI or DVI Receiver (sold separately). It can also handle analog audio and duplex (two-way) RS-232 signals. Additionally, using the MaGUI software, the analog audio input can be infused into the HDMI output stream if a Voyager HDMI Receiver is utilized.
The Voyager 2-Port Transmitter comes with a multi-mode fiber-optic module, and additional modules can be used to cascade signals to a second Voyager transmitter or to distribute signals to multiple Voyager receivers (additional modules sold separately). The transmitter's range can be increased to up to 18.75 mi by using it with optional single-mode fiber optic modules. A power supply is also bundled with this unit. - 2 Duplex fiber output ports
- Analog audio and duplex serial (RS-232) support
- Distance range of up to 18.75 mi (determined by receiver)
- Single- and multi-mode fiber support
- Advanced EDID management and HDCP compliant
- Video Output Formats: The local output port is essentially a direct copy of the VGA video input port; no local output ports for the non-VGA analog signals
- Supports EDID/DDC connections on the VGA input connector
In the Box Magenta Research Voyager VG-TX2-MM-VGA-ISA 2-Port Analog Video, Audio, & Duplex Serial Fiber Optic Transmitter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magenta Research Voyager VG-TX2-MM-VGA-ISA 2-Port Analog Video, Audio, & Duplex Serial Fiber Optic Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagenta Research 2310008-01 Specs | | | Maximum Resolution | 1920 x 1080 | | Color Depth | Maximum: 24 bits/pixel (8 bits/color) | | Refresh Rate | Maximum: 60 Hz @ 1920 x 1080, 75 Hz @ 1152 x 864 | | | | Serial Interface | RS-232 standard serial interface; reflects DCE pinout Speed & data format are software configurable via MaGUI. The ISA hardware is capable of HW/SW handshaking, but this capability is not yet enabled. Check with Magenta Research for firmware updates. | | Signals | TXD, RXD, RTS, CTS, DSR, DTR, DCD, and RI | | Speeds | 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 Baud | | Format | 8 data, 1 or 2 stop bits; no parity bit | | Flow Control | Hardware and software flow control; configurable on/off | | Connector | DB9 female with 4-40 standoffs | | | | Audio Interface | Discrete left and right line-level audio This module can function as an input or output device. The audio signal direction is under software control and is selected automatically by the CORE module. | | Audio Input | Audio Input Mode (When Used with VG-TX2 CORE Module):
Input Voltage: 2 Vpp, maximum
Input Impedance: >= 10 kΩ
Input Coupling: AC (capacitive)
Input Sample Rate: 48 kHz
Input Frequency Response: 20 to 20 kHz (@ -3 dB) | | Audio Output | Audio Output Mode (When Used with VG-RX CORE Module):
Output Voltage: 2 Vpp, maximum
Output Impedance: <= 100 Ω
Output Coupling: AC (capacitive)
Output Sample Rate: 48 kHz
Output Frequency Response: 20 to 20 kHz (@ -3 dB)
Connector: 3.5 mm (1/8") stereo-phono type jack | | | | Connectors | 1 x VGA input (HD15 female)
1 x VGA output (HD15 female)
1 x S-Video input (6-pin MiniDIN)
1 x Composite video input (RCA phono)
3 x Component video inputs (RCA phono)
1 x CORE docking connector | | MTBF | 100,000 hours | | Power Consumption | Approx. 1.5 W Power is provided by the CORE module | | Dimensions | 1.75 x 5.50 x 5.25" (4.45 x 13.97 x 13.33 cm) Assumes a typical 2-module configuration consisting of VIDEO + CORE modules, docked together | | Weight | 1.4 lb (0.6 kg) |
