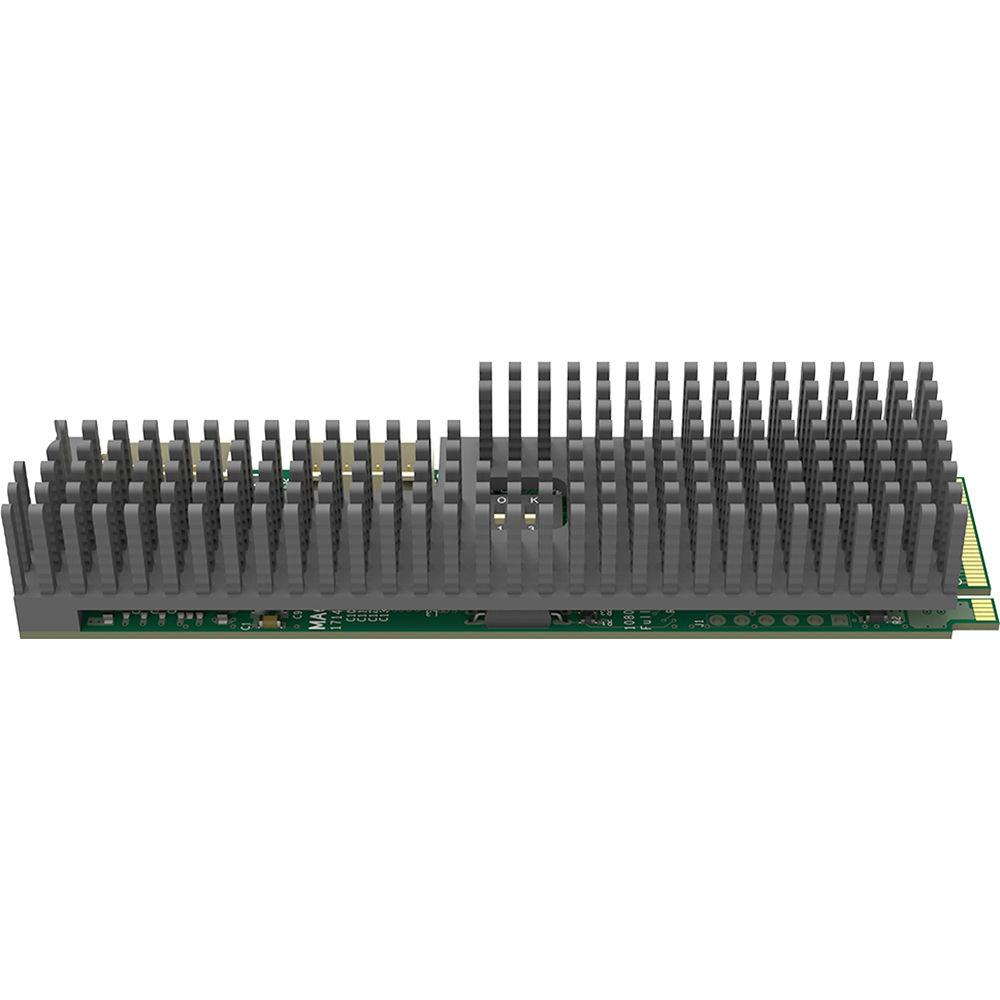

Product description The Magewell Eco Capture Dual HDMI M.2 Card supports two HDMI input sources simultaneously and allows you to capture up to 2048 x 2160 resolution with embedded audio from each source to your computer. Featuring an M.2 (PCIe 2.0) computer interface, this card provides the flexibility to be used in compact/thin tablet computers and other small form factor PCs where PCIe slots may be at a minimum. It's compatible with Windows and Linux operating systems and is capable of operating 24 hours a day, 7 days a week while an LED indicator confirms the working state of the input the entire time (idle, input signal locked, memory failed, or FPGA configuration).

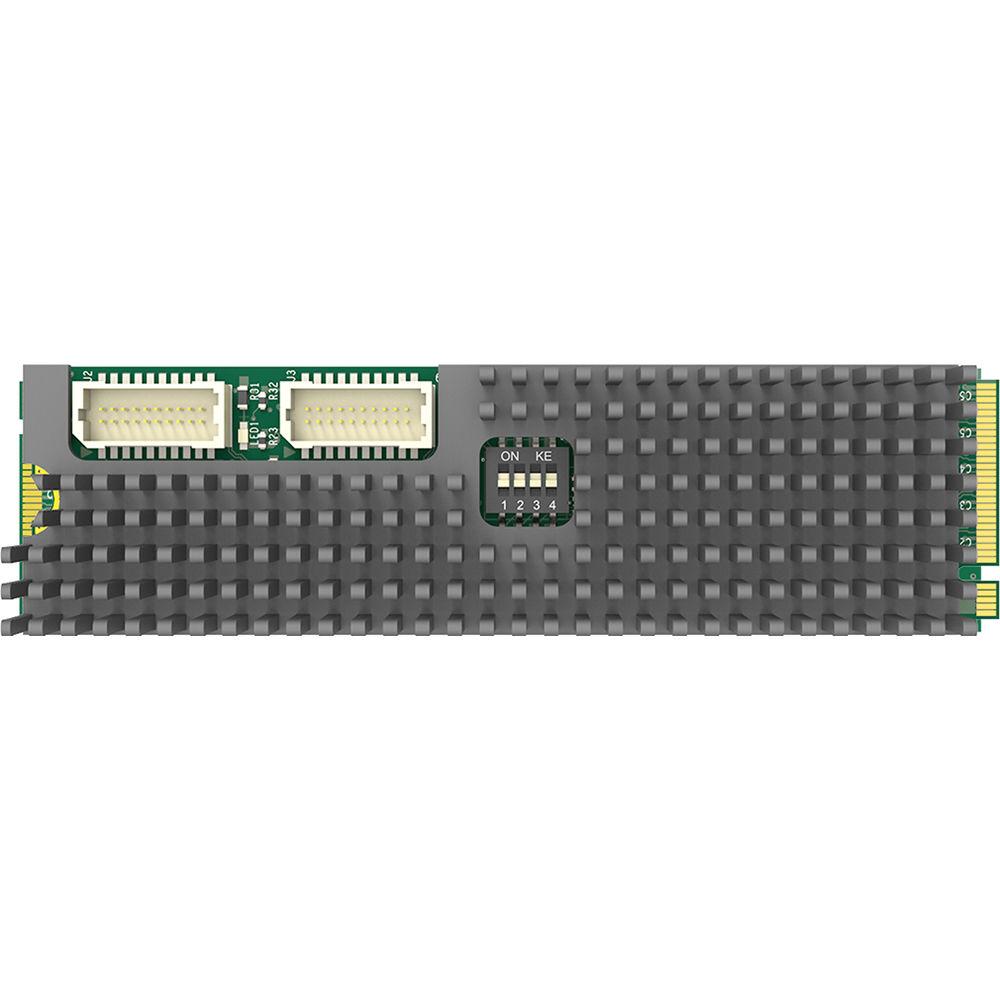

The Eco Capture Dual HDMI M.2 Card also offers many processing and other features, including resolution scaling and a high-fidelity pipeline. The card has two native JST SHD input connectors and comes with two matching SHD to HDMI type A adapter cables for connecting your HDMI signals. - Key Features
-
- Two JST SHD connectors supporting included SHD to HDMI adapter cables
- Capture 2K x 2K resolution (2048 x 2160)
- M.2 Interface (PCIe 2.0)
- Compatible with Windows and Linux
- Resolution scaling
- High-fidelity video processing pipeline
- Image control
- Various output color spaces
- SG-DMA transmission mode
- Multiple devices on one host
- Multiple replicated capture streams
- Hardware time stamp
- Mounting hole
- LED indicator
- Firmware upgradeable
- Common driver
- 24/7 continuous operation
- HDMI Specific Features
-
- 165 MHz HDMI receiver
- Adaptive HDMI equalizer
- HDMI transmission distance up to 100'
- Customized EDID
- Extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
- Full colorimetry
- 8/10/12-bit color depths
- RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Up to 8-channel IEC60958/IEC61937 audio streams
- Extraction of audio formation information and channel status data
- Extraction of video timing information
- Extraction of 3D format information
- Extraction of Sony/Canon DSLR timecode
- Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode
- Video Capture Formats
-
- Image resolutions up to 2048 x 2160
- Frame rates up to 144 fps (actual capture frame rate can be limited by PCIe bandwidth; for 1280 x 1024 and higher, the actual frame rate may be limited by the onboard video processing hardware pixel clock - for example, the maximum frame rate of 1920 x 1080 resolution can up to 80 fps)
- 4:2:0 8-bit capture formats: NV12, I420, YV12
- 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
- 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
- More capture formats are supported via Magewell Capture SDK for DirectKS
- Video Processing Features
-
- Video processing pipelines with 180 megapixels processing bandwidth
- 8-bit 4:4:4 video processing
- Cropping
- Scaling
- Deinterlacing
- Video aspect ratio conversion
- Color format conversion
- Frame rate conversion
- Video Deinterlacing
-
- Weave
- Blend top and bottom field
- Top field only
- Bottom field only
- Aspect Ratio Conversion
-
- Auto or manual selection of input aspect ratio
- Auto or manual selection of capture aspect ratio
- Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)
- Color Format Conversion
-
- Auto or manual selection of input color format and quantization range
- Auto or manual selection of capture color format, quantization range, and saturation range
- Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
- Support for limited or full quantization range
- Support for limited, full, and extended gamut saturation range
- Multiple Cards Per System
-
- Support for multiple cards plugged to one system
- On-board rotary switch to set card number with 16 positions
- System hardware device tree will display "01: Eco Capture Dual HDMI M.2" when rotary switch is set to 0001, and so on
- The video and audio device names displayed in your software will include the card number (set by the rotary switch)
- Multiple Replicated Capture Streams
-
- Unlimited capture streams for any one input channel (but in the same format)
- Timestamp & A/V Synchronization
-
- Hardware based 100ns high resolution clock
- Audio frames (192 audio samples) and video frames are stamped with hardware clock
- Hardware clock can be synchronized across cards (via SDK)
- Video Capture SG-DMA
-
- 700 MB/s per channel DMA bandwidth in PCIe 2.x system
- 400 MB/s per channel DMA bandwidth in PCIe 1.x system
- Auto detection of Intel tiled GPU surface
- DirectGMA for AMD video adapter chipsets
- GPUDirect for NVIDIA video adapter chipsets
- SDK
-
- Magewell Capture SDK for DirectShow for easy integration (Windows)
- Magewell Capture SDK for DirectKS for maximum flexibility and performance (Windows)
- Windows Driver Tweaks
-
- All options can be controlled by three levels of registry key: global level, product level, and device level
- Video, audio, crossbar filter names can be customized via registry keys
In the Box Magewell Eco Capture Dual HDMI M.2 Card 2 x JST SHD to HDMI Type A Adapter Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magewell Eco Capture Dual HDMI M.2 Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagewell Eco Capture Dual HDMI M.2 Specs | Supported Operating Systems | Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 and x64)
Linux (based on V4L2, support for x86, x64, and ARM architecture) | | Supported Resolution | Up to 2048 x 2160 | | Supported APIs | Windows:
DirectShow
DirectKS
Wave API/DirectSound/WASAPI
Linux:
V4L2
ALSA | | Supported Software | VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software | | Input Interfaces | 2 x JST SHD 20-pin sockets supporting included SHD to HDMI cables (HDMI 1.4) (DVI-D 1.0 supported via optional adapters) | | Host Interface | M.2 2280 Type M (PCIe Gen2 x4) | | Power Consumption | Max Current at 3.3 V: 1.25 A
Max Power Consumption: 4.17 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 to 90% non-condensing | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 8.6 x 7.7 x 1.7" |
