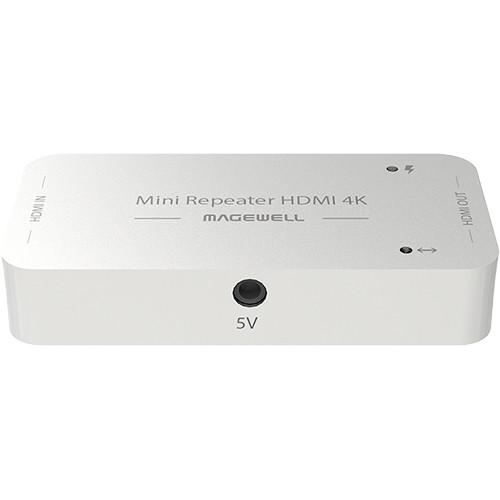

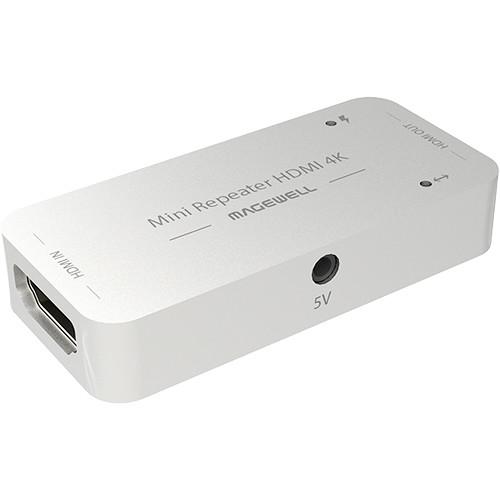

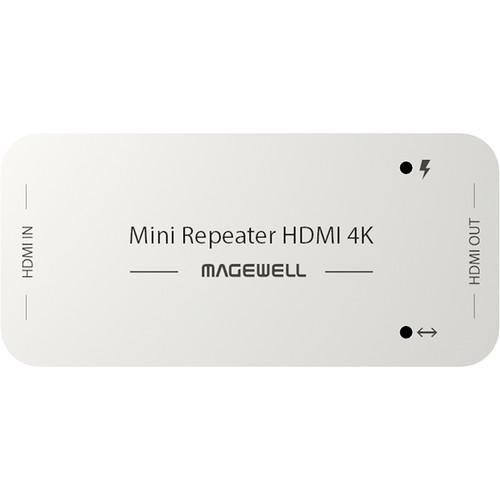

User Manual for Magewell HDMI 4K Mini Repeater Click to enlarge the picture
Contents of the user manual for the Magewell HDMI 4K Mini Repeater
- Product category: Video Extenders & Repeaters Magewell
- Brand: Magewell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magewell Video Extenders & Repeaters
 |
User manual for the Magewell HDMI 4K Mini Repeater contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magewell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magewell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magewell product will considerably shorten its lifespan!
|
Product description Magewell's HDMI 4K Mini Repeater is a signal repeater that receives, equalizes, and sends a signal down an HDMI cable. It supports HDMI 2.0 and 4K/2K/HD signals, as well as 3D and 4K x 2K. The repeater cleans up a limited amount of signal distortion and can be powered by the HDMI input or an optional 5 VDC power supply using the included USB cable. It incorporates an LED signal indicator that lets you know that it is receiving and sending a signal. - This repeater is normally used in the middle of a cable run to boost the distance you can send an HDMI signal. Its built-in circuitry will automatically clean up a degraded signal (within reason).
-
- Compatible with HDMI 2.0
- Compatible with DVI standards
- Support 3D, 4K x 2K, HDCP 1.x/2.x
- Receive and equalize signals
- Eliminate signal dithering
- Provide DDC buffer
- Support up to 597 MHz pixel rate
- Support up to 6.0 Gbps HDMI data rate
- Powered by HDMI signal or external power supply (5V)
- The onboard LED shows the status of input/output.
In the Box Magewell HDMI 4K Mini Repeater USB to 5V Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magewell HDMI 4K Mini Repeater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagewell 43010 Specs | Input Signals | TMDS (HDMI/DVI-D） | | Input/Outputs | Input: HDMI Type-A
Output: HDMI Type-A | | Power | Input: 5 VDC | | Environmental | Operationg Temperature: 32 to 122°F / 0 to 50°
Storage Temperature: -4 to 176°F / -20 to 80°C
Relative Humidity: 5 - 90% (non-condensing) | | Dimensions | 2.29 x 1.07 x 0.43" / 5.82 x 2.73 x 1.08 cm | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 8.7 x 7.7 x 1.7" |
