User Manual for Magewell Pro Capture AIO 4K, Single Channel HDMI SDI Capture Card Click to enlarge the picture
Contents of the user manual for the Magewell Pro Capture AIO 4K, Single
- Product category: Computer Hardware Magewell
- Brand: Magewell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magewell Computer Hardware
 |
User manual for the Magewell Pro Capture AIO 4K, Single contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magewell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magewell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magewell product will considerably shorten its lifespan!
|

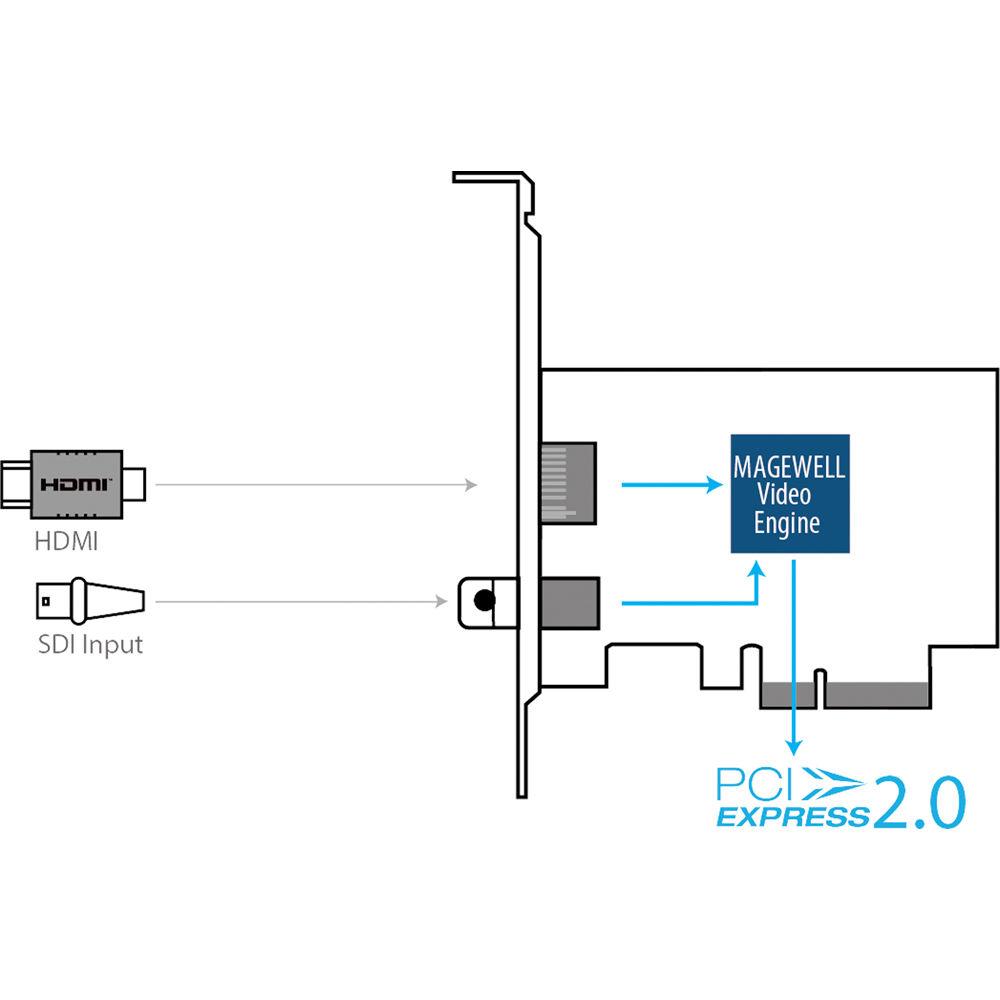

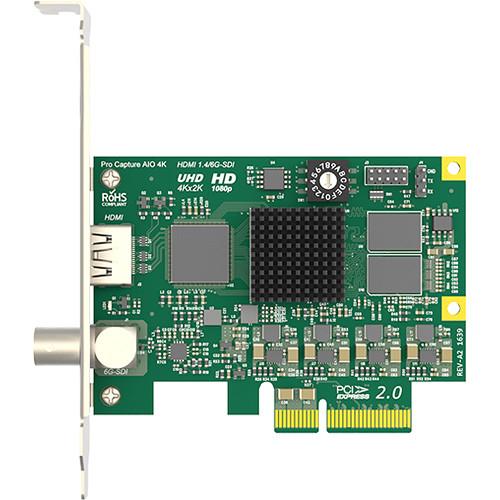

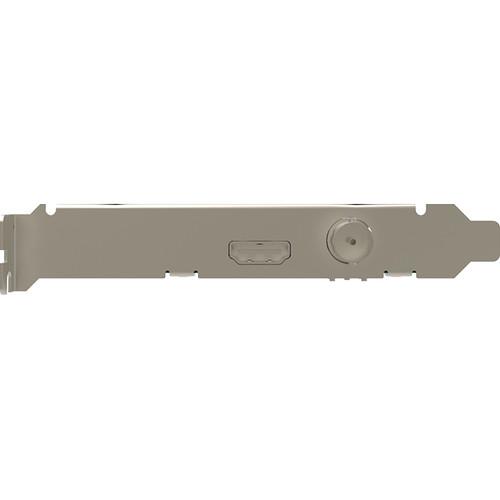

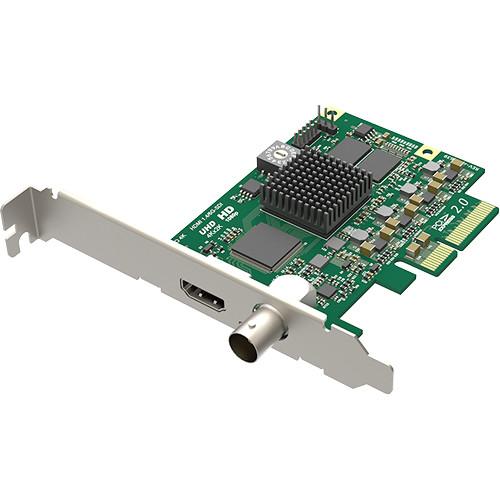

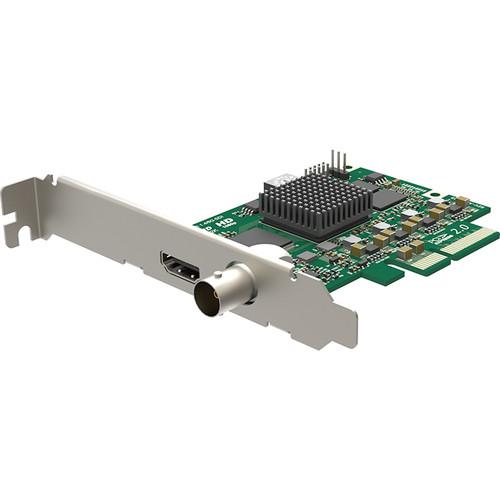

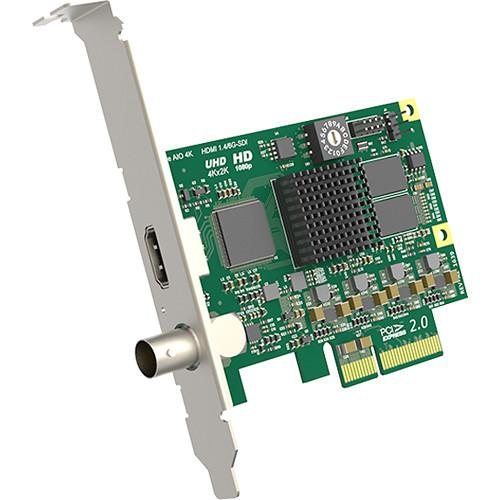

Product description Capture a single channel of 4K resolution video with embedded audio using the Magewell Pro Capture AIO 4K Capture Card. This PCI Express x 4 capture card is compatible with DCI 4K and UHD video formats up to 4096 x 2160, and ingests using either its HDMI or its SDI (BNC) ports. Capture uncompressed video and audio from a camera or switcher on your computer for recording, editing, or streaming. The low-profile Magewell AIO 4K is compatible with Windows, macOS, and Linux systems. Extraction of audio-formation and channel-status data, video-timing, Sony and Canon DSLR timecode, and 3D-format information is supported, as are multiple color spaces in 8- and 10-bit formats. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ration conversion. Multiple Magewell cards can be used and numbered in one system. - HDMI-Specific Features
-
- 297 MHz HDMI receiver
- Adaptive HDMI equalizer
- Customized EDID support
- Extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
- Full colorimetry support
- Support for 8-bit signals using RGB/YUV 4:4:4 color sampling at pixel rates no greater than 297 MHz
- Support for 12-bit signals using YUV 4:2:2 color sampling at pixel rates no greater than 297 MHz
- Support for 10/12-bit signals using RGB/YUV 4:4:4 color sampling at pixel rates no greater than 170 MHz
- Extraction of audio formation information, and channel status data supported
- Extraction of video timing information supported
- Extraction of 3D format information supported
- Extraction of Sony/Canon DSLR time code supported
- Side-by-Side Half, Top-and-Bottom, and Frame Packing 3D mode supported
- SDI-Specific Features
-
- Integrated cable equalizer supporting cable lengths up to 755' for HD signals
- Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G (SMPTE 2081) standards
- Support for 2K (2048
|
Upload User Manual
Have you got an user manual for the Magewell Pro Capture AIO 4K, Single Channel HDMI SDI Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagewell 11170 Specs | Host Interface | 2 x PCI-Express Gen2 | | Video Resolution Supported | Up to 4096
