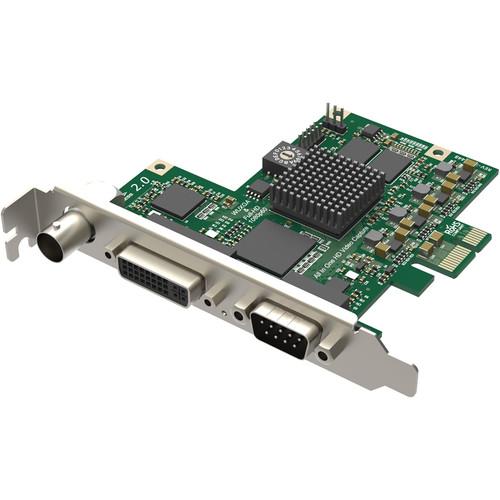

User Manual for Magewell Pro Capture AIO - All-In-One 1-Channel HD Capture Card Click to enlarge the picture
Contents of the user manual for the Magewell Pro Capture AIO - All-In-One
- Product category: Computer Hardware Magewell
- Brand: Magewell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magewell Computer Hardware
|
User manual for the Magewell Pro Capture AIO - All-In-One contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magewell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magewell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magewell product will considerably shorten its lifespan!
|
Product description The Pro Capture AIO from Magewell is an all-in-one PCIe 2.0 x1 card capable of capturing a single channel of SDI + embedded audio, HDMI + embedded audio, DVI + audio, VGA + audio, Component + audio, Composite + audio, or S-video + audio. It supports input video resolutions up to 2048x2048, featuring both automatic and manual selection of video and audio input sources, and it supports output resolutions up to 2048x2048 with frame rates up to 120 fps. Not only does the Pro Capture AIO support numerous parameter formats and standards for each input type, but it also offers multiple video processing features (see below for details).
Pro Capture AIO supports multiple cards in one system by using a 16-position rotary switch to set the card number. It also supports unlimited output streams with independently adjustable parameters per stream. Additional features include ultra-low latency, timestamp and A/V synchronization, and LED status indicators. This card supports Linux and Windows operating systems, with APIs for both, and includes Windows SDKs for easier integration. A DVI to VGA adapter, a DVI-I to HDMI + Component breakout cable, and a DB9 to YC + Composite + Analog Audio + Component breakout cable are all included. - General
-
- Supports auto-scanning of video input sources when there is no signal input to the currently selected source
- Supports auto selection of linked (embedded) audio input source when the video input source changes
- Support for standard crossbar based on video input source selection
- Support for input and output video resolutions up to 2048 x 2048 pixels
- VGA & Component Input
-
- Auto detection of RGB & YCbCr color formats
- Auto or manual sampling phase adjustment
- Auto horizontal alignment
- Supports customized video timings
- Supports customized video resolutions for CVT/GTF timings
- HDMI Input
-
- Full colorimetry support
- Supports customized EDID
- Supports extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
- Supports extraction of audio formation information and channel status data
- Supports extraction of video timing information
- Supports extraction of 3D format info
- Supports extraction of Sony/Canon DSLR time code
- SDI Input
-
- Support for SMPTE 352 payload identifier
- For 3Gb-DS: only the first stream can be captured
- For 3Gb-DL: 2K YCbCr 4:2:2 10-bit 1080p 50/59.94/60 is captured as 1080i
- For the first link of dual-link interfaces: YCbCr 4:2:2 10-bit 1080p 50/59.94/60 is captured as 1080i; YCbCr 4:4:4 10-bit is captured as 4:2:2; and RGB 4:4:4 is captured as R/B sub-sampled
- Video Processing
-
- Two video processing pipelines with approximately 180MP/s processing bandwidth for each
- Supports video cropping, scaling, and de-interlacing
- Aspect ratio conversion with automatic or manual selection of input and output aspect ratios
- Three aspect ratio conversion modes: ignore (anamorphic), cropping, or padding (letterbox or pillarbox)
- Supports video frame rate conversion
- Supports automatic and manual selection of input color format and quantization range
- Supports automatic and manual selection of output color format, quantization range, and saturation ranges
- Supports limited or full quantization range
- Supports limited, full, and extended gamut saturation range
- Supports PNG OSD image of up to 2048 x 2048
- Supports dynamic loading of RGBA OSD image via SDK
- Multiple Output Streams
-
- Unlimited output streams for any one input channel
- Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, and color adjustment settings for each individual stream
- Ultra-Low Latency Support
-
- Latency of 64 video lines
- Partial notification mode in SDK
- Timestamp & AV Synchronization
-
- Hardware based 100ns high-resolution clock
- Audio frames (192 audio samples) & video frames are stamped with hardware clock
- Hardware clock can be synchronized across cards (via SDK)
- Video Output SG-DMA
-
- Supports auto detection of Intel tiled GPU surface
- Supports DirectGMA for AMD video adapter chipsets
- Supports GPUDirect for Nvidia video adapter chipsets
- Windows Driver Tweaks
-
- All options can be controlled by three levels of registry key: global level, product level, and device level
- Video, audio, crossbar filter names can be customized via registry keys
- Included Accessories
-
- DVI to VGA adapter
- DVI-I to HDMI + Component breakout
- DB9 to YC + Composite + Analog Audio + Component breakout
In the Box Magewell Pro Capture AIO - All-In-One 1-Channel HD Capture Card DVI to VGA Connector DVI-I to HDMI + Component Breakout DB9 to YC + Composite + Analog Audio + Component Breakout Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magewell Pro Capture AIO - All-In-One 1-Channel HD Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagewell 11020 Specs | Input Interface | 1 x DVI-I Connector:
DVI 1.0
HDMI 1.4a (via breakout cable)
VGA (via DVI to VGA connector)
Component (via breakout cable)
1 x DB9 Connector:
YC (S-Video)
Composite video
Analog audio (L+R)
Component video
1 x BNC Connector:
SD/HD/3G SDI | | Output Interface | PCIe 2.0 x1 | | Input Video Formats | Composite and YC (S-Video):
ADC: 12 bit
Standards: NTSC, PAL, SECAM
Component and VGA:
ADC: 12 bit
Color Formats: RGB, YCbCr (YUV)
Sync: separated, composite, sync-on-green (SOG), sync-on-luminance (SOY)
Timings: DMT, CEA, CVT, GTF
Sampling: 1:1 for input signals up to 165 MHz sampling rate
HDMI:
Receiver: 225 MHz
Color Depth: 8/10/12 bit
Color Sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
Audio Channels: Up to 8 channels
Audio Standards: IEC60958, IEC61937
Maximum Cable Length: Up to 98' (30 m)
SDI:
Standards: SD, HD, 3Ga, 3Gb, 3Ga-DL, 3Gb-DS
Color Depth: 10/12 bit
Color Sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
Audio: Up to 8 channels at 48 kHz
Maximum Cable Length: Up to 750' (230 m) for HD signals | | Video Processing | 2 x pipelines with processing bandwidth of approximately 180 MP/sec each
Precision: 10 bit
Processing:
Cropping, Scaling, De-Interlacing, Aspect Ratio Conversion, Color Format Conversion, Frame Rate Conversions, and OSD composition
De-Interlacing Modes:
Wave, blend top & bottom field, top field only, bottom field only
Video Color Format Conversion:
Color Formats: RGB, YCbCr 601, YCbCr 709, YCbCr 2020 | | Video Output | 400 MB/s per channel DMA bandwidth in PCIe 2.0 system
200 MB/s per channel DMA bandwidth in PCIe 1.0 system
Support for DirectGMA (AMD) and GPUDirect (Nvidia) | | Video Output Format | Resolutions: Up to 2048x2048 pixels
Frame Rates: Up to 120 fps (actual output frame rate can be limited by PCIe bandwidth and, at higher image resolutions, by the pixel clock of the on-board video processing hardware)
4:2:0 8-bit Formats: NV12, I420, YV12
4:2:2 8-bit Formats: YUY2, YUYV, UYVY
4:4:4 8-bit Formats: V308, IYU2, V408, BGR24, BGR32
4:4:4 10-bit Formats: V410, Y410
| | Supported Operating Systems | Windows: 7, 8, 8.1, 10, 2008, 2008 R2, 2012(x86 and x64)
Linux: based on V4L2, supports x86, x64, and arm architecture | | APIs | Windows: DirectShow, DirectKS, and Wave API/DirectSound/WASAPI
Linux: V4L2 and ALSA | | SDK | Pro Capture SDK for DirectShow for easy integration (Windows)
Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Additional video output formats supported via Pro Capture SDK for DirectKS | | Firmware Upgrade | Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (in most cases, even a reboot is not needed)
Safe Upgrades: reverts to initial version is system or power failure occurs during upgrade | | LED Indicators | Per Channel: idle, input signal locked, memory failed, or FPGA configuration failed | | Power Consumption | Maximum Current at 12 V: Approximately 0.4 A
Maximum Current at 3.3 V: Approximately 0.3 A
Maximum Power Consumption: Approximately 5.4 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 to 90% non-condensing | | Form Factor | Normal profile PCIe x1 add-on card
Without PCI Bracket: 3.65 x 3.79" (92.76 x 96.24 mm) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.2 x 7.5 x 3.6" |
