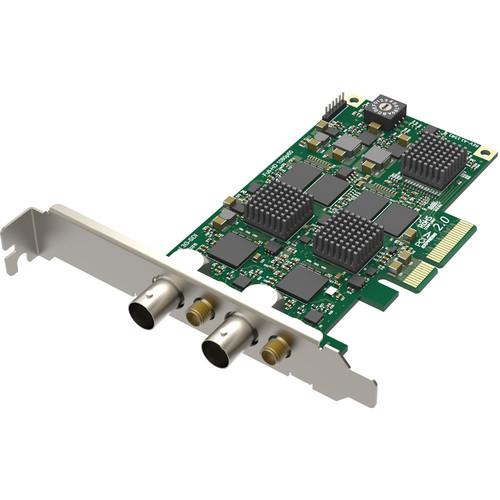

User Manual for Magewell Pro Capture Dual SDI Card Click to enlarge the picture
Contents of the user manual for the Magewell Pro Capture Dual SDI Card
- Product category: Computer Hardware Magewell
- Brand: Magewell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Magewell Computer Hardware
|
User manual for the Magewell Pro Capture Dual SDI Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Magewell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Magewell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Magewell product will considerably shorten its lifespan!
|
Product description The Pro Capture Dual SDI Card from Magewell is a low-profile PCIe Gen2 x4 card that allows for capturing 2 channels of SDI input. The card supports multiple color sampling modes, 10- and 12-bit color depths, up to 8 audio channels at 48 kHz, and output resolutions up to 2048x2048 with frame rates up to 120 fps. The card is also capable of numerous video processing features, including cropping, scaling, de-interleaving, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition.Pro Capture Dual SDI Card supports multiple cards per system and unlimited output streams with independently adjustable parameters per stream. Additional features include ultra-low latency, timestamp and A/V synchronization, and LED status indicators. The card supports both Windows, Linux, and Mac operating systems, multiple APIs for Windows and Linux, and provides Windows SDKs for easier integration. - SDI Input
-
- Integrated cable equalizer supports cable lengths of up to 755' for HD signals
- Supports SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
- Supports 2K (2048x1080) mode
- Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Supports 10/12-bit color depth
- Supports extraction of SMPTE 352 payload identifier
- Supports up to 8 audio channels at 48KHz
- Supports extraction of audio formation information & channel status data
- Limited support for 3Gb-DS, only the first stream can be captured
- Limited support for 3Gb-DL:
- 2K YCbCr 4:2:2 10-bit 1080p 50/59.94/60 stream is captured as 1080i 50/59.94/60
- Other modes fully supported
- Limited support for the first link of dual-link interfaces:
- YCbCr 4:2:2 10-bit 1080p 50/59.94/60 is captured as 1080i
- YCbCr 4:4:4 10-bit is captured as 4:2:2
- RGB 4:4:4 is captured as R/B sub-sampled
- Video Processing
-
- Two video processing pipelines with approximately 180MP/s processing bandwidth for each
- Supports full 10-bit video processing
- Video cropping and scaling
- Video de-interlacing (wave, blend top & bottom field, top field only, bottom field only)
- Aspect ratio conversion
- Automatic or manual selection of input and output aspect ratios
- Three aspect ratio conversion modes: ignore (anamorphic), cropping, or padding (letterbox or pillarbox)
- Video color format conversion
- Automatic and manual selection of input/output color formats, quantization ranges, and output saturation range
- Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
- Limited or full quantization range
- Limited, full, and extended gamut saturation range
- Video frame rate conversion
- Video OSD composition
- PNG OSD image of up to 2048x2048
- Dynamic loading of RGBA OSD image via SDK
- Multiple Cards per System
-
- Supports multiple cards plugged into one system
- On-board rotary switch to set card number, with 16 positions from 0 to F
- System hardware device tree will display “01: Pro Capture AIO” when rotary switch is set to 1, and so on
- The video and audio device names displayed in your software will include the card number (set by the rotary switch)
- Multiple Output Streams
-
- Unlimited output streams for any one input channel
- Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, and color adjustment settings for each individual stream
- Ultra-Low Latency Support
-
- Latency of 64 video lines
- Partial notification mode in SDK
- Timestamp & AV Synchronization
-
- Hardware-based 100ns high-resolution clock
- Audio frames (192 audio samples) & video frames are stamped with hardware clock
- Hardware clock can be synchronized across cards (via SDK)
- Video Output SG-DMA
-
- Supports auto detection of Intel tiled GPU surface
- Supports DirectGMA for AMD video adapter chipsets
- Supports GPUDirect for NVIDIA video adapter chipsets
- 700 MB/s per channel DMA bandwidth in a PCIe 2.0 system
- 400 MB/s per channel DMA bandwidth in a PCIe 1.0 system
- SDK
-
- Pro Capture SDK for DirectShow for easy integration (Windows)
- Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
- Windows Driver Tweaks
-
- All options can be controlled by three levels of registry key: global level, product level, and device level
- Video, audio, crossbar filter names can be customized via registry keys
- Firmware Upgrade
-
- Multiple cards in one system can be upgraded simultaneously
- Cards can be upgraded without a system power shutdown when it is not in use
- Supports Safe upgrade
- If power off or system breakdown occurs when the firmware is being upgraded, it will automatically restore to the initial version (only available for firmware version 1.21 and above)
In the Box Magewell Pro Capture Dual SDI Card (2-Channel) Low Profile Bracket SMA to BNC Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magewell Pro Capture Dual SDI Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagewell 11060 Specs | Input Interface | 2 x BNC (SD/HD/3G SDI) | | Output Interface | PCIe Gen2 x4
2 x SMA (SDI loopback) | | Supported OS | Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
Linux (based on V4L2, supports x86, x64 & arm architecture)
Mac OS X | | Supported APIs | Windows: DirectShow, DirectKS, Wave API/DirectSound/WASAPI
Linux: V4L2, ALSA | | Supported Software | VLC, VirtualDub, OBS, xSplit, vMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software | | Video Output Format | Image resolutions up to 2048×2048 pixels
Frame rates up to 120 fps (actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions; above 1280×1024)
4:2:0 8-bit output formats; NV12, I420, YV12
4:2:2 8-bit output formats; YUY2, YUYV, UYVY
4:4:4 8-bit output formats; V308, IYU2, V408, BGR24, BGR32
4:4:4 10-bit output formats: V410, Y410
More output formats are supported via Pro Capture SDK for DirectKS | | Video Output SG-DMA | 700 MB/s per channel DMA bandwidth in a PCIe 2.0 system
400 MB/s per channel DMA bandwidth in a PCIe 1.0 system | | LED Indicator | Per Channel: idle, input signal locked, memory failed, or FPGA configuration failed | | Power Consumption | Maximum Current at 12 V: 0.9 A
Maximum Current at 3.3 V: 0.5 A
Maximum Power Consumption: 12.4 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 to 90% non-condensing | | Form Factor | Low profile PCIe x4 add-on card
4.6 x 2.7" (116.2 x 68.9 mm) without PCI bracket | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 8.1 x 7.6 x 1.7" |
