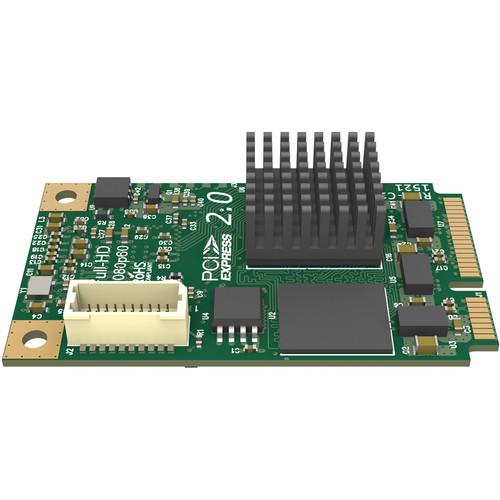

Product description The Magewell Pro Capture Mini HDMI is a mini PCIe capture card offering a single HDMI input for Windows and Linux computers. It supports the HDMI 1.4 standard and up to 1080p60 resolution and embedded audio. Instead of an integrated HDMI input, the card flexibly features a JST 20-pin input interface and includes an HDMI adapter that connects into the interface. - HDMI Features
-
- Customized EDID
- Extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
- Full colorimetry
- 8/10/12-bit color depths
- RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2 color sampling
- Up to 8-channel IEC60958/IEC61937 audio streams
- Extraction of audio formation information and channel status data
- Extraction of video timing information
- Extraction of 3D format information
- Extraction of Sony/Canon DSLR time code
- Display Format Support
-
- 4:2:0 8-bit : NV12, I420, YV12
- 4:2:2 8-bit : YUY2, YUYV, UYVY
- 4:4:4 8-bit : V308, IYU2, V408, BGR24, BGR32
- 4:4:4 10-bit : V410, Y410
- More display formats are supported via Pro Capture SDK for DirectKS
- Video Processing Features
-
- Two video processing pipelines with ~180 megapixels processing bandwidth for each one
- Full 10-bit video processing
- Cropping
- Scaling
- De-interlacing
- Frame rate conversion
- Aspect ratio conversion
- Color format conversion
- OSD composition
- Video De-Interlacing
-
- Weave
- Blend top and bottom field
- Top field only
- Bottom field only
- Video Aspect Ratio Conversion
-
- Auto or manual selection of input aspect ratio
- Auto or manual selection of display aspect ratio
- Three Aspect Ratio Conversion Modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)
- Video Color Format Conversion
-
- Auto or manual selection of input color format and quantization range
- Auto or manual selection of display color format, quantization range, and saturation range
- RGB, YCbCr 601, YCbCr 709, and YCbCr 2020 color formats
- Limited or Full quantization range
- Limited, Full, and Extended Gamut saturation range
- Video OSD Composition Support
-
- PNG OSD image
- Dynamic loading of RGBA OSD image via SDK
- SDK
-
- Pro Capture SDK for DirectShow for easy integration (Windows)
- Pro Capture SDK for DirectKS for maximum flexibility and performance (Windows)
- Windows Driver Tweaks
-
- All options controllable by 3 levels of registry key: global, product, and device level
- Video, Audio, Crossbar filter names are customizable via registry keys
- Firmware Upgrades
-
- Multiple cards in one system can be upgraded simultaneously
- Cards can be upgraded without a system power shutdown when they're not in use
- Other
-
- Unlimited display streams for any one input channel
- Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, and color adjustment settings for each individual stream
In the Box Magewell Pro Capture Mini HDMI HDMI Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Magewell Pro Capture Mini HDMI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMagewell Pro Capture Mini HDMI SH Specs | Host Interface | PCIe Gen2
1.2 x 2" (30 x 51 mm) | | Input Interface | JST SHD 20-pin connector supporting an included HDMI adapter | | Supported OS | Windows 7, 8, 8.1, 10, 2008, 2008 R2, 2012 (x86 and x64)
Linux (based on V4L2, supports x86, x64 and arm architecture) | | HDMI Support | HDMI 1.4a, up to 1080p60 resolution, 36-bit Deep Color video
LPCM audio
225MHz HDMI receiver
Adaptive HDMI equalizer support for cables lengths up to 98 ft (30 m)
Customized EDID
Extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut Info Frames
Full colorimetry support
8/10/12-bit color depths
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Up to 8-channel IEC60958/IEC61937 audio streams
Extraction of audio formation information and channel status data
Extraction of video timing information
Extraction of 3D format information
Extraction of Sony/Canon DSLR timecode | | Display Formats | Resolutions up to 1080p60 pixels
Frame rates up to 120 fps
(Actual display frame rate can be limited by PCIe bandwidth, and at higher image resolutions — above 1280 x 1024 — by the pixel clock of the on-board video processing hardware. For example: Max frame rate at 1920 x 1080 = ~80 fps.)
4:2:0 8-bit display formats: NV12, I420, YV12
4:2:2 8-bit display formats: YUY2, YUYV, UYVY
4:4:4 8-bit display formats: V308, IYU2, V408, BGR24, BGR32
4:4:4 10-bit display formats: V410, Y410
More display formats are supported via Pro Capture SDK for DirectKS | | Supported APIs | Windows: DirectShow, DirectKS, Wave API/DirectSound/WASAPI
Linux: V4L2, ALSA | | Supported Software | VLC, VirtualDub, OBS, xSplit, vMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, any other DirectShow/V4L2 encoding/streaming software | | Latency | 64 video lines
Partial notification mode in SDK | | Time Stamp | Hardware based 100ns high resolution clock
Audio frames (192 audio samples) and video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK) | | Video Display SG-DMA | 400 MB/s per channel DMA bandwidth in PCIe 2.0 system
200 MB/s per channel DMA bandwidth in PCIe 1.0 system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for NVIDIA video adapter chipsets | | Power Consumption | Max current at 3.3 V, 1.2 A
4 W max power consumption | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Relative Humidity | 5 - 90% non-condensing | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 5.3 x 4.1 x 0.9" |
